Резервный выключатель RCOB с функцией защиты от перегрузки и утечки, диференциальный выключатель JCB2LE-80M с 2 полюсами
ТЕХНИЧЕСКИЕ ДАННЫЕ

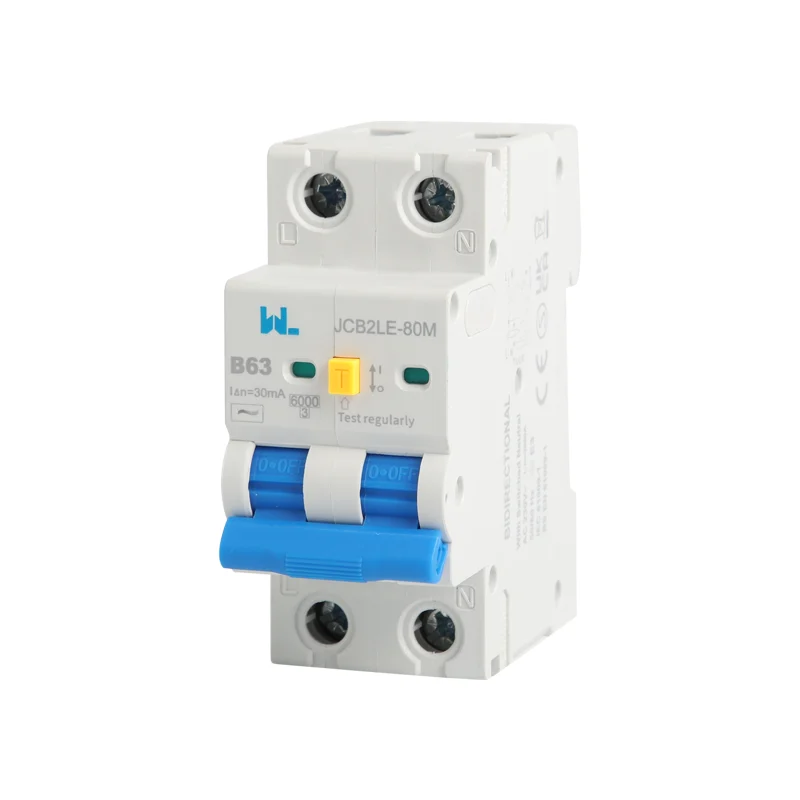

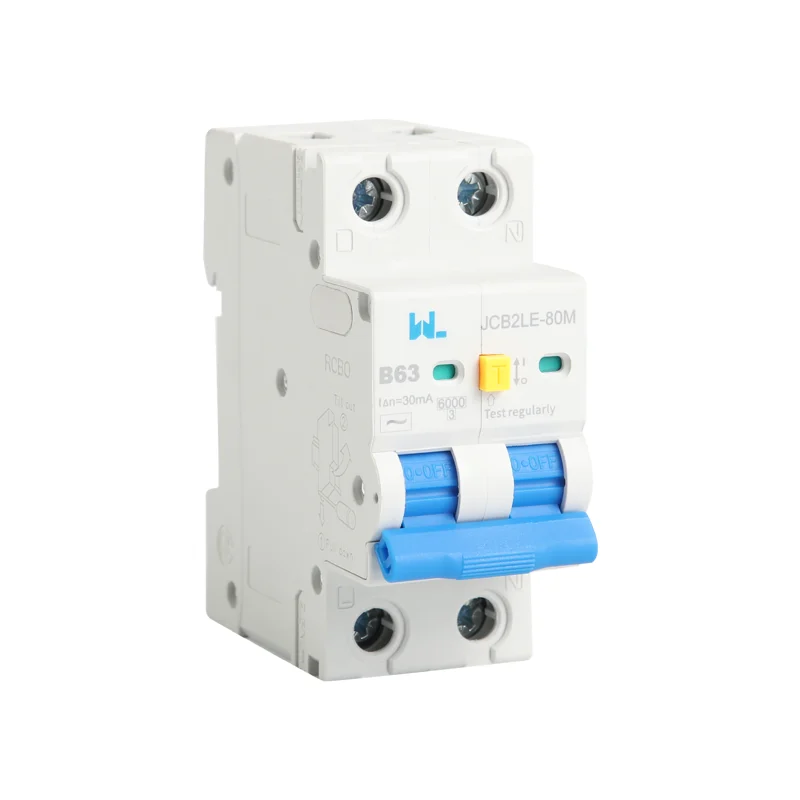

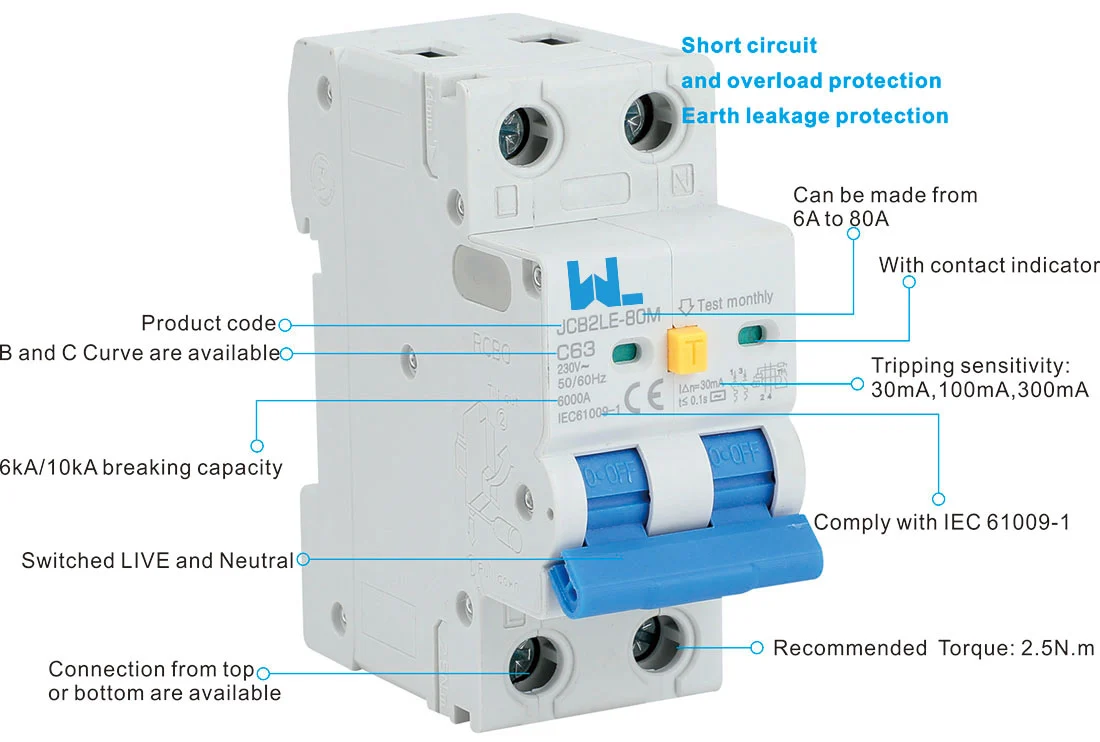

JCB2LE-80M 6kA 2 Pole Electronic RCBO Specifications
The JCB2LE-80M 2 pole RCBO is listed by W9 Group for residual-current, overload and short-circuit protection. Confirm the selected current, waveform response and wiring arrangement on the matching datasheet.
|
Стандартный |
IEC61009-1 , EN61009-1 |
|
|
Electrical features |
Максимальный ток в А (А) |
6, 10, 16, 20, 25, 32, 40,50,63,80 |
|
Тип |
Электронный |
|
|
Тип (форма волны обнаруженного утечка электроэнергии) |
A or AC are available |
|
|
Поляки |
2 Pole |
|
|
Номинальное напряжение Ue (V) |
230/240 |
|
|
Rated sensitivity I△n |
30mA,100mA,300mA are available |
|
|
Изоляционное напряжение Ui (В) |
500 |
|
|
Определенная частота |
50/60 Гц |
|
|
Максимальный пробойной прочность |
6kA |
|
|
Rated impulse withstand voltage(1.2/50) Uimp (V) |
6000 |
|
|
Уровень загрязнения |
2 |
|
|

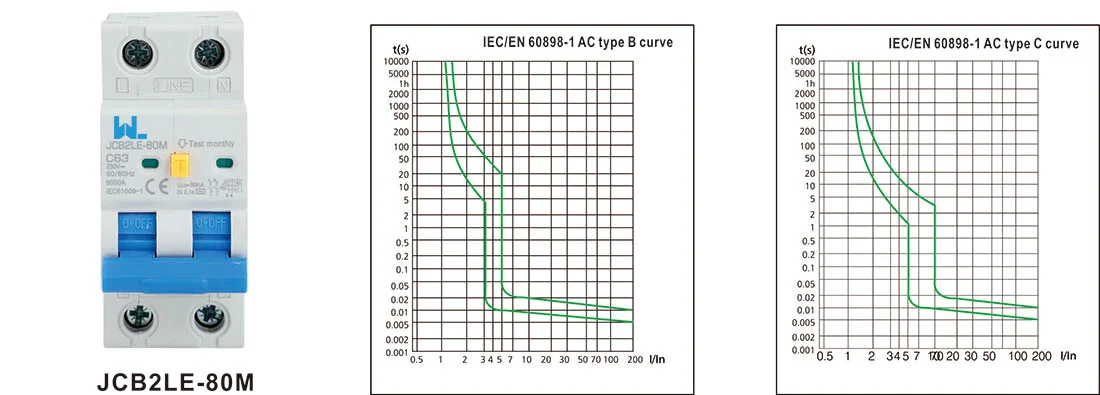

Характеристика термомагнитного разрыва |
B, C |
|
|
Mechanical features |
Электрическая жизнь |
2, 000 |
|
Механический срок службы |
10, 000 |
|
|
Индикатор положения контакта |
Да |
|
|
Степень защиты |
IP20 |
|
|
Референтная температура для настройки теплового элемента (℃) |
30 |
|
|
Ambient temperature (with daily average ≤35℃) |
-5…+40 |
|
|
Storage temperation (℃) |
-25…+70 |
|
|
Установка |
Тип терминального соединения |
Кабельный/U-образный разделительный щит/Разделительный щит с винтовыми наконечниками |
|
Верхний и нижний размер терминала для кабеля |
25mm2 / 18-3 AWG |
|
|
Высокоскоростной терминал для разветвления кабелей |
10mm2 / 18-8 AWG |
|
|
Усиление крутящего момента |
2.5 N*m / 22 In-Ibs. |
|
|
Установка |
На DIN-рейле EN 60715 (35 мм) с помощью устройства с быстрым зажимом |
|
|
Вставка |
Доступны варианты сверху или снизу |
ГИД ПО ОТБЕРЕЖЕ
Selecting a Type A or AC 2 Pole RCBO for 6–80A Circuits
Specify the rated current, breaking-capacity version, B or C curve, waveform type, residual-current sensitivity and terminal connection when requesting a JCB2LE-80M quotation from W9 Group.
Select the rated current
The table lists 6, 10, 16, 20, 25, 32, 40, 50, 63 and 80 A. Specify the selected current rather than ordering only by series name.
Specify leakage protection
Choose Type A or Type AC and the required 30 mA, 100 mA or 300 mA sensitivity, subject to confirmation of the ordered combination.
Identify the breaking rating
Check the circuit’s prospective fault current against the standard 6 kA breaking capacity.
Check board connections
The table lists cable, U-type busbar and pin-type busbar terminals and top or bottom connection. Confirm compatibility with the board and follow the supplied installation instructions.
О W9 GROUP
W9 Group 2 Pole Electronic RCBO Supply and Support
Zhejiang W9 Group Technology Co., Ltd. includes RCBOs in its low-voltage electrical product range. For a JCB2LE-80M order, contact W9 Group about the required configuration and product documents.
СВЯЗАННЫЕ РЕСУРСЫ
JCB2LE-80M 2 Pole Electronic RCBO Technical Document Requests
Use W9 Group’s RCBO guide and product directory for context. Request a datasheet and wiring diagram matching the selected JCB2LE-80M configuration.
ИНФОРМАЦИОННЫЙ БРОШУРАExplore W9 Group circuit-protection productsBrowse the product directory to compare RCBO models
ДОКУМЕНТЫЦентр загрузки программ W9 GroupRequest the current document for your quoted JCB2LE-80M variant
Часто задаваемые вопросы покупателей
RCBO FAQs: Trip Curves and Leakage Sensitivity
Find answers about ratings, configuration and ordering.
Is JCB2LE-80M a 2 pole RCBO?
The JCB2LE-80M technical data lists two poles and live-and-neutral disconnection. Check terminal identification in the supplied wiring diagram.
Is the standard breaking capacity 6 kA or 10 kA?
The standard JCB2LE-80M rating is 6 kA. W9 Group also mentions a possible 10 kA upgrade; request the exact variant and its rating documents if your circuit requires the higher capacity.
Can I specify JCB2LE-80M as a 16 A RCBO?
The JCB2LE-80M current schedule includes 16 A, with B and C trip curves listed for the series. For a 16 A RCBO enquiry, specify the curve, residual-current sensitivity and Type A or Type AC detection. Confirm the exact combination on the quotation.
What is needed for a JCB2LE-80M quotation?
Send the required configuration, quantity and destination market. Ask W9 Group to confirm price, minimum order quantity and lead time for the selected model.
How should I specify JCB2LE-80M rated current and leakage sensitivity together?
State the load-current rating and residual-current sensitivity as separate selections, together with the waveform type and trip curve. Confirm the available JCB2LE-80M combination on the order-code datasheet.
What should I check for JCB2LE-80M cable or busbar connections?

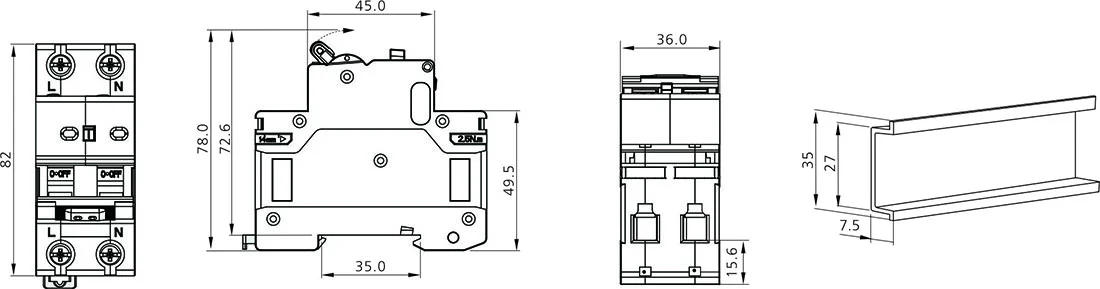

Request the selected terminal drawing and confirm cable size, busbar form, tightening requirements and connection direction against the board design. Do not infer fit from the two-pole description alone.
Which JCB2LE-80M documents are needed for a consumer-unit layout?
Request the exact-version outline, connection diagram and operating instructions. Confirm the terminal clearance and board space for the selected JCB2LE-80M before installation.
ЗАЯВКА О ПОКУПКЕ ПРОДУКТА
Request a JCB2LE-80M 2 Pole Electronic RCBO Quotation
Tell W9 Group your rated current, breaking-capacity version, B or C curve, waveform type, residual-current sensitivity and terminal connection, quantity and destination market so the selected configuration can be identified.
