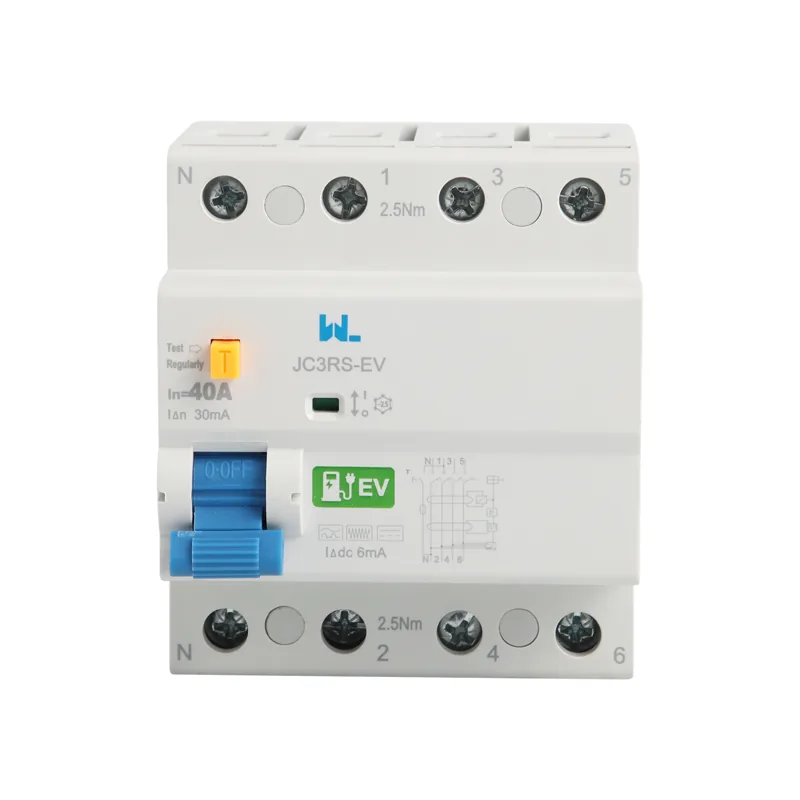

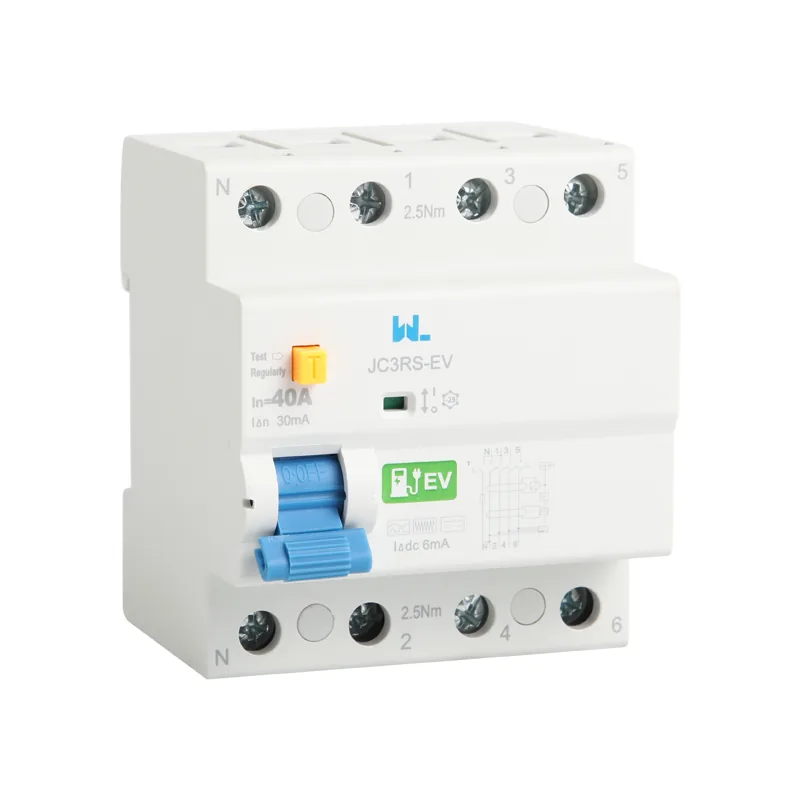

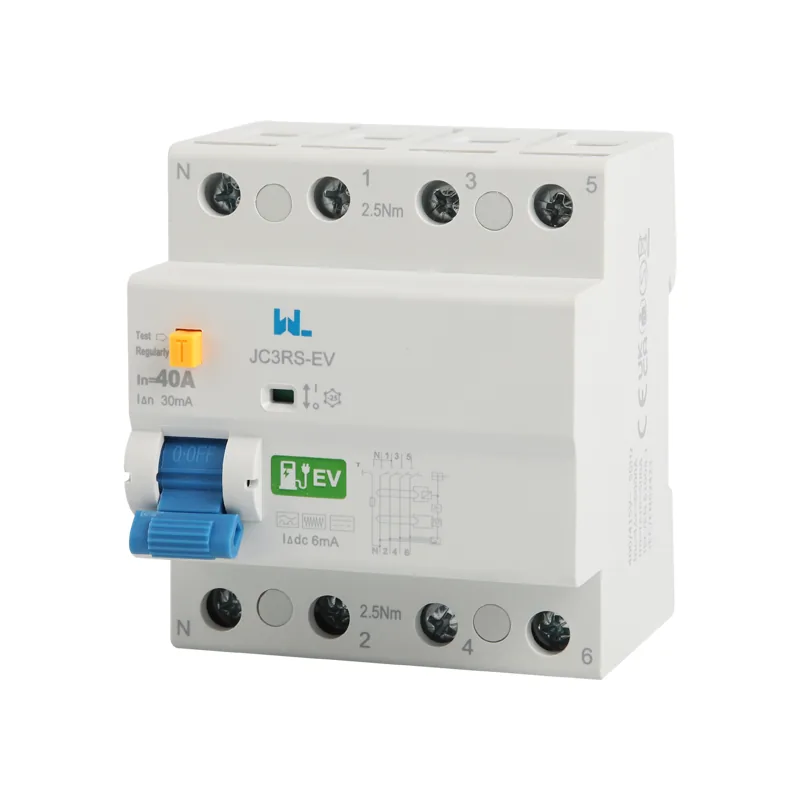

JC3RS-EV Residual Current Device
TECHNICAL DATA
JC3RS-EV Residual Current Device Product Information
JC3RS-EV appears in the W9 Group catalogue as a residual current device. Include the complete model when discussing the charging equipment, required residual-current response and supply configuration. Confirm the offered device functions on a JC3RS-EV-specific schedule.
The older summary and retained original table differ in sensitivity, current options and standards references. Confirm each operating threshold with its unit and the exact protection functions before installation.
| Standard | IEC61009-1, IEC62955 | |
| Electrical features | Type(wave from of the earth leakage sensed) | EV(A+DC leakage current) |
| Rated current In (A) | 40, 63 | |
| Poles | 1P+N, 3P+N | |
| Rated voltage Ue (V) | 1P+N: 230/240 3P+N: 400/415 | |
| Rated sensitivity IΔn | 0.03mA | |
| DC tripping threshold IΔdc | 6mA | |
| Insulation voltage Ui (V) | 500 | |
| Rated residual making and breaking capacity IΔm | 500(In=25A/40A), 630(In=63A) | |
| Rated frequency | 50Hz | |
| Rated breaking capacity | 10KA | |
| SCPD fuse | 10000A | |
| Break time under IΔn | ≤0.1s | |
| Rated impulse withstand voltage (1.2/50) Uimp (V) | 4,000 | |
| Dielectric test voltage at ind.Freq. for 1 min (KV) | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | 2,000 |
| Mechanical life | 4,000 | |
| Contact position indicator | Yes | |
| Protection degree | IP20 | |
| Reference temperature for setting of thermal element(℃) | 30 | |
| Ambient temperature(with daily average ≤35℃) | -5…+40 | |
| Storage temperature(℃) | -25…+70 | |
| Installation | Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm2/18-3AWG | |
| Terminal size top/bottom for Busbar | 10mm2/18-8AWG | |
| Tightening torque | 2.5N*m/22In-lbs | |
| Mounting | On DIN rail EN 60715(35mm) | |
| Connection | From top or bottom are available |
