JC3RH-BS Type B RCCB
TECHNICAL DATA

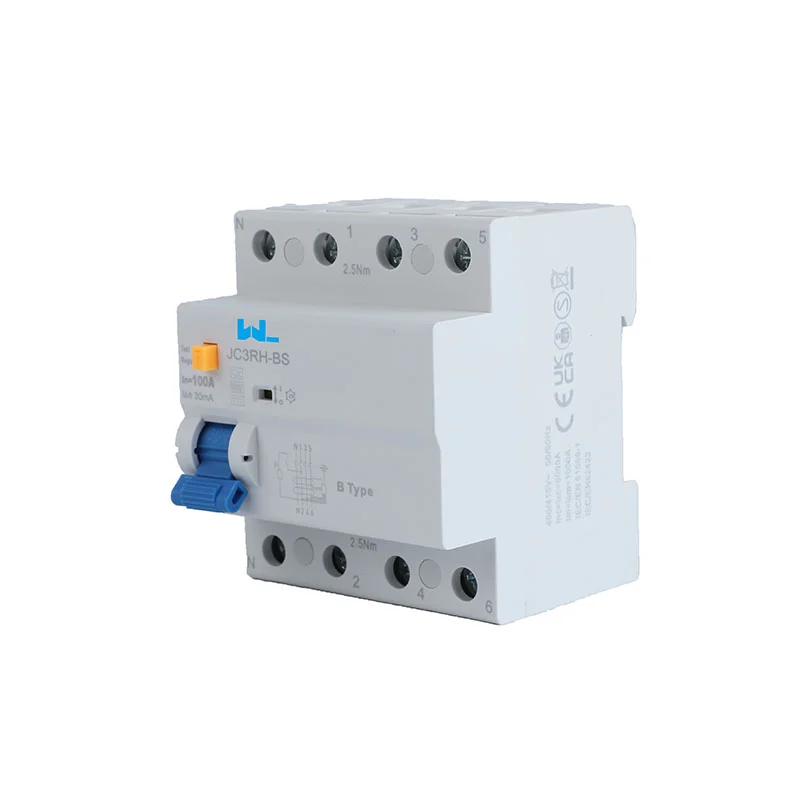

JC3RH-BS Type B RCCB for AC, Pulsating DC and Smooth DC Residual Currents
The JC3RH-BS Type B RCCB is listed by W9 Group for residual-current protection where the load can produce sinusoidal AC, pulsating DC or smooth DC leakage components. The target table offers 1P+N and 3P+N configurations. Select the current, sensitivity and backup protective device using documentation matching the complete order code.
| Standard | IEC62423 & IEC61008-1 | |
|
Electrical features |
Type (wave form of the earth leakage sensed) | B |
| Rated current In | 25A, 40A, 63A, 80A, 100A | |

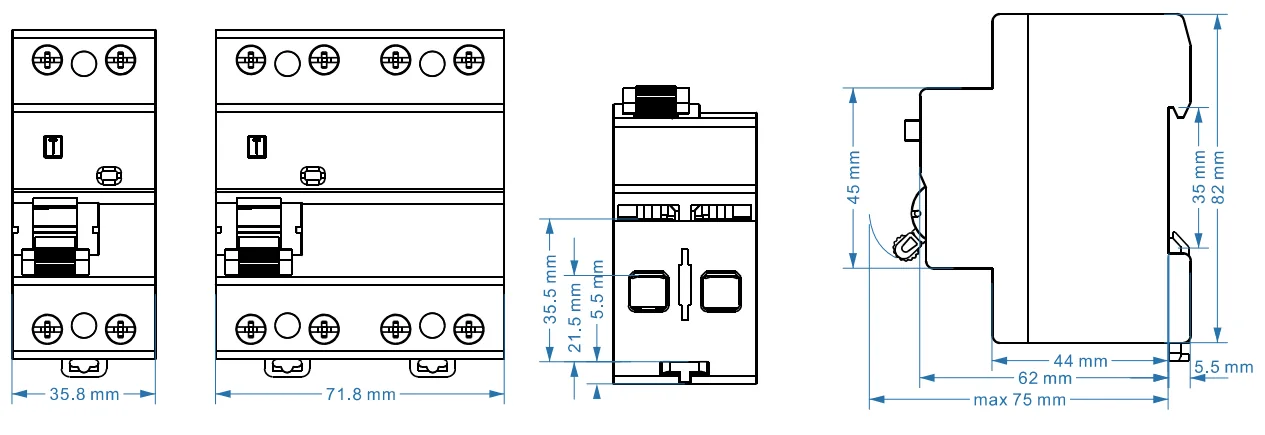

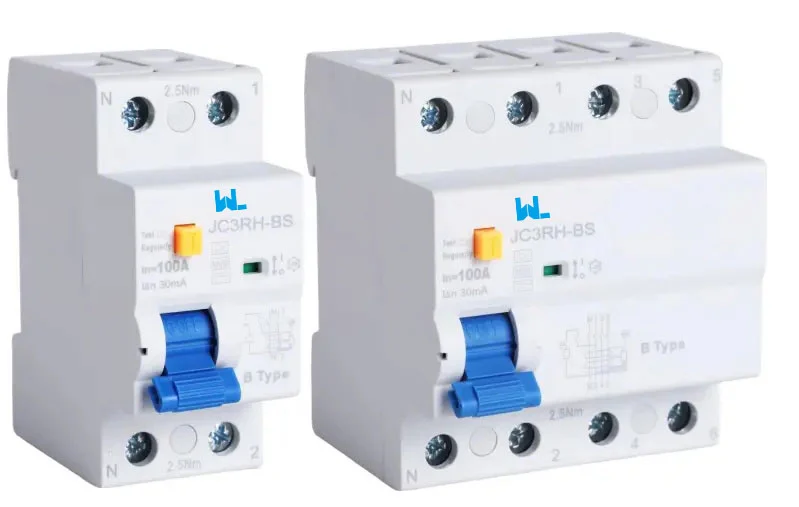

| Poles | 1P+N, 3P+N | |
| Rated voltage Ue | 1P+N:230V/240V~; 3P+N:400V/415V~; | |
| Rated sensitivity I∆n | 0.03A, 0.1A, 0.3A | |
| Insulation voltage Ui | 500V | |
| Rated residual making and breaking capacity I∆m | 500 (In=25A/40A), 630 (In=63A), 1000(In=80A/100A | |
| Short-circuit current Inc=I∆c | 6kA,10kA | |
| SCPD fuse | 10000A | |
| break time under I∆n | ≤0.1 S | |
| Rated frequency | 50Hz | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4,000V | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 kV | |
| Pollution degree | 2 | |
|
Mechanical features |
Electrical life | 2, 000 |
| Mechanical life | 10,000 | |
| Fault current indicator | Yes | |
| Protection degree | IP20 | |
| Ambient temperature (with daily average≤35°C) | -25°C…+40°C | |
| Storage temperation | -25°C…+70°C | |
| Installation | Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25/35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) | |
| Connection | From top and bottom |
SELECTION GUIDE
How to Select a JC3RH-BS Type B RCCB by Poles, Current and Sensitivity
Specify the complete order code, load type, poles, supply voltage, current, sensitivity and backup device when requesting a JC3RH-BS quotation from W9 Group.
Identify the leakage waveform
Check the load manufacturer requirements for smooth-DC and frequency-dependent residual currents. Confirm the Type B response envelope for the exact device.
Match poles and neutral wiring
Specify 1P+N or 3P+N and the actual supply voltage. Request the neutral-terminal, supply and load connection diagram.
Choose current and sensitivity
Select rated current and residual-current sensitivity separately. Confirm the protection objective and upstream/downstream trip-time coordination.
Check backup and application rules
Request the permitted backup protective device and conditional short-circuit data. For inverter or charging circuits, include the equipment protection specification.
ABOUT W9 GROUP
W9 Group JC3RH-BS Type B Residual Current Circuit Breaker Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a JC3RH-BS enquiry, contact W9 Group about configuration and matching product documents.
RELATED RESOURCES
JC3RH-BS Type B RCCB Wiring, Trip-Time and Backup-Protection Documents
Use technical support and related products to specify JC3RH-BS. Request a datasheet and wiring diagram matching the selected JC3RH-BS configuration.
RELATED PRODUCTJC3RH-BCompare function and configuration; request separate model ratings
DOCUMENTSW9 Group download centreRequest the current document for your quoted JC3RH-BS variant
BUYER FAQ
JC3RH-BS Type B RCCB FAQs: Smooth DC, Inverter Loads and Selectivity
Find answers about JC3RH-BS selection, configuration and ordering.
What does Type B mean on the JC3RH-BS RCCB?
Here Type B describes the residual-current waveform response, including smooth DC in the supplier description. It is different from the B overcurrent trip curve used to describe an MCB.
Which current and sensitivity options are listed?
The target table lists 25 A, 40 A, 63 A, 80 A and 100 A, with residual-current sensitivity choices of 0.03 A, 0.1 A and 0.3 A. Confirm the selected combination.
Which supply and pole configurations are available?
The table lists 1P+N at 230/240 V AC and 3P+N at 400/415 V AC, with a rated frequency of 50 Hz. Confirm the offered configuration and neutral connection diagram.
Can I use it with an inverter, rectifier or charging circuit?
The supplier discusses nonlinear loads and smooth-DC leakage. Confirm the equipment maker requirements, residual-current spectrum, local installation rules and exact-model response data; this is not a universal application approval.
Does the RCCB include overload and short-circuit protection?
The target identifies an RCCB and cites residual-current standards. Confirm a separate overcurrent protective device and the specified conditional short-circuit arrangement; do not interpret conditional capacity as integrated overcurrent protection.
Does the BS suffix guarantee selective or time-delayed tripping?
A suffix alone is insufficient. The available shared schedule does not establish a distinct selective curve for every model. Confirm the exact delay class and trip-time data before coordinating devices.
What is needed for a JC3RH-BS quotation?
Send the required configuration, quantity, destination market and document requirements. Ask W9 Group to confirm price, minimum order quantity, samples and lead time for the selected configuration.
