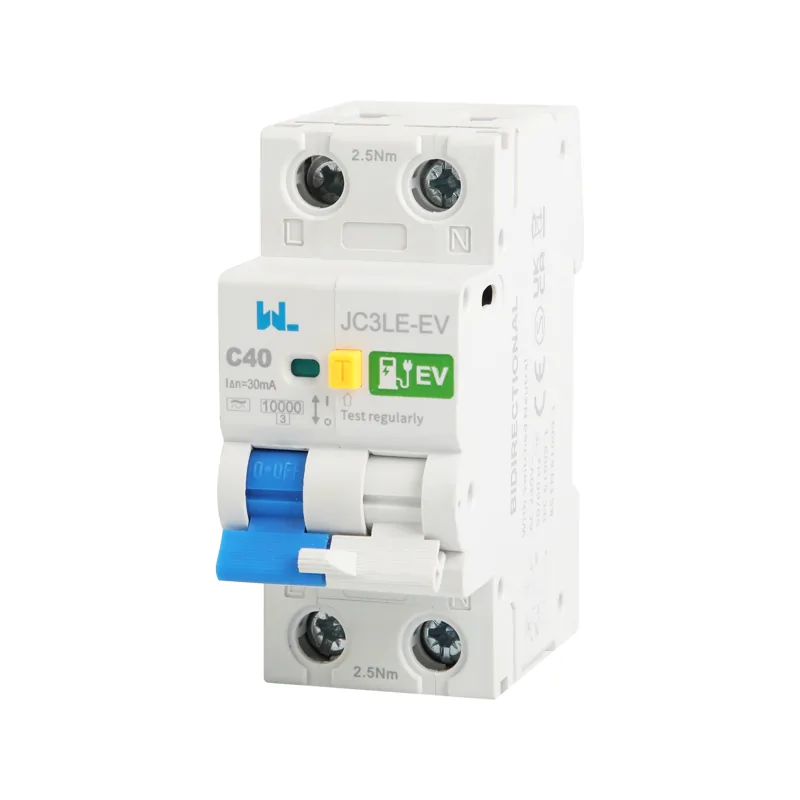

JC3LE-EV 유형 EV 2극 RCBO 10KA
기술 데이터
JC3LE-EV Two-Pole RCBO Product Information
The W9 Group title identifies JC3LE-EV as a Type EV two-pole RCBO with a 10kA designation. For an enquiry, specify the load current, residual-current response and connection arrangement; confirm the actual breaking capacity and release design for the supplied version.
The title states 10kA, while the retained original table states 6kA; the source descriptions also differ on the release design. Confirm these details on one datasheet matching the offered order code.
| 제품 코드 | JC3LE-EV | |
| 표준 | IEC61009-1, EN61009-1 | |
| 전기 기능 | 정격 전류(A) | 6, 10, 16, 20, 25, 32, 40, 63 |
| 형태 | 전자적 | |
| 형태(지하 배수관 누설 감지된 파형) | A는 사용 가능합니다. | |
| 폴란드인 | 2폴 | |
| 정격 전압 Ue(V) | 230/240 | |
| 등급 감도 IΔn | 30mA, 100mA, 300mA | |
| 절연 전압 Ui(V) | 500 | |
| 정격 주파수 | 50/60Hz | |
| 최대 절단 용량 | 6KA | |
| 인덕션 전류 저항 전압(1.2/50) Uimp(V) | 6,000 | |
| 1분 동안 인덕턴스 주파수에서 발생한 전압 (KV) | 2 | |
| 오염 정도 | 2 | |
| 열 자성 방출 특성 | B, C | |
| 기계적 특징 | 전기 수명 | 2,000 |
| 기계적 수명 | 10,000 | |
| 접촉 위치 표시기 | 네 | |
| 보호 수준 | IP20 | |
| 열체 열 설정 기준 온도(℃) | 30 | |
| 기온(일일 평균 ≤35℃) | -5…+40 | |
| 저장 온도(℃) | -25…+70 | |
| 설치 | 터미널 연결 유형 | 케이블/U형 버스바/핀형 버스바 |
| 케이블의 상단/하단 터미널 사이즈 | 25mm2/18-3AWG | |
| 버스바용 터미널 사이즈 상단/하단 | 10mm2/18-8AWG | |
| 강력한 토크 | 2.5N*m/22인치-파운드 | |
| 장착 | DIN 레일 EN 60715(35mm)에 맞게 | |
| 연결 | 상단 또는 하단에서 사용할 수 있습니다. | |
선정 가이드
Selecting JC3LE-EV 2 pole RCBO for Your Installation
Use JC3LE-EV as the enquiry reference and confirm the selected configuration against your circuit, connection and installation requirements.
Select load and overcurrent duty
Provide load current, conductor details and prospective fault current. Confirm the ordered current and time-current curve.
Specify residual-current response
Confirm the required waveform response and sensitivity using the exact product schedule and the connected equipment requirements.
Check the EV protection arrangement
For an EV charging circuit, provide the charger instructions and its DC detection arrangement. Confirm any separate protection required by the installation.
Confirm pole and terminal wiring
Request the supply, load, neutral and test-circuit diagram. Confirm terminal capacity, mounting and distribution-board compatibility.
