MCCB 보조 접점
기술 데이터

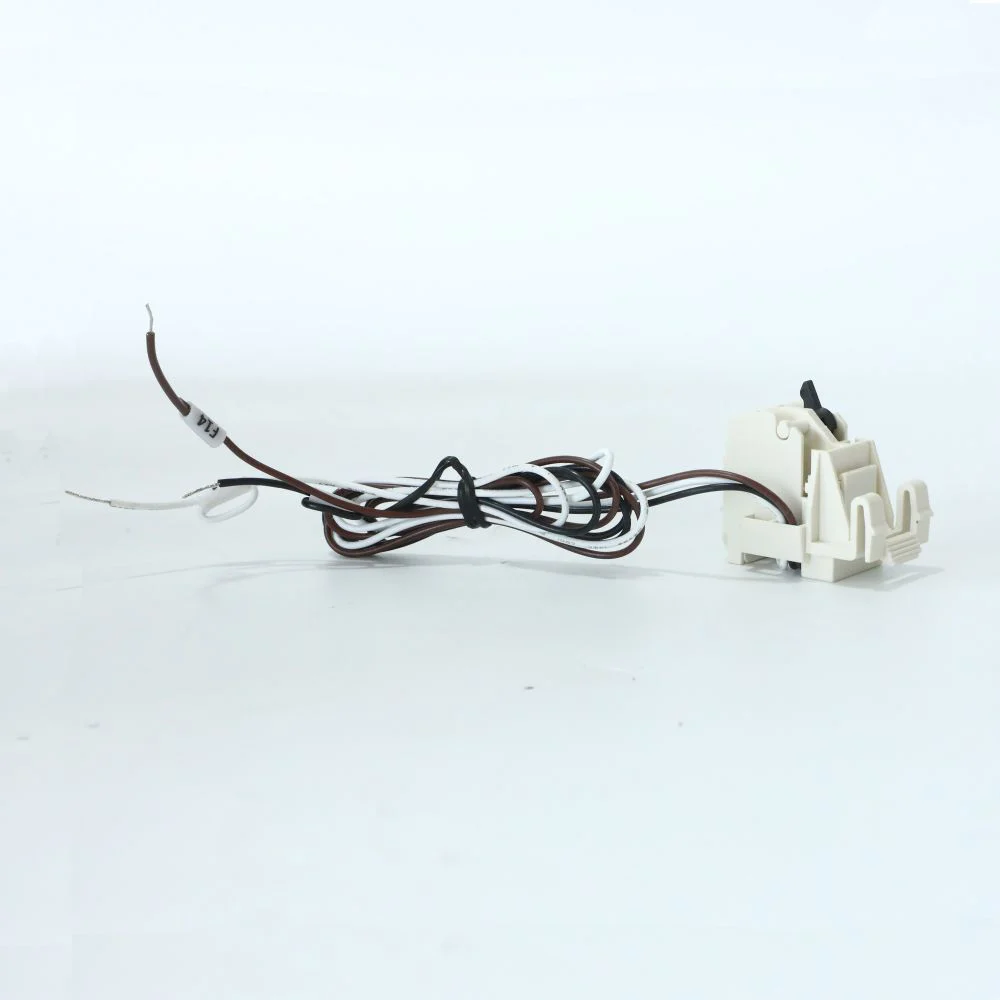

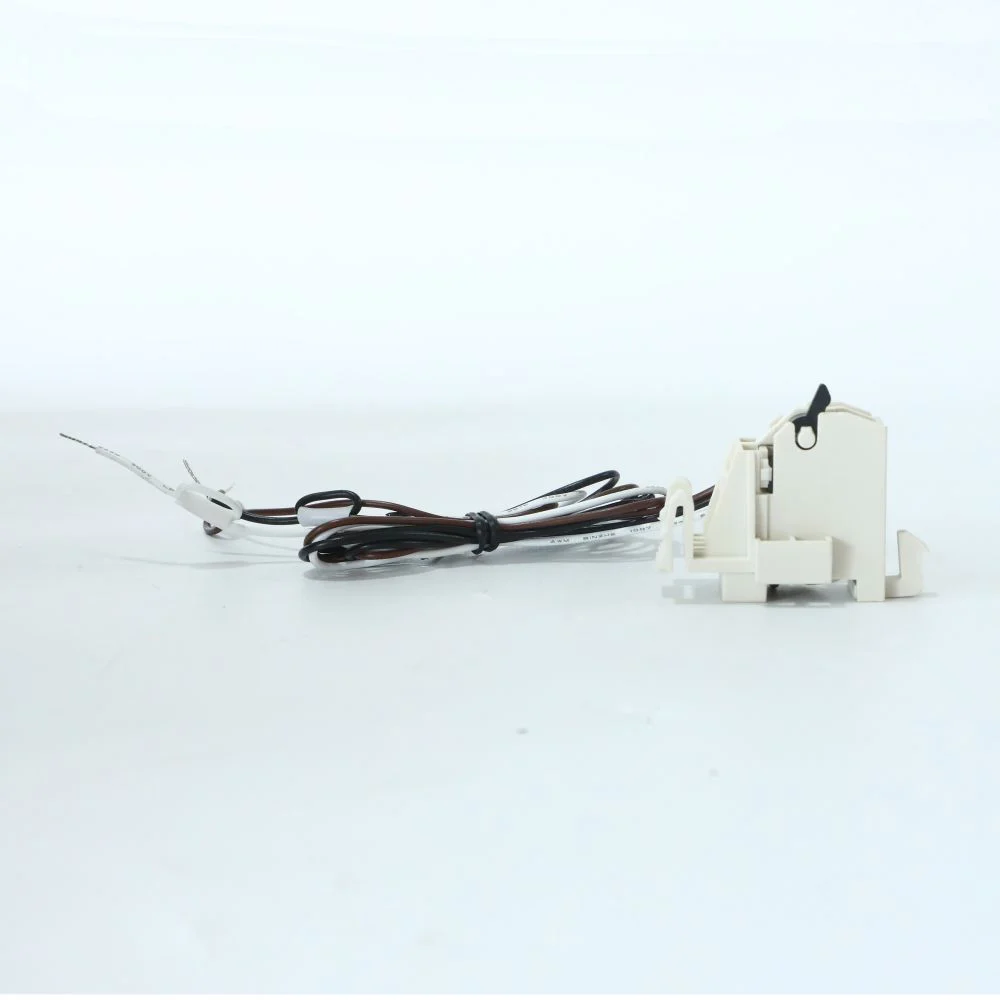

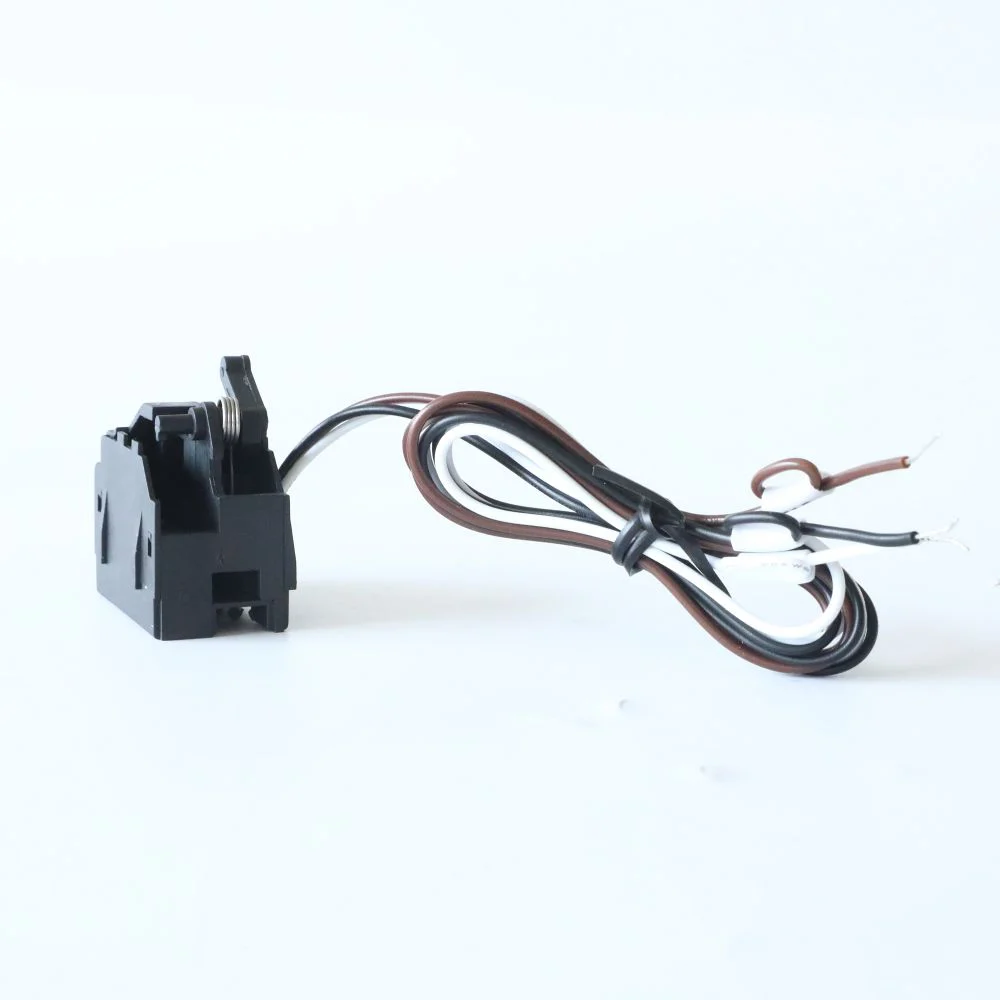

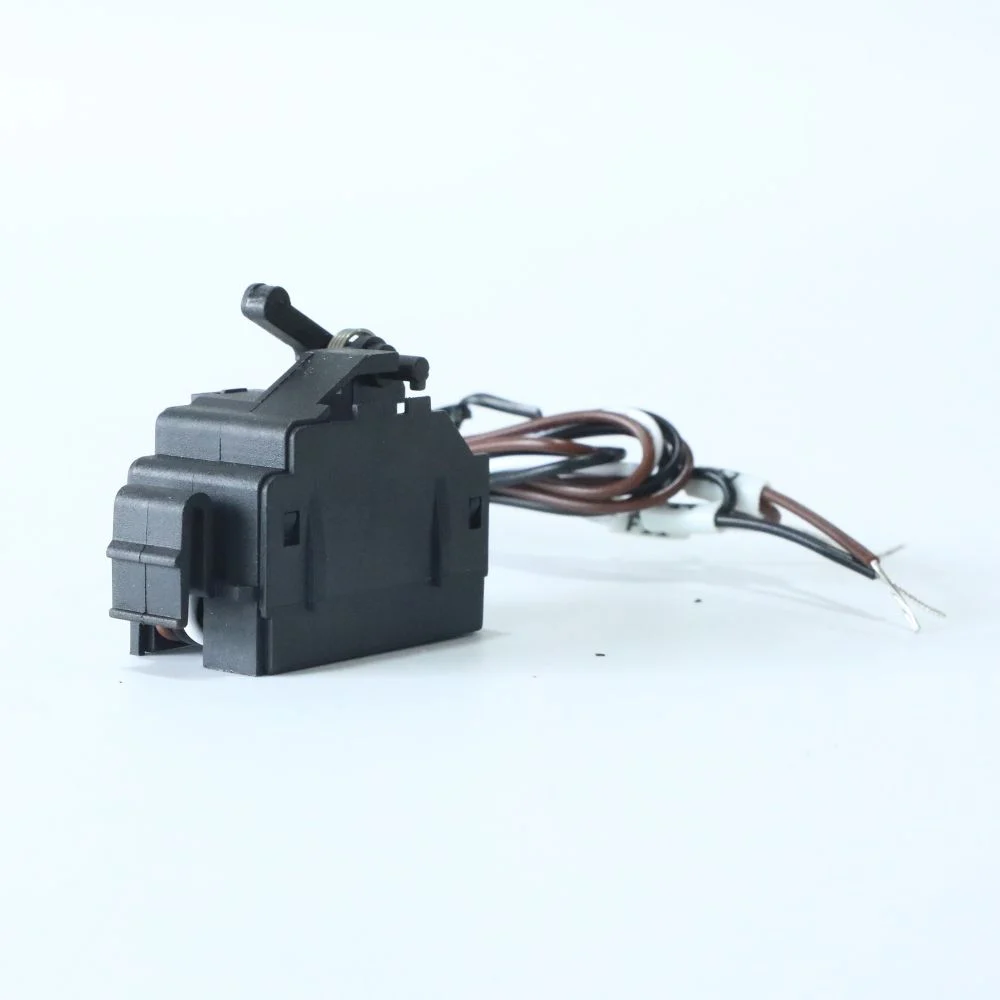

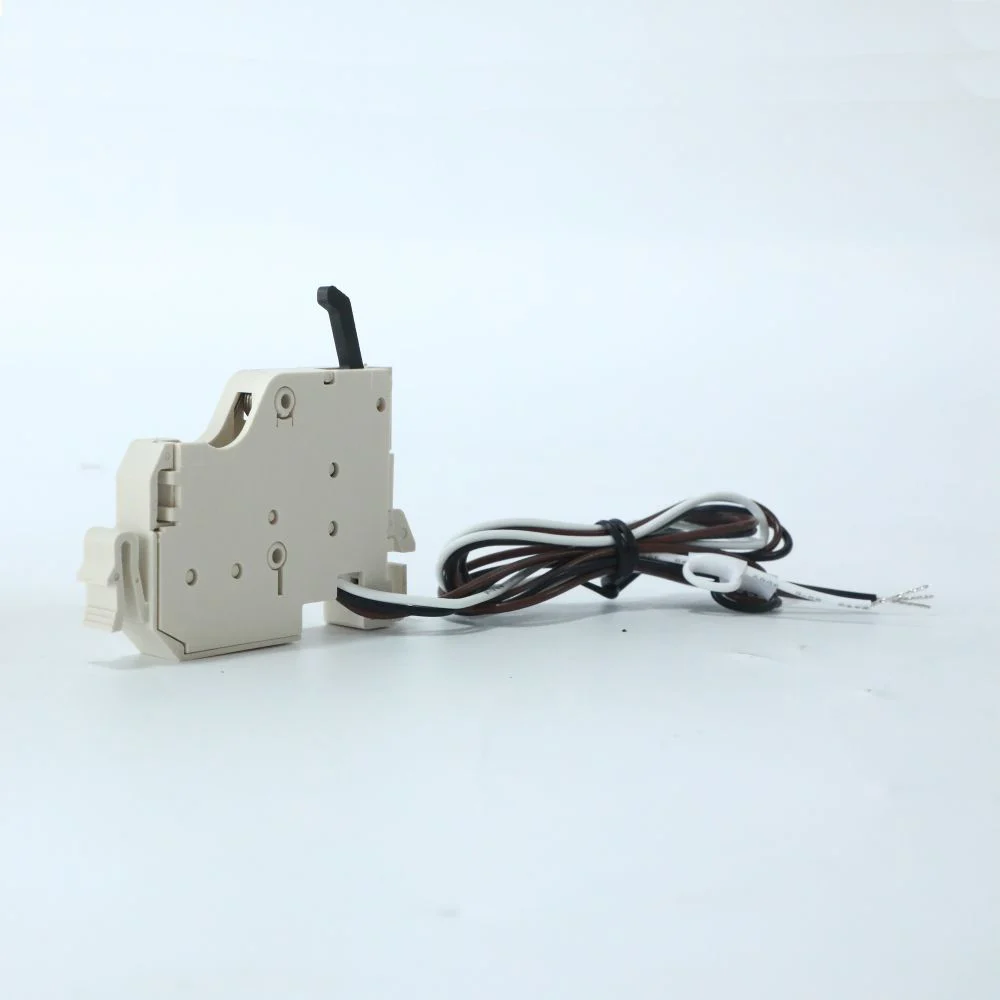

MCCB auxiliary contact specifications
W9 Group lists this MCCB auxiliary contact for remote indication of the breaker’s ON or OFF/tripped status through an auxiliary circuit. Select the contact using the host frame and the required signaling duty; the contact does not carry the breaker’s main load current.
| Frame | 125/160 | 250 | 400 |
| code | AX-125 | AX-250 | AX-400 |
| Ue(V) | 에이씨 | DC | |||
| 230V | 400V | 110 | 220 | 24 | |
| ln(A) | 0.3 | 0.3 | 0.15 | 0.15 | 0.15 |
선정 가이드
Selecting an auxiliary contact for the MCCB frame
Specify the complete order code, circuit duty, installation conditions and required documents when requesting a MCCB auxiliary contact quotation from W9 Group.
호스트 브레이커 식별하기
Provide the full MCCB model, frame and existing accessory arrangement. Confirm mechanical and electrical compatibility before ordering.
Specify the required function
Describe the operating or signaling task and the intended control system. Confirm the accessory function and any additional components.
Match the connection details
Request the exact wiring or installation drawing, mounting dimensions and terminal arrangement for the offered accessory.
Confirm the order contents
Confirm included parts, operating conditions and required documentation. Do not infer a complete control assembly from an accessory name.
W9 그룹 소개
W9 Group support for MCCB auxiliary contact selection
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a MCCB auxiliary contact enquiry, contact W9 Group about configuration and matching product documents.
관련 자료
MCCB auxiliary contact terminal and contact-duty documents
Use technical support and related products to specify MCCB auxiliary contact. Request a datasheet and wiring diagram matching the selected MCCB auxiliary contact configuration.
구매자 FAQ
MCCB auxiliary contact signaling and compatibility FAQs
Find answers about MCCB auxiliary contact selection, configuration and ordering.
What does this contact indicate?
The source describes remote indication of the breaker’s ON or OFF/tripped state. Confirm the exact contact sequence for manual opening, fault trip and reset.

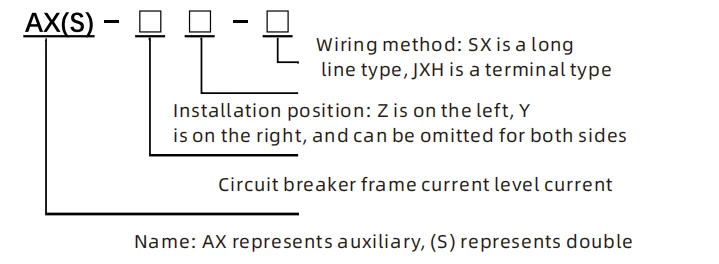

Which accessory codes and host frames are listed?
The original table lists AX-125, AX-250 and AX-400 with frame associations. Confirm the complete host model, mounting position and compatible order code.
Can it switch the breaker’s main load?
Treat the accessory as a signaling contact and confirm its contact-duty rating. The host breaker’s main current rating is not the accessory’s switching rating.
How should I choose between AC and DC signaling circuits?
Provide the signaling supply, circuit current and load type. Request the matching contact rating and terminal diagram; do not transfer an AC rating directly to a DC control circuit.
Are normally open and normally closed terminals identified?

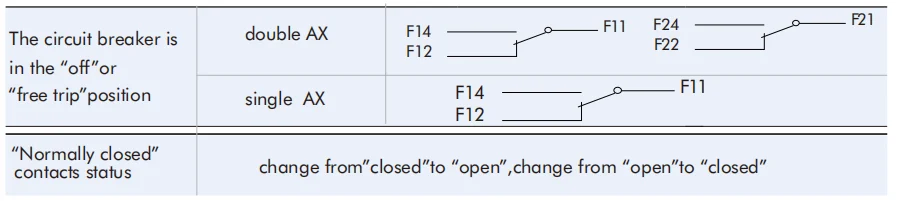

Request the exact terminal and contact-state diagram, including the state before operation, after a trip and after reset. The contact arrangement must match the control logic.
Does the contact include a remote trip or motor mechanism?
No such mechanism is established by this signaling accessory description. Confirm any separate shunt release, motor operator or controller required by the system.
What is needed for a MCCB auxiliary contact quotation?
필수 구성, 수량, 대상 시장, 문서 요구 사항을 보내주세요. 선택한 구성에 대한 가격, 최소 주문 수량, 샘플 및 리드 타임을 W9 Group에 확인해 주세요.
제품 문의
Request an MCCB auxiliary contact quotation
W9 Group에 주문번호, 회로 사용 목적, 설치 조건 및 필요한 서류, 수량 및 판매처를 알려주시면 선택된 구성이 확인될 수 있습니다.
