JCR2-63 RCBO
اطلاعات فنی
JCR2-63 2 Pole 10kA RCBO Specifications

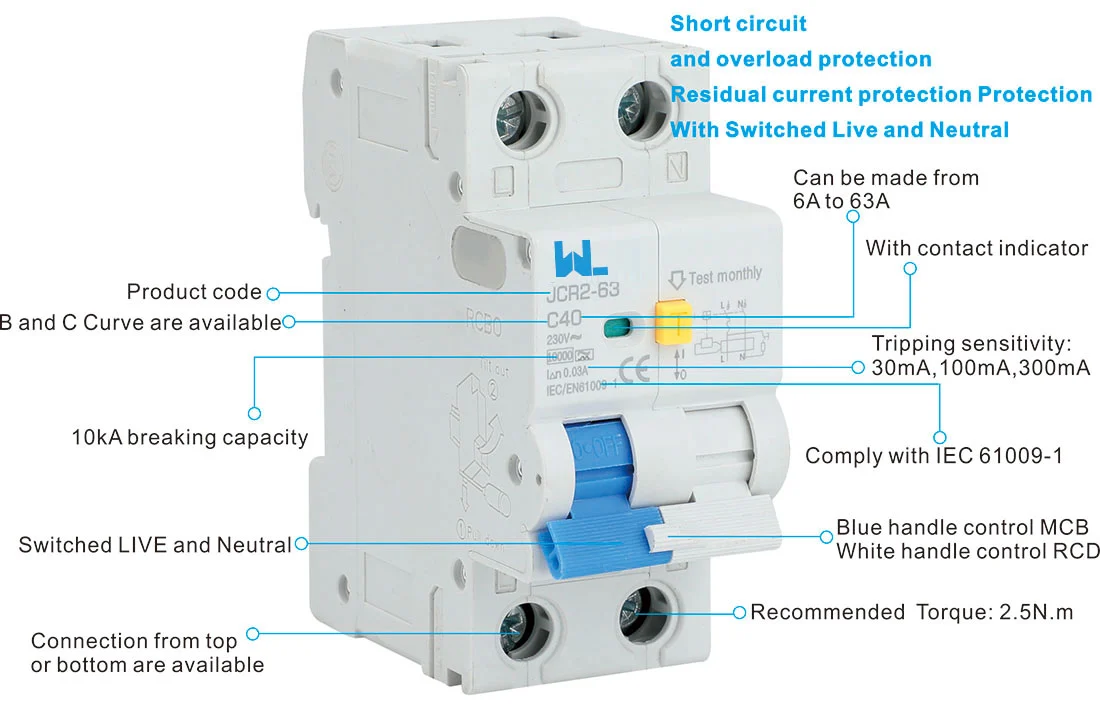

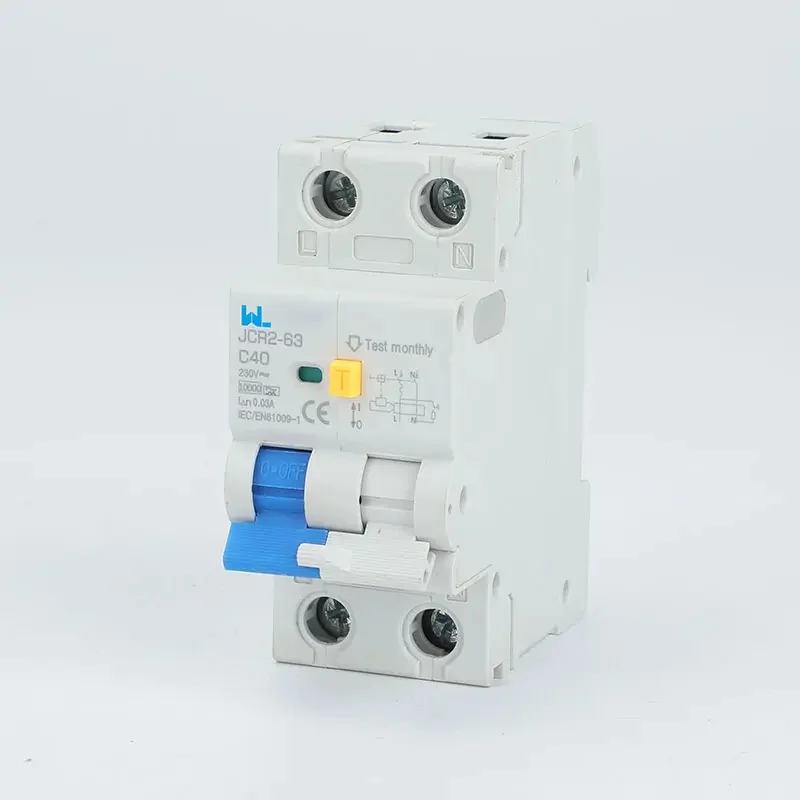

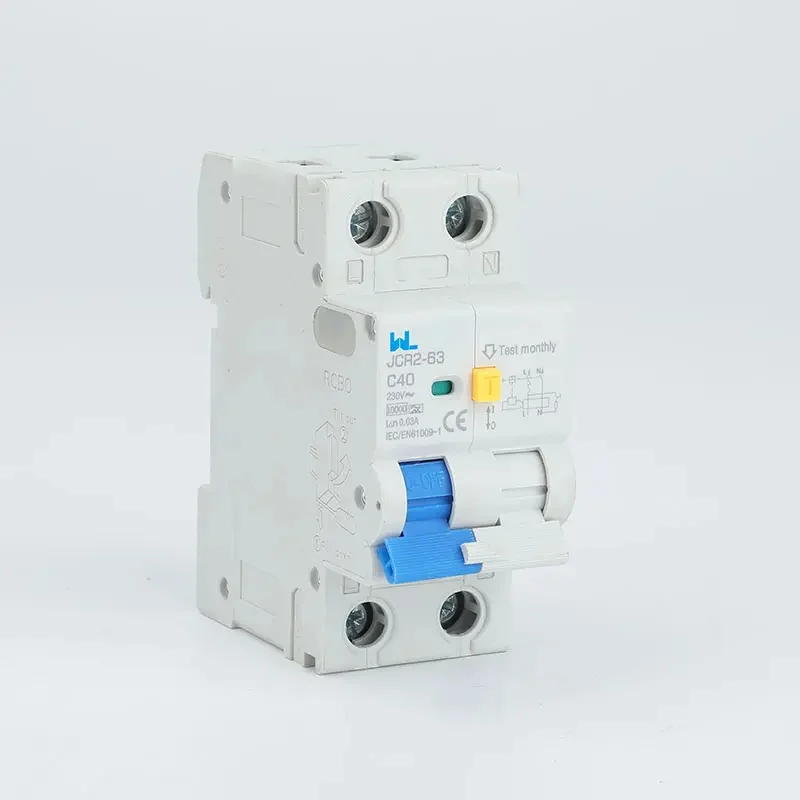

The JCR2-63 RCBO combines residual-current, overload and short-circuit protection. W9 Group lists a 2-pole configuration, 6–63 A currents, B or C curves and a 10 kA breaking rating. For EV charging circuits, specify the charger’s DC residual-current protection arrangement before selecting the RCBO type.
| استاندارد | IEC61009-1 , EN61009-1 | |
| الکترونیک features |
مقاومت جریان ورودی (A) | 6, 10, 16, 20, 25, 32, 40,50,63 |
| نوع | الکترومغناطیسی | |
| نوع (فرم موج عبور جریان زمین را حس کرده‌ایم) | A or AC are available | |
| پوشندگان لهستانی | 2 Pole | |
| فشار ولتاژ Ue (V) | 230/240 | |
| Rated sensitivity I△n | 30mA,100mA,300mA are available | |
| ولتاژ عایق بندی Ui (V) | 500 | |
| فراوانی رتبهبندی شده | ۵۰/۶۰ هرتز | |
| قدرت شکسته شدن بر اساس رتبه بندی | 10kA | |
| Rated impulse withstand voltage(1.2/50) Uimp (V) | 6000 | |
| Break time under I△n (s) | ≤0.1 | |
| سطح آلودگی | 2 | |

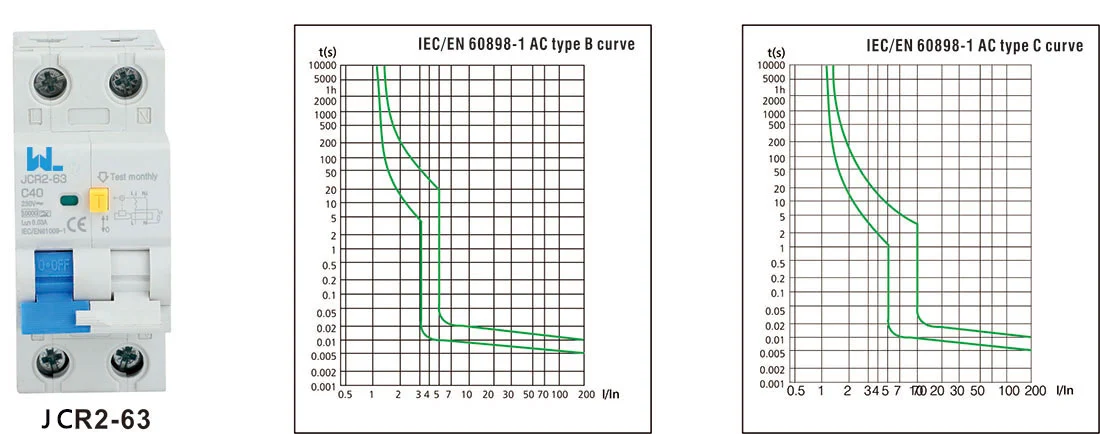

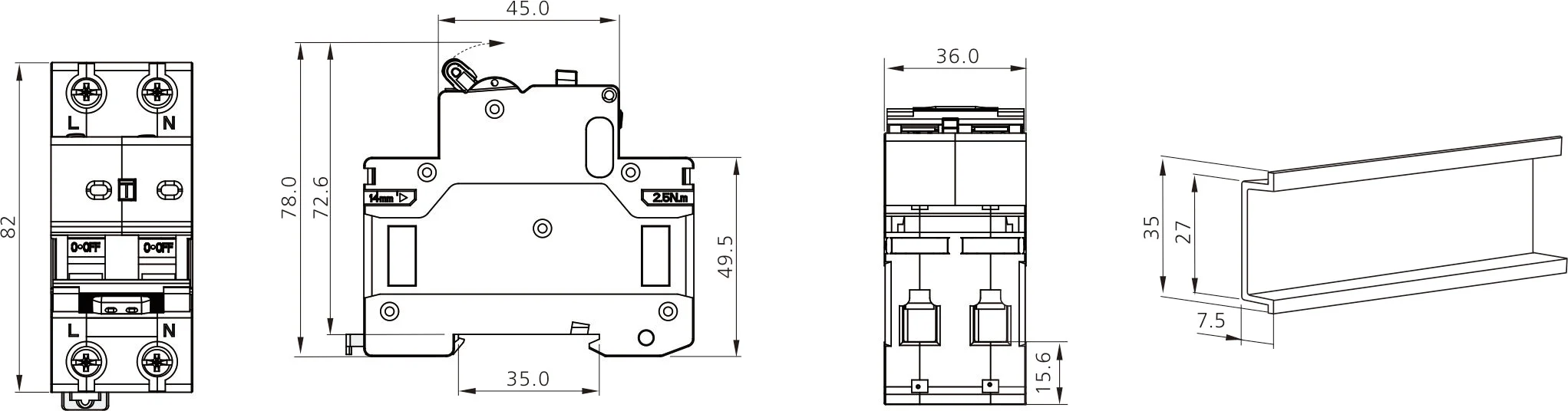

| خاصیت آزاد شدن ترمو-مغناطیسی | B، C | |
| ماشینی features |
زندگی الکتریکی | 2, 000 |
| زمان کارکرد مکانیکی | 2, 000 | |
| نمایشگر موقعیت تماس | بله | |
| سطح حفاظت | IP20 | |
| دمای مرجع برای تنظیم عنصر حرارتی (درجه سانتیگراد) | 30 | |
| Ambient temperature (with daily average ≤35℃) | -5…+40 | |
| Storage temperation (℃) | -25…+70 | |
| ارائه نصب | نوع اتصال ترمینال | کابل/پیوستهای U-type/پیوستهای Pin-type |
| ابعاد بالایی/پایینی ترمینال برای کابل | 25mm2 / 18-3 AWG | |
| ابعاد پایانه بالایی/پایینی برای Busbar | 10mm2 / 18-8 AWG | |
| تنگ کردن گشتاور | 2.5 N*m / 22 In-Ibs. | |
| قرارگیری | بر روی ریل DIN EN 60715 (35 میلی متر) با استفاده از دستگاه سریع اتصال | |
| اتصال | From top or bottom |
راهنمای انتخاب
How to Select a Type A or Type AC 30mA RCBO
Specify the current, curve, residual-current type, sensitivity, charger details and pole arrangement when requesting a JCR2-63 quotation from W9 Group.
Choose the circuit current
Choose the rated current from the listed 6–63 A options and match the curve to load starting behavior.
Select residual-current response
Specify Type A or Type AC and the required sensitivity. Confirm the waveform requirements of the connected equipment.
Check EV charger requirements
Confirm whether the charger provides DC residual-current detection and which upstream RCD arrangement its manufacturer requires.
Confirm board integration
Request the pole connection diagram, terminal details and distribution-board compatibility for the selected version.
درباره W9 Group
W9 Group RCBO Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a JCR2-63 enquiry, contact W9 Group about configuration and matching product documents.
منابع مرتبط
JCR2-63 RCBO Datasheet and Wiring Information
Use W9 Group technical support and the product directory to specify JCR2-63. Request a datasheet and wiring diagram matching the selected JCR2-63 configuration.
سوالات متداول خریداران
JCR2-63 RCBO FAQs for EV Charger Circuit Selection
Find answers about JCR2-63 selection, configuration and ordering.
What protection does JCR2-63 combine?
It combines residual-current protection with overload and short-circuit protection, unlike an RCCB that requires separate overcurrent protection.
Which currents and trip curves can I specify?
The published schedule lists 6, 10, 16, 20, 25, 32, 40, 50 and 63 A, with B or C trip curves. Confirm the complete order code.
Is a 30mA RCBO the only sensitivity option?
No. The catalog also lists 100 mA and 300 mA. Select sensitivity according to the circuit protection requirements and applicable installation rules.
Does a Type A RCBO detect smooth DC residual current?
Do not treat Type A as Type B protection. Confirm the required residual-current waveform coverage and any separate DC detection for the connected equipment.
Can JCR2-63 be specified for an EV charger?
The page markets it for EV charging, but suitability depends on the charger, DC residual-current detection and local installation requirements. Confirm the complete protection arrangement before ordering.
Does this RCBO provide open-PEN protection?
An independent open-PEN protection function is not established by the target-model data. Confirm any required separate device rather than assuming it is included.
What is needed for a JCR2-63 quotation?
اطلاعات مورد نیاز را، تعداد، بازار مقصد و الزامات اسناد را ارسال کنید. از W9 Group درخواست کنید تا قیمت، حداقل مقدار سفارش، نمونه‌ها و زمان تحویل برای پیکربندی انتخاب شده را تأیید کند.
سؤال و جواب درباره محصول
Request a JCR2-63 RCBO Quotation
Tell W9 Group your current, curve, residual-current type, sensitivity, charger details and pole arrangement, quantity and destination market so the selected configuration can be identified.
