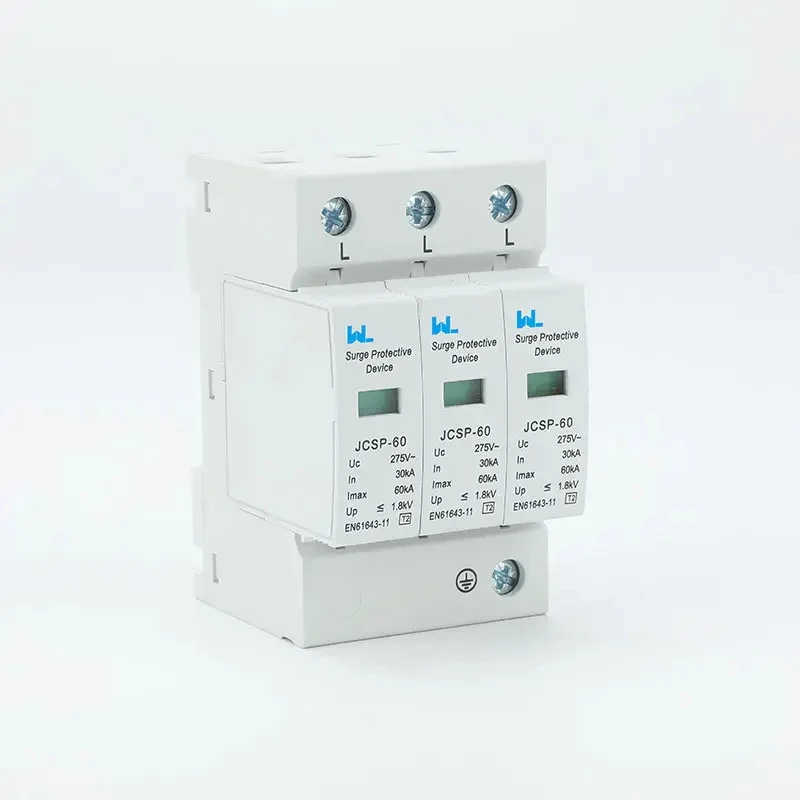

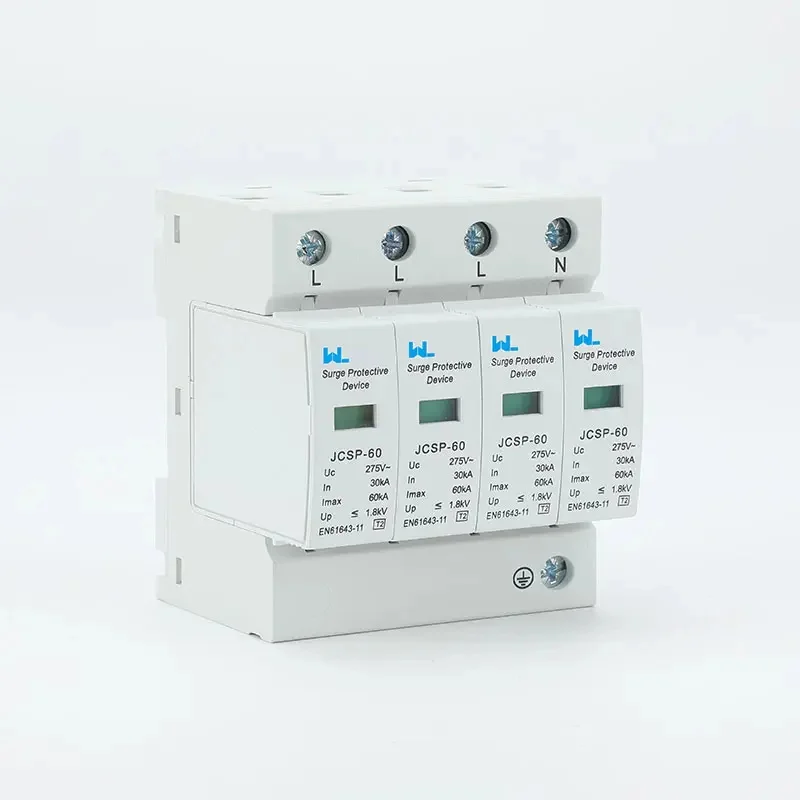

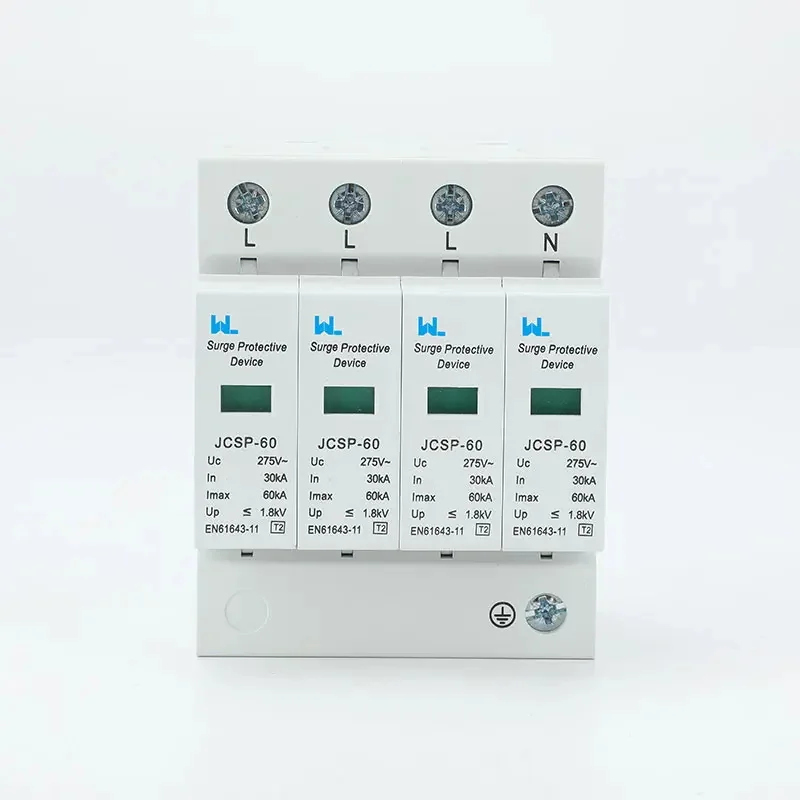

JCSP-60 Ac Surge Protection Device
ТЕХНИЧЕСКИЕ ДАННЫЕ

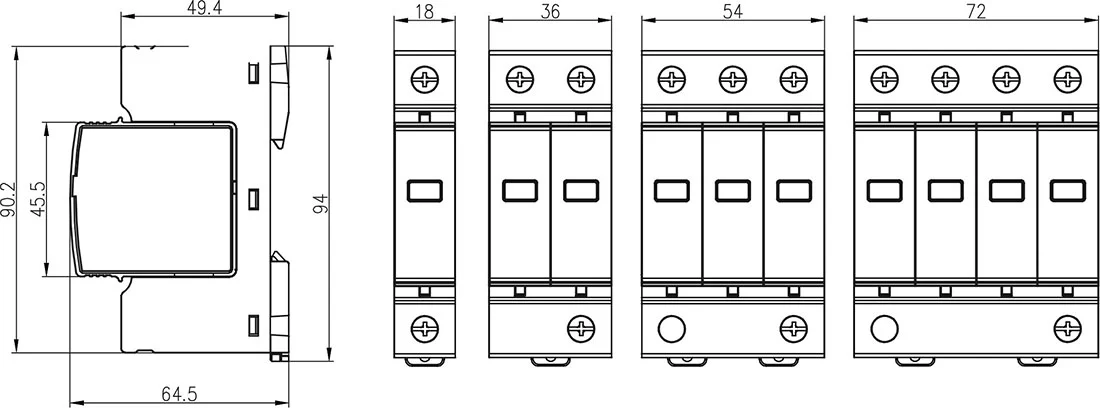

JCSP-60 Type 2 AC Surge Protection Device Specifications

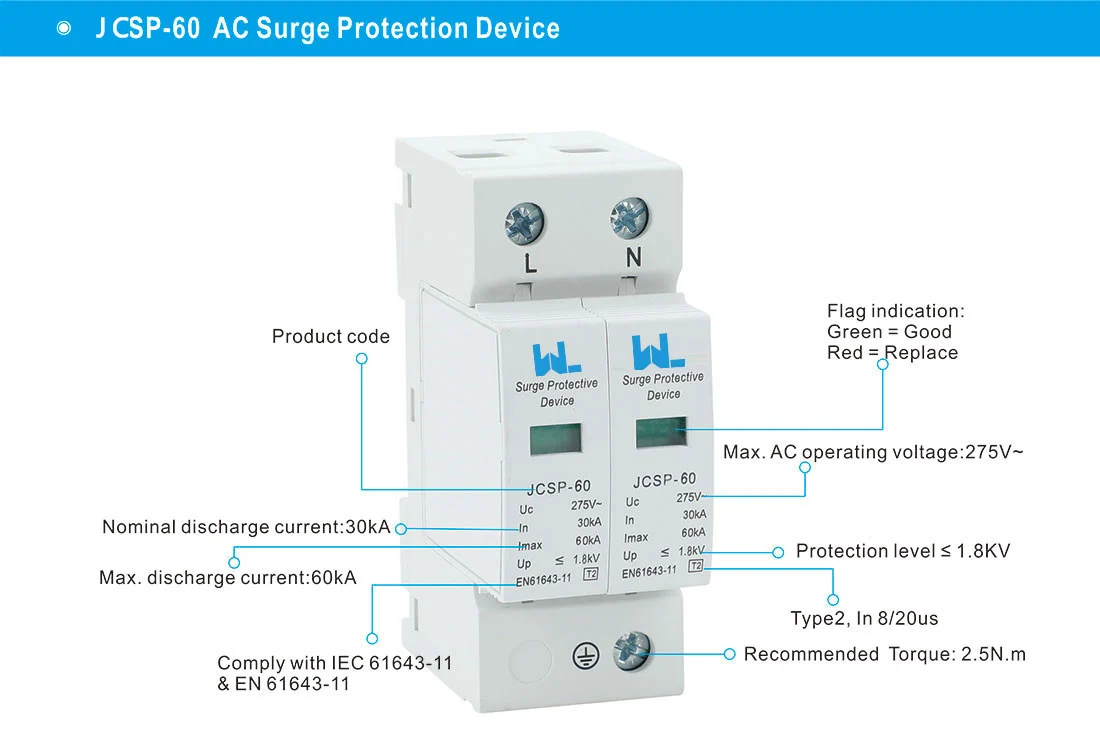

W9 Group lists JCSP-60 as an AC surge protection device for transient overvoltages on electrical supply circuits. The technical table specifies nominal discharge current In of 30 kA, maximum discharge current Imax of 60 kA and maximum continuous AC operating voltage Uc of 275 V.

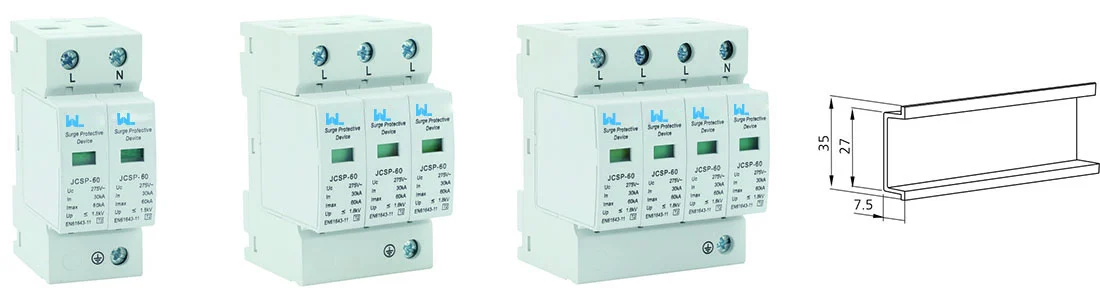

| Technology | MOV, MOV+GSG are available |
| Тип | Type2 |
| Network | 230 V single-phase 400 V 3-phase |
| Max. AC operating voltage Uc | 275V |
| Temporary Over Voltage (TOV) Charasteristics – 5 sec. UT | 335 Vac withstand |
| Temporary Over Voltage (TOV) Charasteristics – 120 mn UT | 440 Vac disconnection |
| Nominal discharge current In | 30 kA |
| Max. discharge current Imax | 60kA |
| Withstand on Combination waveform IEC 61643-11 Uoc | 6kV |
| Protection level Up | 1.8kV |
| Protection level N/PE at 5 kA | 0.7 kV |
| Residual voltage L/PE at 5 kA | 0.7 kV |
| Admissible short-circuit current | 25kA |
| Connection to Network | By screw terminals: 2.5-25 mm² |
| Установка | Symmetrical rail 35 mm (DIN 60715) |
| Operating temperature | -40 / +85°C |
| Protection rating | IP20 |
| Failsafe mode | Disconnection from AC network |
| Disconnection indicator | 1 mechanical indicator by pole – Red/Green |
| Fuses | 50 A mini. – 125 A max. – Fuses Type gG |
| Standards compliance | IEC 61643-11 / EN 61643-11 |
