Устойчивая к атмосферным воздействиям потребительская панель JCHA
ТЕХНИЧЕСКИЕ ДАННЫЕ
JCHA IP65 Weatherproof Consumer Unit Specifications

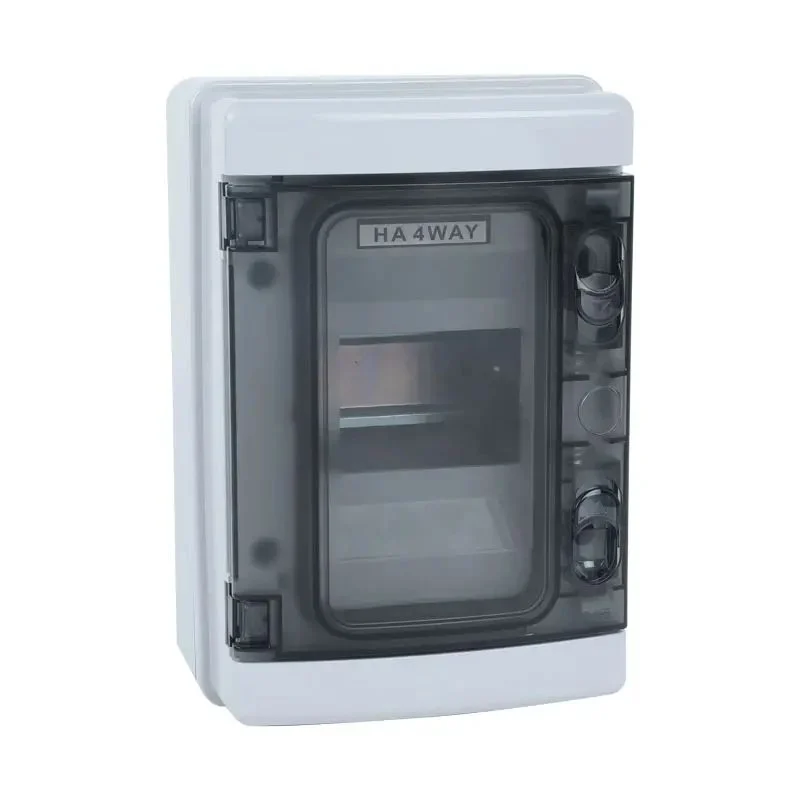

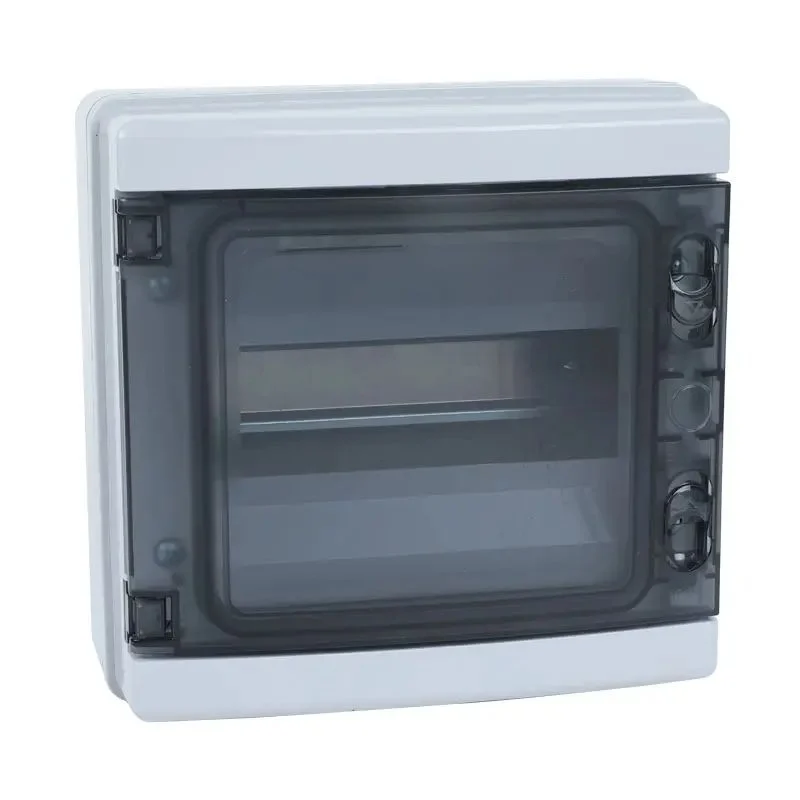

W9 Group lists the JCHA weatherproof consumer unit as a surface-mounted enclosure with IP65 protection. The catalog describes an ABS enclosure with a transparent door, DIN rails and neutral/earth terminals, with sizes from 4 to 26 ways.
| Модель | JCHA |
|---|---|
| Enclosure material | ABS |
| Protection rating | IP65 |
| Установка | Surface |

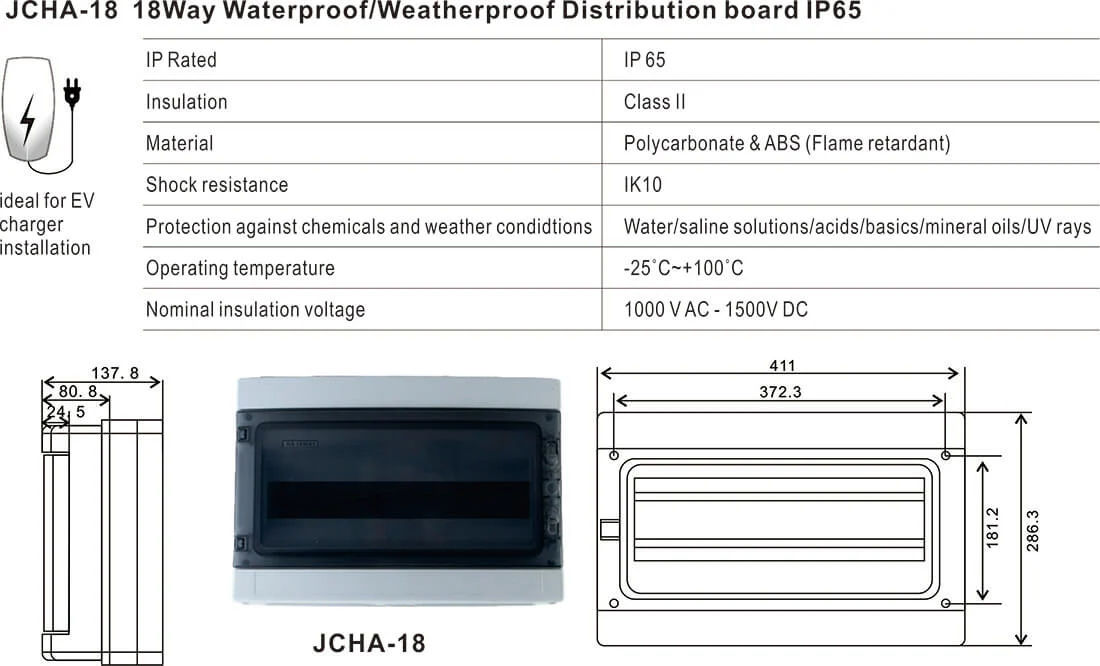

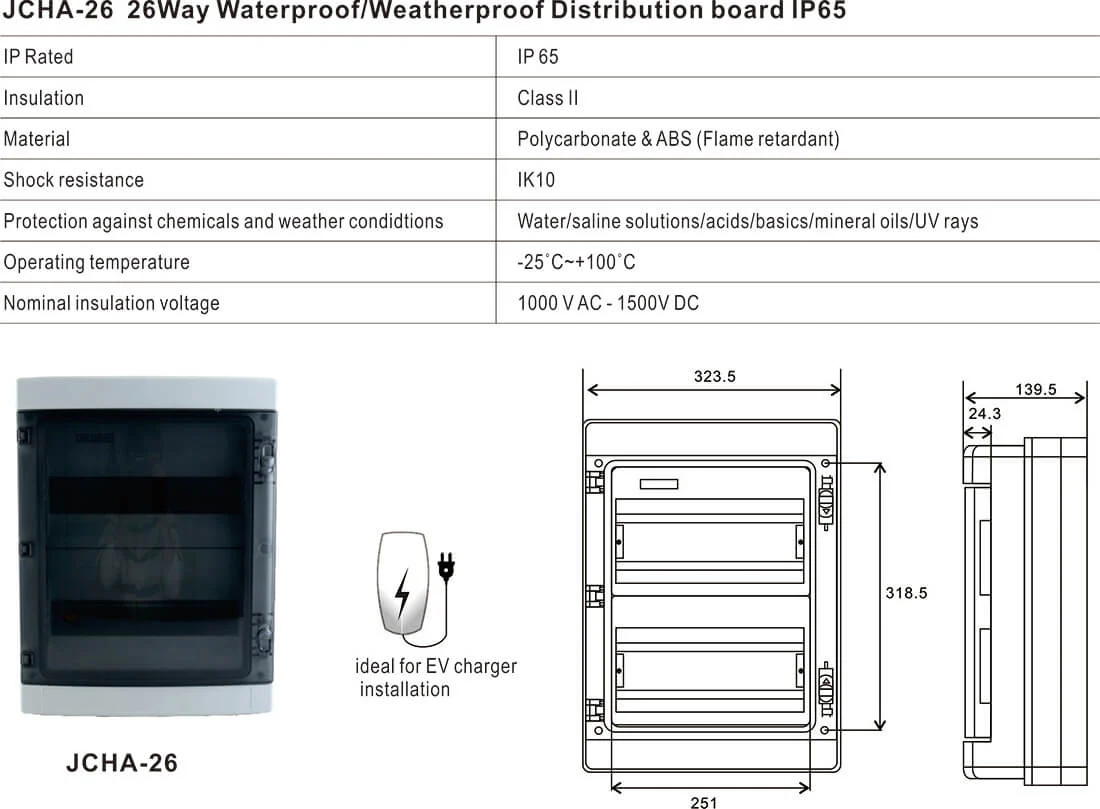

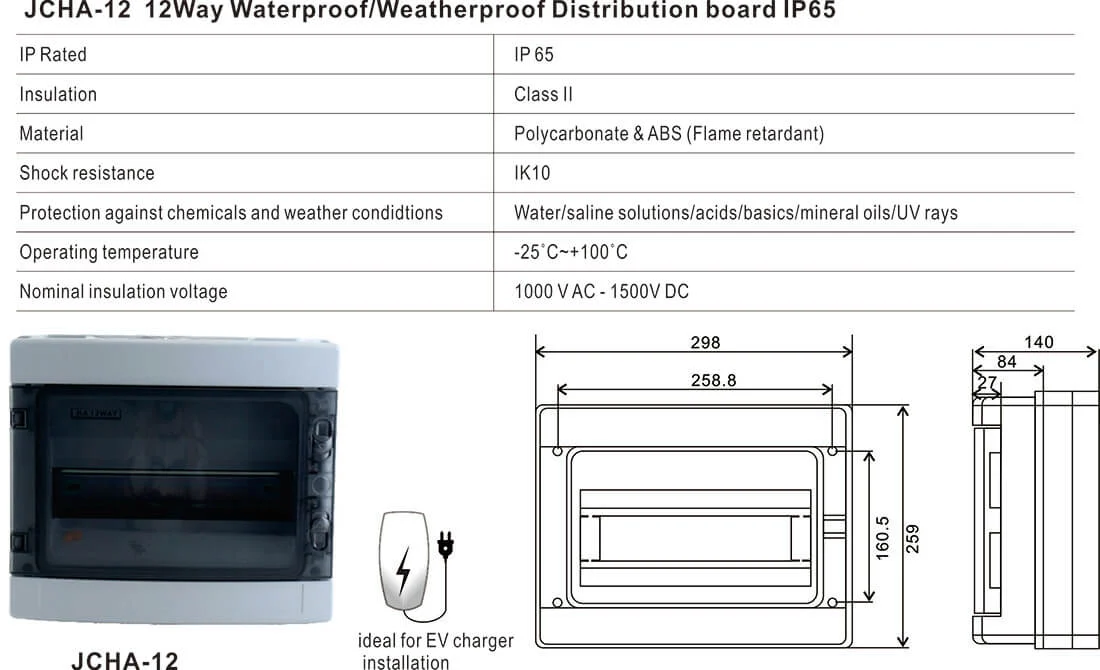

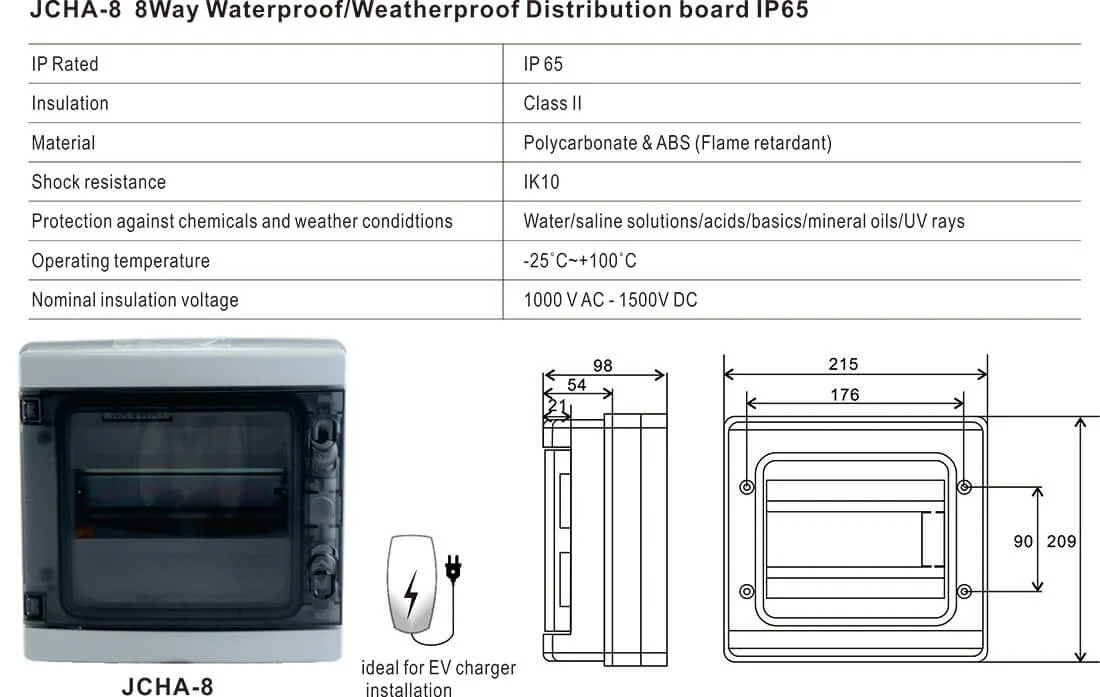

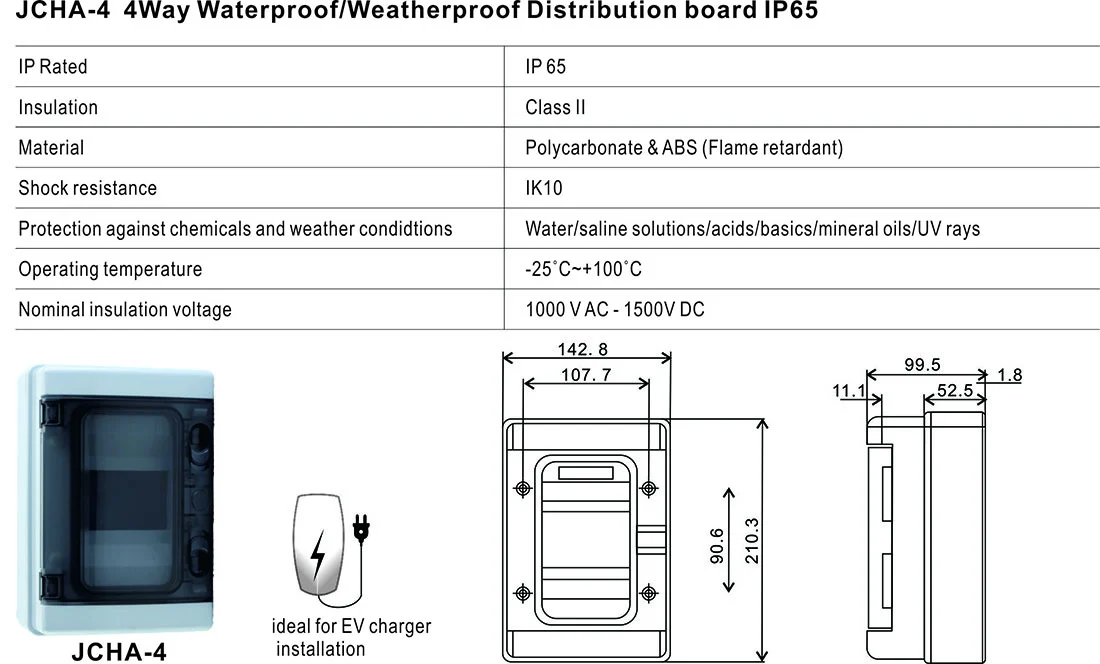

| Catalog sizes | 4 / 8 / 12 / 18 / 26 ways |
| Door | Transparent |
| Assembly scope | Enclosure, door, DIN rails, N + PE terminals, front cover, blanks and mounting material |
ГИД ПО ОТБЕРЕЖЕ
Selecting a Surface-Mounted Consumer Unit by Ways and Cable Entry
Specify the usable ways, incomer, outgoing device schedule, enclosure size and mounting conditions when you request a JCHA quotation from W9 Group.
Choose usable ways
For JCHA, send the circuit schedule and confirm space for incomer, surge protection and outgoing devices.
Confirm the equipment supplied
Request the delivery list for enclosure parts and protective devices; identify components that are ordered separately.
Check installation conditions
Confirm cable glands, entry sealing and assembled enclosure protection for the intended weather exposure.
Check wiring space
Request enclosure dimensions, DIN-rail arrangement, terminals and cable-entry drawing for the selected size.
О W9 GROUP
W9 Group Weatherproof Consumer Unit Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a JCHA enquiry, contact W9 Group about configuration and matching product documents.
СВЯЗАННЫЕ РЕСУРСЫ
JCHA Weatherproof Consumer Unit Technical Document Requests
Use W9 Group technical support and the product directory to specify JCHA. Request the matching datasheet before ordering.
ИНФОРМАЦИОННЫЙ БРОШУРАЭксплуатация продуктов W9 GroupBrowse W9 Group models and request the specifications of the selected product
ДОКУМЕНТЫЦентр загрузки программ W9 GroupRequest the current document for your quoted JCHA variant
Часто задаваемые вопросы покупателей
IP65 Consumer Unit FAQs: Enclosure and Circuit Configuration
Find answers about JCHA selection, configuration and ordering.
What enclosure does JCHA use?
The page describes an ABS enclosure with transparent door and IP65 protection; confirm assembled sealing and cable entries.
Does the enclosure provide residual-current protection?
Confirm the installed protective-device schedule. Enclosure construction and ingress protection alone do not establish residual-current protection.
What should I include in a consumer-unit enquiry?
Provide circuit count, usable ways, incomer rating, outgoing protective devices, cable sizes, installation conditions and enclosure dimensions.
What is needed for a JCHA quotation?
Отправьте необходимую конфигурацию, количество, целевой рынок и требования к документации. Попросите компанию W9 Group подтвердить цену, минимальное количество заказа, наличие образцов и срок изготовления выбранной конфигурации.
Is JCHA suitable for the intended installation environment?
The page describes a ABS enclosure with IP65 protection and a transparent door. Confirm assembled sealing, cable entries and the installation environment for the supplied configuration.
What is the difference between a consumer unit and a distribution board?
The page presents JCHA as a consumer-unit/distribution-box enclosure, but does not define a universal board schedule. Confirm the incomer, outgoing protective devices, usable ways and wiring layout for the project.
ЗАЯВКА О ПОКУПКЕ ПРОДУКТА
Request a JCHA Weatherproof Consumer Unit Quotation
Tell W9 Group your usable ways, incomer, outgoing device schedule, enclosure size and mounting conditions, quantity and destination market so the selected configuration can be identified.
