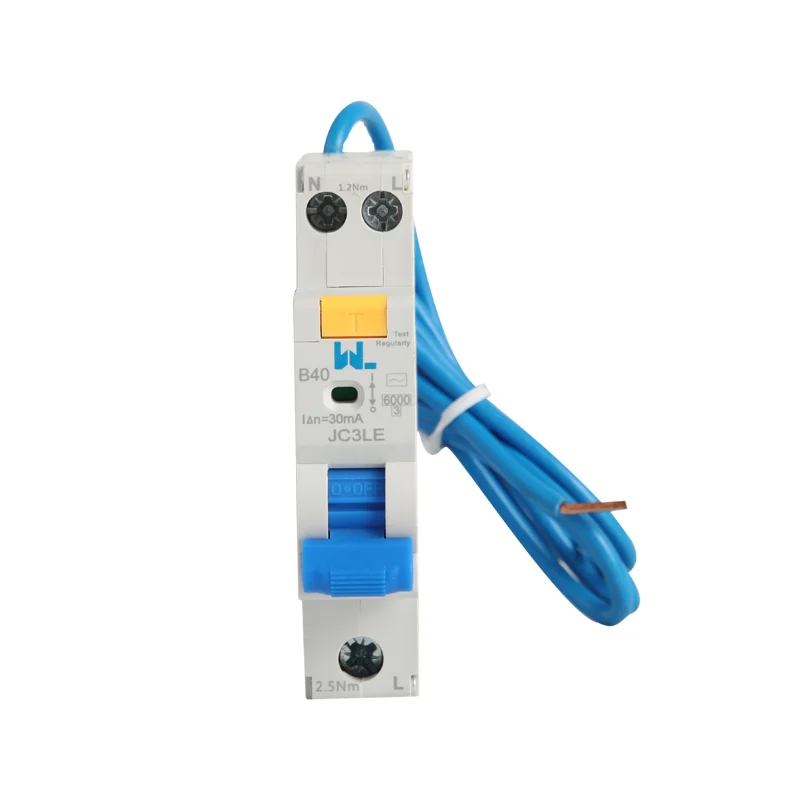

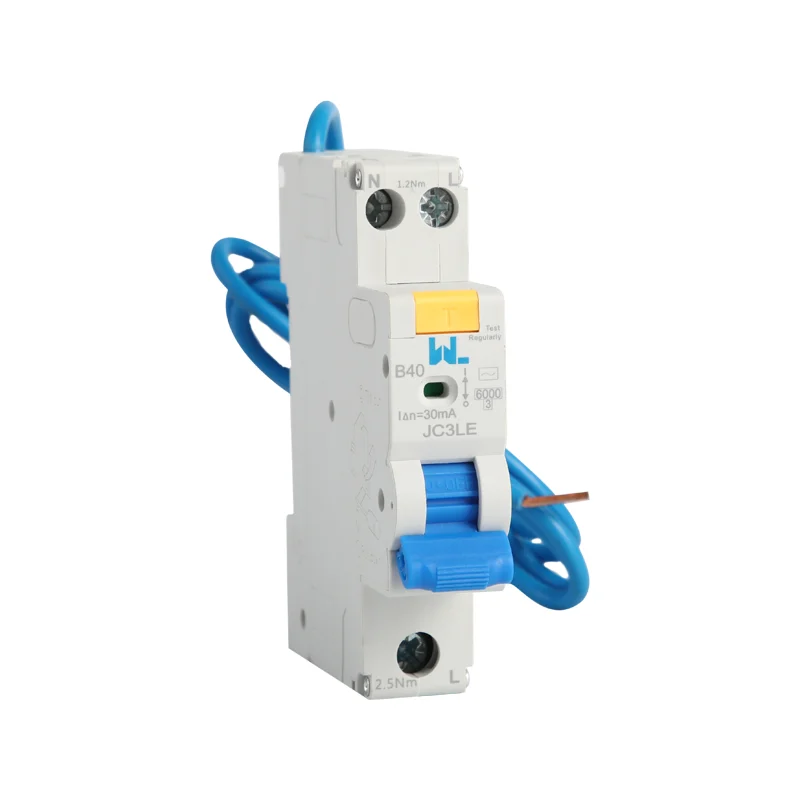

RCBO с коммутируемым током на выходе и нейтральным током JC3LE, одномодульный мини-модуль, 6 кА
ТЕХНИЧЕСКИЕ ДАННЫЕ
JC3LE 6kA Switched-Neutral RCBO Specifications

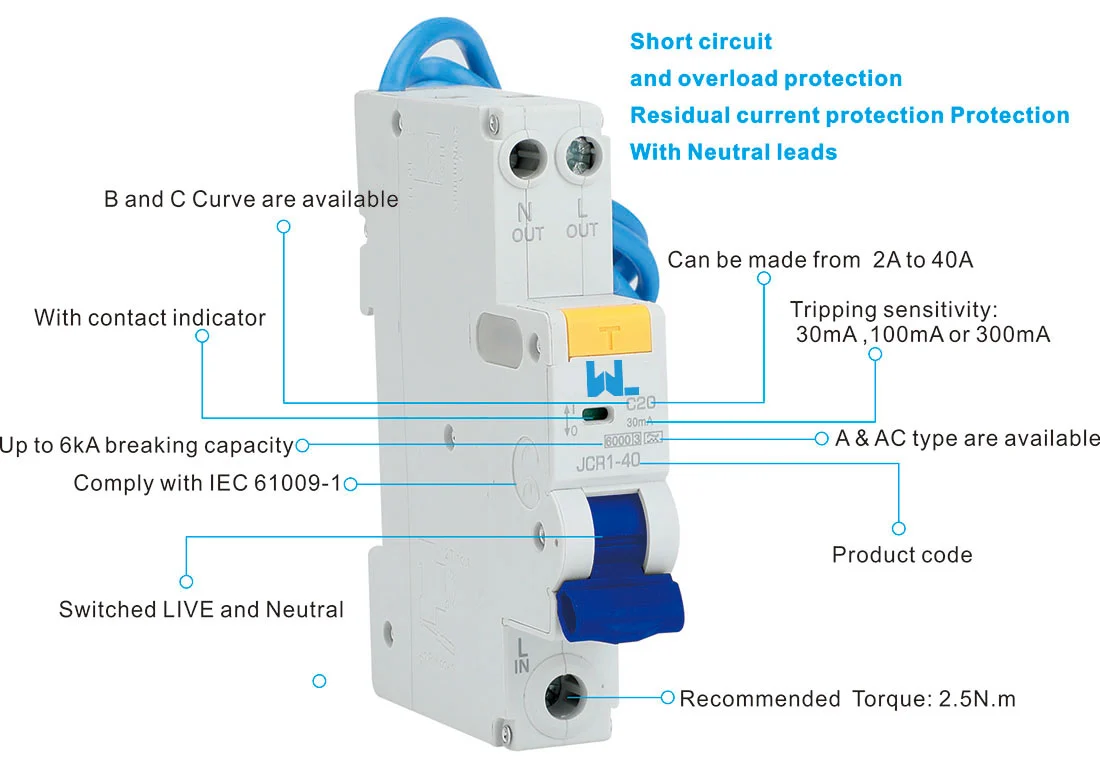

The JC3LE single module RCBO is listed by W9 Group for residual-current, overload and short-circuit protection. Confirm the selected current, waveform response and wiring arrangement on the matching datasheet.
|
Стандартный |
IEC/EN 61009-1 |
|
|
Electrical features |
Максимальный ток в А (А) |
6, 10, 16, 20, 25, 32, 40 |
|
Тип |
Электронный |
|
|
Тип (форма волны обнаруженного утечка электроэнергии) |
A or AC are available |
|
|
Поляки |
1P+N (переключаемый контакт питания и нейтральный контакт) |
|
|
Номинальное напряжение Ue (V) |
230/240 |
|
|
Rated sensitivity I△n |
30mA, 100mA,300mA |
|
|
Изоляционное напряжение Ui (В) |
500 |
|
|
Определенная частота |
50/60 Гц |
|
|
Максимальный пробойной прочность |
6kA |
|
|
Rated residual making and breaking capacity I△m (A) |
3000 |
|
|
Rated impulse withstand voltage(1.2/50) Uimp (V) |
4000 |
|
|
Break time under I△n (s) |
≤0.1 |
|
|
Уровень загрязнения |
2 |
|
|
Характеристика термомагнитного разрыва |
B, C |
|
|
Mechanical features |
Электрическая жизнь |
2, 000 |
|
Механический срок службы |
2, 000 |
|
|
Индикатор положения контакта |
Да |
|
|
Степень защиты |
IP20 |
|
|
Референтная температура для настройки теплового элемента (℃) |
30 |
|
|
Ambient temperature (with daily average ≤35℃) |
-5…+40 |
|
|
Storage temperation (℃) |
-25…+70 |
|
|
Установка |
Тип терминального соединения |
Cable/Pin-type busbar |
|
Верхняя часть терминала для кабеля |
10mm2 |
|
|
Terminal size bottom for cable |
16mm2 / 18-8 AWG |
|
|
Terminal size bottom for busbar |
10mm2 / 18-8 AWG |
|
|
Усиление крутящего момента |
2.5 N*m / 22 In-Ibs. |
|
|
Установка |
На DIN-рейле EN 60715 (35 мм) с помощью устройства с быстрым зажимом |
|
|
Вставка |
From bottom |
ГИД ПО ОТБЕРЕЖЕ
Selecting a Single Module RCBO with Switched Live and Neutral
Specify the rated current, residual-current sensitivity, waveform type, operating voltage, module dimensions and wiring requirements when requesting a JC3LE quotation from W9 Group.
Choose the current rating
JC3LE lists a 6–40 A current range. Specify the current required by the circuit and confirm the available variant.
Match leakage detection
Specify Type A or Type AC and the required residual-current sensitivity. Confirm the combination on the quotation.
Check switched-neutral wiring
The JC3LE description lists live and neutral switching. Request the terminal diagram and confirm the distribution-board connection.
Check enclosure space
Request module dimensions and connection instructions for the planned consumer unit or distribution board.
О W9 GROUP
W9 Group Single Module RCBO Supply and Support
Zhejiang W9 Group Technology Co., Ltd. includes RCBOs in its low-voltage electrical product range. For a JC3LE order, contact W9 Group about the required configuration and product documents.
СВЯЗАННЫЕ РЕСУРСЫ
JC3LE Single Module RCBO Technical Document Requests
Use W9 Group’s RCBO guide and product directory for context. Request a datasheet and wiring diagram matching the selected JC3LE configuration.
ИНФОРМАЦИОННЫЙ БРОШУРАExplore W9 Group circuit-protection productsBrowse the product directory to compare RCBO models
ДОКУМЕНТЫЦентр загрузки программ W9 GroupRequest the current document for your quoted JC3LE variant
Часто задаваемые вопросы покупателей
RCBO FAQs: Current Options and Model Identification
Find answers about configuration, installation documents and ordering.
Does the JC3LE RCBO switch live and neutral?
W9 Group lists switched live and neutral for JC3LE. Confirm terminal identification and the wiring diagram for the selected device.
What is the standard breaking capacity?
The JC3LE product information lists a standard breaking capacity of 6 kA. Confirm that the selected device meets the circuit's prospective fault-current requirements.
Which current range and trip curves are listed?
JC3LE lists a 6–40 A current range with B or C curves. Request the individual rating and curve required by the circuit.
What is needed for a JC3LE quotation?
Send the required configuration, quantity, destination market and document requirements. Ask W9 Group to confirm price, minimum order quantity and lead time for the selected model.
How do I check the single-module RCBO width against my consumer unit?

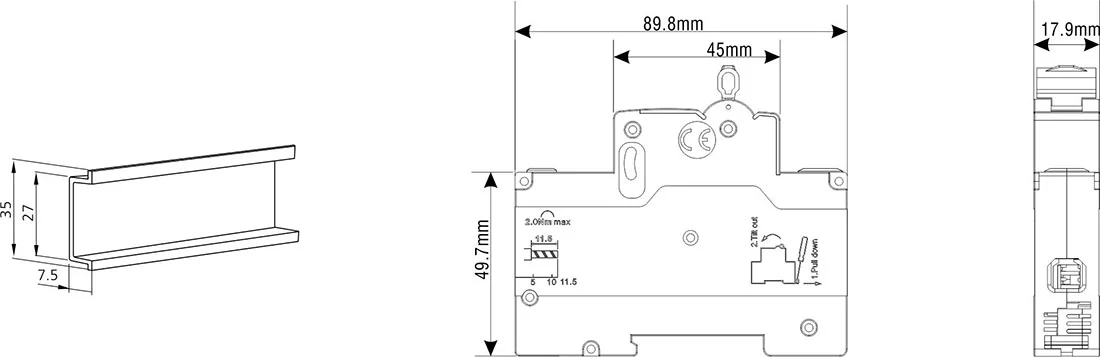

Request the JC3LE outline drawing and compare its module width, terminals and busbar arrangement with the consumer-unit layout. A pole description alone does not establish the space needed for the selected version.
How should I choose the JC3LE residual-current waveform type?
Confirm the offered waveform type and residual-current sensitivity for JC3LE against the load and installation design. Request the matching datasheet rather than assuming that all single-module RCBOs have the same response.

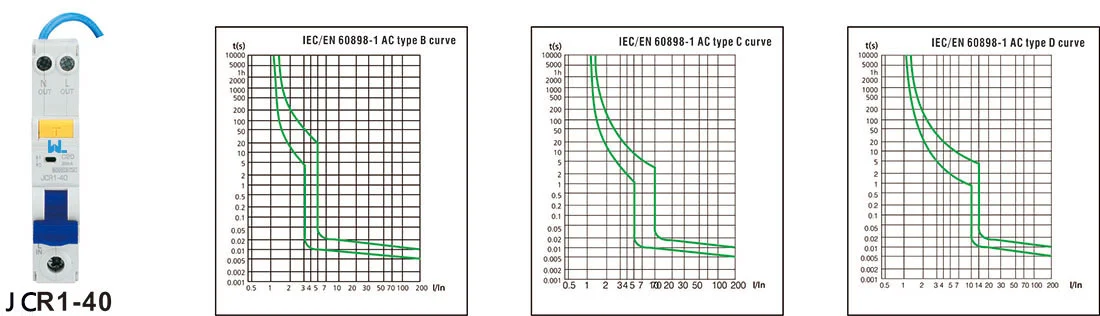

Which JC3LE trip-curve documents should I request?
Request the time-current curve for the selected current and trip-curve version. Compare it with the load starting behavior and the upstream protective-device data before finalizing the order.
ЗАЯВКА О ПОКУПКЕ ПРОДУКТА
Request a JC3LE Single Module RCBO Quotation
Tell W9 Group your rated current, residual-current sensitivity, waveform type, operating voltage, module dimensions and wiring requirements, quantity and destination market so the selected configuration can be identified.
