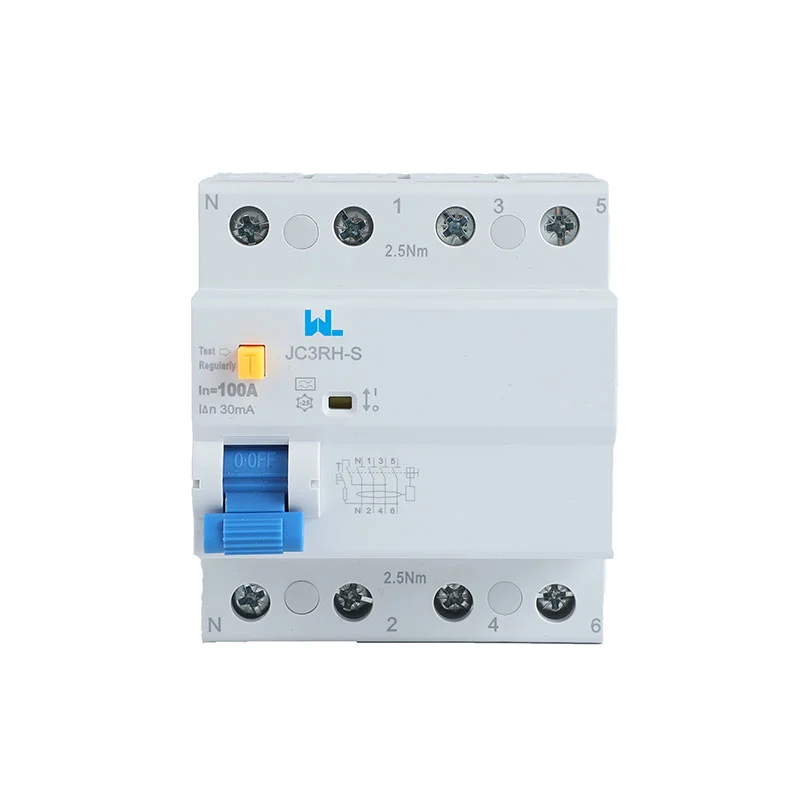

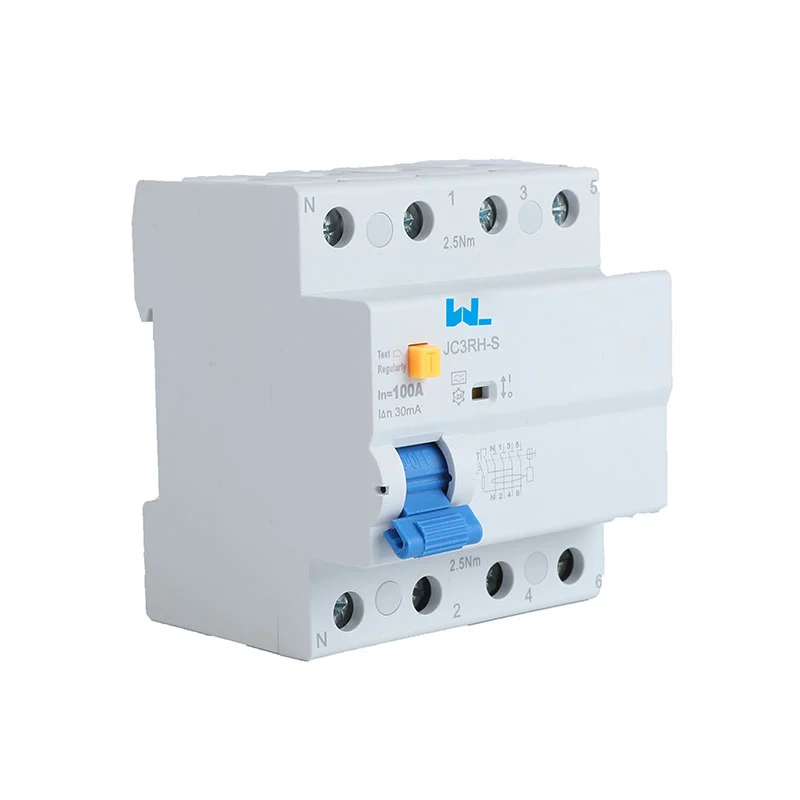

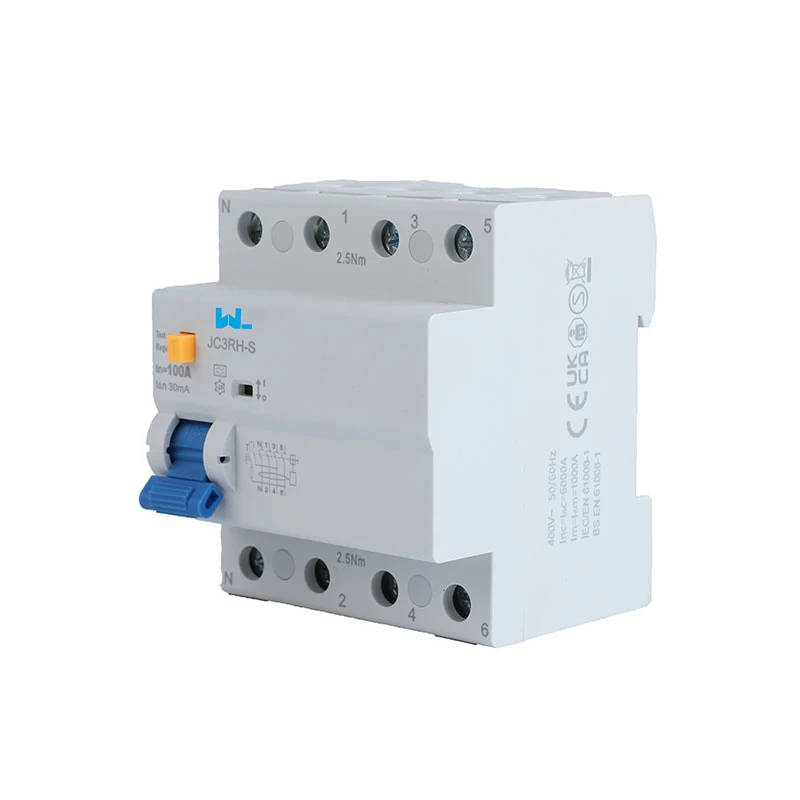

Residual Current Device JC3RH-S
ویژگی‌ها

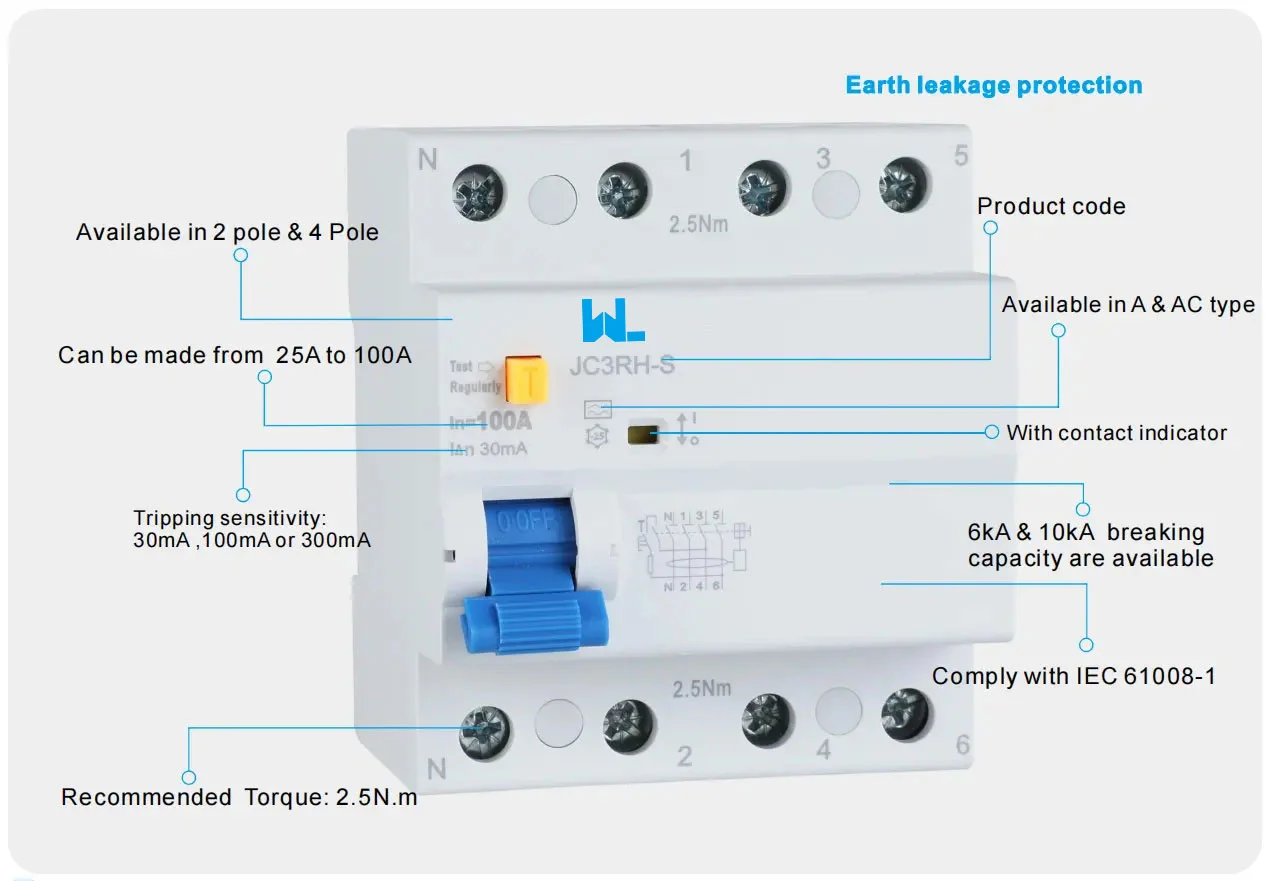

● Electromagnetic Type
● Earth leakage protection
● Breaking capacity 6kA, or 10kA
● Rated current up to 100A
● Available in Type A or Type AC
● Tripping sensitivity: 30mA,100mA,300mA
● Connection from top or bottom
● Complies with IEC 61008-1, EN61008-1
اطلاع‌نامه
The JC3RH-S RCD (residual current circuit breaker with overload protection) are suitable for consumer units or distribution boards, applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
Overall, the JCSD1-125 is a must-have accessory for anyone looking to increase the safety and efficiency of their electrical installations. Its intuitive design, rugged construction and compliance with industry standards make it an excellent solution for MCB and RCBO monitoring. With the JCSD1-125, users can control their circuits with confidence knowing they have a reliable and effective tool.
| استاندارد | IEC61008-1 , EN61008-1 | |
| ویژگی‌های الکتریکی | مقاومت جریان ورودی (A) | 25, 40, 50, 63, 80, 100 |
| نوع | Electromagnetic | |
| Type (wave form of the earth leakage sensed) | AC, A, AC-G, A-G, AC-S and A-S are available | |
| پوشندگان لهستانی | 2 Pole, 4 Pole | |
| Rated voltage Ue(V) | 230/240 (2P), 400/415(4P) | |
| Rated sensitivity I∆n | 30mA,100mA,300mA are available | |
| ولتاژ عایق بندی Ui (V) | 500 | |
| Rated residual making and breaking capacity I∆m (A) |
500 (In=25A/40A), 630 (In=63A), 1000(In=80A/100A) |
|
| فراوانی رتبهبندی شده | ۵۰/۶۰ هرتز | |
| قدرت شکسته شدن بر اساس رتبه بندی | 6kA, 10kA | |
| Rated impulse withstand voltage(1.2/50) Uimp (V) | 6000 | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5kV | |
| سطح آلودگی | 2 | |
| ویژگی‌های مکانیکی | زندگی الکتریکی | 2, 000 |
| زمان کارکرد مکانیکی | 2, 000 | |
| نمایشگر موقعیت تماس | بله | |
| سطح حفاظت | IP20 | |
|
Reference temperature for setting of thermal element(°C) |

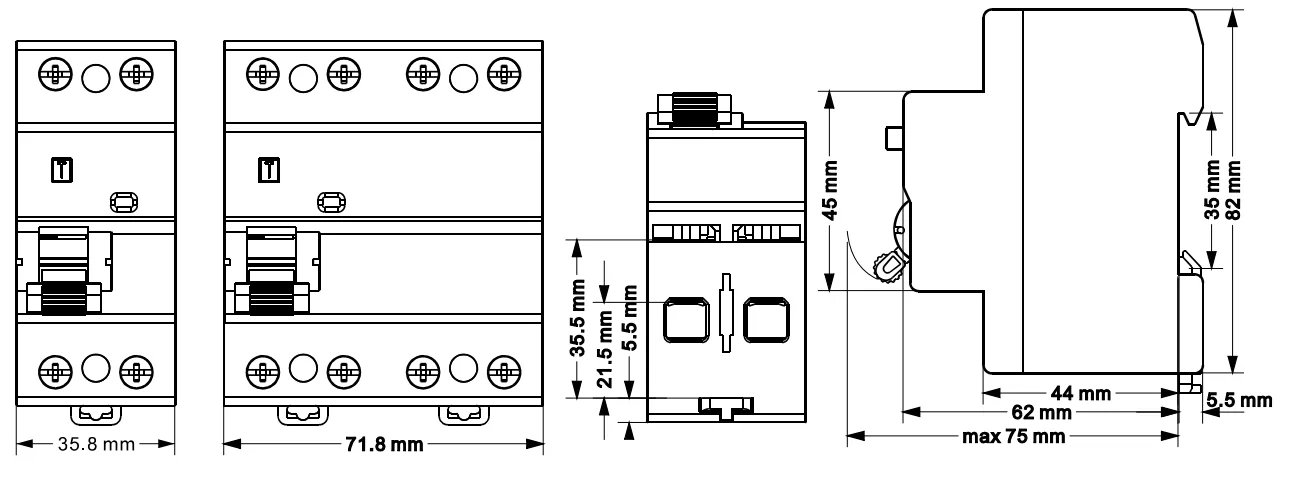

30 | |
| Ambient temperature (with daily average ≤35°C) | -5…+40 | |
| Storage temperature (°C) | -25…+70 | |
| ارائه نصب | نوع اتصال ترمینال | کابل/پیوستهای U-type/پیوستهای Pin-type |
| ابعاد بالایی/پایینی ترمینال برای کابل | 25mm2 , 18-3/18-2 AWG | |
| ابعاد پایانه بالایی/پایینی برای Busbar | 10/16mm2 ,18-8 /18-5AWG | |
| تنگ کردن گشتاور | 2.5 N*m / 22 In-Ibs. | |
| قرارگیری | On DIN rail EN 60715 (35mm) | |
| اتصال | From top or bottom |
