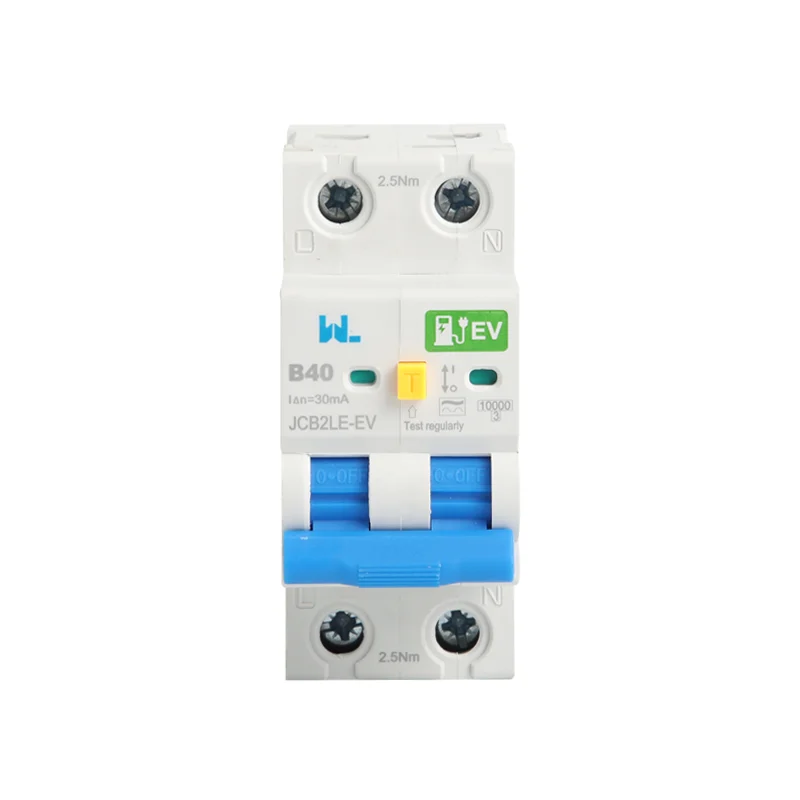

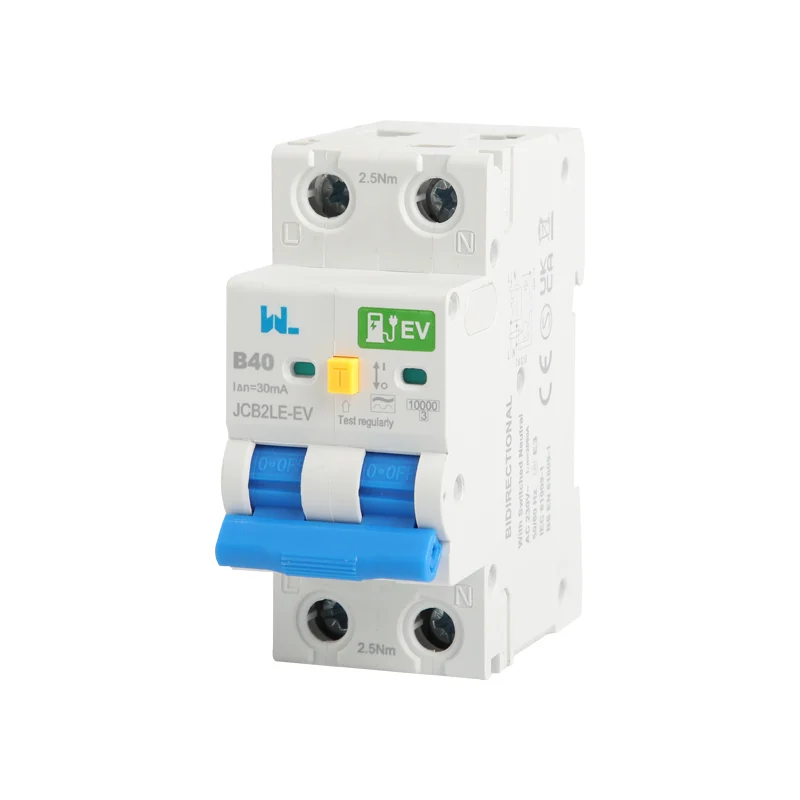

JCB2LE-EV 2 polos RCBO
DATOS TÉCNICOS
JCB2LE-EV 2 pole RCBO specifications
The JCB2LE-EV 2 pole RCBO combines residual-current, overload and short-circuit protection. W9 Group lists an electronic design with Type A residual-current response. For EV charging, match the charger’s DC protection arrangement rather than treating the EV suffix as a complete installation approval.
| Modelo | JCB2LE-EV |
|---|---|
| Protección | Residual current, overload and short circuit |
| Current options | 32A / 40A |
| Residual-current response | Type A |
| Sensitivity | 30mA |
| Capacidad de ruptura indicada | 10kA |
| Trip curves | B / C |
| Polacos | 2 pole; neutral switched |
Guía de selección
JCB2LE-EV EV charging RCBO selection
Specify the complete order code, circuit duty, installation conditions and required documents when requesting a JCB2LE-EV quotation from W9 Group.
Select load and overcurrent duty
Provide load current, conductor details and prospective fault current. Confirm the ordered current and time-current curve.
Specify residual-current response
Confirm the required waveform response and sensitivity using the exact product schedule and the connected equipment requirements.
Check the EV protection arrangement
For an EV charging circuit, provide the charger instructions and its DC detection arrangement. Confirm any separate protection required by the installation.
Confirm pole and terminal wiring
Request the supply, load, neutral and test-circuit diagram. Confirm terminal capacity, mounting and distribution-board compatibility.
QUÉ ES W9 GROUP
W9 Group support for JCB2LE-EV RCBO
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a JCB2LE-EV enquiry, contact W9 Group about configuration and matching product documents.
RECURSOS RELACIONADOS
JCB2LE-EV Type A residual current protection documents
Use technical support and related products to specify JCB2LE-EV. Request a datasheet and wiring diagram matching the selected JCB2LE-EV configuration.
PRODUCTO RELACIONADOJCR2-63 RCBOCompare función y configuración; solicite calificaciones separadas para cada modelo
DOCUMENTOSCentro de descarga de W9 GroupRequest the current document for your quoted JCB2LE-EV variant
Preguntas frecuentes del comprador
JCB2LE-EV two pole RCBO FAQs
Find answers about JCB2LE-EV selection, configuration and ordering.
Which protection functions are combined?
The summary identifies residual-current, overload and short-circuit protection in an electronic two-pole device. Confirm the complete ordered version.
Which current and curve options are listed?
W9 Group lists 32A and 40A, with B or C overcurrent characteristics. Select the curve using load starting behavior and the required conductor protection.
Does Type A mean smooth DC detection is included?
No smooth DC detection threshold is established by this target summary. Confirm the charger’s DC detection and the required upstream arrangement separately.
What residual-current sensitivity is listed?
The summary lists 30mA. Confirm the required sensitivity and exact protection arrangement against the charger instructions and installation rules.
Does this RCBO include open-PEN protection?
An independent open-PEN function is not established for the target product. Confirm any required separate protection instead of inferring it from the EV name.
Can the supply enter from either end?
The summary describes top and bottom wiring. Confirm the permitted supply terminals, neutral path and test-circuit operation from the matching installation drawing.
What is needed for a JCB2LE-EV quotation?
Envíe la configuración requerida, la cantidad, el mercado de destino y los requisitos documentales. Solicite a W9 Group que confirme el precio, la cantidad mínima de pedido, las muestras y el plazo de entrega para la configuración seleccionada.
Solicitud de producto
Request a JCB2LE-EV 2 pole RCBO quotation
Informe a W9 Group del código completo de su pedido, la función del circuito, las condiciones de instalación y los documentos requeridos, la cantidad y el mercado de destino para que pueda identificarse la configuración seleccionada.
