JCB3-40M MCB
기술 데이터
JCB3-40M 6kA 1P+N MCB Specifications

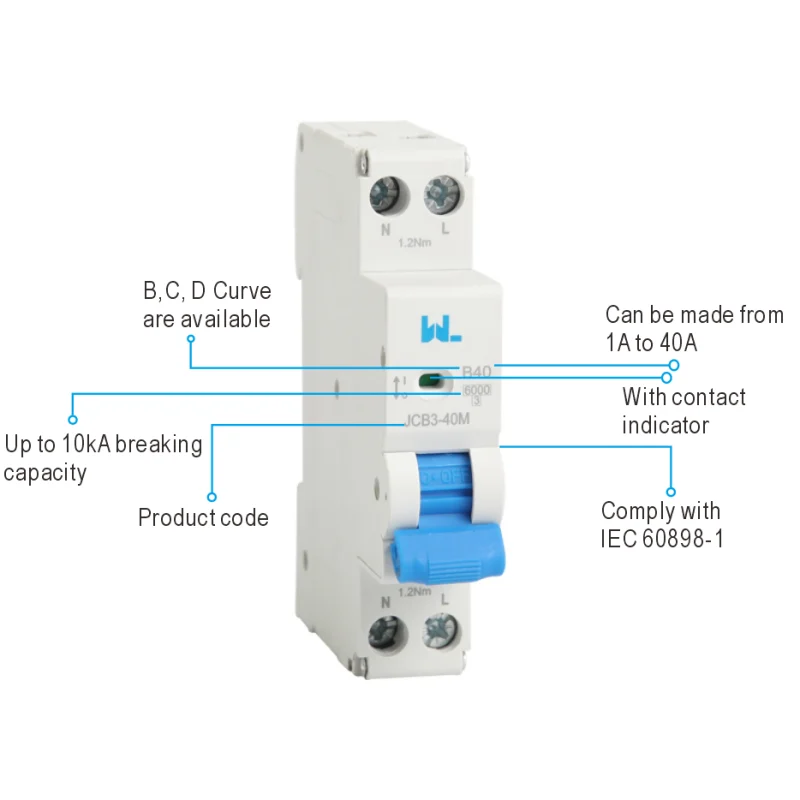

The JCB3-40M MCB is a miniature circuit breaker for overload and short-circuit protection. W9 Group lists 1–40 A and a 6 kA breaking rating, with 1P+N configurations. Its 18 mm single-module format is intended for compact distribution-board layouts.
| 표준 | IEC/EN 60898-1 | IEC/EN 60947-2 | |
|
전기 기능 |
정격 전류(A) | 1, 2, 3, 4, 6, 10, 16, | |
| 20, 25, 32, 40, 50, 63,80 | |||
| 폴란드인 | 1P, 1P+N, 2P, 3P, 3P+N, 4P | 1P, 2P, 3P, 4P | |
| 정격 전압 Ue(V) | 230/400~240/415 | ||
| 절연 전압 Ui(V) | 500 | ||
| 정격 주파수 | 50/60Hz | ||
| 최대 절단 용량 | 10 kA | ||
| Energy limiting class | 3 | ||
| 정격 임펄스 내전압(1.2/50) Uimp (V) | 4000 | ||
| Dielectric test voltage at ind. Freq. for 1 min (kV) | 2 | ||
| 오염 정도 | 2 | ||
| Power loss per pole | Rated current (A) | ||
| 1, 2, 3, 4, 5, 6, 10,13, 16, 20, 25, 32,40, 50, 63, 80 | |||
| 열 자성 방출 특성 | B, C, D | 8-12In, 9.6-14.4In | |
|
기계적 특징 |
전기 수명 | 4, 000 | |
| 기계적 수명 | 20, 000 | ||
| 접촉 위치 표시기 | 네 | ||
| 보호 수준 | IP20 | ||
| 열체 열 설정 기준 온도(℃) | 30 | ||
| Ambient temperature (with daily average ≤35℃) | -5…+40 | ||
| Storage temperation (℃) | -35…+70 | ||
| 설치 | 터미널 연결 유형 | 케이블/U형 버스바/핀형 버스바 | |
| 케이블의 상단/하단 터미널 사이즈 | 25mm2 / 18-4 AWG | ||
| 버스바용 터미널 사이즈 상단/하단 | 10mm2 / 18-8 AWG | ||
| 강력한 토크 | 2.5 N*m / 22 In-Ibs. | ||
| 장착 | DIN 레일 EN 60715(35mm)에 고속 클립 장치를 사용하여 장착 | ||
| 연결 | From top and bottom | ||
|
Combination |
보조 연락처 | 네 | |
| 스촇 방출 | 네 | ||
| 전압 감소 시 | 네 | ||
| 알람 접촉 | 네 | ||
선정 가이드
Selecting an 18mm 1P+N Miniature Circuit Breaker
Specify the rated current, pole count, trip curve, operating voltage and board connection details when requesting a JCB3-40M quotation from W9 Group.
Match current to the circuit
The catalog covers 1–40 A. Confirm the required current step and coordinate it with the circuit conductors and load.

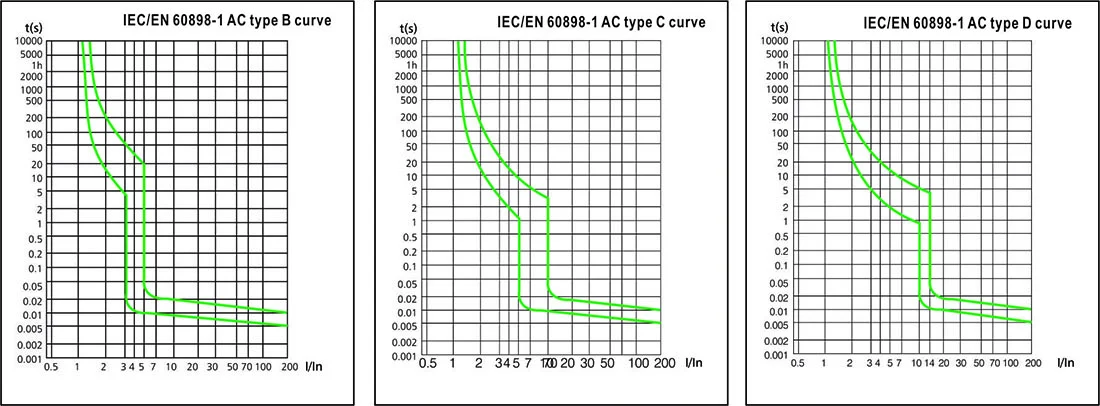

Choose the trip curve
The reviewed matching features list B / C. Request the selected time-current curve for starting-current and coordination checks.
Specify poles and supply
State the supply voltage and required 1P+N arrangement. Confirm the wiring diagram and terminal allocation.
Check the board space

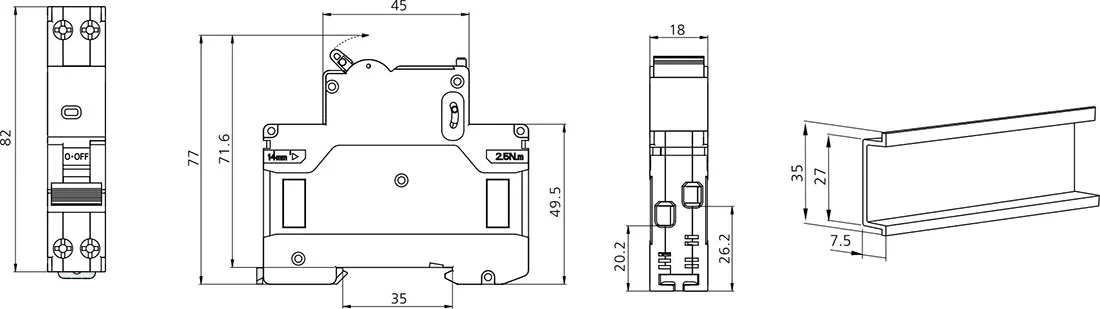

Allow for the listed 18 mm single-module body and confirm terminal and busbar compatibility.
W9 그룹 소개
W9 Group MCB Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a JCB3-40M enquiry, contact W9 Group about configuration and matching product documents.
관련 자료
JCB3-40M MCB Datasheet and DIN Rail Installation Information
Use W9 Group technical support and the product directory to specify JCB3-40M. Request a datasheet and wiring diagram matching the selected JCB3-40M configuration.
구매자 FAQ
JCB3-40M MCB FAQs: Current, Trip Curve and Board Fit
Find answers about JCB3-40M selection, configuration and ordering.
What does JCB3-40M protect against?
The product is listed for overload and short-circuit protection. Residual-current protection requires a suitable additional device or an RCBO configuration.
Which currents are listed for JCB3-40M?
The target-model summary lists a 1–40 A range. Confirm the individual current rating and complete order code.
Which pole configurations are offered?
This page lists 1P+N. Confirm the wiring and neutral arrangement in the matching product drawing.
How do I specify the trip curve?
The matching features list B / C. Select using the load starting current and protective coordination, and request the corresponding curve.
Is the listed 6kA rating suitable for every board?
The breaking rating must meet the prospective short-circuit current at the installation point. Confirm the applicable voltage and rating on the supplied datasheet.
How is this MCB installed?
The source lists 35 mm DIN-rail mounting. Confirm the terminal capacity, busbar type, dimensions and tightening instructions for the ordered version.
What is needed for a JCB3-40M quotation?
필수 구성, 수량, 대상 시장, 문서 요구 사항을 보내주세요. 선택한 구성에 대한 가격, 최소 주문 수량, 샘플 및 리드 타임을 W9 Group에 확인해 주세요.
제품 문의
Request a JCB3-40M MCB Quotation
Tell W9 Group your rated current, pole count, trip curve, operating voltage and board connection details, quantity and destination market so the selected configuration can be identified.
