RCBO for EV Chargers: 10kA Differential Circuit Breaker Guide
Two EV chargers with the same current rating can require different residual-current protection because their internal DC detection and disconnection arrangements differ. Selecting an RCBO from the charger power or a 10 kA label alone can miss that distinction. Start with the exact EVSE manual and a diagram of every upstream protective device.
Summary: An RCBO for EV charger circuits must match conductor protection, prospective fault current and the EVSE’s residual-current requirements. A 10 kA marking concerns short-circuit interruption, not charging power or leakage sensitivity. A suitable Type A arrangement may be used with an appropriate DC residual-current detecting and disconnecting scheme where the charger instructions and local rules permit it; another installation may require Type B protection. Built-in 6 mA DC detection alone is not proof of complete 30 mA residual-current protection. Verify the full protection chain and the locally adopted rules before ordering.
Unlike a general socket load, EV supply equipment (EVSE) contains rectifiers, switching electronics and filters. Charging current is substantial and continuous; faults can include AC, pulsating DC or smooth DC. A differential circuit breaker (the residual-current part of an RCBO) compares current in monitored conductors and trips on imbalance, while its overcurrent release protects against overload and short circuit.
EV Residual-Current Protection Requirements
Charging electronics can produce a smooth DC residual current that may saturate the sensing core of a conventional Type A device. IEC 62955 specifies requirements for residual direct current detecting devices (RDC-DDs) used with mode 3 charging equipment; many EVSE designs use 6 mA DC detection so that an upstream 30 mA Type A RCD can remain effective. The installer must verify what the particular EVSE actually provides rather than infer it from a marketing name.
Type A RCBOs respond to sinusoidal AC and pulsating DC residual currents. Type B protection has an additional specified response to smooth DC and other waveforms, subject to its declared scope. Selection must follow the EVSE instructions and destination rules. Type F is not a universal EV substitute, and Type AC must not be assumed suitable for power-electronic charging equipment. The choice concerns the complete protection chain, including upstream RCDs that could be affected by DC residual current.
Check What the Charger Actually Includes
Request separate declarations for AC residual-current protection, smooth-DC detection and the mechanism that disconnects the supply. Record the relevant standard, protected conductors, trip or alarm behavior and the manufacturer’s required upstream device for each. A brochure stating only 6 mA DC protection leaves open whether the charger contains a complete RCD or only the DC-detection part of the required arrangement.
The IET’s May 2024 EVSE guidance explains this distinction in the context of BS 7671:2018+A2:2022. Use it to understand the protection architecture, then check the edition and amendments adopted for the current project. The guide to what an RCBO does explains the separate overcurrent and residual-current functions that still need to be accounted for.
10 kA RCBO Specification Checks

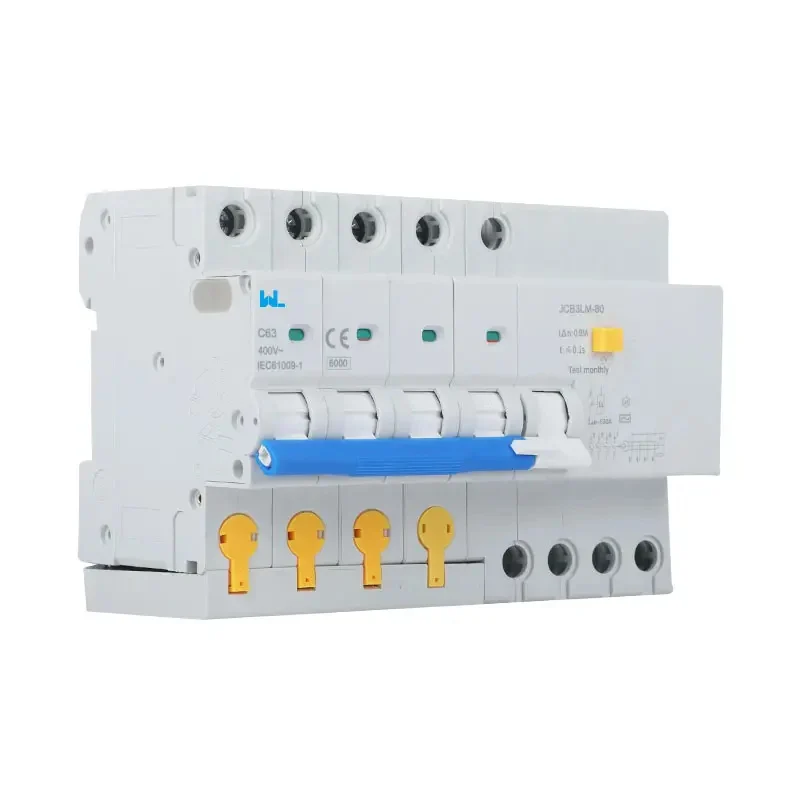

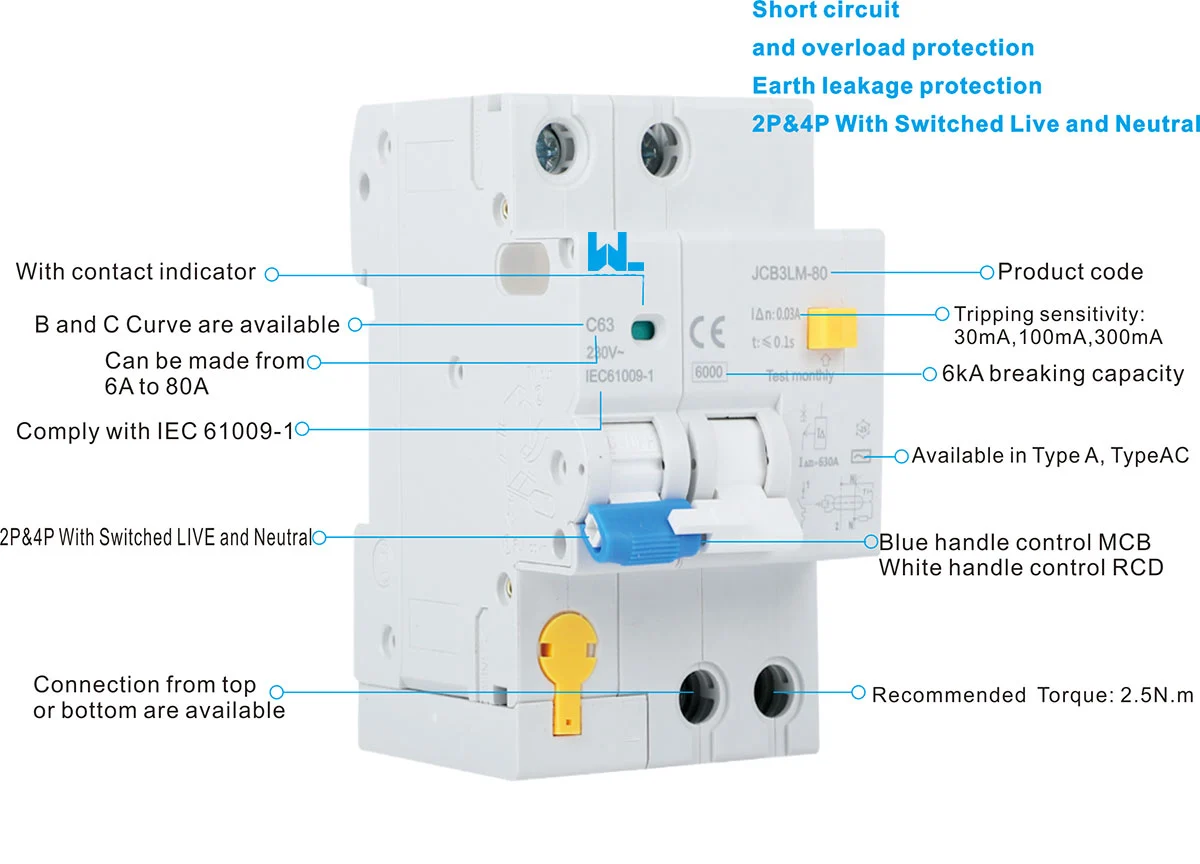

A 10 kA rating describes short-circuit interruption under the declared product standard and test conditions. It does not state the continuous current, residual sensitivity or charging capacity. Review the W9 EV RCBO listing as a product reference, then obtain the exact supplied model code, marking, datasheet and test basis. Do not treat JCR2 and JC3LE-EV designations as interchangeable without manufacturer confirmation of the delivered configuration.
Selection starts with design current (Ib), cable capacity (Iz), protective rating (In) and installation derating. EV charging is a long-duration load, so ambient temperature, grouped circuits, enclosure ventilation and terminal rise matter. Illustrative only: at 230 V and 32 A, apparent input power is 230 × 32 = 7.36 kVA before power factor, efficiency, diversity or site limits. Verify the EVSE nameplate, cable ampacity, voltage drop and local continuous-load rule.
| Arrangement | Detects | When it may fit | Verification point |
|---|---|---|---|
| Type A RCBO + EVSE 6 mA RDC-DD | AC and pulsating DC at the RCBO; EVSE monitors smooth DC | Common mode 3 approach where the charger manufacturer specifies it | Confirm RDC-DD compliance, test method and alarm/trip behaviour |
| Type B RCBO/RCD | AC, pulsating DC and smooth DC, subject to device scope | EVSE lacks 6 mA DC detection or requires broad waveform coverage | Check manufacturer instructions, cost, dimensions and selectivity |
| Type AC RCBO | Sinusoidal AC only | Only where a competent designer confirms no DC or pulsating component | Do not use by default for power-electronic EVSE |
EV Circuit Protection Coordination
Place an RCBO for EV charger circuits downstream of the distribution-board main protection and check discrimination. Compare short-circuit ratings with prospective fault current at the charger, not merely at the service entrance. For residual protection, compare trip sensitivity, delay, waveform capability and the EVSE’s 6 mA DC behaviour. An upstream selective RCD helps only when manufacturer time-current data supports it; this is an EV charging protection check.

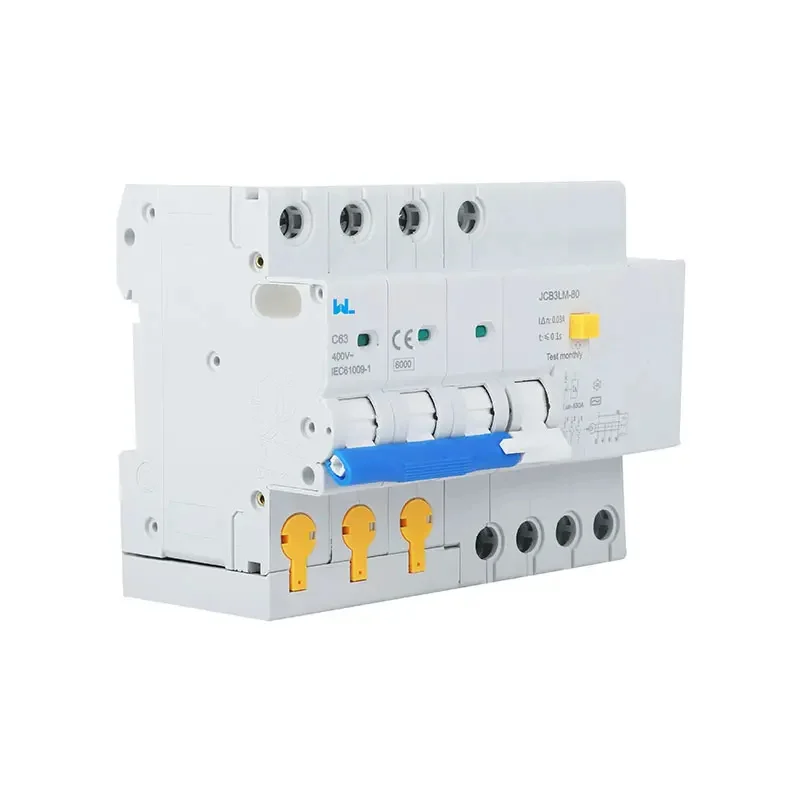

All current-carrying conductors that belong to the circuit must pass through the sensing path. A shared or borrowed neutral, neutral-to-earth contact downstream, or a line conductor bypassing the RCBO can cause nuisance trips or defeat protection. A two-pole device is normally used for a single-phase line-and-neutral circuit; three-phase EVSE requires a pole arrangement and neutral treatment specified by the equipment and installation design. Keep the EV circuit physically and electrically segregated from unrelated neutrals.
Review the Upstream RCD Chain
Draw every RCD between the source and charging point, including shared devices already in the building. Record type, sensitivity, delay and which other loads each supplies. A newly selected branch RCBO does not automatically make an upstream Type AC device suitable for the residual currents that may reach it. Check waveform compatibility and discrimination using the actual combinations, not a rule based only on different ampere ratings.
Also distinguish protection for the charging point from protection required along its supply cable, for example by the earthing system or wiring route. The RCBO safety guide provides circuit-grouping context; the charger manual and the locally adopted installation rules decide the final arrangement. Resolve an unsupported upstream combination before energizing rather than increasing residual sensitivity to suppress a trip.
EV Circuit Installation Requirements
EV charging can run for many hours, so verify cable ampacity after ambient, grouping, conduit and termination corrections. Tighten terminals to instructions, use the specified conductor cross-section and provide EVSE strain relief. Mount on the prescribed DIN rail, maintain clearances and label the circuit. Confirm dimensions, torque and environmental limits in the current technical file.
Commissioning combines visual inspection with the tests required by the adopted installation rules and the EVSE instructions. These can include protective-conductor continuity, polarity, insulation testing with electronics treated as instructed, fault-loop or prospective-current checks and the applicable residual-current tests. Use suitable instruments and record the selected test mode and actual procedure. The installation test is not a repetition of every product-standard waveform test, and the test button does not verify the entire installation.
EV Procurement and Handover
- Document the EVSE: Record mode, phase arrangement, maximum current, built-in 6 mA DC detection and the manufacturer’s required RCD type.
- Calculate fault and load values: Establish design current, cable ampacity after derating, voltage drop and prospective short-circuit current at the RCBO terminals.
- Choose waveform and sensitivity: Specify Type A or Type B (and the permitted residual threshold/time characteristic) from the equipment and risk assessment; do not substitute Type AC by habit. Document the EV charging protection rationale.
- Check coordination: Confirm upstream/downstream selectivity, neutral routing, pole count, busbar compatibility and enclosure thermal capacity.
- Request evidence: Obtain the declaration, test reports, installation diagram, marking, terminal torque and destination-market approvals for the exact configuration.
- Plan service: Label the circuit, provide safe test access and schedule periodic inspection based on the manufacturer, local rules and site risk.
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage protection products and offers OEM/ODM and testing support. Ask W9 to confirm the exact JCR2/JC3LE-EV model, 10 kA test basis and destination-market documentation.
| Stage | Question | Evidence to retain |
|---|---|---|
| Design | What are Ib, Iz, fault current and EVSE residual-current characteristics? | Load schedule, cable calculation and charger manual |
| Procurement | Does the exact RCBO carry the required marking and breaking-capacity rating? | Datasheet, declaration and coordination tables |
| Installation | Are poles, neutrals, torque, ventilation and segregation correct? | As-built diagram and torque/inspection record |
| Handover | Were residual, insulation and fault-loop tests completed with suitable instruments? | Signed commissioning results and maintenance interval |
Applicable EV Protection Standards
IEC 62955 covers RDC-DDs for mode 3 EV charging. IEC 61851-1 sets conductive charging requirements; IEC 60364-7-722 addresses low-voltage installations supplying EVs. IEC 61009-1 is the RCBO product standard for household and similar applications. Their scopes differ, and citing one does not certify a complete installation.
For North American projects, UL 2231-1/-2 address personnel-protection systems for EV supply circuits, while UL 943 covers GFCI devices. Applicability depends on construction, supply system and listing route. State the destination market early; a similar 10kA RCBO may not be acceptable in a listed assembly.
Frequently asked questions
How do you choose an RCBO for EV charger circuits?
There is no universal answer. Type A with verified 6 mA DC detection in the EVSE is a common arrangement; Type B may be required when that function is absent or specified by the charger maker. Confirm IEC 62955-related evidence and local rules before ordering.
Is a 10kA RCBO necessary for every EV installation?
No. The 10 kA value must meet or exceed the prospective fault current at the installation point, with any permitted backup or cascading arrangement considered. A higher label does not compensate for incorrect wiring, thermal derating or poor selectivity.
Can a Type A RCBO detect the DC leakage from an EV?
Type A detects pulsating DC and AC, but smooth DC can saturate some residual-current sensors. Use a compliant 6 mA DC RDC-DD in the EVSE or select the broader device type required by the equipment documentation; never infer capability from the word “differential.”
Why does an RCBO for EV charger circuits trip after several minutes?
Delayed trips can result from cumulative leakage, thermal loading, a neutral fault, moisture or an EVSE waveform outside the device capability. Measure residual current and temperature under load, inspect connections and follow the charger’s diagnostic procedure before replacing the RCBO.
What tests should be completed before handover?
Follow the adopted installation standard and the EVSE manufacturer’s commissioning method. Verify wiring, conductor protection and the required RCD and DC-detection functions with suitable equipment, recording instrument settings and results. Do not assume that a successful test-button operation proves the 6 mA DC detection and mechanical disconnection chain.
Keep the EVSE declaration, upstream device schedule and signed commissioning results together. A later charger replacement should trigger a review of waveform protection and earthing requirements even when its nominal charging current is unchanged.
