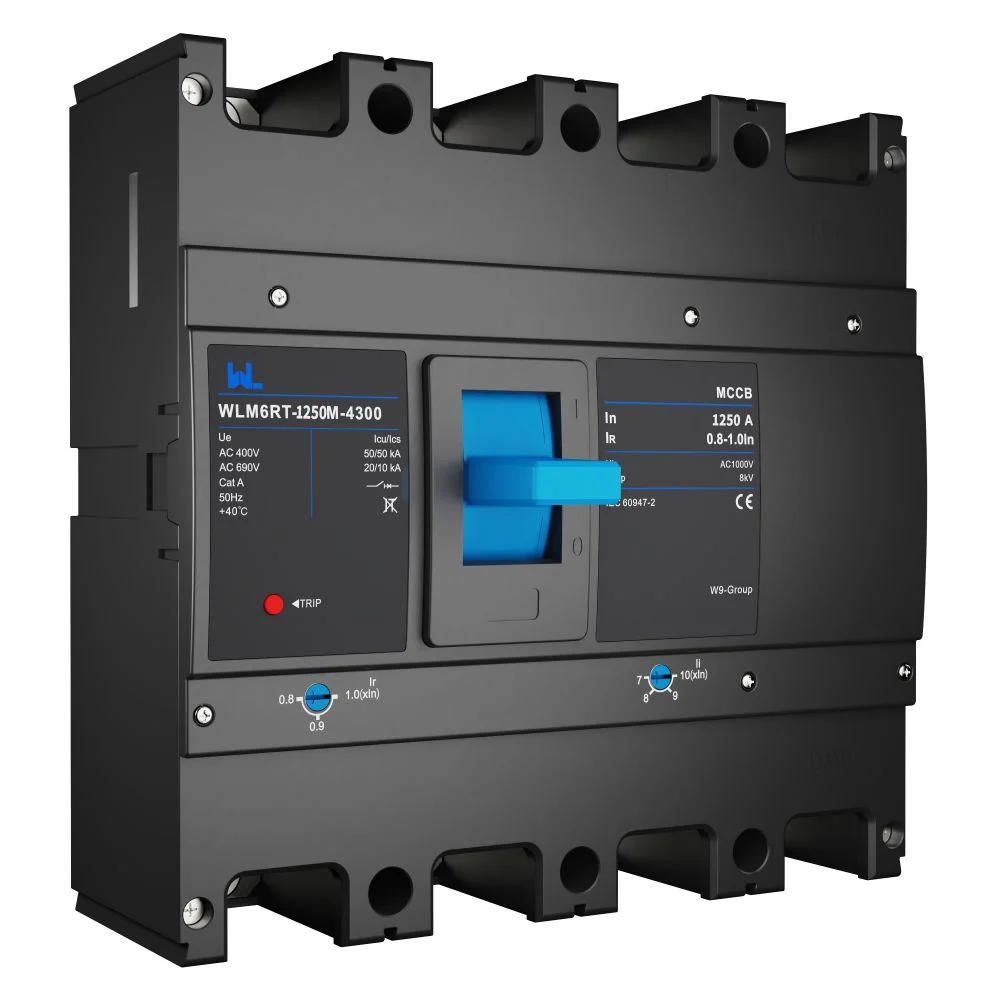

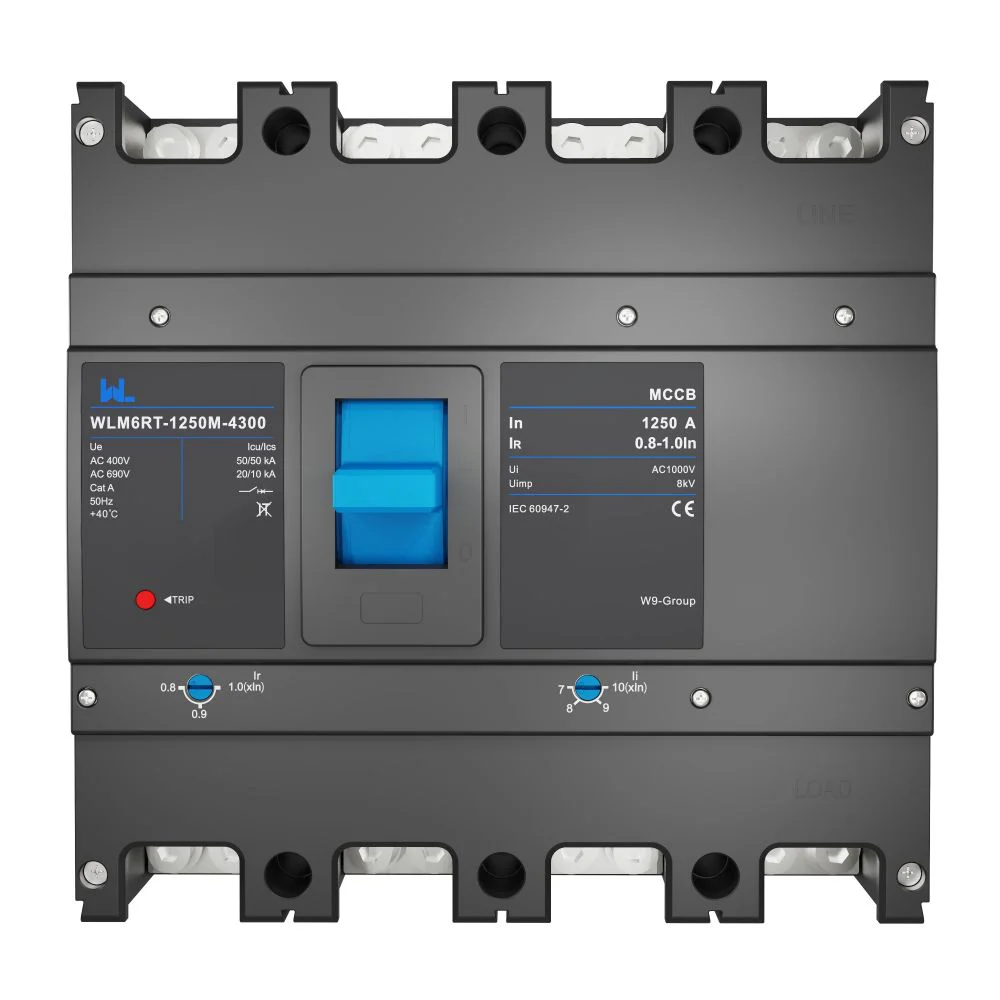

WLM6RT-1250 adjustable MCCB
ТЕХНИЧЕСКИЕ ДАННЫЕ

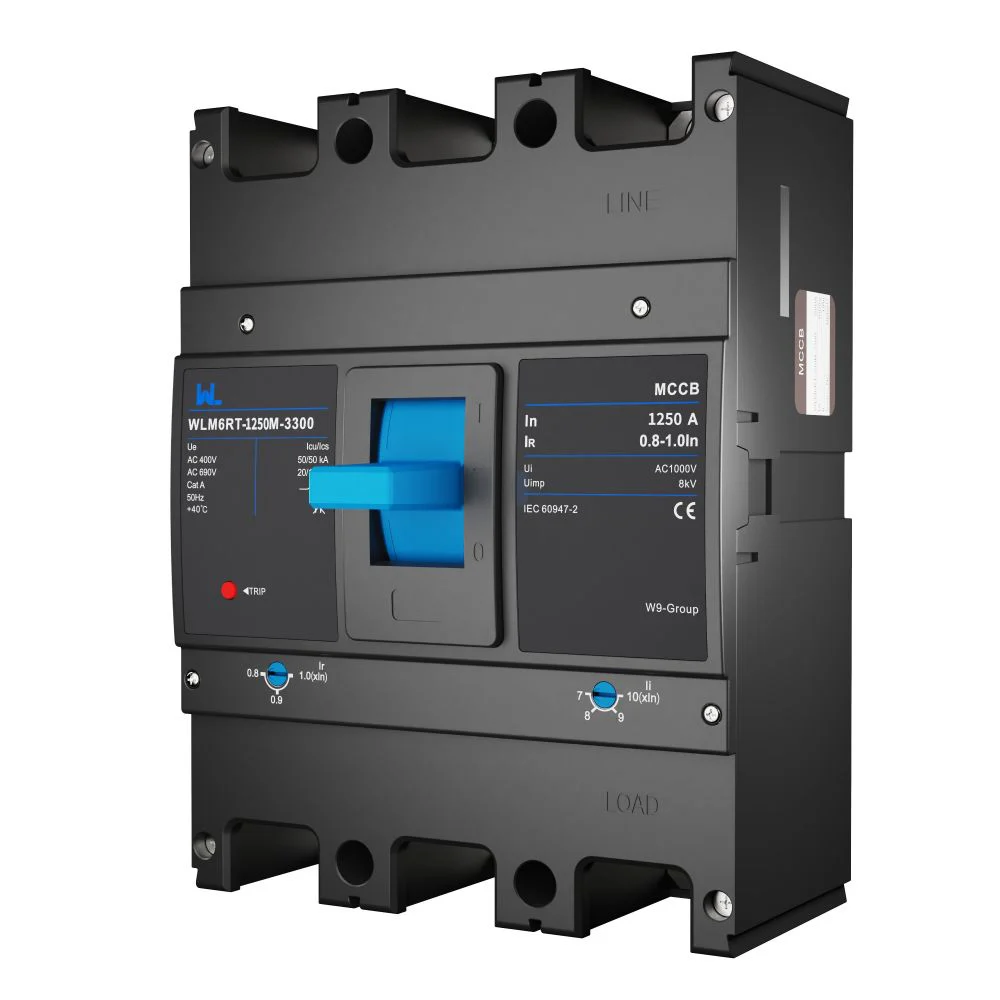

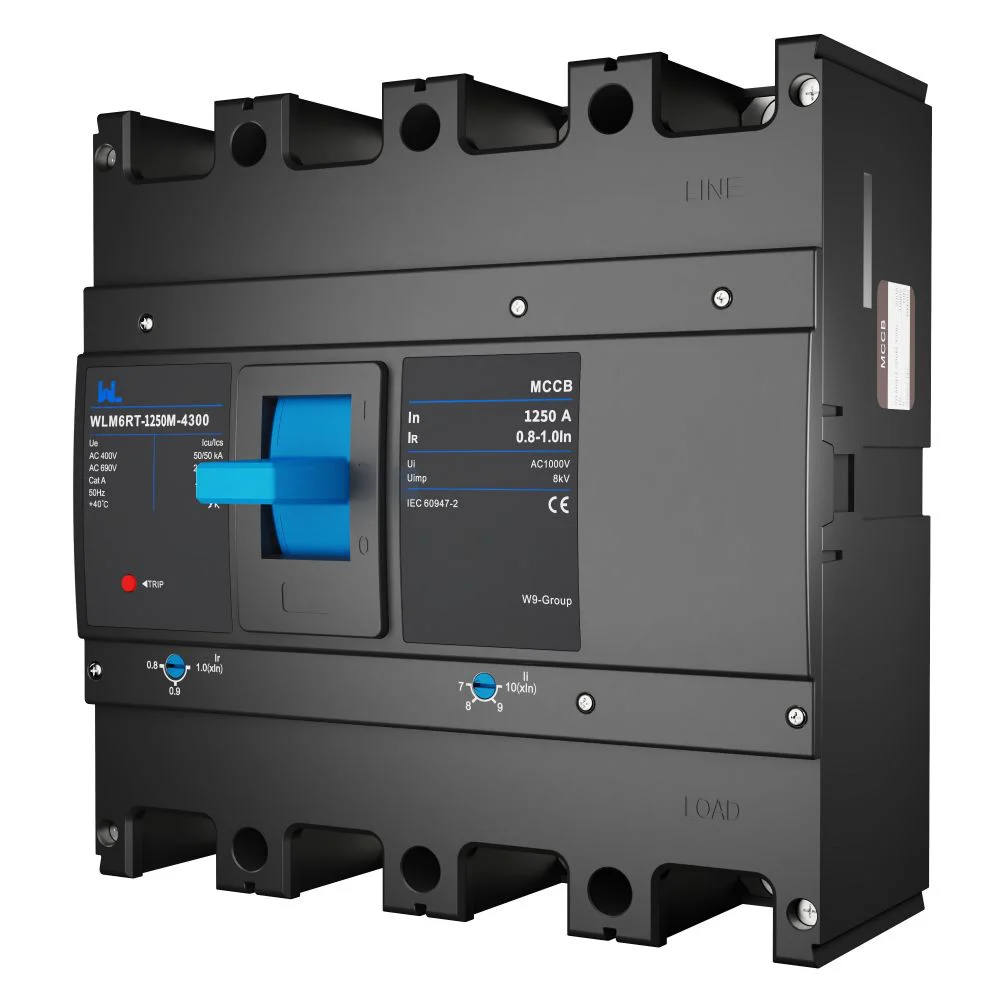

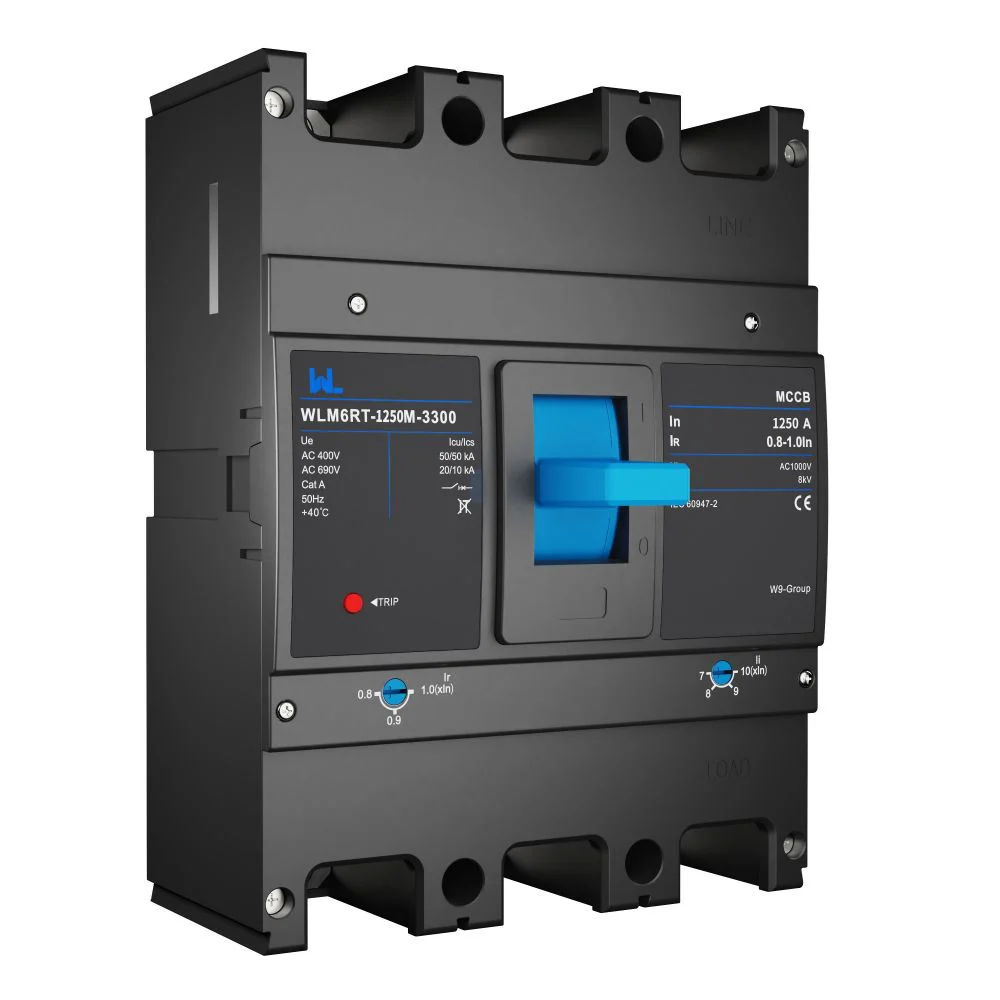

WLM6RT-1250 3 Pole and 4 Pole Adjustable MCCB Specifications
The WLM6RT-1250 adjustable MCCB is listed by W9 Group with a 1250 A summary rating and 3P / 4P options. The catalog separates adjustable releases by suffix. Match the ordered current, overload and instantaneous functions, operating voltage and fault duty before selecting a breaker for the panel.
| WLM6RT Moulded Case Circuit Breaker | 1250 | |||||||||||
| Максимальный рабочий ток (в А), 40°C | Термо-магнитный тип | 630-700-800-1000-1250 | ||||||||||
| WLM6RT/Adjustable type | 630-700-800-1000-1250 | |||||||||||

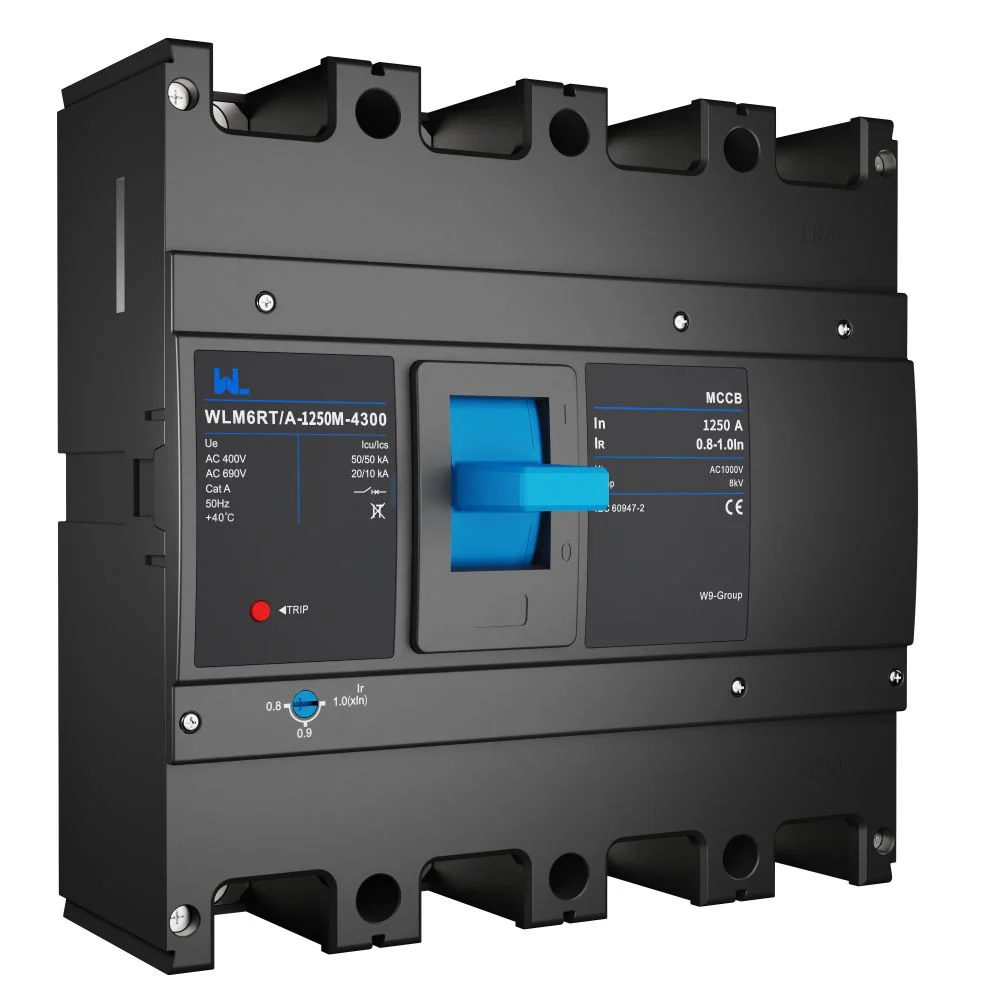

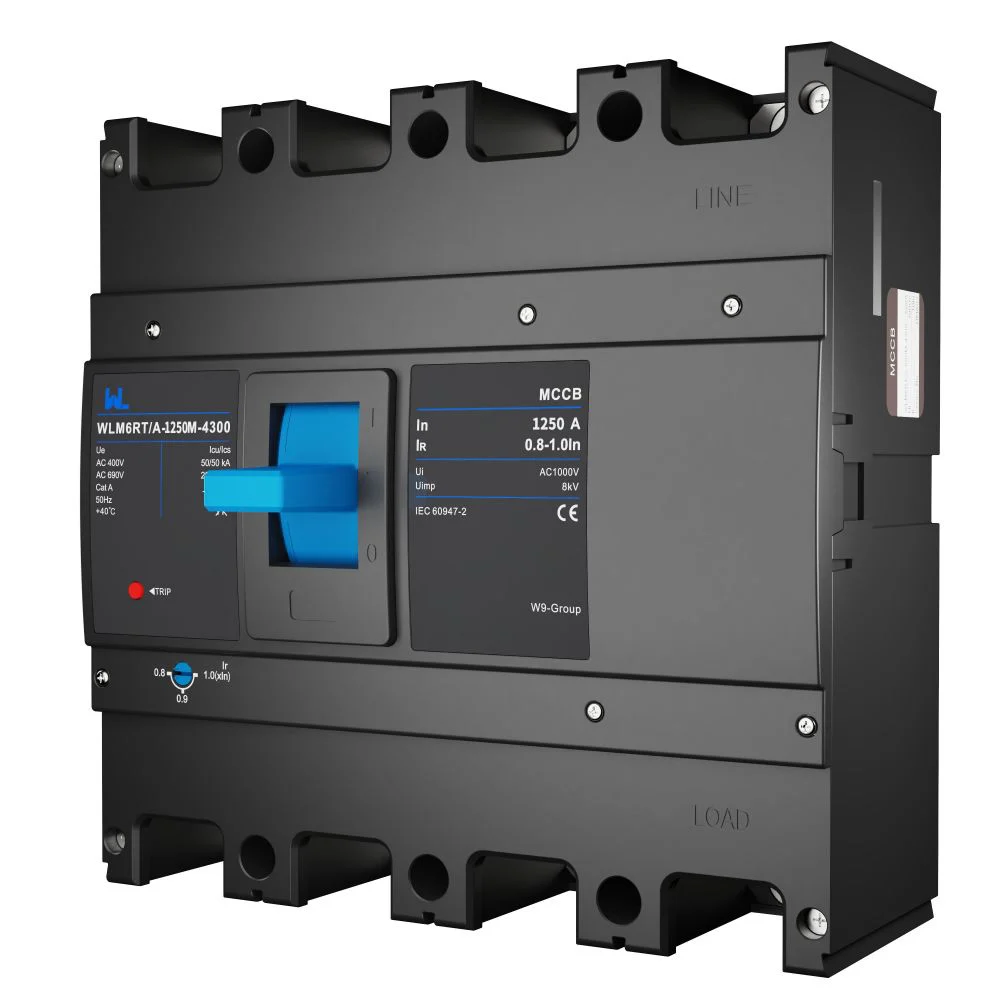

| WLM6RT/A/Adjustable type Ir | 630-700-800-1000-1250 | |||||||||||

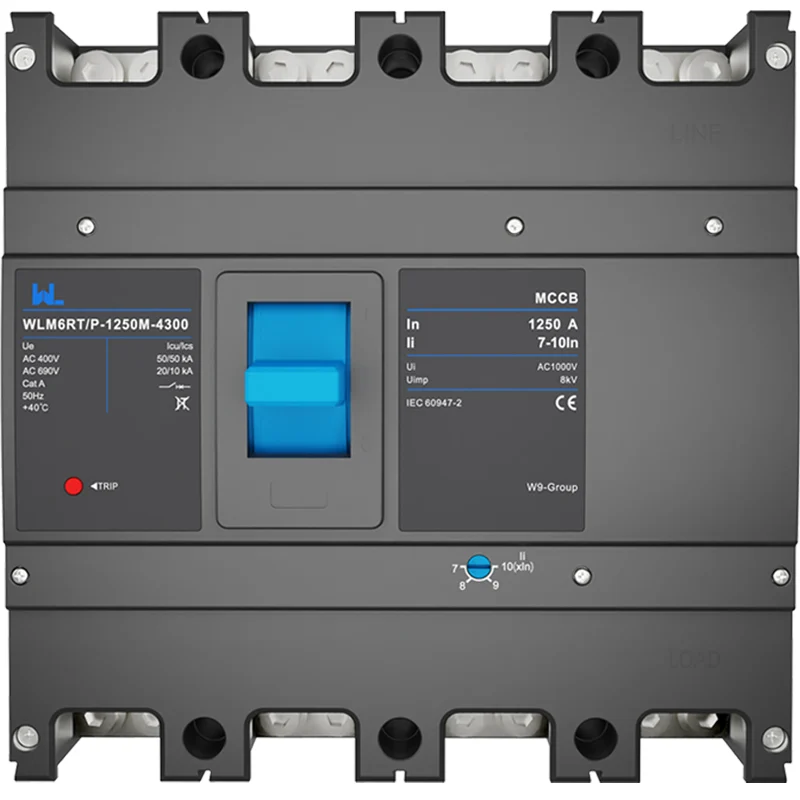

| WLM6RT/P/Adjustable type li | 630-700-800-1000-1250 | |||||||||||
| Электрические характеристики | ||||||||||||
| Определенная изоляционная напряженность Ui (В) | 1000 | |||||||||||
| Определенная импульсная прочность на напряжение (kV) | 8 | |||||||||||
| Определенная рабочая напряженность Ue(V), переменный ток 50/60 Гц | 380/400/415,440,500,660/690 | |||||||||||
| Код прорыва пропускной способности | S | M | H | |||||||||
| Число столбов | 1P(Adjutable не имеет такого типа) | – | – | – | ||||||||
| 2P | – | – | – | |||||||||
| 3P | ■ | ■ | ■ | |||||||||
| 4P | ■ | ■ | ■ | |||||||||
| Число столбов | AC220/230/240В | 60 | 80 | 85 | ||||||||
| AC380/400/415В | 50 | 70 | 100 | |||||||||
| AC440V | – | – | – | |||||||||
| AC500V | – | – | – | |||||||||
| AC660/690В | 20 | 25 | 35 | |||||||||
| Число столбов | AC220/230/240В | 40 | 65 | 70 | ||||||||
| AC380/400/415В | 35 | 50 | 70 | |||||||||
| AC440V | – | – | – | |||||||||
| AC500V | – | – | – | |||||||||
| AC660/690В | 10 | 15 | 20 | |||||||||
| Стандартный | ||||||||||||
| Категория использования | A(Thermal-magnetic)/B(Electronic) | |||||||||||
| Температура окружающей среды | ||||||||||||
| Безопасность изоляции | ■ | |||||||||||
| Расстояние искрения | 0 | |||||||||||
|
Механический срок службы (Ко второй переработке) |
Поддержание работоспособности | 8000 | ||||||||||
|
Электрическая жизнь (Ко второй переработке) |
AC415V,In | 1000 | ||||||||||
| AC690V,В | 800 | |||||||||||
| Выпускаемые единицы | ||||||||||||
| Защита от распространения | TM | ■ | ||||||||||
| Защита двигателя | TM | ■ | ||||||||||
| Установка и подключение | ||||||||||||
| Исправлено | Передний контакт | – | ||||||||||
| Задний разъём | ■ | |||||||||||
| Пластиковый адаптер | Передний контакт | – | ||||||||||
| Задний разъём | – | |||||||||||
| Развертывание | Передний контакт | ■ | ||||||||||
| Задний разъём | ■ | |||||||||||
| DIN-рейлинги | Передний контакт | – | ||||||||||
| Размер | ||||||||||||
|
Размер (мм) Ш×В×Г |
Ширина (1P/2P/3P/4P) | 210/280 | ||||||||||
| Высота | 275.5 | |||||||||||
| Глубина | 103 | |||||||||||
| Масса | ||||||||||||
| Защита от распространения | 1P | – | ||||||||||
| 2P | – | |||||||||||
| 3P | 8.9 | |||||||||||
| 4P | 11.931 | |||||||||||
ГИД ПО ОТБЕРЕЖЕ
How to Select a 1250A MCCB with Adjustable Overload or Instantaneous Trip
Specify the ordered current, release suffix, adjustment functions, poles, operating voltage and fault duty when requesting a WLM6RT-1250 quotation from W9 Group.
Select the current and release
Use WLM6RT-1250 with the required catalog current. Confirm whether the selected release adjusts overload, instantaneous protection or both.
Coordinate the protection curve
Request the time-current curve and allowed settings for the actual release. Match the settings to the load and adjacent protective devices.
Match voltage and fault duty
Provide circuit voltage and prospective short-circuit current. Confirm the capacity code and corresponding Icu / Ics.
Check the installation drawing
Confirm pole count, terminal direction, mounting form, clearances and dimensions before preparing the switchboard.
О W9 GROUP
W9 Group 1250A Adjustable MCCB Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a WLM6RT-1250 enquiry, contact W9 Group about configuration and matching product documents.
СВЯЗАННЫЕ РЕСУРСЫ
WLM6RT-1250 Adjustable MCCB Trip Curves, Wiring and Mounting Documents
Use technical support and related products to specify WLM6RT-1250. Request a datasheet and wiring diagram matching the selected WLM6RT-1250 configuration.
СВЯЗАННЫЕ ПРОДУКТЫWLM6RT-800Сравните функциональность и конфигурацию; запросите отдельную оценку модели
ДОКУМЕНТЫЦентр загрузки программ W9 GroupRequest the current document for your quoted WLM6RT-1250 variant
Часто задаваемые вопросы покупателей
WLM6RT-1250 Adjustable MCCB FAQs: Trip Settings, Poles and Fault Ratings
Find answers about WLM6RT-1250 selection, configuration and ordering.
Which current choices are listed for WLM6RT-1250?
The target catalog lists 630, 700, 800, 1000, 1250 A. These are available catalog choices, not a promise that every release adjusts continuously across the full range. Confirm the ordered current and suffix.
Does every version adjust both overload and instantaneous protection?
The catalog separates adjustable variants by suffix. Confirm each required adjustment function, setting range and time-current curve for the supplied release.
Can the same breaking capacity be used at both operating voltages?
Confirm Icu / Ics for the actual voltage, pole arrangement and capacity code. The source matrix has ambiguous headings, so no single fault rating is assigned to every version.
How do I select the pole arrangement?
The summary offers 3P / 4P. Specify neutral switching requirements and request the drawing matching the selected arrangement.
Is this an electronic controller or a thermal-magnetic release?
This page covers the adjustable thermal-magnetic model designation. Confirm its release suffix; electronic-controller functions from other product families are not included by assumption.
Which mounting and connection details need confirmation?
Request the approved drawing for fixed, plug-in or withdrawable construction as applicable. Confirm front or rear connection, terminal clearances and the ordered accessory combination.
What is needed for a WLM6RT-1250 quotation?
Отправьте необходимую конфигурацию, количество, целевой рынок и требования к документации. Попросите компанию W9 Group подтвердить цену, минимальное количество заказа, наличие образцов и срок изготовления выбранной конфигурации.
