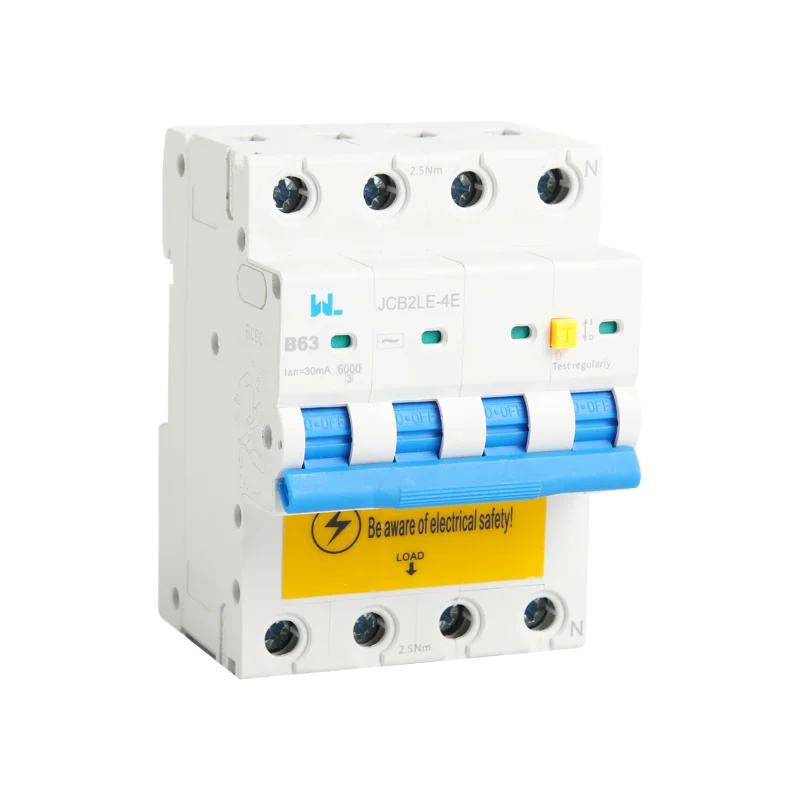

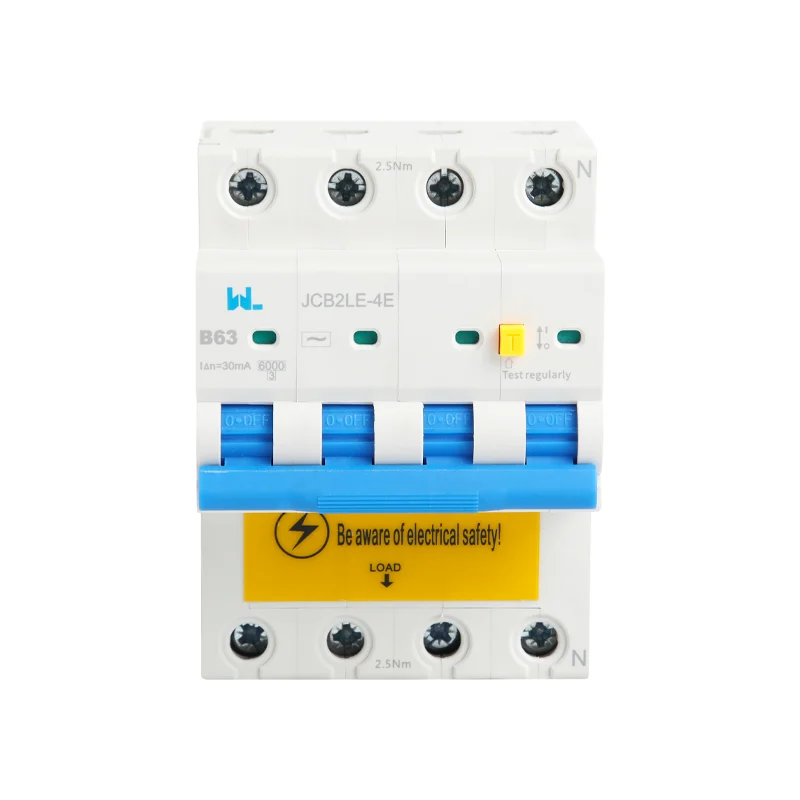

Residual Current Circuit Breaker JCB2LE-4E 4P 4 Pole RCBO 6kA
TECHNICAL DATA
JCB2LE-4E 6kA 4 Pole RCBO Specifications

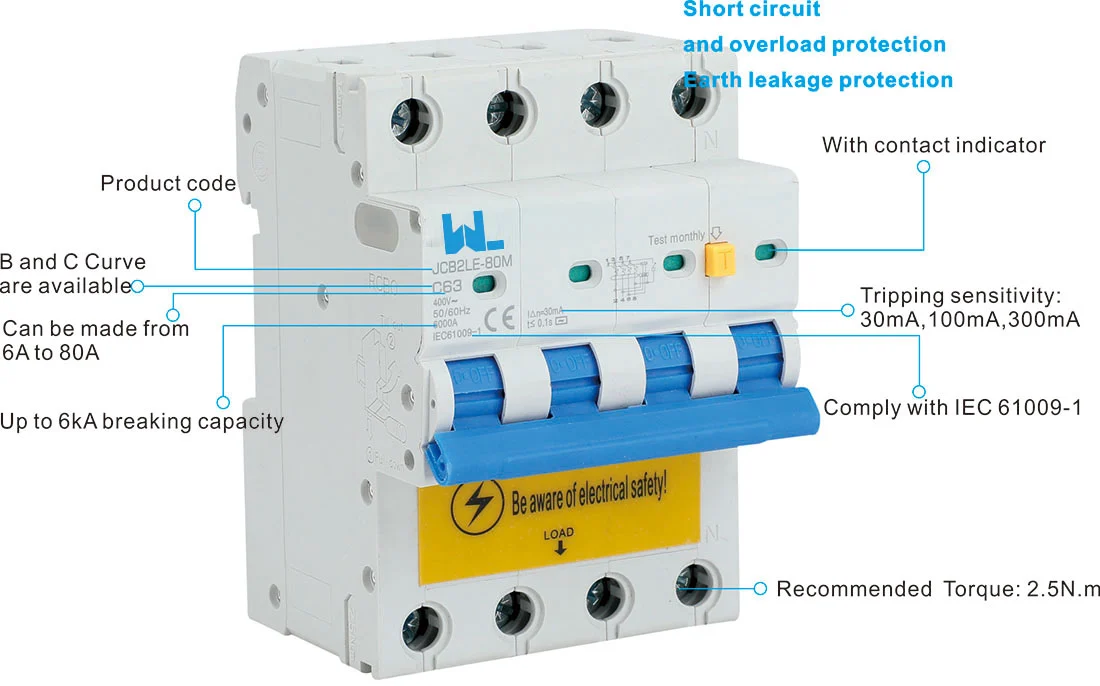

W9 Group offers JCB2LE-4E as a 4-pole electronic RCBO for consumer units and distribution boards. Its product information lists residual-current, overload and short-circuit protection, a 6 kA breaking capacity and a 6–80 A current range.
|
Standard |
IEC61009-1 , EN61009-1 |
|
|
Electrical features |
Rated current In (A) |
6, 10, 16, 20, 25, 32, 40,50,63,80 |
|
Type |
Eletronic |
|
|
Type (wave form of the earth leakage sensed) |
A or AC are available |
|
|
Poles |
4 Pole |
|
|
Rated voltage Ue(V) |
230/240 |
|
|
Rated sensitivity I△n |
30mA,100mA,300mA |
|
|
Insulation voltage Ui (V) |
500 |
|
|
Rated frequency |
50/60Hz |
|
|
Rated breaking capacity |
6kA |
|
|
Rated impulse withstand voltage(1.2/50) Uimp (V) |
6000 |
|
|
Pollution degree |
2 |
|
|

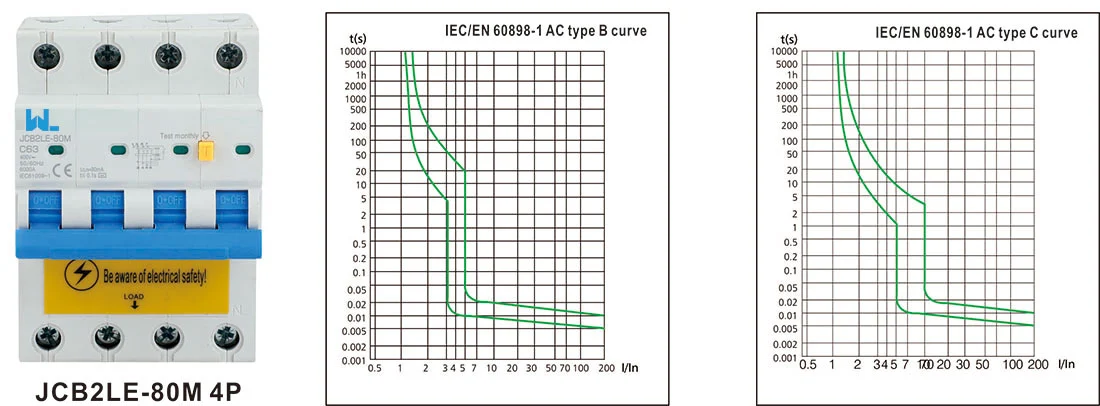

Thermo-magnetic release characteristic |
B, C |
|
|
Mechanical features |
Electrical life |
2, 000 |
|
Mechanical life |
10, 000 |
|
|
Contact position indicator |
Yes |
|
|
Protection degree |
IP20 |
|
|
Reference temperature for setting of thermal element(℃) |
30 |
|
|
Ambient temperature (with daily average ≤35℃) |
-5…+40 |
|
|
Storage temperation (℃) |
-25…+70 |
|
|
Installation |
Terminal connection type |
Cable/U-type busbar/Pin-type busbar |
|
Terminal size top/bottom for cable |
25mm2 / 18-4 AWG |
|
|
Terminal size top/bottom for Busbar |
10mm2 / 18-8 AWG |
|
|
Tightening torque |
2.5 N*m / 22 In-Ibs. |
|
|

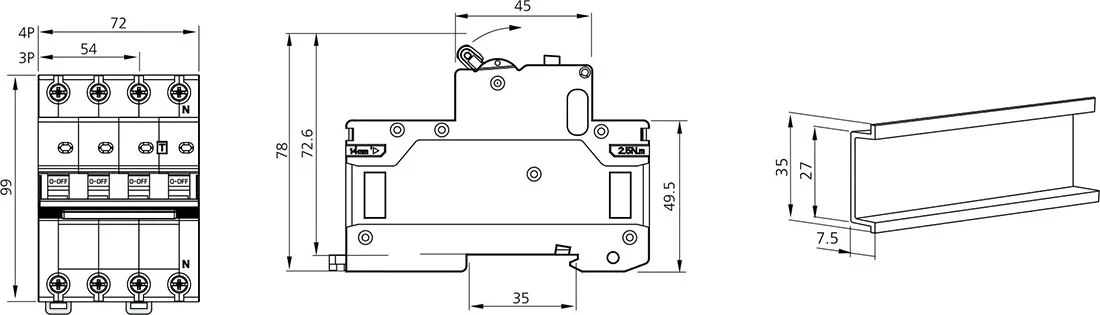

Mounting |
On DIN rail EN 60715 (35mm) by means of fast clip device |
|
|
Connection |
From top |
SELECTION GUIDE
Selecting a 4 Pole RCBO by Current and Leakage Sensitivity
Specify the rated current, pole arrangement, supply voltage, waveform type, residual-current sensitivity and installation documents when requesting a JCB2LE-4E quotation from W9 Group.
Specify the exact model
Use JCB2LE-4E on the enquiry and request the product label and technical documents for that model.
Check four-pole wiring
Request the pole and neutral-terminal diagram for the intended distribution board.
Choose detection and curve
Type A or Type AC, B or C curves and three sensitivity options are listed. Confirm the combination required by the circuit.
Check installation requirements
Request operating voltage, dimensions, cable capacity and tightening instructions in the JCB2LE-4E installation document.
ABOUT W9 GROUP
W9 Group 4 Pole RCBO Supply and Support
Zhejiang W9 Group Technology Co., Ltd. includes RCBOs in its low-voltage electrical product range. For a JCB2LE-4E order, contact W9 Group about the required configuration and product documents.
RELATED RESOURCES
JCB2LE-4E 4 Pole RCBO Technical Document Requests
Use W9 Group’s RCBO guide and product directory for context. Request a datasheet and wiring diagram matching the selected JCB2LE-4E configuration.
PRODUCT DIRECTORYExplore W9 Group circuit-protection productsBrowse the product directory to compare RCBO models
DOCUMENTSW9 Group download centreRequest the current document for your quoted JCB2LE-4E variant
BUYER FAQ
RCBO FAQs: Type A or AC and Residual-Current Options
Find answers about configuration, installation documents and ordering.
What protection does JCB2LE-4E provide?
W9 Group describes JCB2LE-4E as an electronic RCBO combining residual-current, overload and short-circuit protection.
What breaking capacity is listed?
The JCB2LE-4E product title and description list 6 kA. Confirm the rating and suitability of the exact ordered configuration.
How can I check voltage and dimensions?
Request the JCB2LE-4E datasheet and wiring diagram from W9 Group technical support. Confirm operating voltage, dimensions and terminal instructions before planning the installation.
What is needed for a JCB2LE-4E quotation?
Send the required configuration, quantity, destination market and document requirements. Ask W9 Group to confirm price, minimum order quantity and lead time for the selected model.
How do I distinguish rated current from residual-current sensitivity on JCB2LE-4E?
Confirm both values on the selected JCB2LE-4E datasheet: the load-current selection and the residual-current trip setting answer different design requirements. Include both in the enquiry.
Which neutral and phase wiring drawing should I request for the four-pole RCBO?
Request the complete JCB2LE-4E connection drawing, including the neutral terminal and supply connection. Confirm the specified arrangement before planning the distribution-board wiring.
How should I select the JCB2LE-4E trip curve?
Provide the intended load and starting behavior, and request the matching time-current curve for the selected JCB2LE-4E current rating. Confirm coordination with the upstream protection.
