技術データ

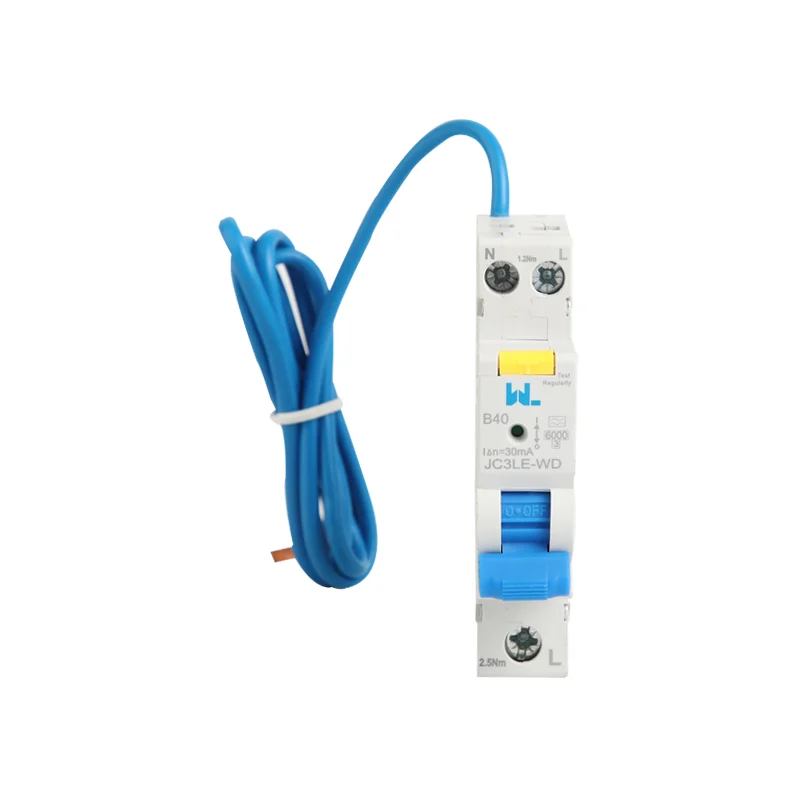

JC3LE-WD 6kA Single Module Switched-Neutral RCBO Specifications
The JC3LE-WD single module RCBO is listed by W9 Group for residual-current, overload and short-circuit protection. Confirm the selected current, waveform response and wiring arrangement on the matching datasheet.
| モデル | JC3LE-WD | |
|---|---|---|
| Module format | Single module | |
| 建設 | 電子機器 | |
| Switched conductors | Live and neutral | |
| Rated current range | 6–40 A; confirm the individual rating schedule | |
| 断面積 | 6 kA standard rating | |
| Residual-current sensitivity | 30 mA、100 mA、300 mA | |
| Waveform options | Type A or Type AC | |
| Trip curves | B or C | |
| Standards listed by W9 Group | IEC 61009-1, EN61009-1; request model-specific documents | |
選定ガイド
Selecting a Type A or AC Single Module RCBO for 6–40A Circuits
Specify the rated current, B or C curve, waveform type, residual-current sensitivity, operating voltage and module dimensions when requesting a JC3LE-WD quotation from W9 Group.
Specify the WD model
Specify JC3LE-WD and the required switched-live-and-neutral configuration on the enquiry.
Choose current and curve
JC3LE-WD lists a 6–40 A range with B or C curves. Confirm the individual rating and available configuration.
State residual-current requirements
Type A or Type AC and 30 mA, 100 mA or 300 mA sensitivities are listed. Confirm the combination for the selected device.
Request installation documents
基板のレイアウトを計画する前に、対応するデータシートで動作電圧、モジュールの寸法、および端子の接続指示を確認してください。.
W9 GROUPについて
W9 Group Switched-Neutral RCBO Supply and Support
Zhejiang W9 Group Technology Co., Ltd. includes RCBOs in its low-voltage electrical product range. For a JC3LE-WD order, contact W9 Group about the required configuration and product documents.
関連リソース
JC3LE-WD Switched-Neutral RCBO Technical Document Requests
Use W9 Group’s RCBO guide and product directory for context. Request a datasheet and wiring diagram matching the selected JC3LE-WD configuration.
購入者のよくある質問
RCBO FAQs: Switched Neutral and Leakage Sensitivity
Find answers about ratings, configuration and ordering.
Does JC3LE-WD switch both live and neutral?
W9 Group lists switched live and neutral with double-pole switching for JC3LE-WD. Check the terminal arrangement in the matching wiring diagram.
What should I specify when requesting a 30 mA RCBO?
JC3LE-WD lists 30 mA, 100 mA and 300 mA residual-current sensitivities. For a 30 mA RCBO enquiry, specify the rated current, B or C curve and Type A or Type AC detection. The 30 mA value is leakage sensitivity, not load current; confirm the selected combination on the quotation.
Can I request a higher breaking-capacity version?
JC3LE-WD has a stated 6 kA breaking capacity. W9 Group mentions a possible 10 kA upgrade; request the exact variant and its rating documents if your circuit requires it.
What is needed for a JC3LE-WD quotation?
Send the required configuration, quantity and destination market. Ask W9 Group to confirm price, minimum order quantity and lead time for the selected model.
How do I verify the JC3LE-WD single-module footprint?
Request the JC3LE-WD outline and terminal drawing and compare them with the consumer-unit layout. Confirm the width and busbar connection for the offered order code.
How should I choose Type A or Type AC for JC3LE-WD?
Confirm the residual-current waveform response required by the intended load. Ask W9 Group for the matching JC3LE-WD waveform and sensitivity combination rather than treating every version as identical.
Which trip-curve information is needed for JC3LE-WD selection?
Request the time-current curve for the selected JC3LE-WD rating and trip-curve version. Check the load starting behavior and upstream coordination before placing the order.
製品のお問い合わせ
Request a JC3LE-WD Switched-Neutral RCBO Quotation
Tell W9 Group your rated current, B or C curve, waveform type, residual-current sensitivity, operating voltage and module dimensions, quantity and destination market so the selected configuration can be identified.
