WLM6ELY-160 Electronic MCCB Specifications and Configuration Checks

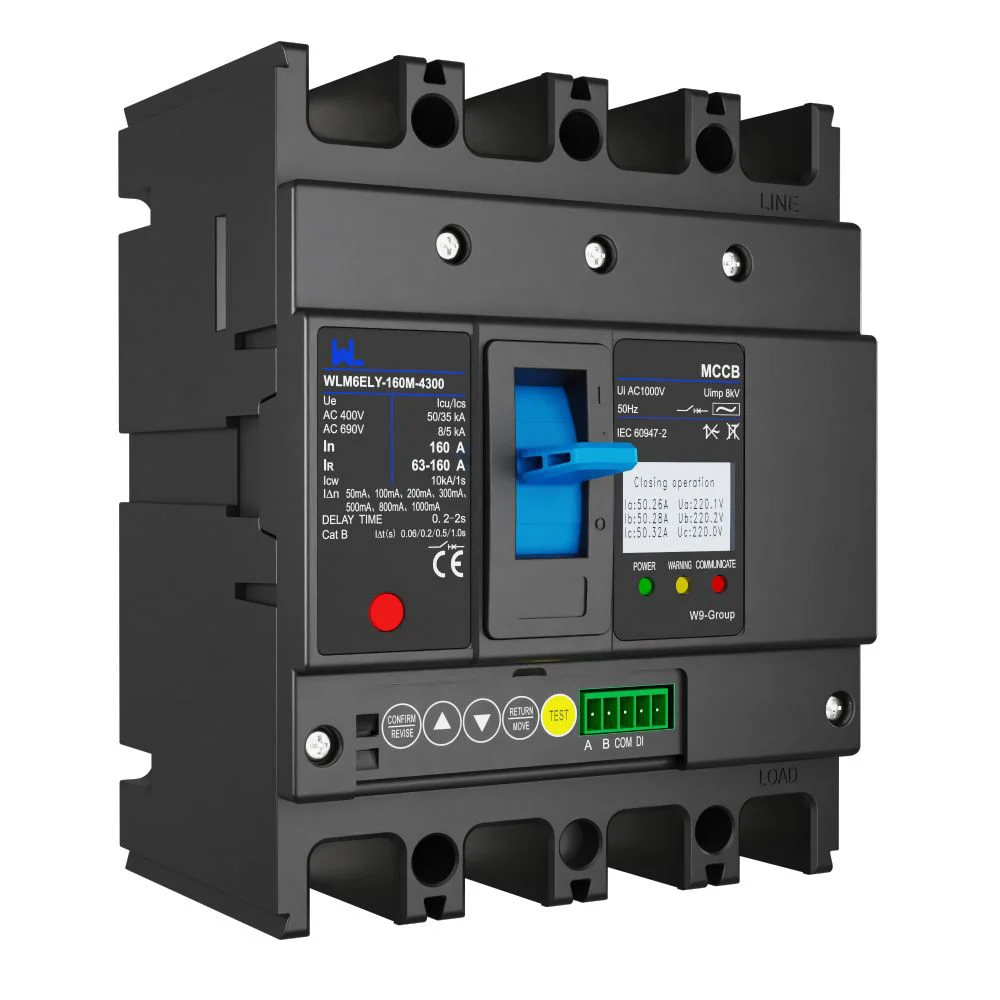

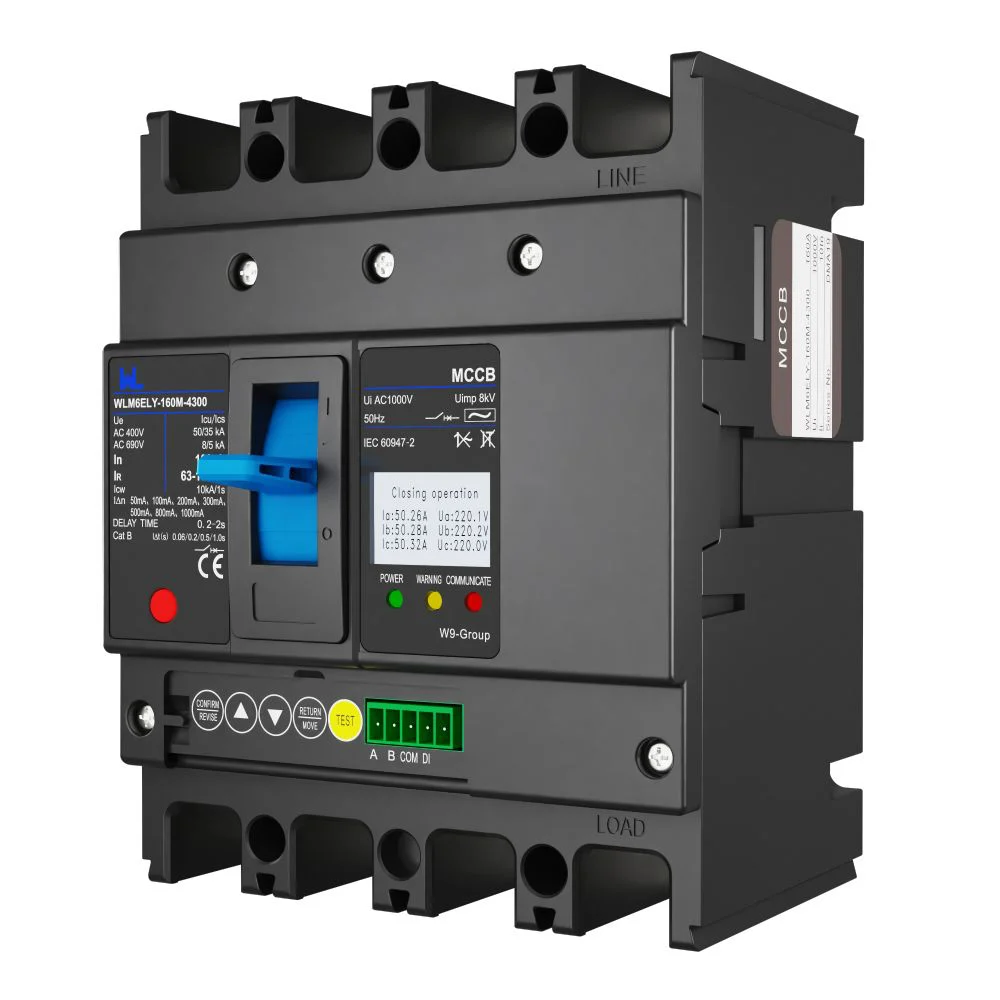

W9 Group markets the WLM6ELY-160 electronic MCCB with a 160 A summary rating. The listing combines electronic-trip descriptions with tables for differently labeled variants. Use the native model designation to request the exact controller, protection functions and matched electrical ratings for your distribution circuit.
| Native model designation | WLM6ELY-160 |
|---|---|
| Marketed product category | Electronic molded case circuit breaker |
| خلاصه جریان ورودی | 160 A |
| Summary poles | 3P / 4P in the native summary; confirm the ordered configuration |
| Trip functions | Confirm the controller code, function set and time-current curves |
| Operating voltage | Confirm the voltage rating for the exact controller, pole and capacity-code combination |
| Display and communication | Confirm available display functions, interface and auxiliary supply |
| Earth-fault / leakage protection | Confirm the sensing method, pickup range and time delay for the required function |
راهنمای انتخاب
Selecting a 160A Electronic MCCB by Trip Unit and Pole Arrangement
Specify the native model designation, current, controller functions, poles, voltage, fault level, sensing and display requirements when requesting a WLM6ELY-160 quotation from W9 Group.
Identify the current and controller
State WLM6ELY-160 and the required 160 A configuration. Confirm the complete suffix, controller code and available adjustment range.
Define protection functions
Specify the required overload, short-circuit and ground-fault functions. Confirm pickup values, delays and sensing arrangements in the actual controller documentation.
Match poles, voltage and fault duty
Provide the circuit voltage, neutral arrangement and prospective fault current. Confirm pole count and voltage-specific Icu / Ics for the offered device.
Specify display and integration
Ask for the display menu, metering list, wiring and any communication documentation. Confirm each required function instead of applying generic LCD-series copy to the order.
درباره W9 Group
W9 Group 160A Electronic MCCB Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a WLM6ELY-160 enquiry, contact W9 Group about configuration and matching product documents.
منابع مرتبط
WLM6ELY-160 Electronic MCCB Trip-Unit and Wiring Document Requests
Use technical support and related products to specify WLM6ELY-160. Request a datasheet and wiring diagram matching the selected WLM6ELY-160 configuration.
سوالات متداول خریداران
WLM6ELY-160 Electronic MCCB FAQs: LSIG, Leakage and Display Options
Find answers about WLM6ELY-160 selection, configuration and ordering.
What does the WLM6ELY-160 current designation establish?
The native summary states 160 A. Its main body table belongs to a different frame, so confirm the selected current and matching controller documentation rather than using that table.
Does the LSIG description confirm every trip function?
No. The listing’s controller and release descriptions are inconsistent. Confirm the actual function list, pickup ranges and time-current curves before specifying the protection scheme.
Is ground-fault protection the same as sensitive earth-leakage protection?
Do not treat the labels as equivalent. Confirm the sensing method, residual-current or ground-fault pickup range and delay required by the project, and verify them for the supplied controller.
Which pole arrangement should I specify?
The native summary lists 3P / 4P, while the old title mixes pole descriptions. Confirm neutral switching, sensing and the complete order code.
Does every version include an LCD and remote monitoring?
These features appear in generic source prose, without a complete controller-specific function list. Confirm the display, available measurements, interface, auxiliary supply and integration documents for the offered version.
Can I use the existing table for fault duty or panel dimensions?
Confirm that the table belongs to the exact native model and controller. Request the matched ratings and installation drawing; mixed family labels and copied tables are not a reliable installation specification.
What is needed for a WLM6ELY-160 quotation?
اطلاعات مورد نیاز را، تعداد، بازار مقصد و الزامات اسناد را ارسال کنید. از W9 Group درخواست کنید تا قیمت، حداقل مقدار سفارش، نمونه‌ها و زمان تحویل برای پیکربندی انتخاب شده را تأیید کند.
سؤال و جواب درباره محصول
Request a WLM6ELY-160 Electronic MCCB Quotation
Tell W9 Group your native model designation, current, controller functions, poles, voltage, fault level, sensing and display requirements, quantity and destination market so the selected configuration can be identified.
