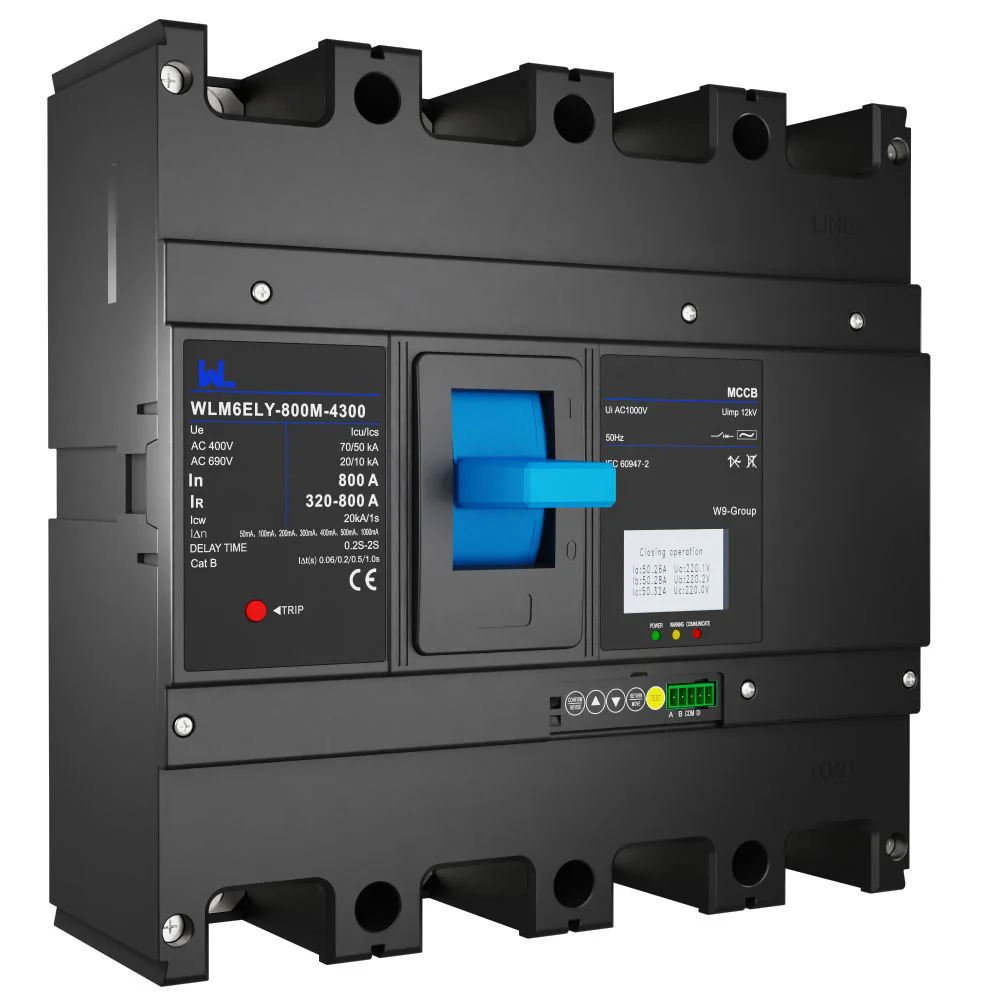

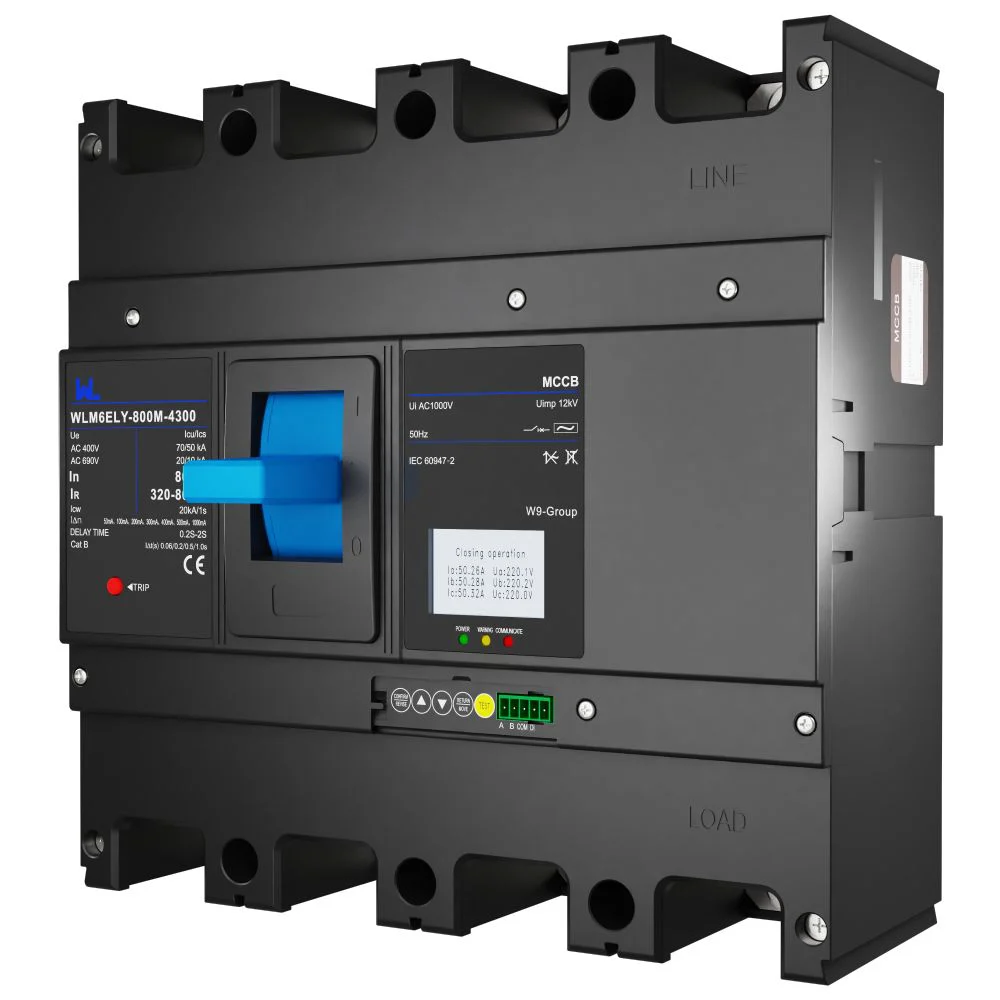

WLM6ELY-800 Electronic MCCB Specifications and Configuration Checks
W9 Group markets the WLM6ELY-800 electronic MCCB with a 800 A summary rating. The listing combines electronic-trip descriptions with tables for differently labeled variants. Use the native model designation to request the exact controller, protection functions and matched electrical ratings for your distribution circuit.
| WLM6LEY Moulded Case Circuit Breaker | 800 | ||||||||||||
| Rated current (A) of circuit breaker 40℃ | Fix type | 500-630-700-800 | |||||||||||
| Lcd type | 500-630-700-800 | ||||||||||||
| ولتاژ عایقی مجاز Ui (V) | 1000 | ||||||||||||
| تولید برق با ولتاژ انقباضی (kV) | 8 | ||||||||||||
| ولتاژ عملیاتی تعیین شده Ue(V)، AC 50/60Hz | AC400(3P, 3P+N, 4P) | ||||||||||||
| رمز توانایی شکست | C | S | M | H | |||||||||
| تعداد ستون | 2P | – | – | – | – | ||||||||
| ۳P | – | – | ■ | ■ | |||||||||
| ۴P | – | – | ■ | ■ | |||||||||
|
بهترین رتبه قطع مدار ظرفیت آیکی (kA) |
AC380/400/415V | – | – | 50 | 65 | ||||||||
| AC380/400/415V | – | – | 35 | 50 | |||||||||
|
Rated residual making and breaking capacity I△ m(kA) |
AC220/230/240V | – | – | 16.25 | 16.25 | ||||||||
| Limit non-actuating time △ t (ms) | 0.06s/0.2s/0.5s/1s | ||||||||||||
| Leakage alarm non-tripping function | □ | ||||||||||||
| overcurrent tripping type | Themal type | ||||||||||||
| Leakage tripping type | Electronic Type | ||||||||||||
| Residual current type | AC | ||||||||||||
| استاندارد | IEC/EN 60947-2 | ||||||||||||
| رشتهٔ بهره‌وری | A | ||||||||||||
| دمای محیطی | -40℃ ~+70 ℃ | ||||||||||||
| امنیت عایق | ■ | ||||||||||||
| فاصله قوس | 0 | ||||||||||||
|
زمان کارکرد مکانیکی (بازیافت CO) |
خدمات نگهداری | 15000 | |||||||||||
|
زندگی الکتریکی (بازیافت CO) |
AC415V، در | 8000 | |||||||||||
| AC690V، در | 2000 | ||||||||||||
| واحد‌های آزاد‌سازی | |||||||||||||
| تشخیص و اتصال | |||||||||||||
| رفع اشکال | اتصال جلو | ■ | |||||||||||
| اتصال عقب | ■ | ||||||||||||
| پلاگین | اتصال جلو | ■ | |||||||||||
| اتصال عقب | ■ | ||||||||||||
| توسعه | اتصال جلو | – | |||||||||||
| اتصال عقب | – | ||||||||||||
| ریل دیین | اتصال جلو | ■ | |||||||||||
| ابعاد | |||||||||||||
|
ابعاد (میلی متر) عرض × ارتفاع × عمق |
Width (2P/3P/4P) | 210/280 | |||||||||||
| ارتفاع | 275.5 | ||||||||||||
| عمق | 103 | ||||||||||||
| وزن | |||||||||||||
| حفاظت توزیع | 2P | – | |||||||||||
| ۳P | 8.473 | ||||||||||||
| ۴P | 11.245 | ||||||||||||
| Information of six-knob intelligent controller | |
| 1 | Alarm LED indicator light(red) |
| 2 | Pre-alarm LED indicator light (yellow) |
| 3 | Operation LED indicator light（ green） |
| 4 | Setting current of overload long-time delay current IR(A) |
| 5 | Setting value of overload long-time delay time tR(s) Table 35 for default parameters |
| 6 | Setting current of short circuit short-time delay time Isd(A) |
| 7 | Setting value of short circuit short-time delay time tsd(s) |
| 8 | Current setting of short-circuit short delay time Ii(A) |
| 9 | Setting current of overload pre-alarm Ip (A) |
