JCR3HM RCCB
اطلاعات فنی

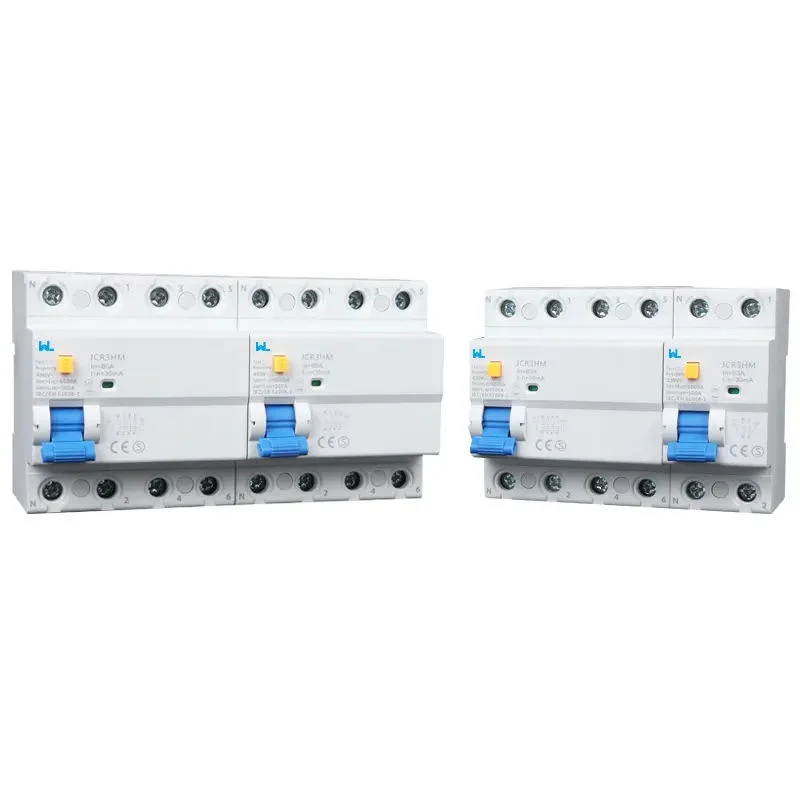

JCR3HM 2 Pole and 4 Pole RCCB Specifications

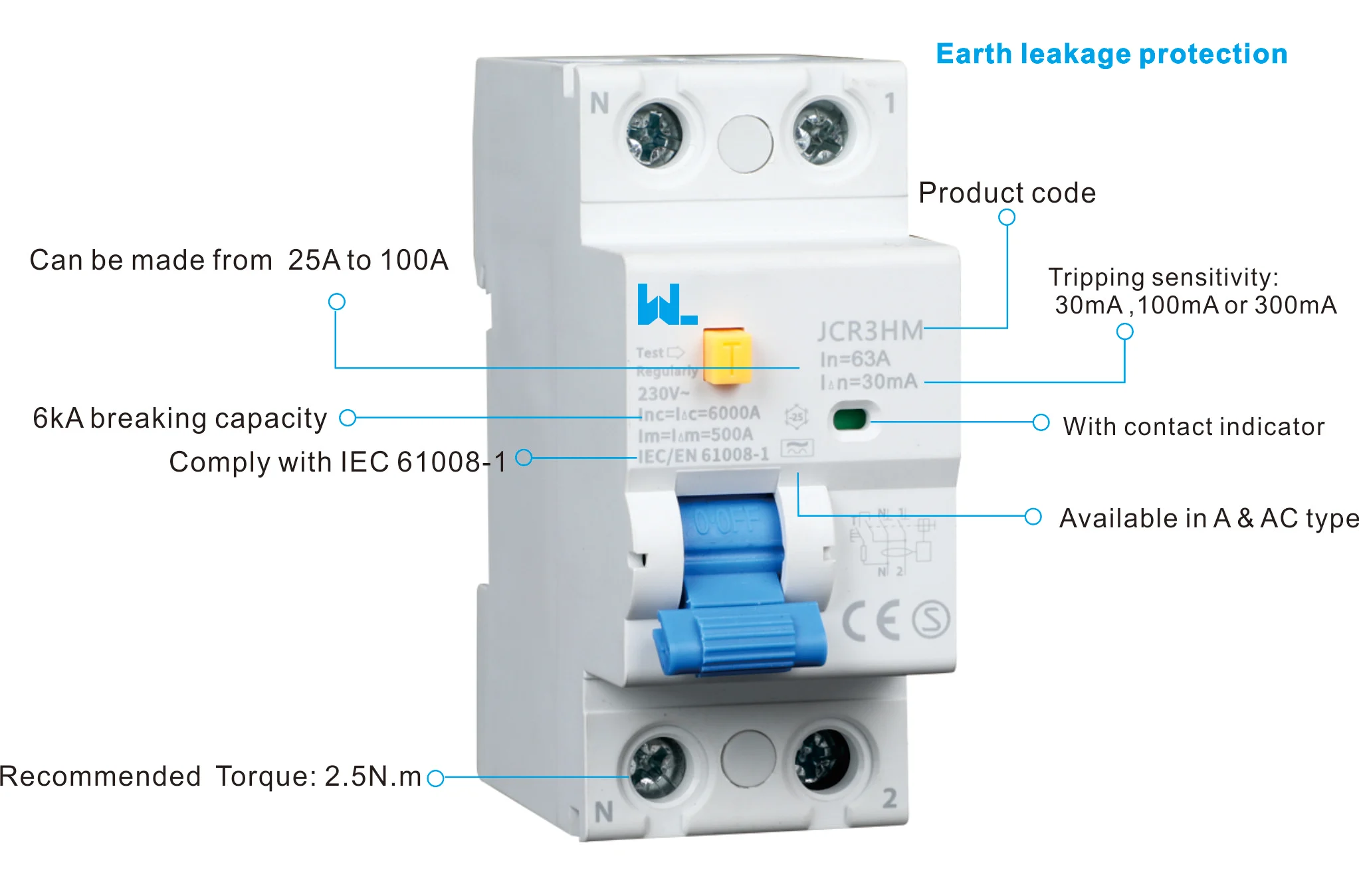

The JCR3HM RCCB is a residual current circuit breaker for earth-leakage protection. W9 Group lists 2P / 4P, Type A or Type AC and 30 / 100 / 300 mA sensitivity choices. Specify a coordinated MCB or fuse for overload and short-circuit protection.
| مدل | JCR3HM |
|---|---|
| Device category | Residual current circuit breaker |

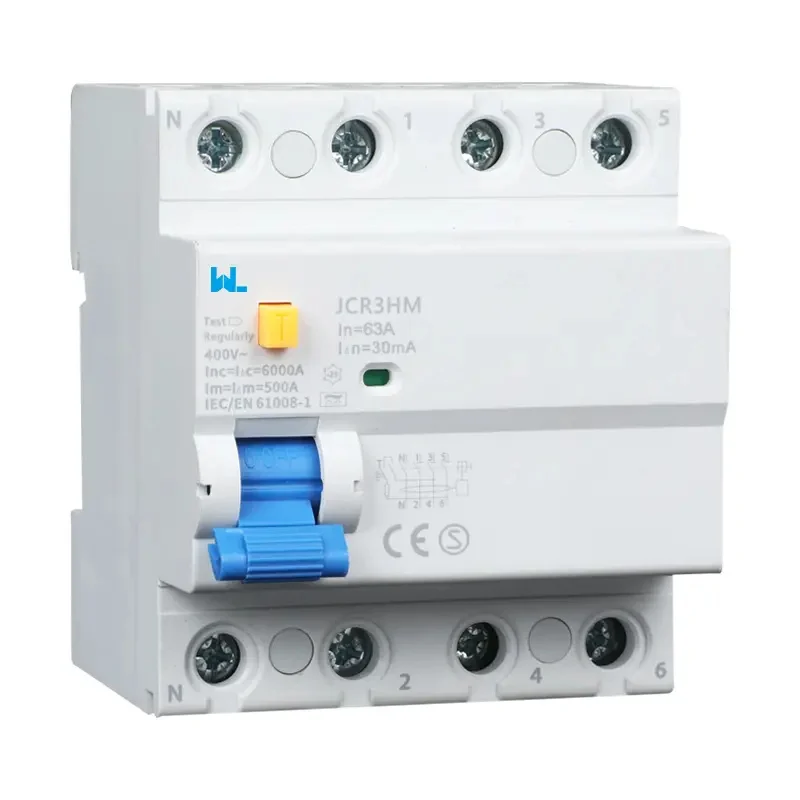

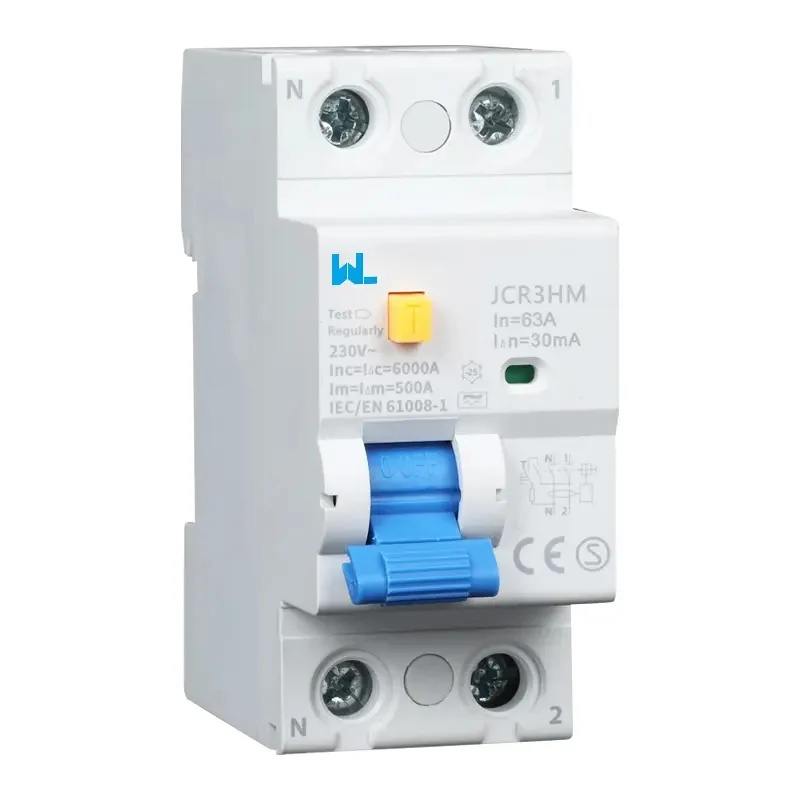

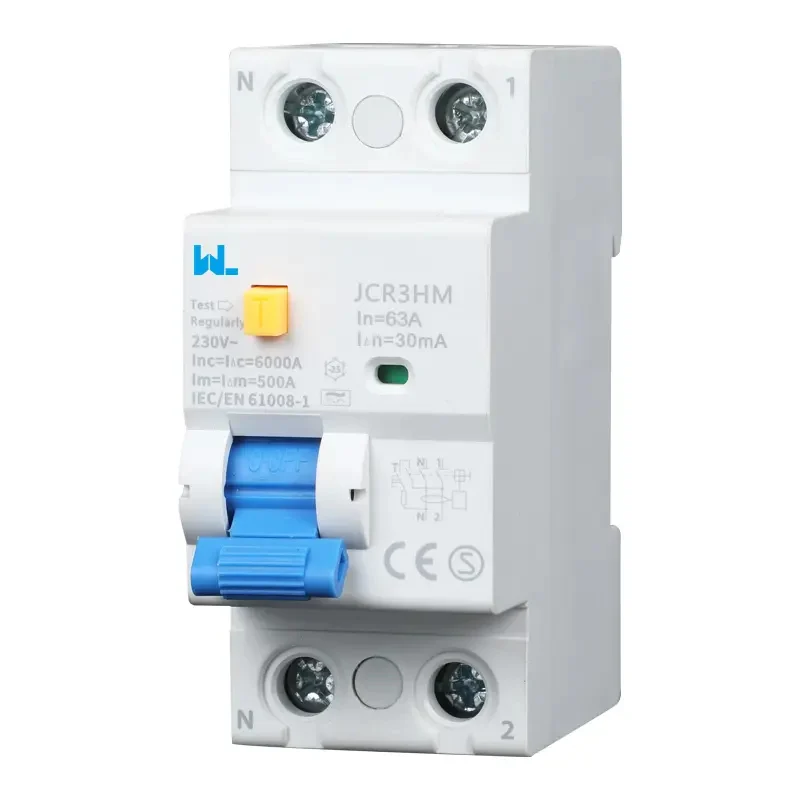

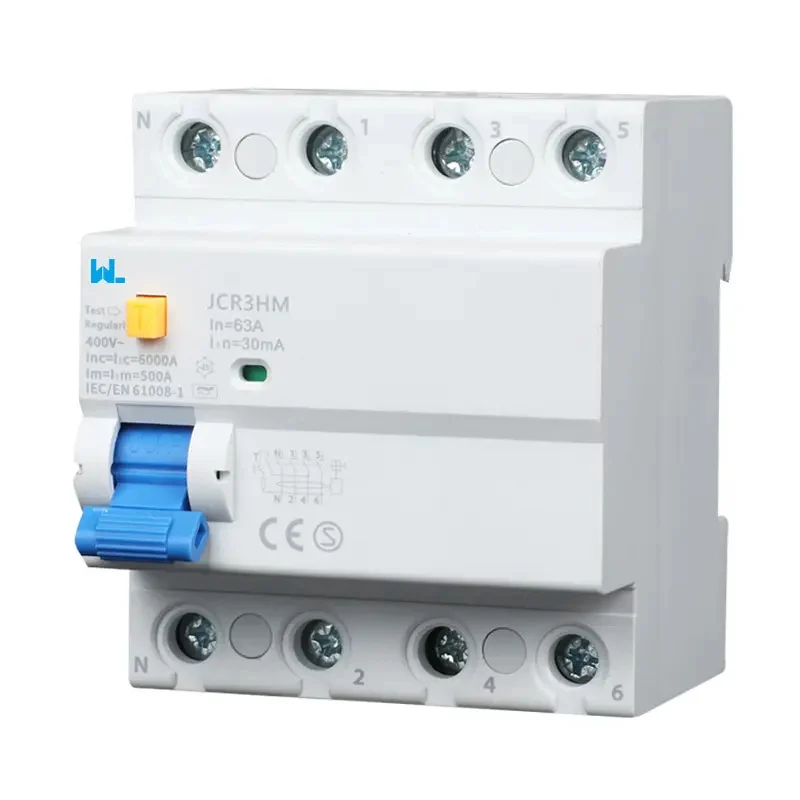

| Pole options | 2P / 4P |
| Current choices reviewed | 25, 40, 63, 80, 100 A |
| Listed operating voltage | 230 / 240 V for 2P; 400 / 415 V for 4P |
| Residual-current types | Type A / Type AC |
| Sensitivity options | 30 / 100 / 300 mA |
| Overcurrent protection | Separate coordinated MCB or fuse required |
| قرارگیری | 35 mm DIN rail |
| سطح حفاظت | IP20 |
| Standards listed | IEC 61008-1 / EN 61008-1; request matching documentation |
راهنمای انتخاب
Selecting a Type A or Type AC Residual Current Circuit Breaker
Specify the pole count, current, residual-current type, sensitivity, supply voltage and upstream protection when requesting a JCR3HM quotation from W9 Group.
Match supply and poles
The listed pole options are 2P / 4P. Confirm supply voltage, neutral arrangement and the manufacturer’s terminal diagram.
Choose type and sensitivity
Specify Type A or Type AC and the required residual-current sensitivity. Confirm the waveform and protection requirements of the circuit.
Coordinate overcurrent protection
Select a compatible MCB or fuse and request the manufacturer’s short-circuit coordination data. The RCCB does not replace overcurrent protection.
Confirm the offered current
The reviewed current choices include 25, 40, 63, 80, 100 A. Confirm the complete model code and rating for the quoted unit.
درباره W9 Group
W9 Group RCCB Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a JCR3HM enquiry, contact W9 Group about configuration and matching product documents.
منابع مرتبط

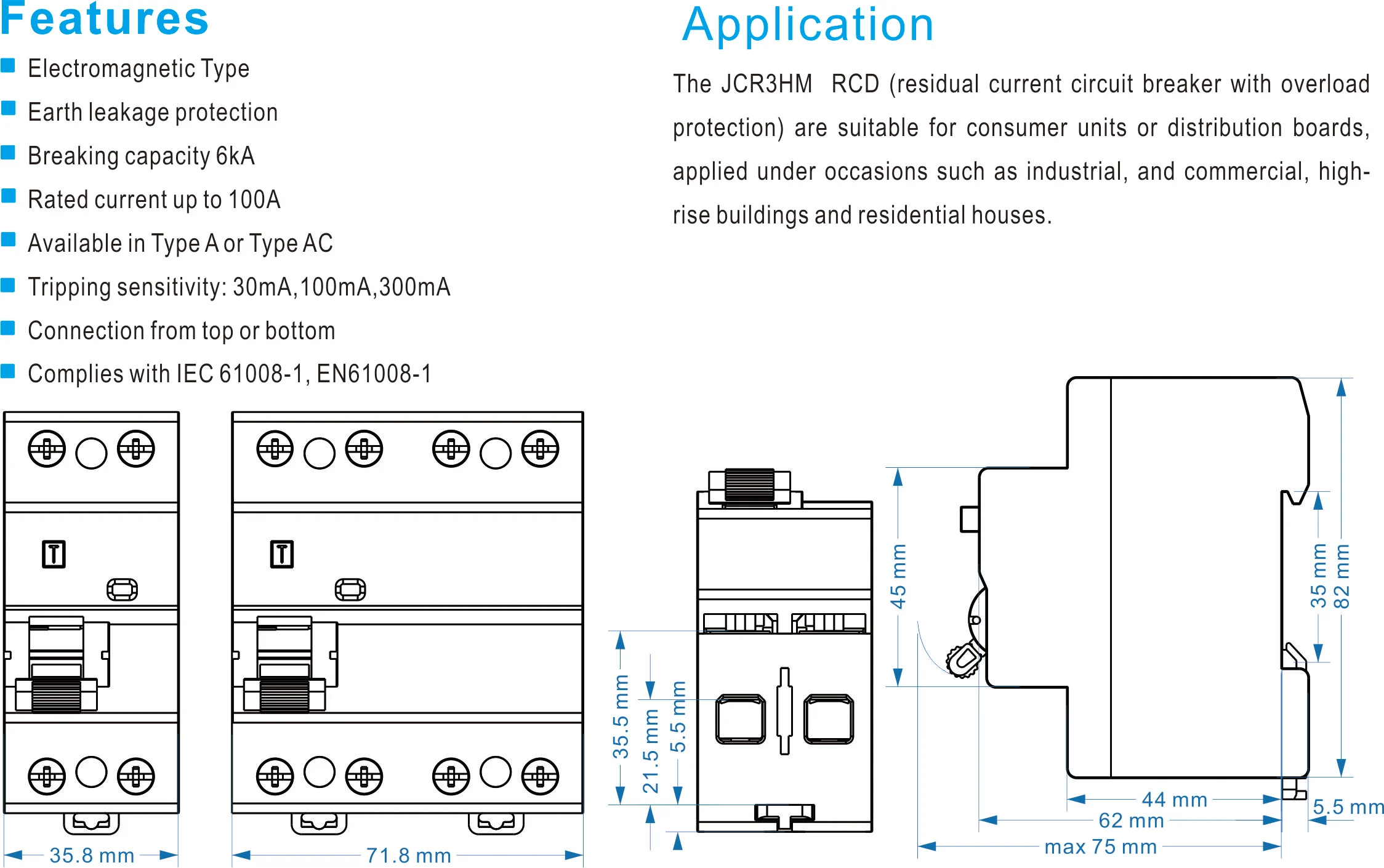

JCR3HM RCCB Datasheet and Upstream Protection Information
Use W9 Group technical support and the product directory to specify JCR3HM. Request a datasheet and wiring diagram matching the selected JCR3HM configuration.
دسته بندی محصولاتمحصولات گروه W9 را بررسی کنیدBrowse W9 Group models and request the specifications of the selected product
اسنادمرکز دانلود W9 GroupRequest the current document for your quoted JCR3HM variant
سوالات متداول خریداران
JCR3HM RCCB FAQs: 30mA Options and Overcurrent Coordination
Find answers about JCR3HM selection, configuration and ordering.
Is JCR3HM an RCCB or an RCBO?
It is listed as an RCCB: residual-current protection without integral overload and short-circuit protection. Use a coordinated MCB or fuse for those functions.
Which pole and voltage arrangement is listed?
The model page lists 2P / 4P, with 230 / 240 V for 2P; 400 / 415 V for 4P. Confirm the selected configuration and neutral connection diagram.
Which residual-current sensitivities are available?
W9 Group lists 30 mA, 100 mA and 300 mA options. Select the sensitivity for the required protection purpose and coordination.
How do I specify Type A or Type AC?
The source lists both options. State the connected equipment and required residual-current waveform response, and confirm the selected type in the quotation.
Does a 6kA figure mean the RCCB protects against overload?
No. A short-circuit figure does not establish integral overcurrent protection. Confirm the conditional short-circuit rating and required upstream protective device.
What installation details should be checked?
The source lists 35 mm DIN-rail mounting and IP20 protection. Confirm terminal sizes, busbar compatibility, connection instructions and enclosure requirements.
What is needed for a JCR3HM quotation?
اطلاعات مورد نیاز را، تعداد، بازار مقصد و الزامات اسناد را ارسال کنید. از W9 Group درخواست کنید تا قیمت، حداقل مقدار سفارش، نمونه‌ها و زمان تحویل برای پیکربندی انتخاب شده را تأیید کند.
سؤال و جواب درباره محصول
Request a JCR3HM RCCB Quotation
Tell W9 Group your pole count, current, residual-current type, sensitivity, supply voltage and upstream protection, quantity and destination market so the selected configuration can be identified.
