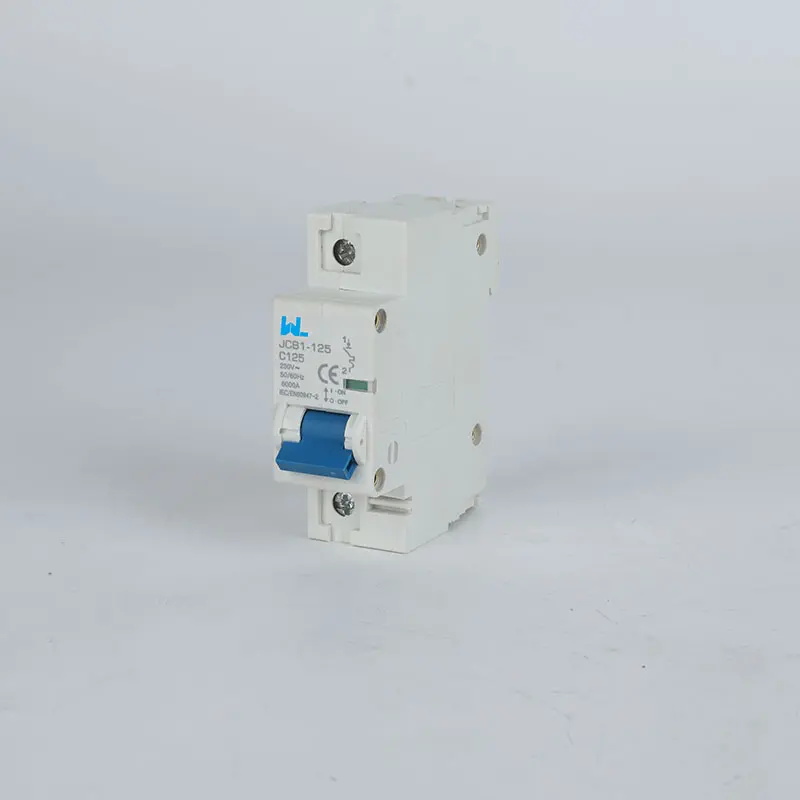

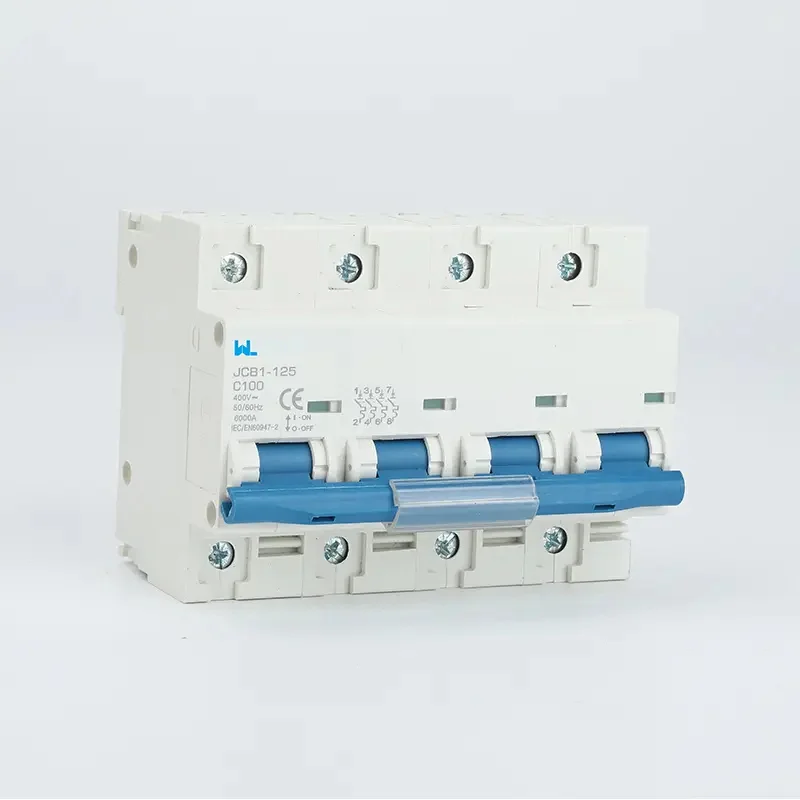

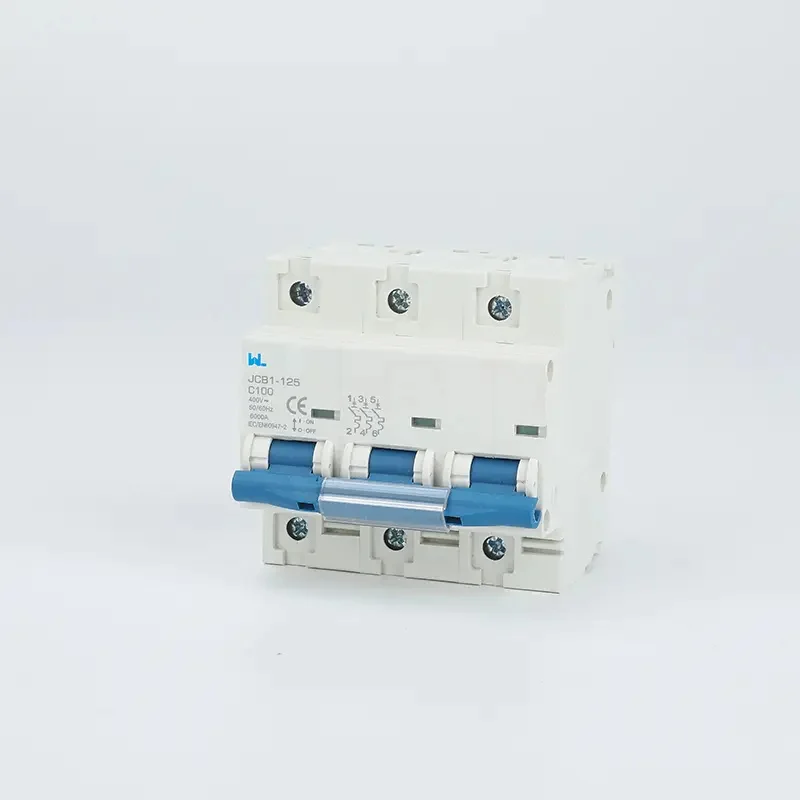

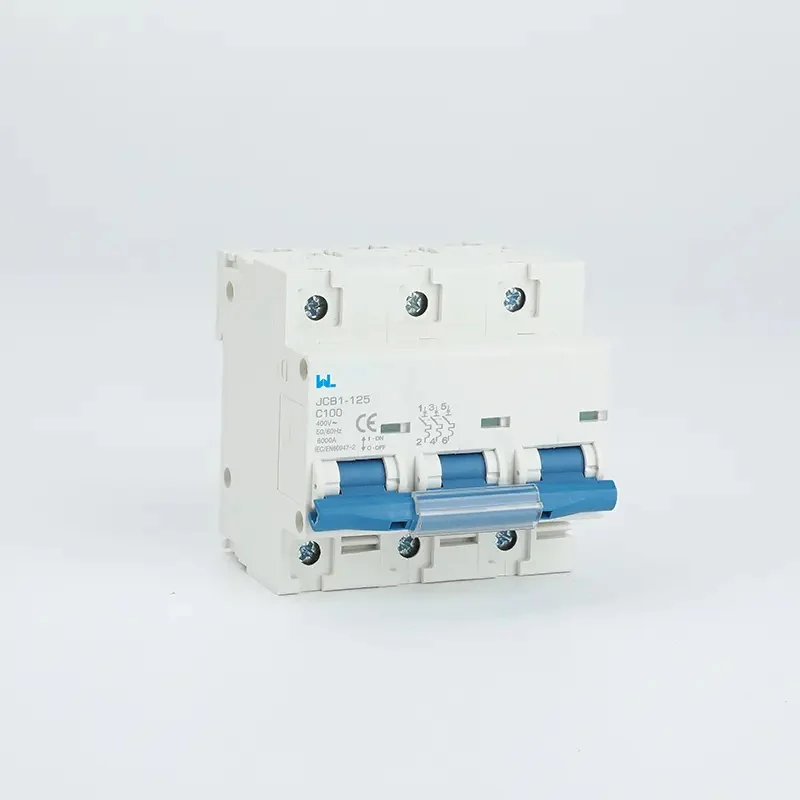

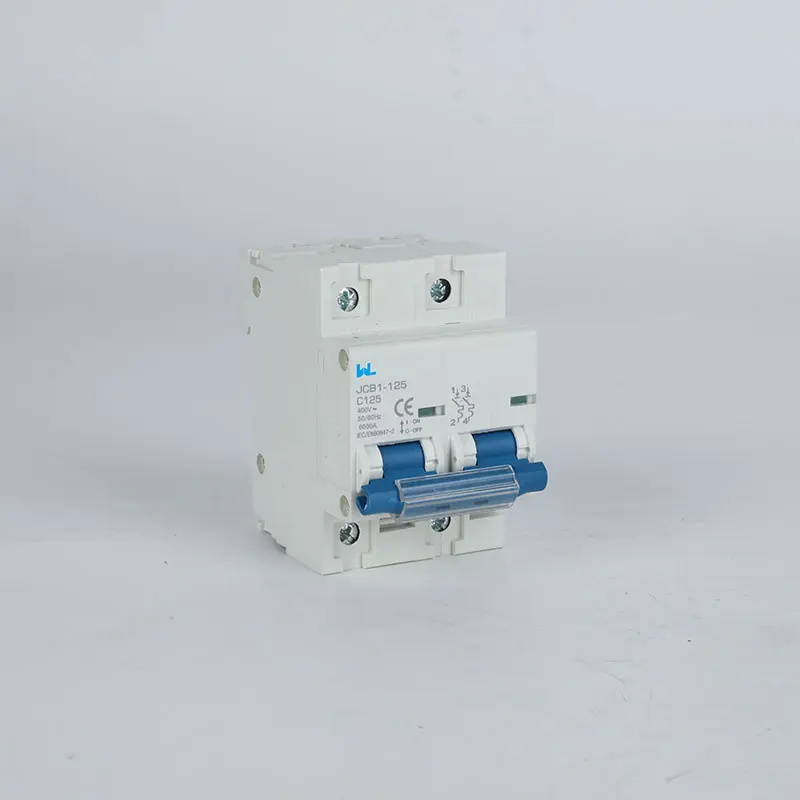

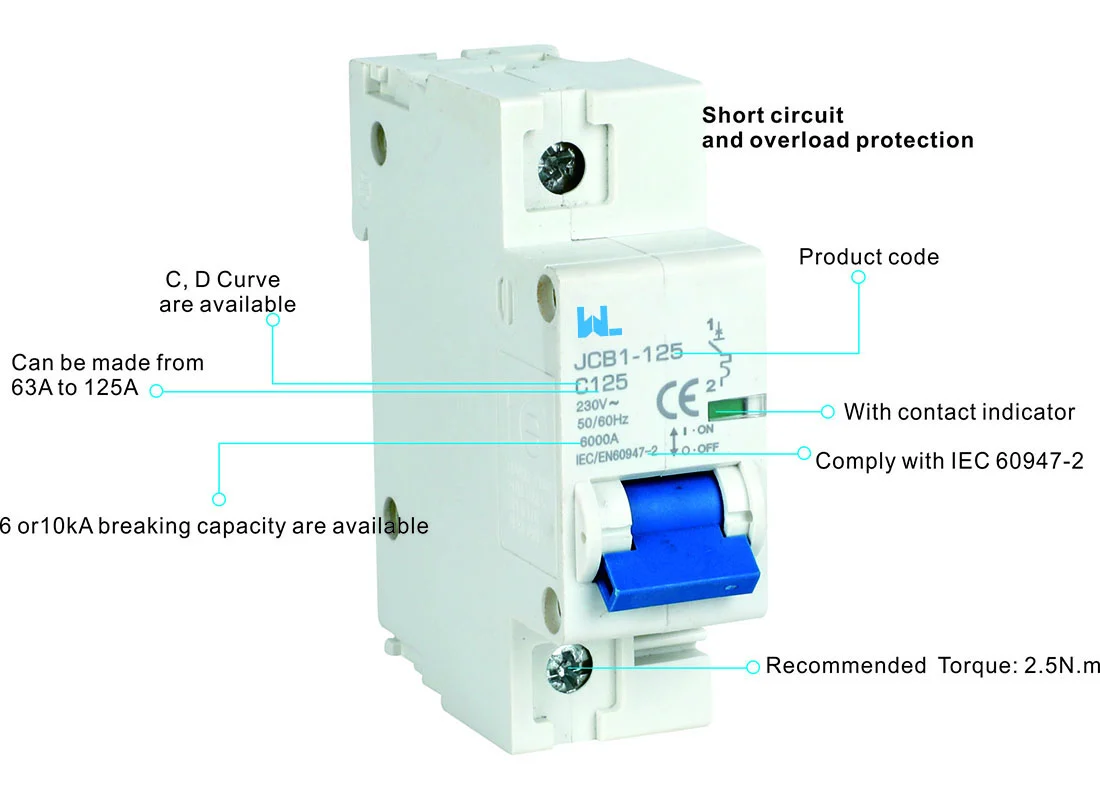

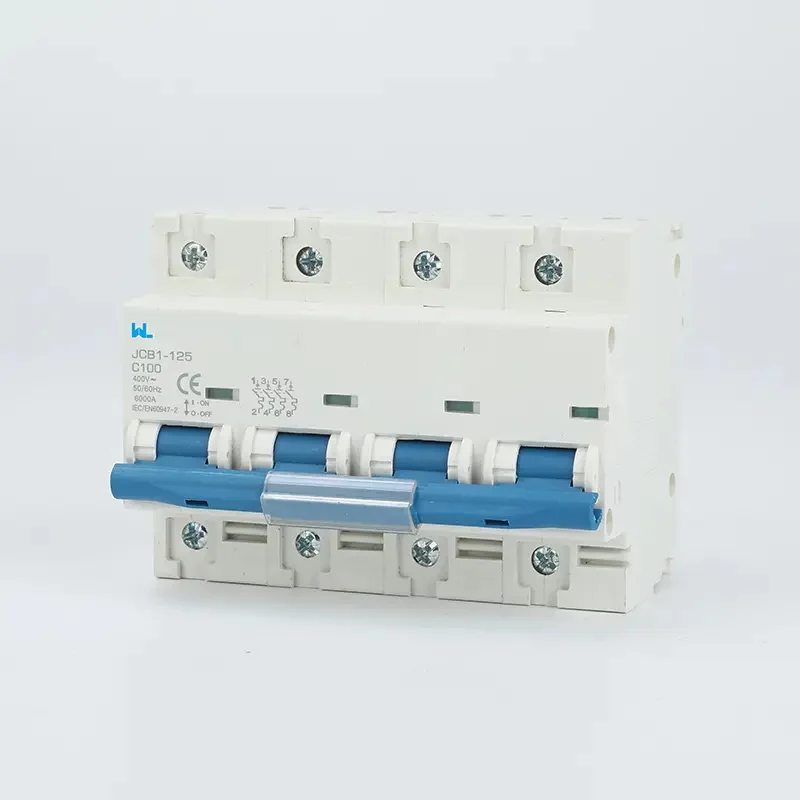

JCB1-125 Miniature Circuit Breaker Specifications
W9 Group lists JCB1-125 as a miniature circuit breaker. For distribution-board enquiries, specify the required current, poles and trip curve, then confirm the complete selection on the matching JCB1-125 datasheet.
The catalogue current range and retained original table differ. Confirm the ordered current with W9 Group before using this schedule for selection.
| استاندارد | IEC/EN 60898-1 | IEC/EN 60947-2 | |
|
ویژگی‌های الکتریکی |
مقاومت جریان ورودی (A) | 1, 2, 3, 4, 6, 10, 16, | |
| 20, 25, 32, 40, 50, 63,80 | |||

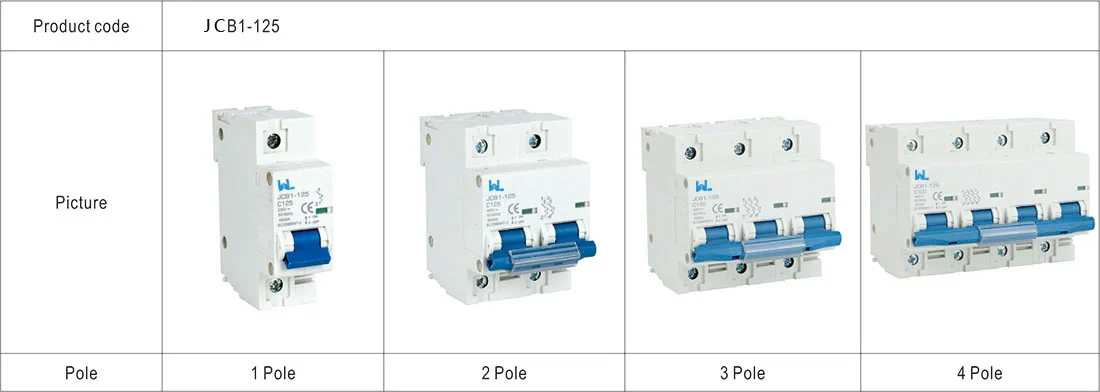

| پوشندگان لهستانی | 1P, 1P+N, 2P, 3P, 3P+N, 4P | 1P, 2P, 3P, 4P | |
| فشار ولتاژ Ue (V) | 230/400~240/415 | ||
| ولتاژ عایق بندی Ui (V) | 500 | ||
| فراوانی رتبهبندی شده | ۵۰/۶۰ هرتز | ||
| قدرت شکسته شدن بر اساس رتبه بندی | 10 kA | ||
| Energy limiting class | 3 | ||
| Rated impulse withstand voltage(1.2/50) Uimp (V) | 4000 | ||
| Dielectric test voltage at ind. Freq. for 1 min (kV) | 2 | ||
| سطح آلودگی | 2 | ||
| Power loss per pole | Rated current (A) | ||
| 1, 2, 3, 4, 5, 6, 10,13, 16, 20, 25, 32,40, 50, 63, 80 | |||
| خاصیت آزاد شدن ترمو-مغناطیسی | B, C, D | 8-12In, 9.6-14.4In | |
|
ویژگی‌های مکانیکی |
زندگی الکتریکی | 4, 000 | |
| زمان کارکرد مکانیکی | 20, 000 | ||
| نمایشگر موقعیت تماس | بله | ||
| سطح حفاظت | IP20 | ||
| دمای مرجع برای تنظیم عنصر حرارتی (درجه سانتیگراد) | 30 | ||
| Ambient temperature (with daily average ≤35℃) | -5…+40 | ||
| دمای نگهداری (℃) | -35…+70 | ||
| ارائه نصب | نوع اتصال ترمینال | کابل/پیوستهای U-type/پیوستهای Pin-type | |

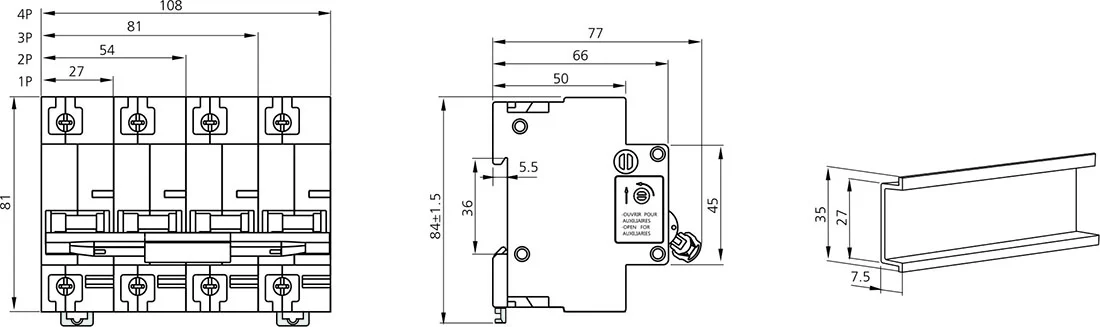

| ابعاد بالایی/پایینی ترمینال برای کابل | 25mm2 / 18-4 AWG | ||
| ابعاد پایانه بالایی/پایینی برای Busbar | 10mm2 / 18-8 AWG | ||
| تنگ کردن گشتاور | 2.5 N*m / 22 In-Ibs. | ||
| قرارگیری | بر روی ریل DIN EN 60715 (35 میلی متر) با استفاده از دستگاه سریع اتصال | ||
| اتصال | From top and bottom | ||
|
Combination |
تماس اضافی | بله | |
| سوزش شنت | بله | ||
| در شرایط کاهش ولتاژ | بله | ||
| رابط هشدار | بله | ||
