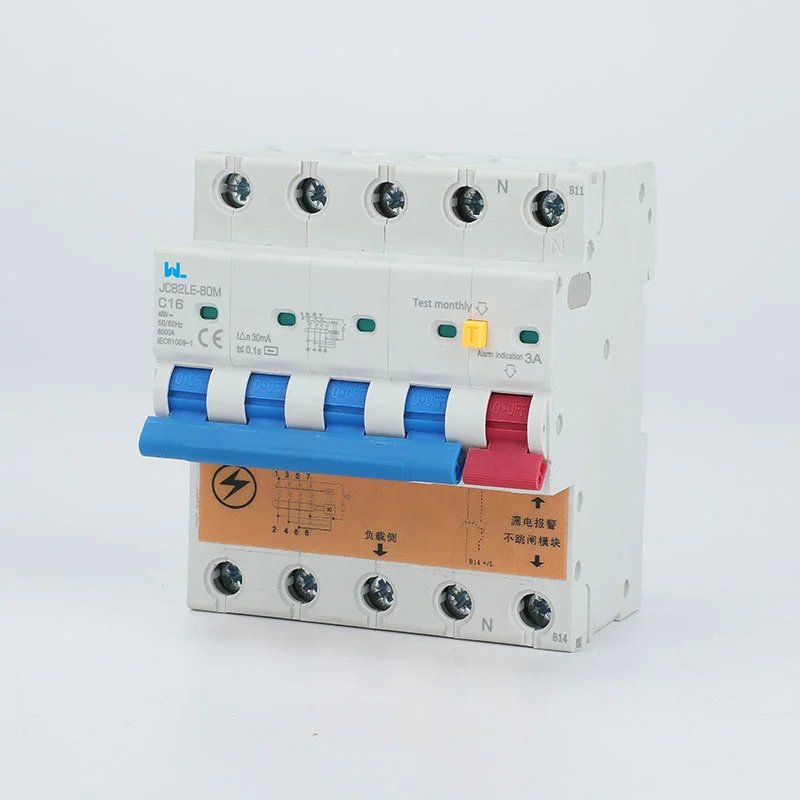

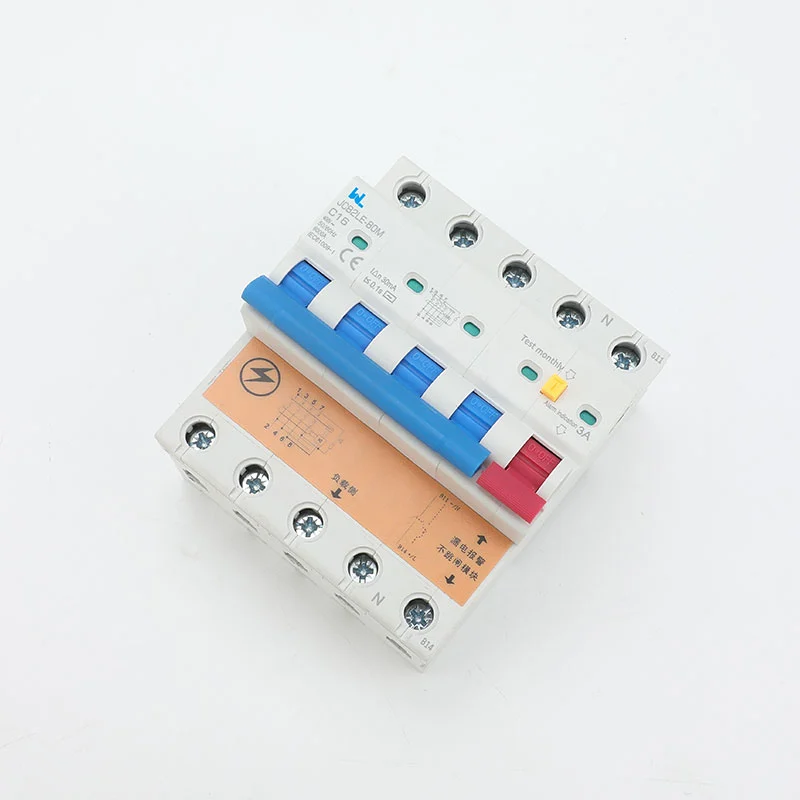

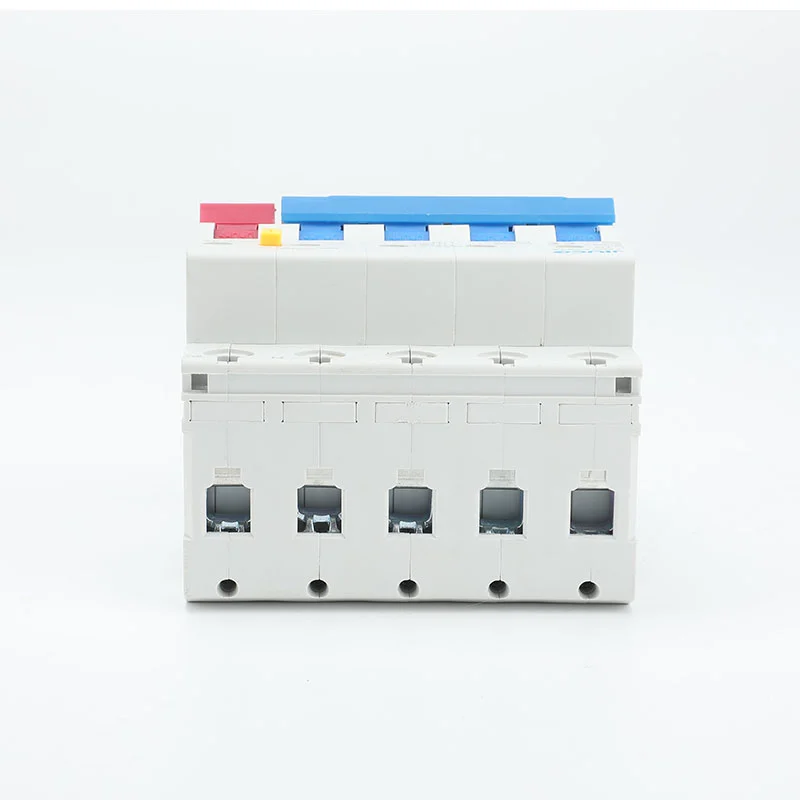

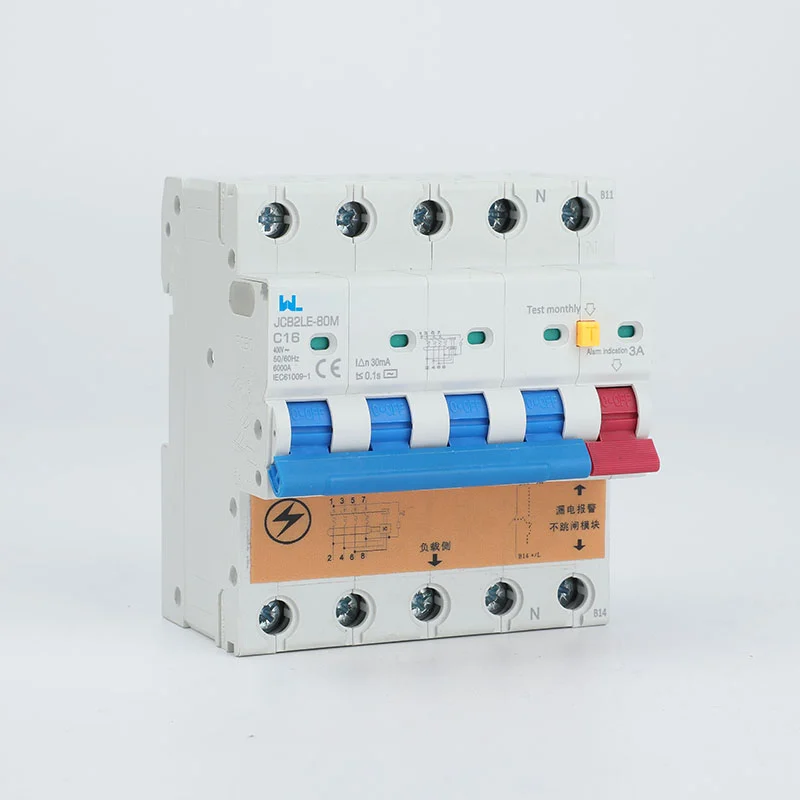

RCBO With Alarm 6kA Safety Switch Circuit Breaker JCB2LE-80M4P+A 4 Pole
Introduction
The JCB2LE-80M RCBOs (residual current circuit breaker with overload protection) with Alarm are suitable for circuit monitoring, it is convenient for customer to check earth fault and make you more safety.
Provides protection against earth fault/leakage current and function of isolation.
High short-circuit current withstand capacity.
Fire resistant plastic parts endures abnormal heating and strong impact.
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
I∆n ≤ 30 mA: additional protection in the case of direct contact
I∆n ≤300 mA: preventative fire protection in the case of ground
AC Type – Tripping is ensured for sinusoidal, alternating currents, whether they be quickly applied or slowly increase.
A Type – Tripping is ensured for sinusoidal, alternating residual currents as well as for pulsed DC residual currents, whether they be quickly applied or slowly increase.
Product Description

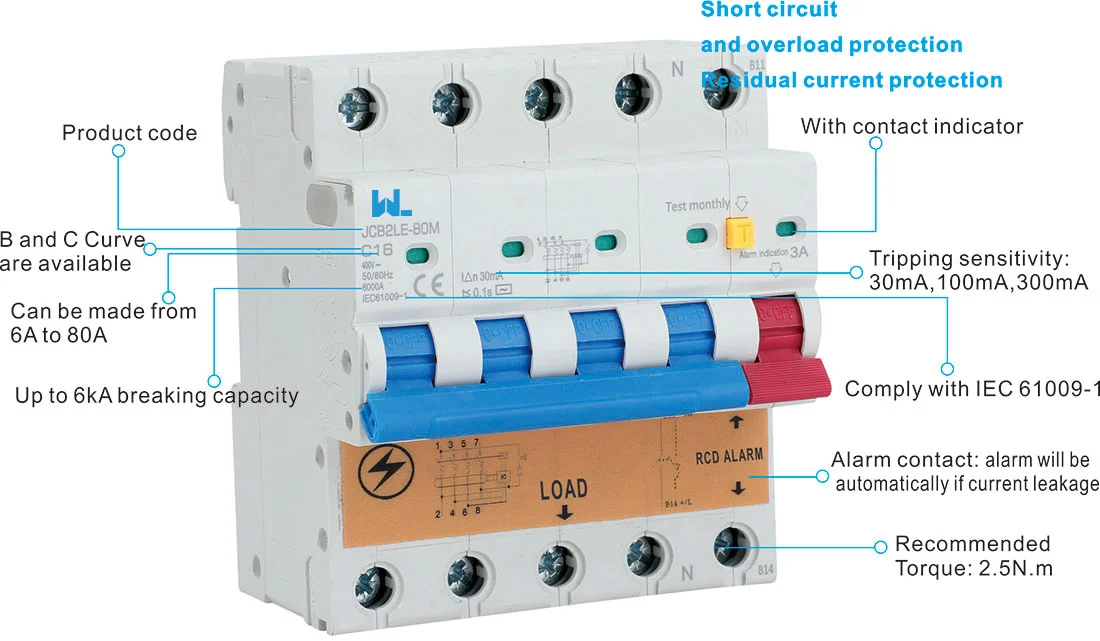

Main Features
● Electronic 4-pole for full protection
● Leakage protection to improve safety
● Overload and short circuit protection, reliable performance
● Non-linear/load sensitive, suitable for many applications
● Breaking capacity up to 6kA, providing strong protection
● Rated current up to 80A, with multiple options from 6A to 80A
● Provides Type B and Type C tripping curves for flexibility
● Trip sensitivity: 30mA, 100mA, 300mA for customized protection
● Type A or AC variants to suit different needs
● Insulated openings facilitate busbar installation, ensuring convenience
● 35mm DIN rail installation, easy and safe installation
● Compatible with various types of combination head screwdrivers for easy installation and maintenance
● Meet ESV’s additional testing and verification requirements for RCBO to ensure compliance with industry standards
● Comply with IEC 61009-1, EN61009-1 safety and performance guarantee
Together, these features make the JCB2LE-80M RCBO a versatile and reliable choice for a variety of applications, providing comprehensive protection and meeting strict industry standards.
Technical Data
● Standard: Comply with IEC 61009-1, EN61009-1 industry standard performance and safety
● Type: Electronic, ensuring advanced functionality and reliability
● Type (Detected Leakage Waveform): Available in A or AC variants, providing flexibility for different applications
● Number of poles: 4 poles + 1 pole alarm, providing comprehensive protection and monitoring capabilities
● Rated current: multiple options from 6A to 80A to meet different power needs
● Rated working voltage: 400V, 415V ac to ensure compatibility with common electrical systems
● Rated sensitivity I△n: 30mA, 100mA, 300mA, providing customizable protection levels
● Rated breaking capacity: 6kA, providing strong overload and short circuit protection
● Insulation voltage: 500V to ensure safe and reliable operation
● Rated frequency: 50/60Hz, suitable for various electrical systems
● Rated impulse withstand voltage (1.2/50): 6kV, providing surge voltage protection
● Pollution level: 2, indicating suitable for various environmental conditions

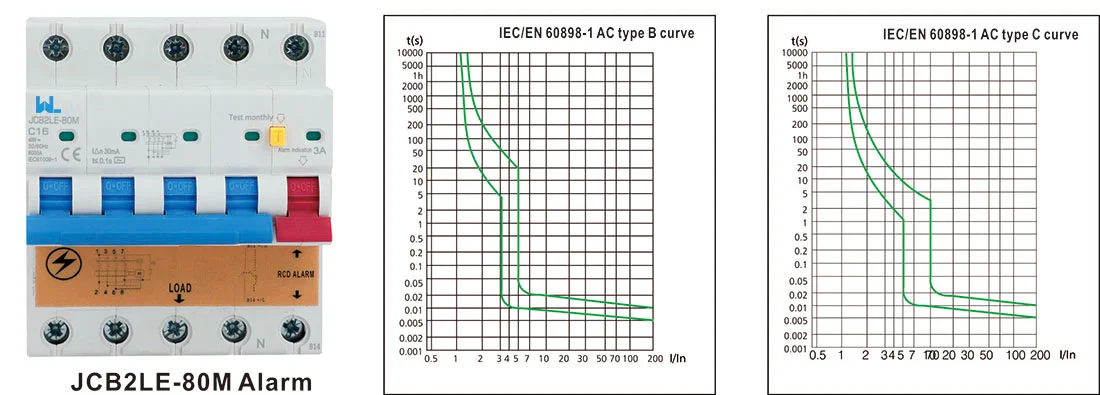

● Thermomagnetic release characteristics: B curve, C curve, D curve to meet different application needs
● Mechanical life: 10,000 times, ensuring long-term durability and reliability
● Electrical life: 2000 cycles, providing consistent performance over an extended period of time
● Protection level: IP20, providing protection against solid objects and limited liquid ingress
● Ambient temperature (daily average ≤35℃): -5℃~+40℃, suitable for a variety of working environments
● Contact position indicator: green = closed, red = open, providing clear visual indication of circuit status
● Terminal connection type: cable/U-shaped busbar/pin busbar, providing multiple installation options

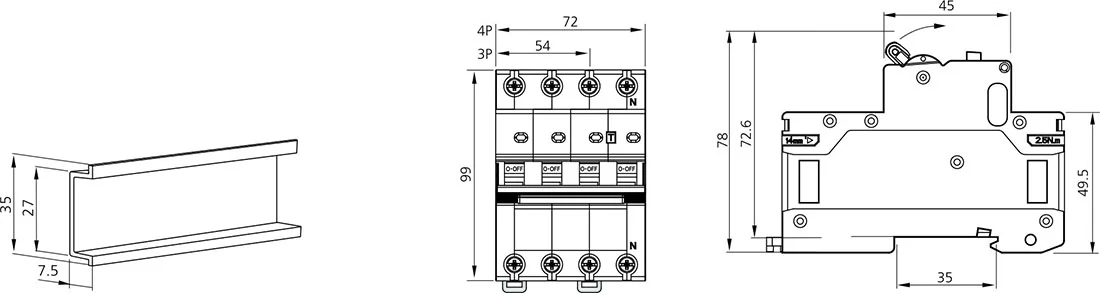

● Installation: Installed on DIN rail EN 60715 (35mm) through quick clamp device to ensure safe and convenient installation
● Recommended torque: 2.5Nm, helps with correct and secure connection
● Connection: Can be connected from top or bottom, providing flexibility in installation configurations
| Standard | IEC61009-1 , EN61009-1 | |
|
Electrical features |
Rated current In (A) | 6, 10, 16, 20, 25, 32, 40,50,63,80 |
| Type | Eletronic | |
| Type (wave form of the earth leakage sensed) | A or AC are available | |
| Poles | 4 Pole | |
| Rated voltage Ue(V) | 230/240 | |
| Rated sensitivity I△n | 30mA,100mA | |
| Insulation voltage Ui (V) | 500 | |
| Rated frequency | 50/60Hz | |
| Rated breaking capacity | 6kA | |
| Rated impulse withstand voltage(1.2/50) Uimp (V) | 6000 | |
| Pollution degree | 2 | |
| Thermo-magnetic release characteristic | B, C | |
|
Mechanical features |
Electrical life | 2, 000 |
| Mechanical life | 2, 000 | |
| Contact position indicator | Yes | |
| Protection degree | IP20 | |
| Reference temperature for setting of thermal element(℃) | 30 | |
| Ambient temperature (with daily average ≤35℃) | -5…+40 | |
| Storage temperation (℃) | -25…+70 | |
|
Installation |
Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm2 / 18-4 AWG | |
| Terminal size top/bottom for Busbar | 10mm2 / 18-8 AWG | |
| Tightening torque | 2.5 N*m / 22 In-Ibs. | |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top or bottom are available |
