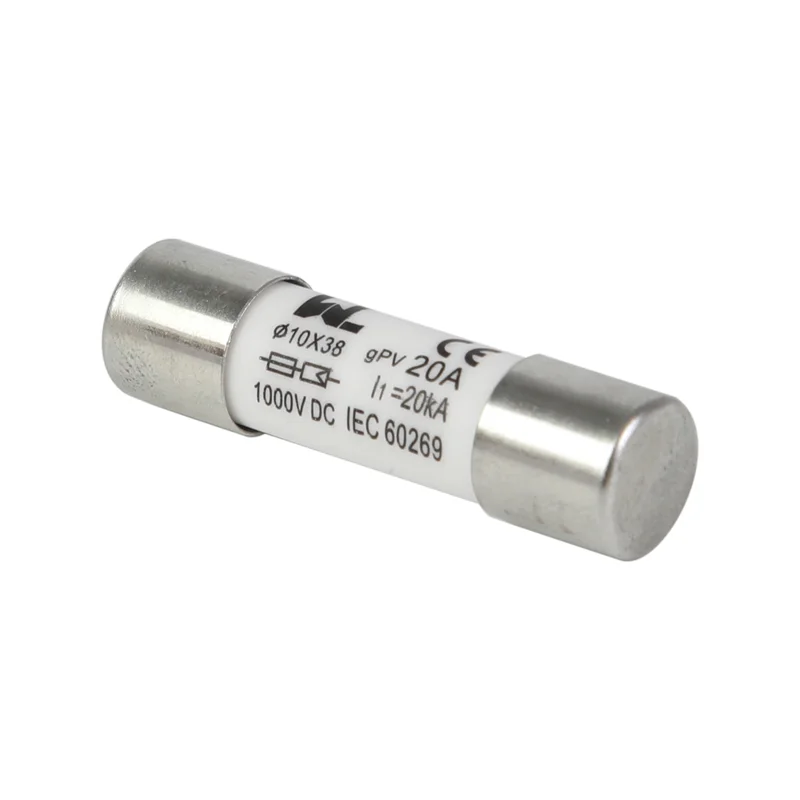

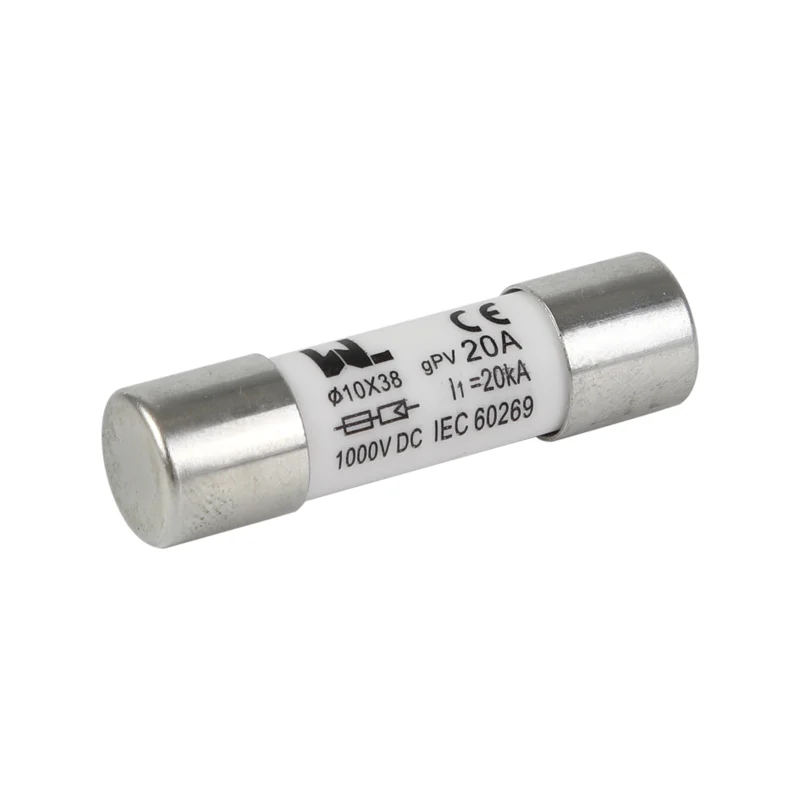

WLPV-1038 photovoltaic fuse
ТЕХНИЧЕСКИЕ ДАННЫЕ
WLPV-1038 photovoltaic fuse specifications
W9 Group lists the WLPV-1038 photovoltaic fuse with gPV operation class and a 1000VDC designation for photovoltaic DC protection. Select the individual fuse current, verify its time-current behavior and match the exact physical format to the holder before ordering.
| Модель | WLPV-1038 |
|---|---|
| Категория продукции | Photovoltaic fuse |
| DC voltage designation | 1000VDC |
| Published current range | 2A–32A |
| Published fuse size | 10x38mm |
| Operation class | gPV |
| Максимальный пробойной пропускной способностью | 20kA |
| Standards listed | GB/T 13539.6 / IEC60269-6; confirm applicable documentation |
ГИД ПО ОТБЕРЕЖЕ
WLPV-1038 solar DC fuse selection
Specify the complete order code, circuit duty, installation conditions and required documents when requesting a WLPV-1038 quotation from W9 Group.
Match the photovoltaic circuit
Provide the maximum DC system voltage, array arrangement and possible fault-current sources. Confirm the fuse duty for the exact protection point.
Select the current and curve
Compare the module and circuit requirements with the ordered fuse current and time-current curve. Request installation-dependent derating information.
Check fuse and holder fit
Match the exact fuse dimensions, contact arrangement and holder rating. Confirm the offered component and included parts before ordering.
Verify the interruption conditions
Request the DC breaking conditions, operating curve and matching technical documents. Confirm any isolation and replacement procedure for the complete assembly.
О W9 GROUP
W9 Group support for WLPV-1038 photovoltaic fuse
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a WLPV-1038 enquiry, contact W9 Group about configuration and matching product documents.
СВЯЗАННЫЕ РЕСУРСЫ
WLPV-1038 Photovoltaic Fuse Dimensions and Datasheets
Use technical support and related products to specify WLPV-1038. Request a datasheet and wiring diagram matching the selected WLPV-1038 configuration.
СВЯЗАННЫЕ ПРОДУКТЫWLPV-1085Сравните функциональность и конфигурацию; запросите отдельную оценку модели
ДОКУМЕНТЫЦентр загрузки программ W9 GroupRequest the current document for your quoted WLPV-1038 variant
Часто задаваемые вопросы покупателей
WLPV-1038 gPV fuse selection FAQs
Find answers about WLPV-1038 selection, configuration and ordering.
What does the gPV designation mean for selection?
The supplier lists gPV as the fuse operation class for photovoltaic protection. Confirm the exact time-current curve, DC operating conditions and scope for the offered fuse; the class label does not select the current for the circuit.
Which voltage and current range are listed?
The target description lists 1000VDC and 2A–32A. Confirm the individual current option and the conditions associated with the DC voltage designation.
Which fuse holder fits this model?

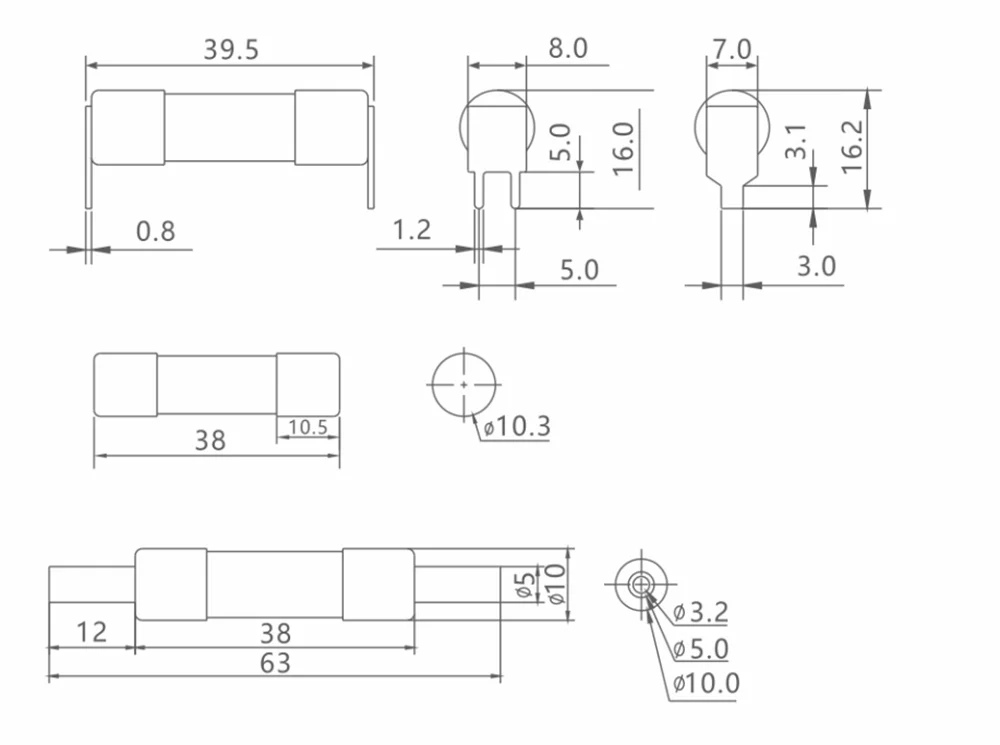

The source lists the 10x38mm format. Confirm the dimensioned drawing, end contacts and holder compatibility for the exact supplied version.
Does the 20kA figure apply under every circuit condition?
The supplier lists 20kA breaking capacity. Confirm the corresponding DC voltage and test conditions, and compare them with the prospective fault current at the protection point.
Can I replace it with an AC fuse of the same current?
Do not select by current alone. Confirm a photovoltaic DC rating, operating curve, physical format and holder compatibility appropriate to the exact circuit.
Can a fuse be reset after operation?
A fuse link is replaced after operation rather than reset like a circuit breaker. Confirm the cause of operation and use the specified isolation and replacement procedure for the installation.
What is needed for a WLPV-1038 quotation?
Отправьте необходимую конфигурацию, количество, целевой рынок и требования к документации. Попросите компанию W9 Group подтвердить цену, минимальное количество заказа, наличие образцов и срок изготовления выбранной конфигурации.
