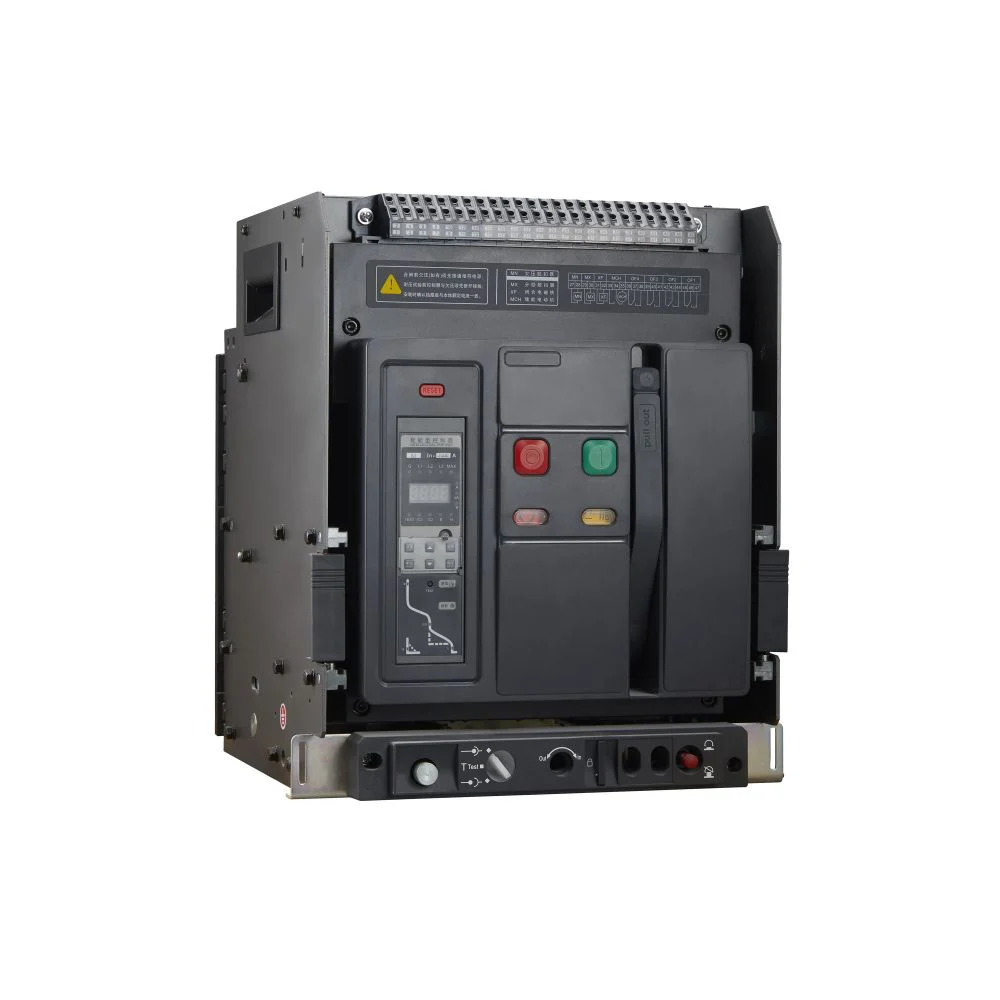

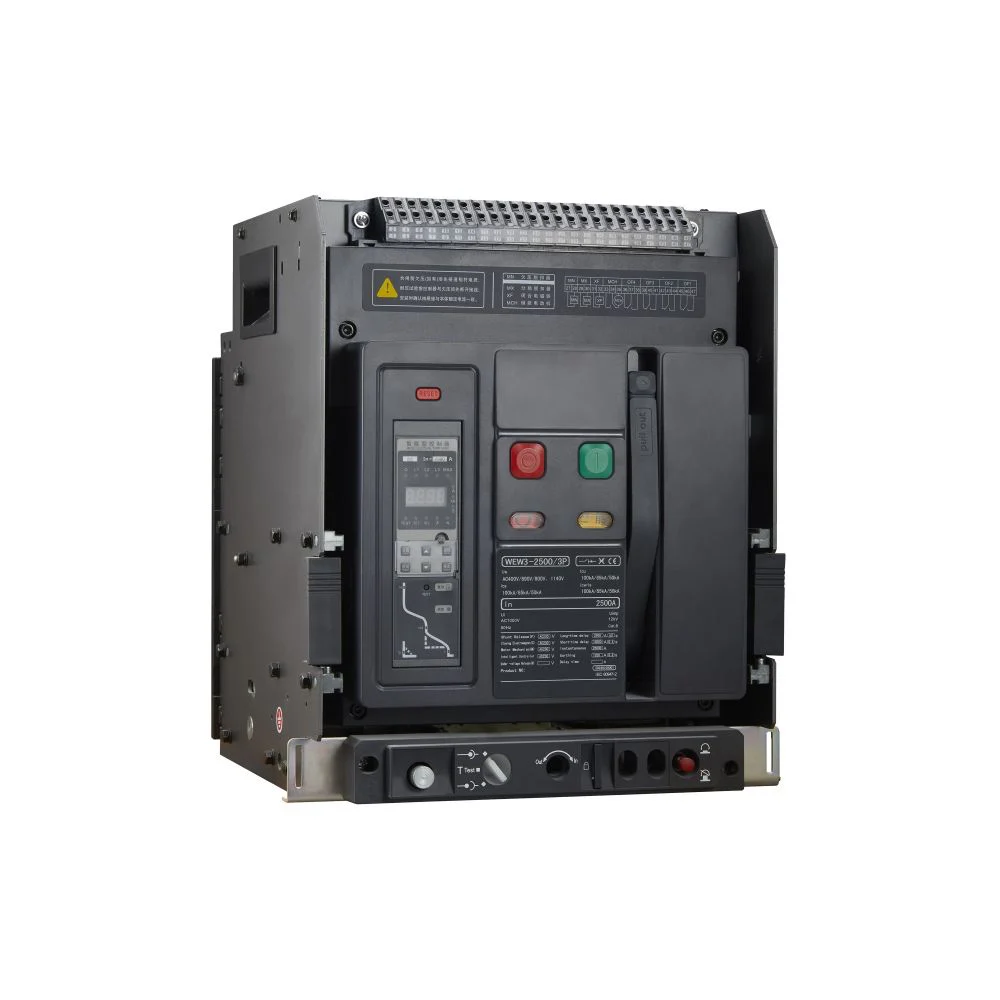

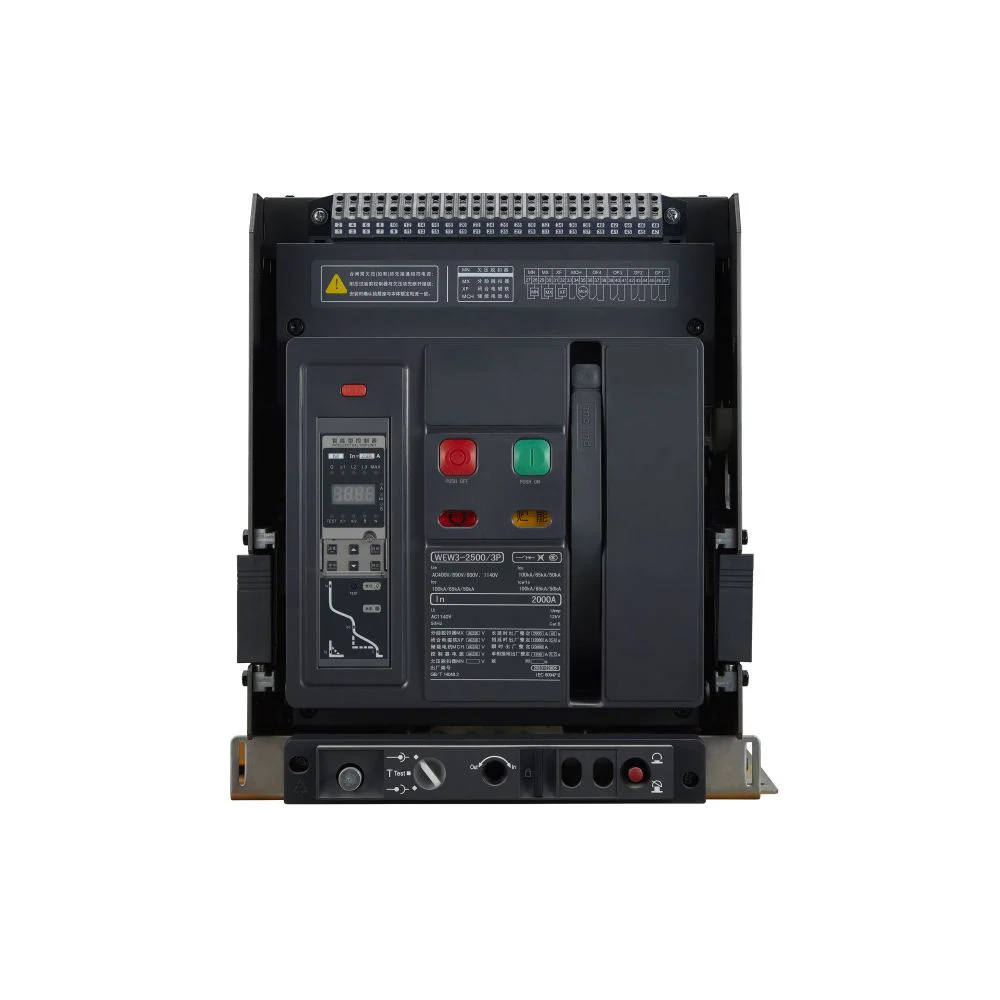

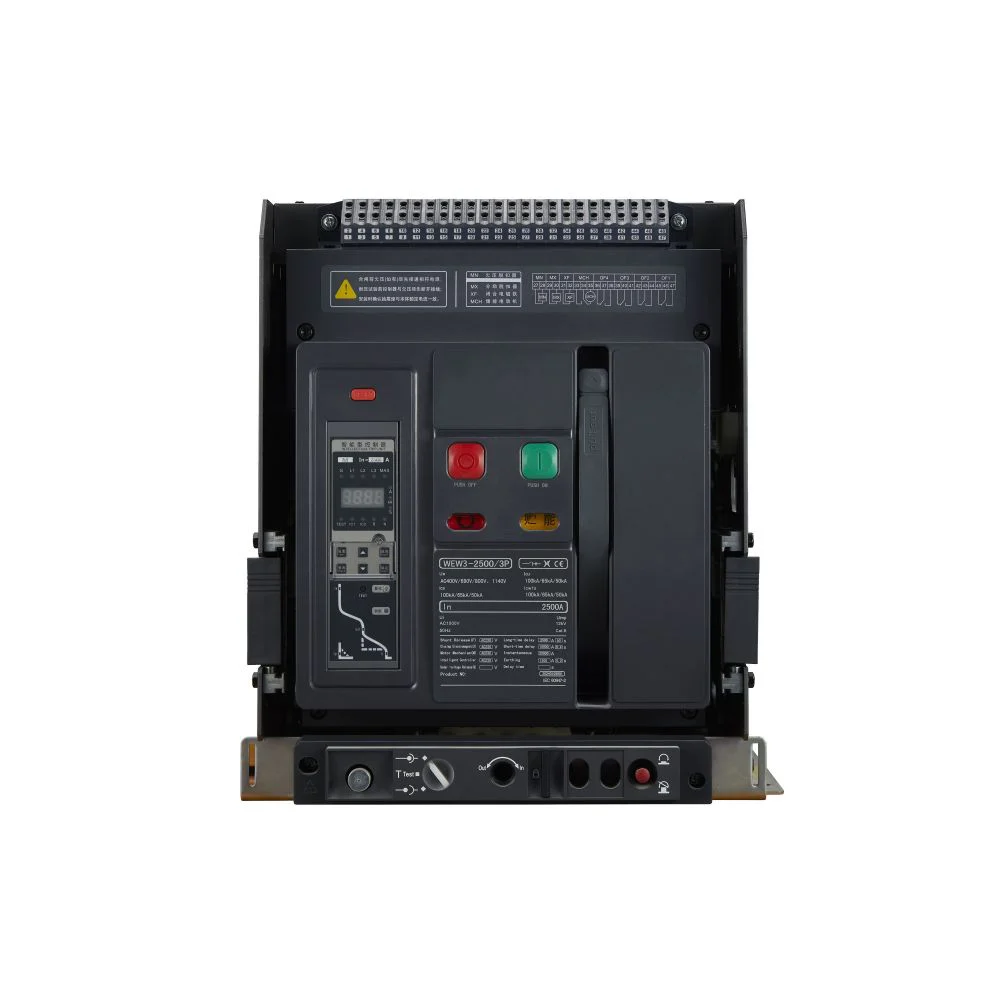

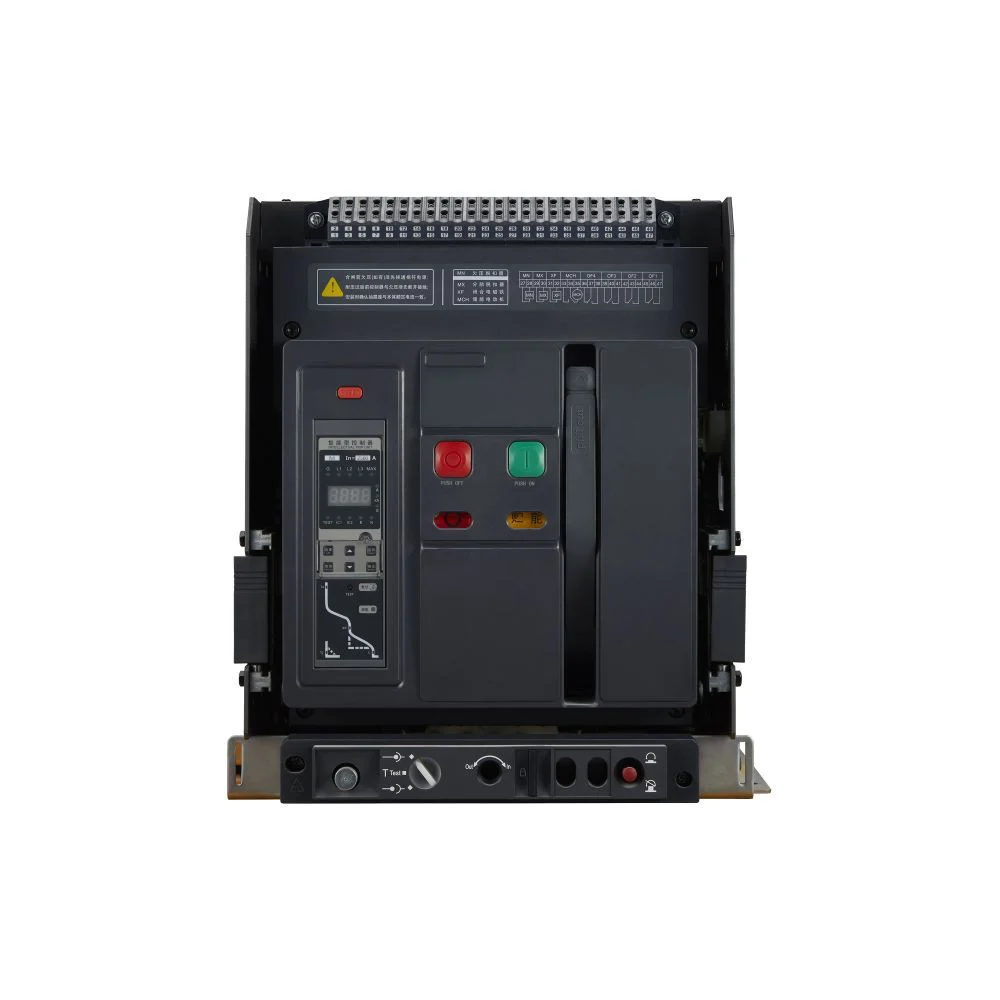

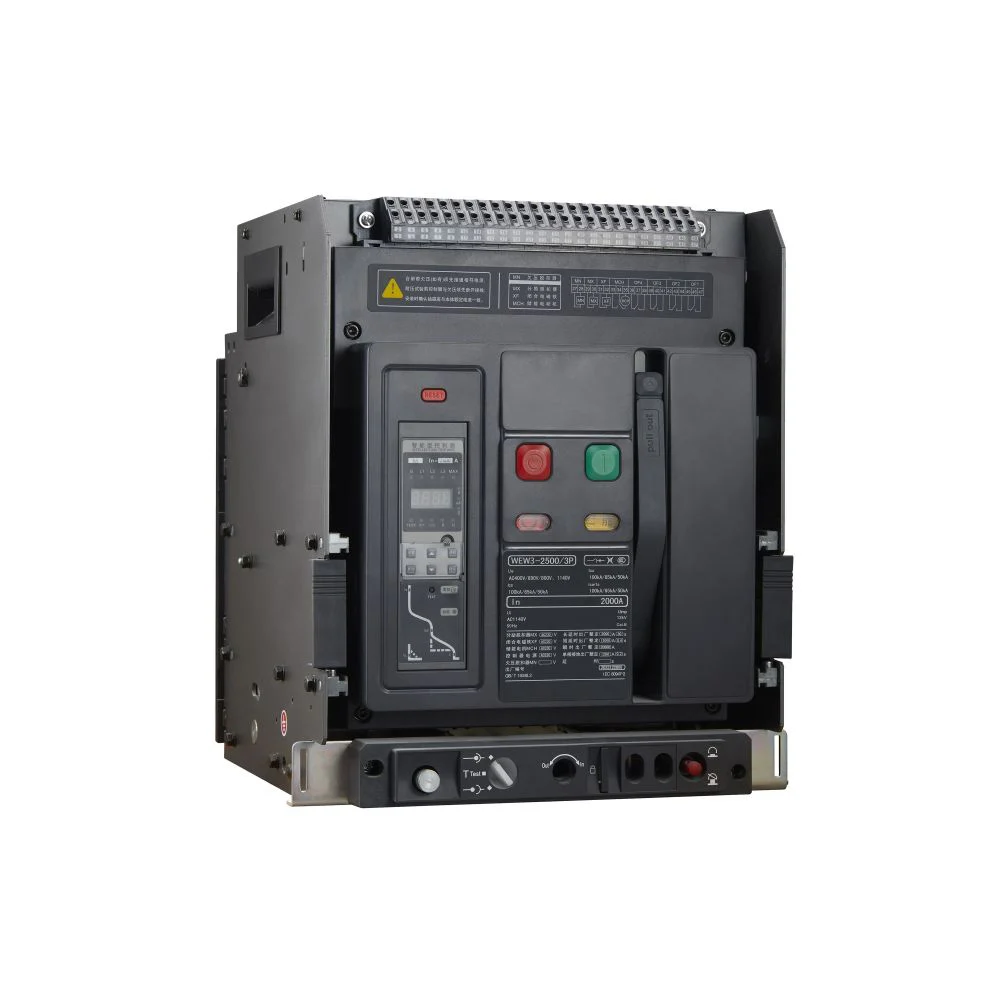

WEW3-2500 air circuit breaker
ТЕХНИЧЕСКИЕ ДАННЫЕ
WEW3-2500 Air Circuit Breaker Specifications and Current Options
The WEW3-2500 air circuit breaker is listed by W9 Group with a 2500 A summary rating, 3P / 4P options and fixed or withdrawable configurations. Select the ordered current and controller, then obtain voltage-specific fault ratings and installation data for the exact capacity code.
| Модель | WEW3-2500 |
|---|---|
| Категория продукции | Воздушный выключатель |
| Общая оценка текущего тока | 2500 A |
| Catalog current choices | 400, 630, 800, 1000, 1250, 1600, 2000, 2500 A |
| Pole options | 3P / 4P |
| Summary working voltage | 400 / 690 V AC; confirm exact application rating |
| Варианты строительства | Fixed / withdrawable; confirm supplied base and interlocks |
| Controller and releases | Confirm protection functions, control supplies and accessory schedule |
| Ответственность за нарушение правил | Request matched Icu, Ics and Icw with test voltage and duration |
ГИД ПО ОТБЕРЕЖЕ
Selecting a 2500A Fixed or Withdrawable Air Circuit Breaker
Specify the ordered current, poles, construction, system voltage, fault level, controller and control-supply requirements when requesting a WEW3-2500 quotation from W9 Group.
Define the current and frame
State WEW3-2500, the ordered current and continuous load. Confirm the selected controller and any derating conditions.
Match the application voltage
Provide system voltage and prospective fault current. Request a matched rating table rather than relying on a generic solar application title.
Choose fixed or withdrawable
Confirm the construction, base, interlocks, terminal arrangement and maintenance access on the installation drawing.
Specify the control package
List required trip functions, operating supply, auxiliary feedback and communication needs. Confirm each item in the supplied bill of materials.
О W9 GROUP
W9 Group 2500A Air Circuit Breaker Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a WEW3-2500 enquiry, contact W9 Group about configuration and matching product documents.
СВЯЗАННЫЕ РЕСУРСЫ
WEW3-2500 ACB Fault Ratings and Installation Document Requests
Use technical support and related products to specify WEW3-2500. Request a datasheet and wiring diagram matching the selected WEW3-2500 configuration.
СВЯЗАННЫЕ ПРОДУКТЫWEW3-4000Сравните функциональность и конфигурацию; запросите отдельную оценку модели
ДОКУМЕНТЫЦентр загрузки программ W9 GroupRequest the current document for your quoted WEW3-2500 variant
Часто задаваемые вопросы покупателей
WEW3-2500 Air Circuit Breaker FAQs: Voltage and Controller Selection
Find answers about WEW3-2500 selection, configuration and ordering.
Which current choices are listed for WEW3-2500?
The target table lists 400, 630, 800, 1000, 1250, 1600, 2000, 2500 A. Confirm the ordered current, controller range and any enclosure or temperature derating.
Does the listing establish every voltage mentioned in the old title?
Use a matched rating document for the offered device. The summary, title and some table entries differ; no extended-voltage suitability is promised from the title alone.
How do fixed and withdrawable versions differ for ordering?
State the required construction and confirm the supplied base, position indication, interlocks, terminals and installation dimensions for that version.
Сопоставимы ли значения Icu, Ics и Icw?
Request all required ratings separately at the project voltage. Confirm the short-time withstand duration and the controller settings used in the coordination study.
Does every controller include ground-fault protection or communication?
A series configuration list does not establish every controller function. Confirm the exact controller code, sensing arrangement, protection functions and communication interface.
Can the breaker be installed outdoors without an enclosure?
The available listing does not establish a complete outdoor enclosure specification. Confirm the switchboard protection, environmental conditions and installation requirements; generic waterproof wording is not a device rating.
What is needed for a WEW3-2500 quotation?
Отправьте необходимую конфигурацию, количество, целевой рынок и требования к документации. Попросите компанию W9 Group подтвердить цену, минимальное количество заказа, наличие образцов и срок изготовления выбранной конфигурации.
ЗАЯВКА О ПОКУПКЕ ПРОДУКТА
Request a WEW3-2500 Air Circuit Breaker Quotation
Tell W9 Group your ordered current, poles, construction, system voltage, fault level, controller and control-supply requirements, quantity and destination market so the selected configuration can be identified.
