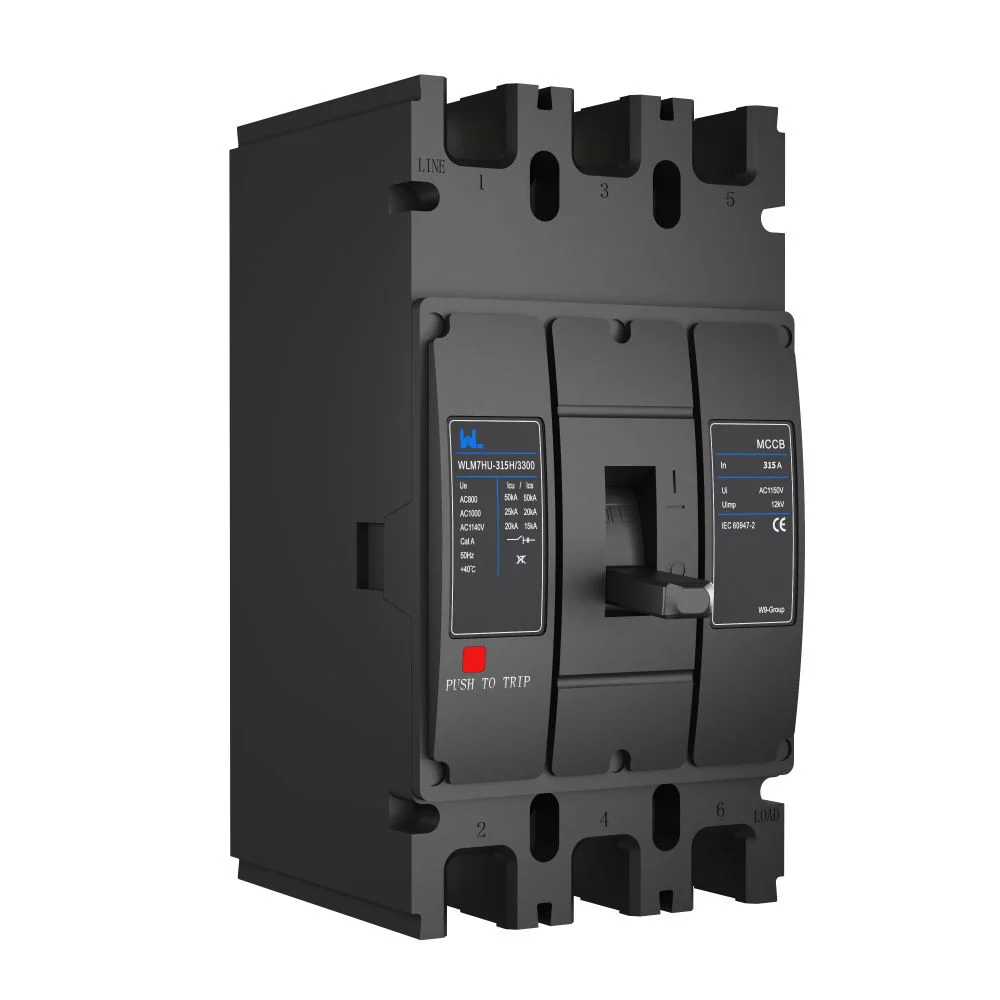

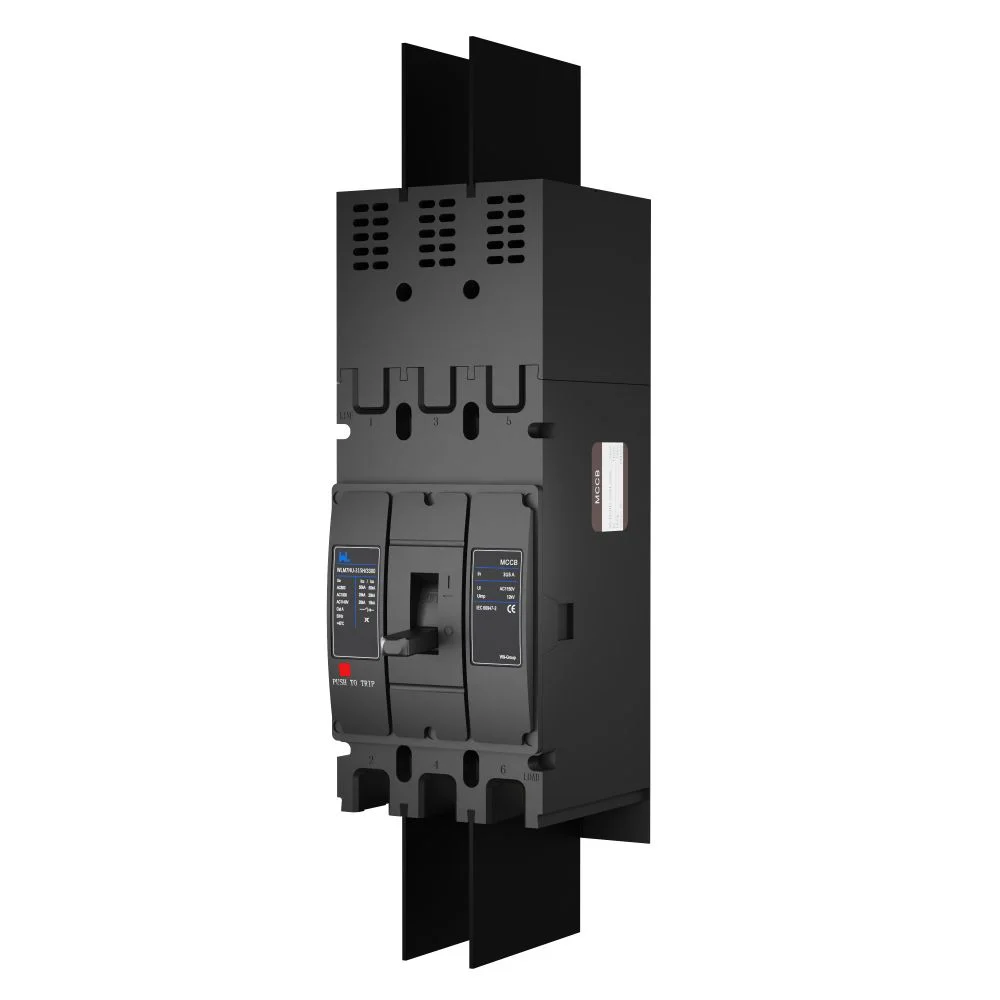

WLM7HU-315 Molded Case Circuit Breaker
TECHNICAL DATA
WLM7HU-315 AC Photovoltaic Molded Case Circuit Breaker Specifications
W9 Group lists WLM7HU-315 as a photovoltaic AC molded case circuit breaker with a 315 A catalog designation and 3P pole options. Confirm the rated voltage, connection scheme and voltage-specific breaking capacity for the exact offered configuration.
| Product series | WLM7HU |
|---|---|
| Catalog frame designation | 315 A |
| Supply type | AC photovoltaic circuits |
| Listed pole arrangements | 3P |
| Catalog current schedule at 40 °C | 280-300-315 A; confirm version |
| Insulation voltage Ui (V) | 1150 |
| Impulse withstand voltage (kV) | 12 |
| Operational voltage and breaking capacity | Confirm the voltage/pole/capacity-code combination on the matching datasheet |
SELECTION GUIDE
Selecting an AC Photovoltaic MCCB by Voltage, Poles and Fault Duty
Specify the AC/DC circuit duty, supply voltage, current, pole arrangement, breaking-capacity code and trip-unit configuration when you request a WLM7HU-315 quotation from W9 Group.
Specify the circuit side
State the AC inverter-output or distribution duty, supply voltage and pole arrangement.
Specify the current and trip unit
Reference WLM7HU-315 and ask for the exact operating current and trip-unit functions. Confirm whether the offered unit is a breaker or switch-disconnector.
Confirm fault duty
Provide prospective fault current and request Icu/Ics at the intended voltage, pole arrangement and capacity code.

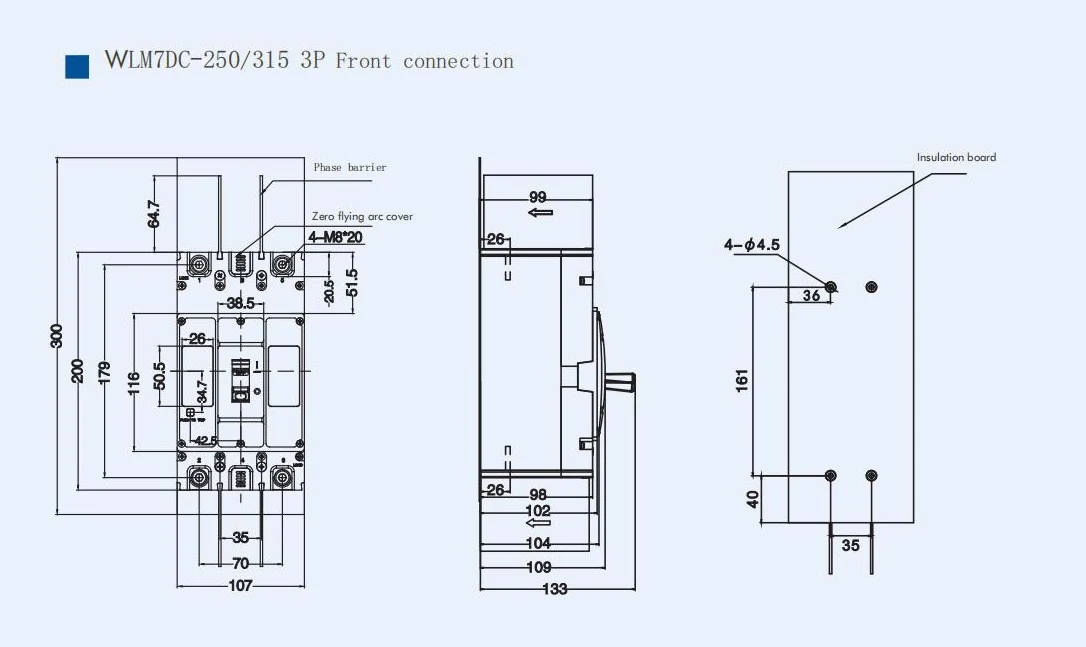

Check panel fit

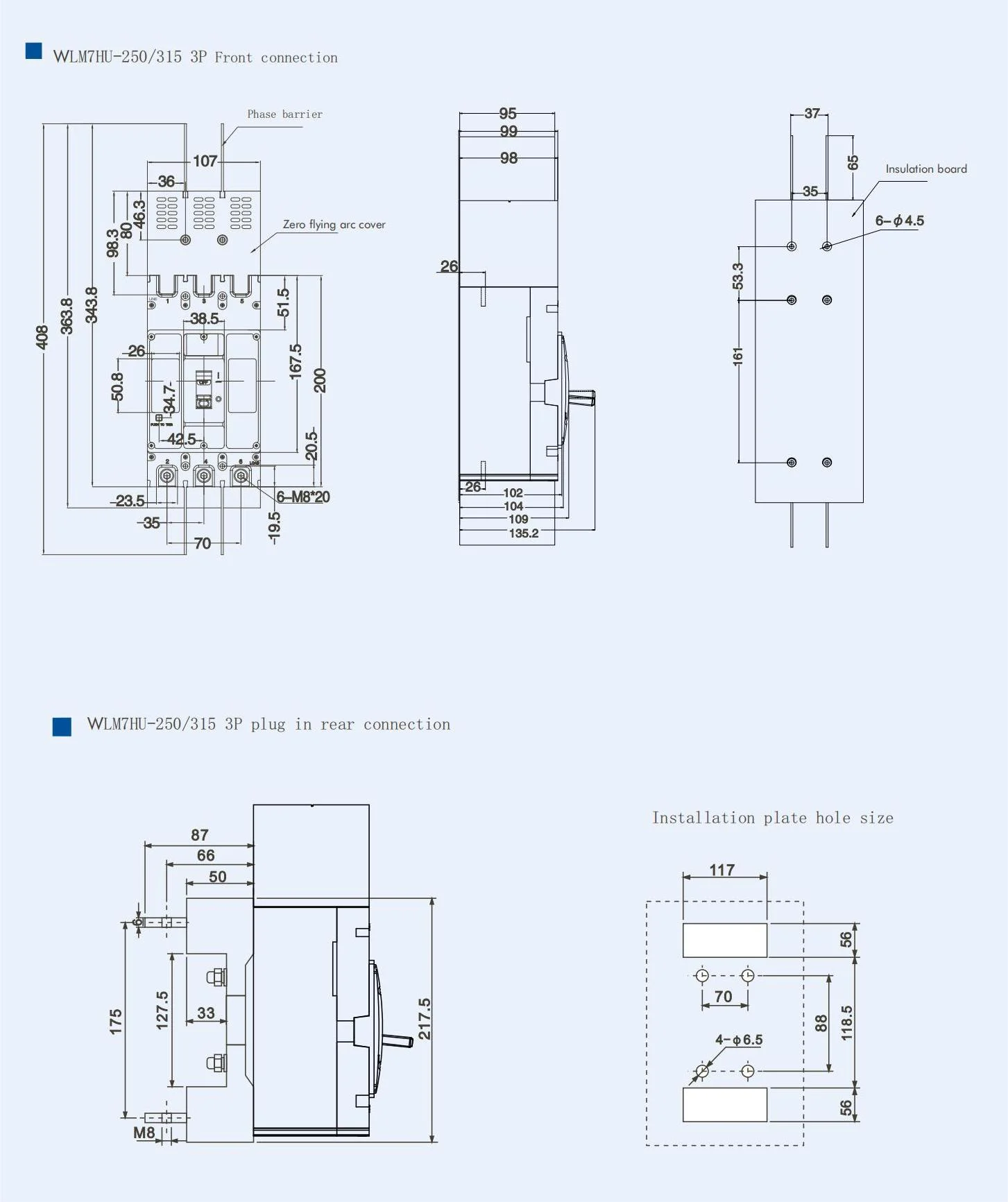

Use the catalog dimensions only for initial planning; request the installation drawing, terminals and clearances for the ordered device.
