MCCB extended operating handle
TECHNICAL DATA
MCCB extended operating handle specifications
W9 Group lists this MCCB extended operating handle to assist manual closing, opening and resetting through the breaker operating handle. Confirm the host model and installation clearance using the matching dimensional drawing.
| Product model | H1max size |
| CSDM7-400 | 230 |
| CSDM7-630 | 230 |
| CSDM7-800 | 230 |
| CSDM7-1000 | 230 |
SELECTION GUIDE
Selecting a manual handle for the CSDM7 breaker frame
Specify the complete order code, circuit duty, installation conditions and required documents when requesting a MCCB extended handle quotation from W9 Group.
Identify the host breaker
Provide the full MCCB model, frame and existing accessory arrangement. Confirm mechanical and electrical compatibility before ordering.
Specify the required function
Describe the operating or signaling task and the intended control system. Confirm the accessory function and any additional components.
Match the connection details
Request the exact wiring or installation drawing, mounting dimensions and terminal arrangement for the offered accessory.
Confirm the order contents
Confirm included parts, operating conditions and required documentation. Do not infer a complete control assembly from an accessory name.
ABOUT W9 GROUP
W9 Group support for MCCB operating accessories
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a MCCB extended handle enquiry, contact W9 Group about configuration and matching product documents.
RELATED RESOURCES

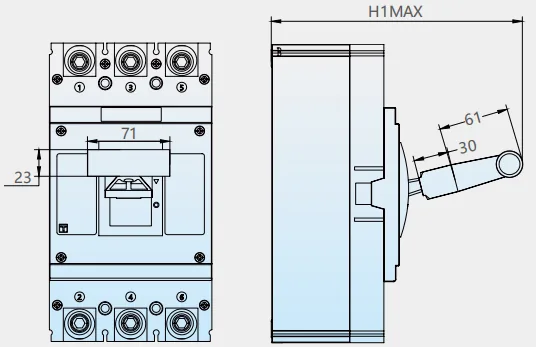

MCCB extended handle clearance and installation drawings
Use technical support and related products to specify MCCB extended handle. Request a datasheet and wiring diagram matching the selected MCCB extended handle configuration.
RELATED PRODUCTERH-M6 extended rotary handleCompare function and configuration; request separate model ratings
DOCUMENTSW9 Group download centreRequest the current document for your quoted MCCB extended handle variant
BUYER FAQ
MCCB manual operating handle compatibility FAQs
Find answers about MCCB extended handle selection, configuration and ordering.
How does the extended handle operate the breaker?
The description states that pushing the operating handle assists closing, opening and resetting. Confirm the exact fitting and operating instructions for the host breaker.
Which breaker models appear in the original schedule?
The original table lists CSDM7-400, CSDM7-630, CSDM7-800 and CSDM7-1000. Confirm the exact accessory compatibility for the host order code.
What does the H1max dimension mean?
Request the dimensional drawing defining H1max and its units. Do not treat the bare table value as a shaft length or assign an unstated dimension unit.
Is this a door-mounted rotary handle?
The source describes a push-operated extension. Confirm the mechanism type and mounting arrangement; it should not be substituted for a rotary door-handle assembly without a matching specification.
Does the accessory change the breaker trip settings?
It is an operating aid, not a trip-unit specification. Confirm the host breaker’s protection characteristics separately.
Are locking and enclosure protection included?
These features are not established by the available description. Confirm any required locking, guarding and enclosure arrangement with the matching installation instructions.
What is needed for a MCCB extended handle quotation?
Send the required configuration, quantity, destination market and document requirements. Ask W9 Group to confirm price, minimum order quantity, samples and lead time for the selected configuration.
PRODUCT ENQUIRY
Request an MCCB extended operating handle quotation
Tell W9 Group your complete order code, circuit duty, installation conditions and required documents, quantity and destination market so the selected configuration can be identified.
