WEW1-6300 air circuit breaker
TECHNICAL DATA
WEW1-6300 Air Circuit Breaker Specifications
The WEW1-6300 air circuit breaker is listed by W9 Group with a 6300 A summary rating, 3-pole or 4-pole options and 400 / 690 V AC operation. Fixed and withdrawable construction are shown. Select the current, fault duty and controller with the switchboard requirements before confirming the order code.
| Model | WEW1-6300 |
|---|---|
| Product category | Air circuit breaker |
| Summary rated current | 6300 A |
| Poles | 3P / 4P |
| Catalog current choices at 40°C | 4000, 5000, 6300 A |
| Rated operational voltage | 400 / 690 V AC, 50/60 Hz |
| Insulation voltage Ui | 1000 V |
| Impulse withstand voltage Uimp | 12 kV |
| Construction options | Fixed / withdrawable; confirm the selected assembly |
| Icu at 380 / 400 / 415 V AC | M code: 120 kA; H code: 138 kA |
| Icu at 690 V AC | M code: 85 kA; H code: 105 kA |
| Trip controller | Intelligent controller listed; confirm function set and settings |
SELECTION GUIDE
Selecting a 6300A Air Circuit Breaker: Fixed or Withdrawable
Specify the current, 3P or 4P, supply voltage, fault current, fixed or withdrawable construction, controller and accessories when requesting a WEW1-6300 quotation from W9 Group.
Specify current and poles
Reference the 6300 A version and state 3P or 4P. Confirm the current rating, neutral arrangement and permitted controller settings for the order code.
Compare voltage-specific fault duty
The Icu table lists M / H codes at 380 / 400 / 415 V and 690 V. Request the corresponding Ics and Icw data, including withstand duration, for the selected WEW1-6300.
Choose fixed or withdrawable construction

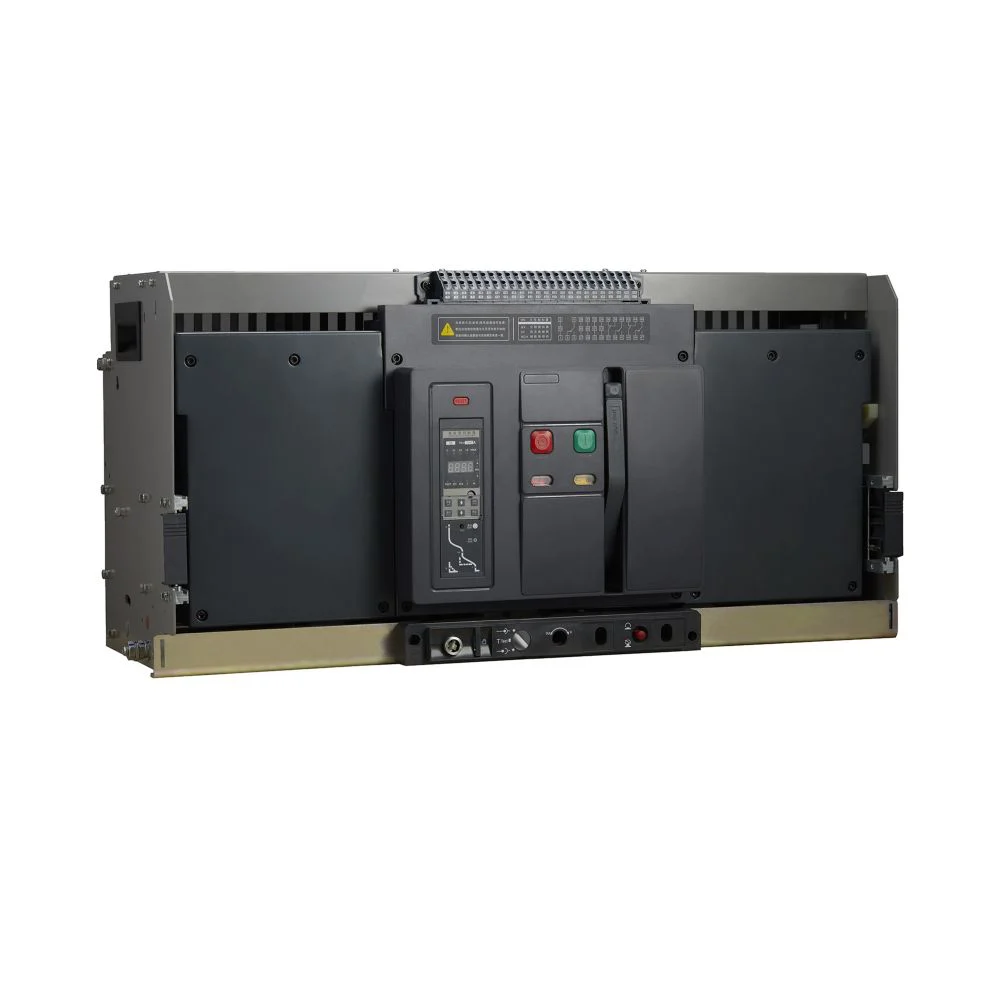

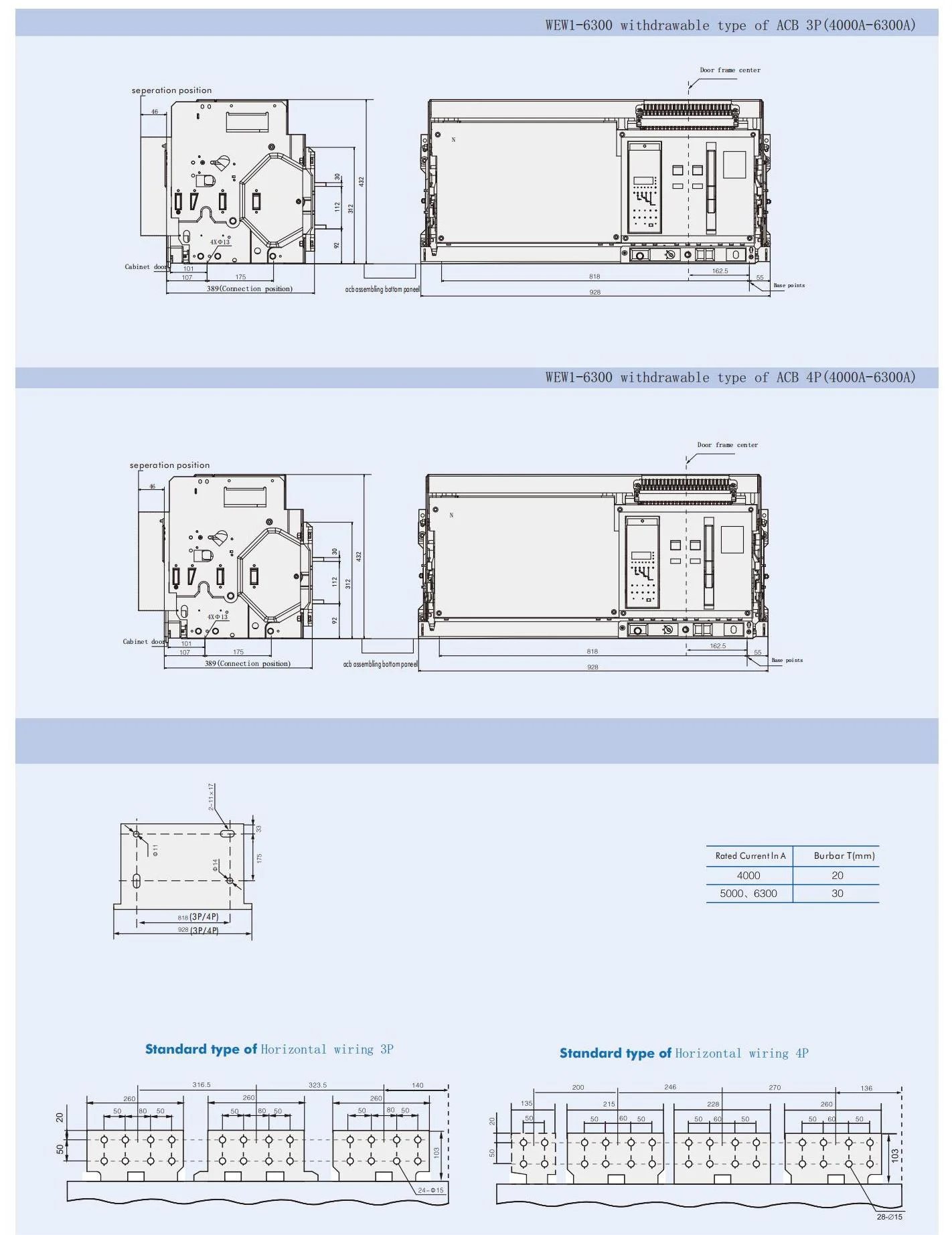

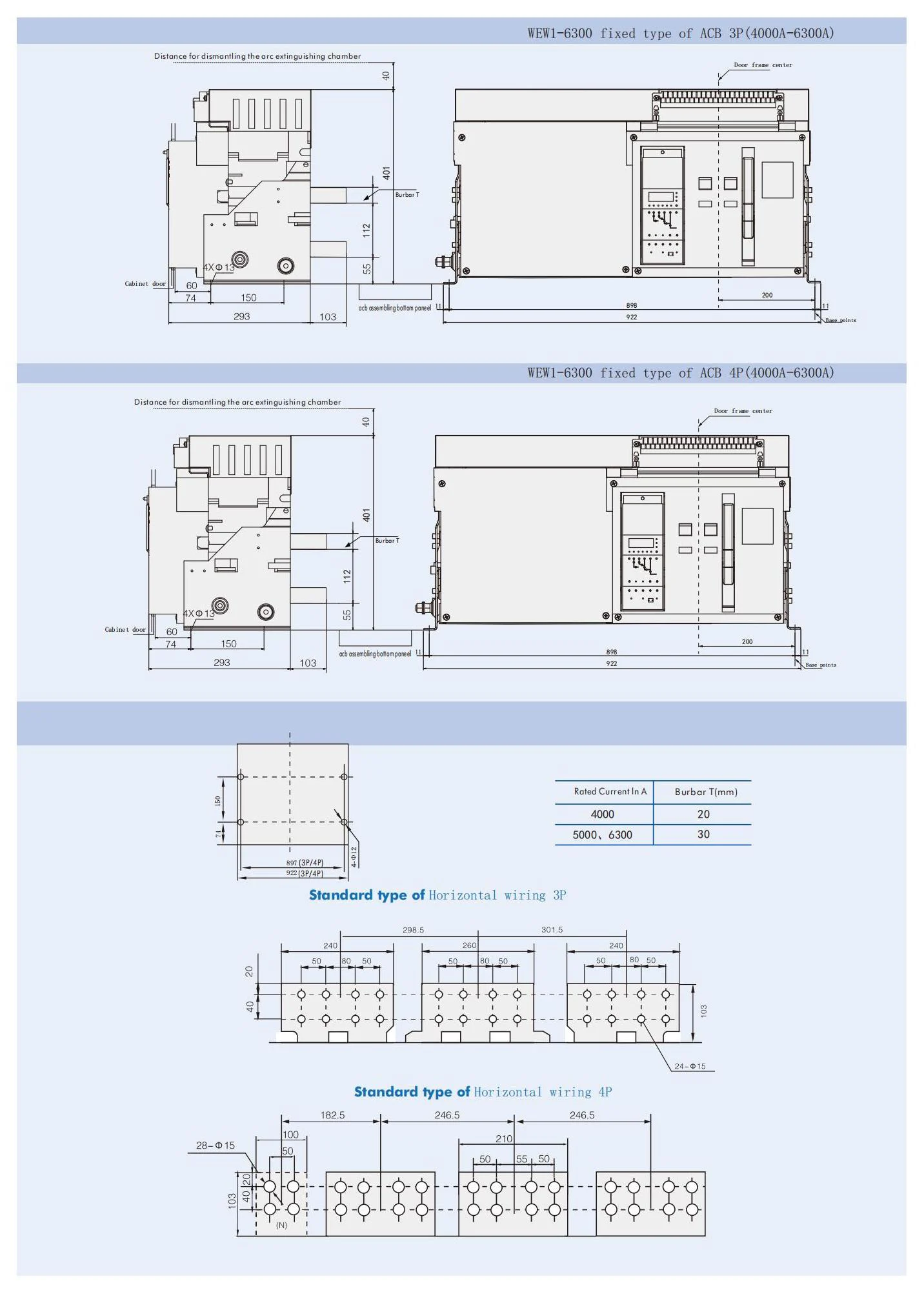

Confirm the assembly, connection drawing, panel clearances and maintenance access. For a withdrawable order, identify the matching cradle and interlocks.
Define control and accessory requirements
Specify controller functions, release supply, indication contacts and any interlock or communication requirements. Confirm the supplied accessory schedule rather than assuming every listed option is included.
