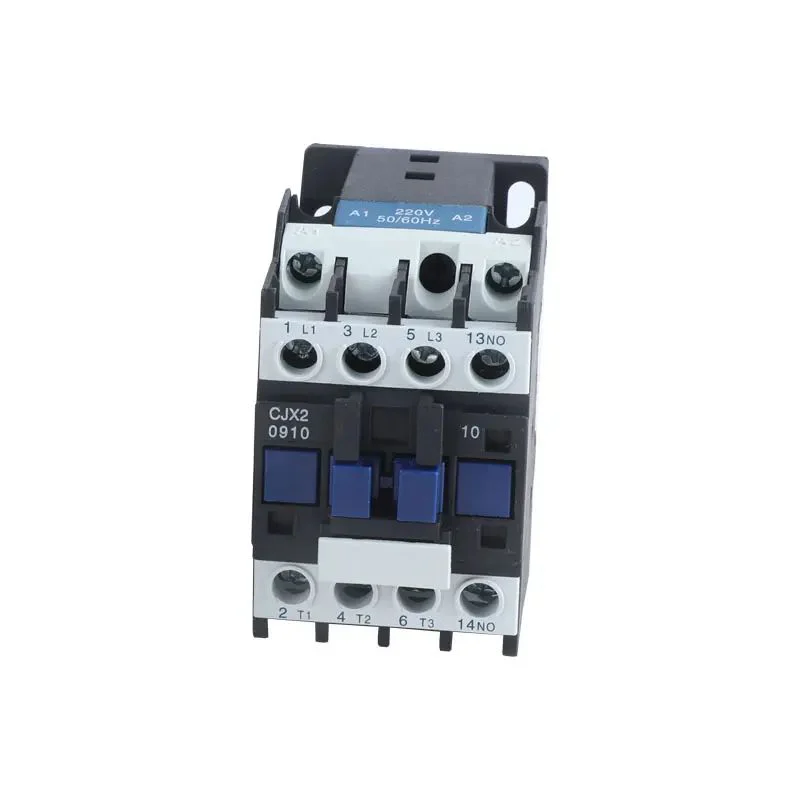

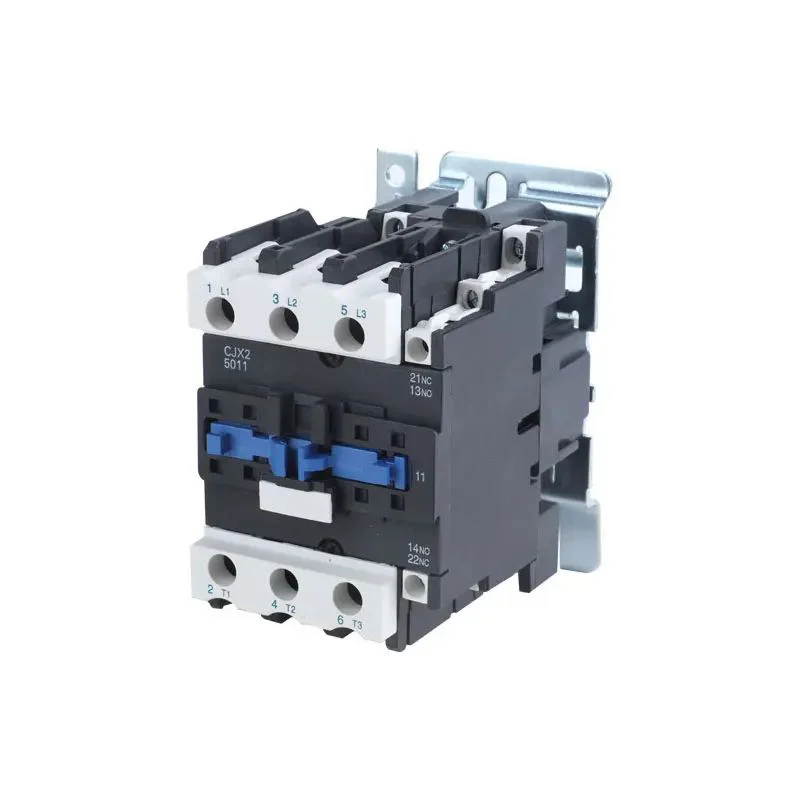

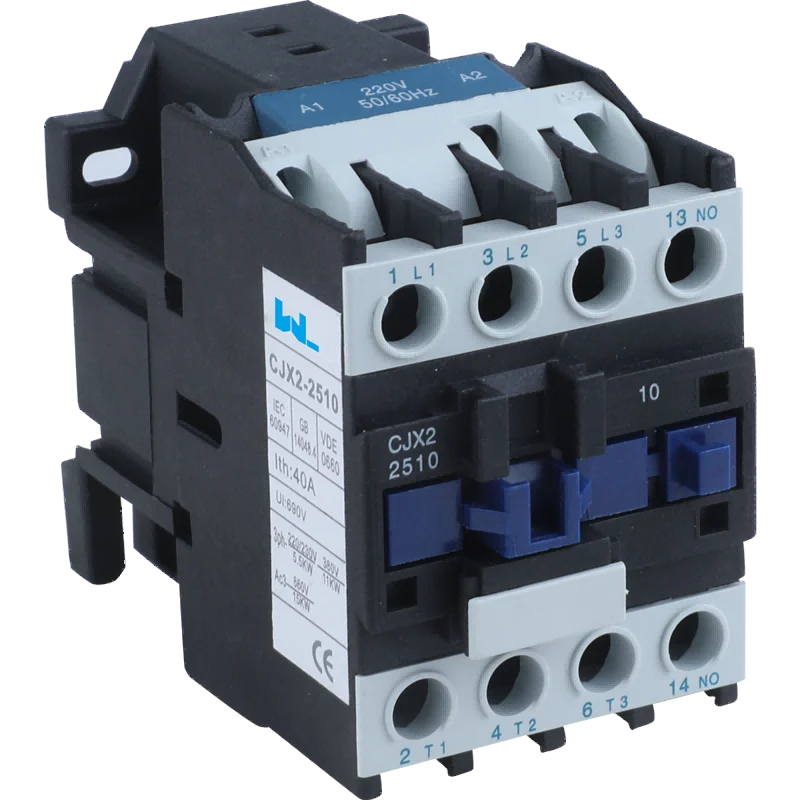

CJX2 AC Motor Contactor Specifications and Contact Options
The CJX2 AC contactor range is listed by W9 Group for frequent motor switching and control. The page covers multiple contact arrangements and current sizes; the coil must match the control supply. A compatible thermal overload relay is a separate part of a motor-starter arrangement.
| Series | CJX2 |
|---|---|
| 機能 | Motor switching and electrical control |
| Published current range | 9–95 A; confirm utilization-category rating |

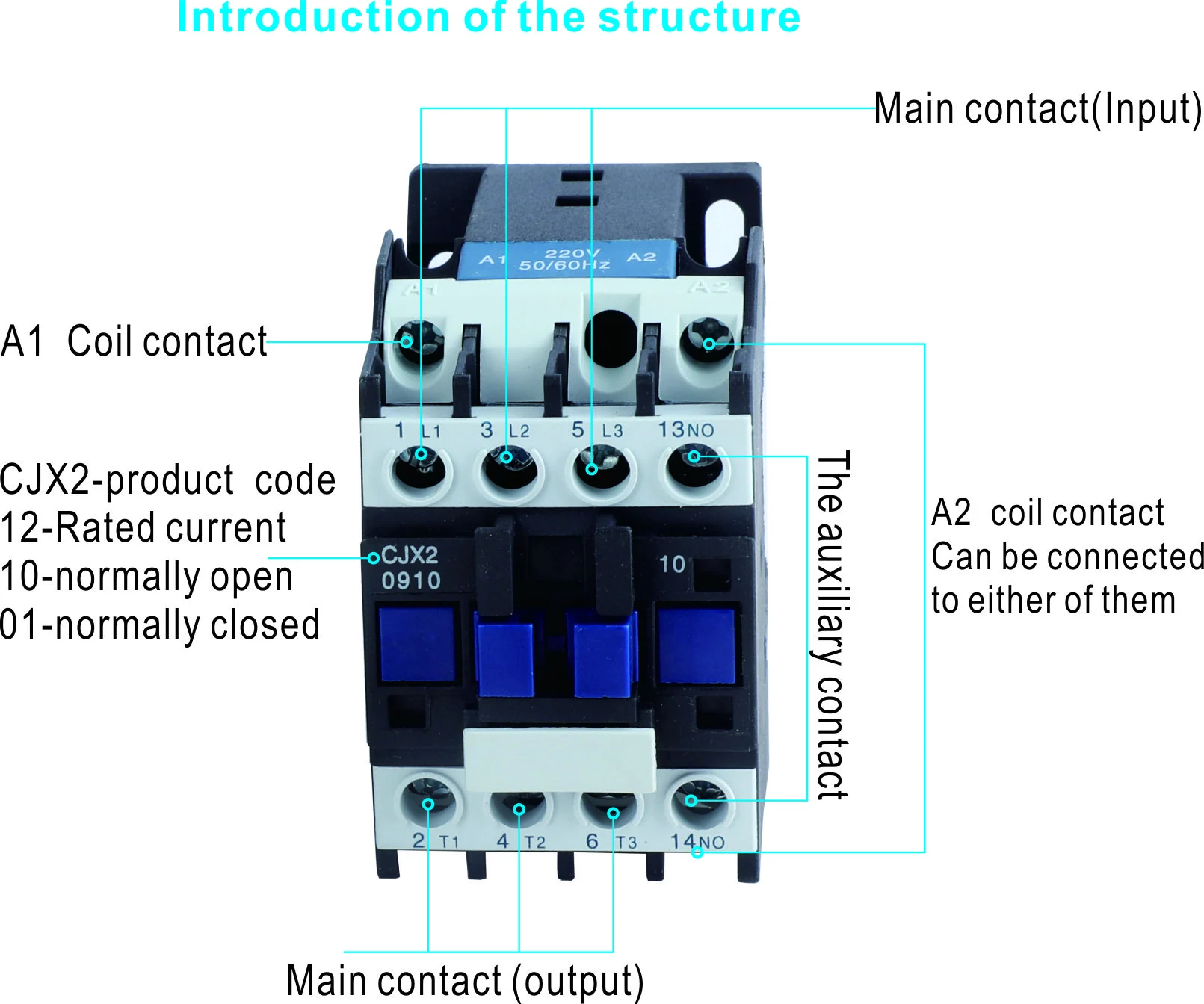

| Main contact arrangements | 3P / 4P variants; confirm the exact code |
| Auxiliary contacts | Variant-dependent NO / NC arrangements |
| Control coil | Confirm voltage, AC / DC type and frequency for the ordered variant |
| Overload protection | Separate compatible thermal overload relay |

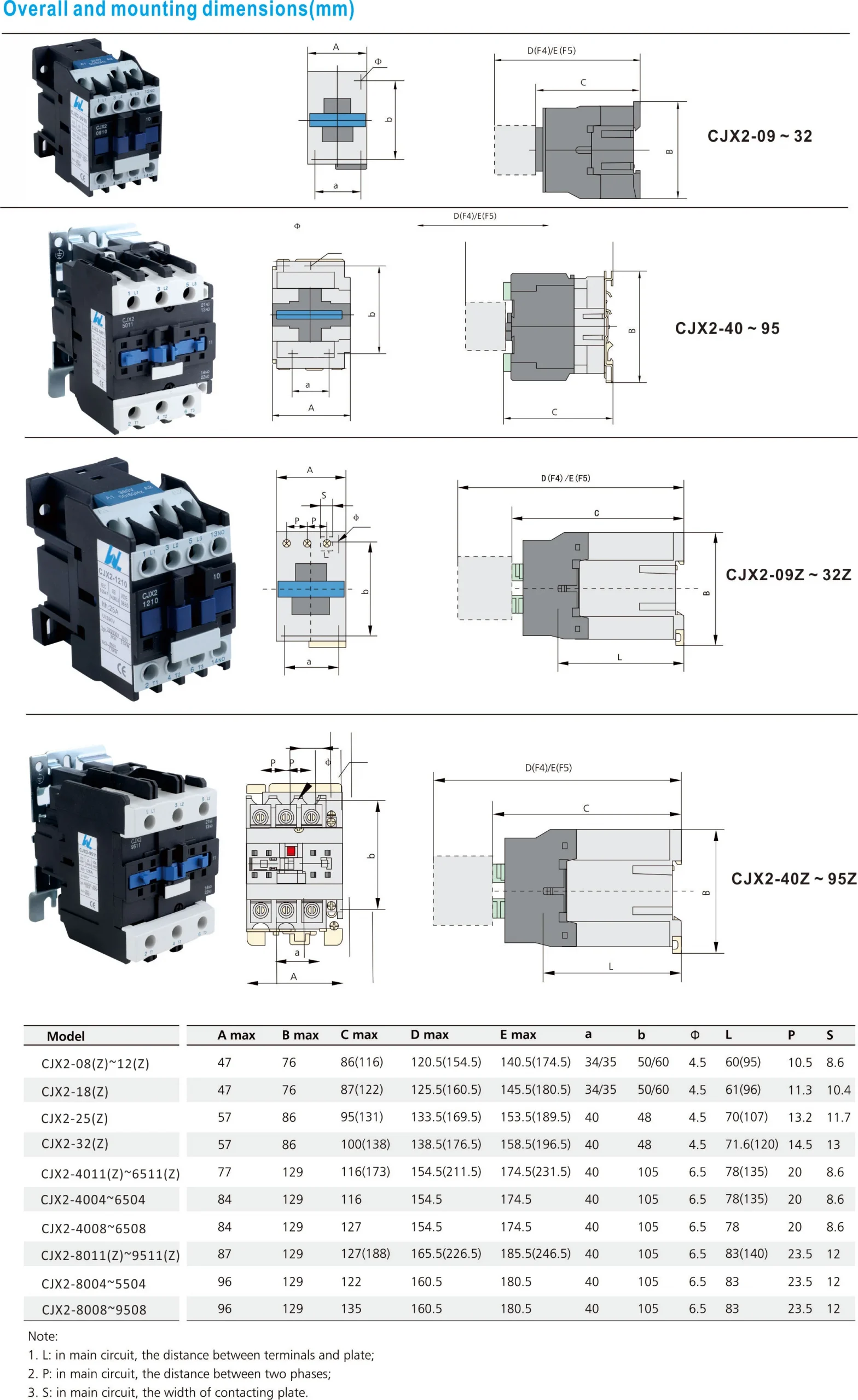

| インストール | Confirm dimensions and mounting for the selected size |
選定ガイド
How to Select a CJX2 Motor Contactor Coil Voltage
Specify the motor voltage and power, switching duty, contact arrangement, coil voltage/type and overload relay when requesting a CJX2 quotation from W9 Group.
Specify the motor load
Provide motor power, voltage and operating duty. Confirm the appropriate utilization-category current rather than selecting by thermal current alone.
Match the control coil
State the control-supply voltage, AC or DC type and frequency. Confirm the exact coil code in the quotation.
Choose contact arrangements
Specify the required main poles and NO / NC auxiliary contacts for the control circuit.

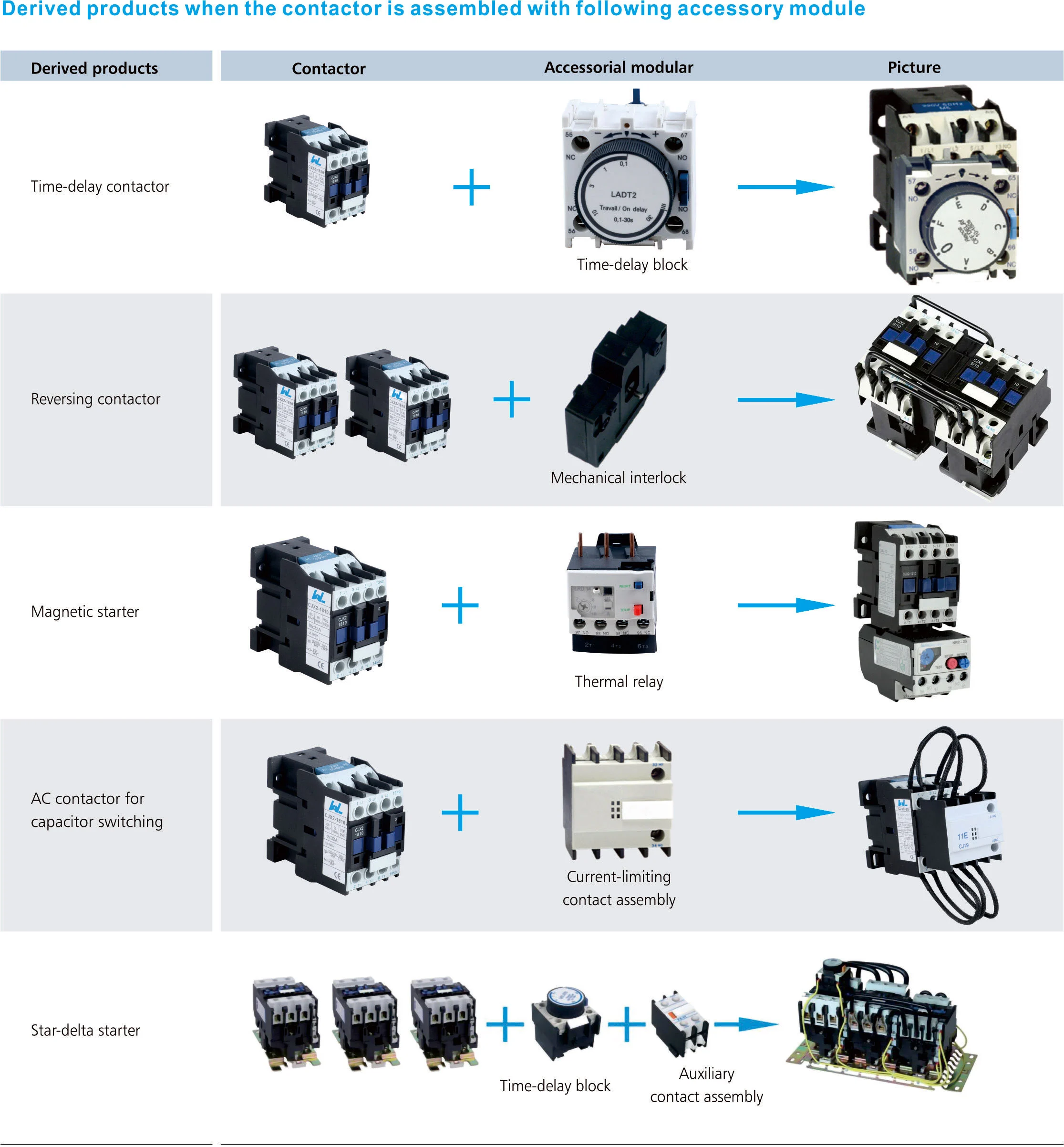

Complete the starter
Confirm thermal-relay compatibility, short-circuit protection, mounting and terminal details for the selected contactor.
W9 GROUPについて
W9 Group Motor Contactor Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a CJX2 enquiry, contact W9 Group about configuration and matching product documents.
関連リソース
CJX2 AC Contactor Datasheet and Thermal Relay Matching
Use W9 Group technical support and the product directory to specify CJX2. Request a datasheet and wiring diagram matching the selected CJX2 configuration.
購入者のよくある質問
CJX2 AC Contactor FAQs: Coil Supply and Motor Switching
Find answers about CJX2 selection, configuration and ordering.
What is the CJX2 AC contactor used for?
The supplier describes frequent motor switching and control. Select the exact contactor by load voltage, motor duty and the applicable current rating.
Is the 9–95A range one adjustable setting?
No. It describes multiple contactor sizes on the series page. Confirm the exact model and utilization-category current for the load.
How do I choose the coil voltage?
Match the coil to the control supply, including AC or DC and frequency where relevant. Confirm the complete coil code instead of assuming a common voltage across the series.
Does the contactor include motor overload protection?
The source describes combining the contactor with a thermal relay to form a motor starter. Confirm and order a compatible overload relay separately.

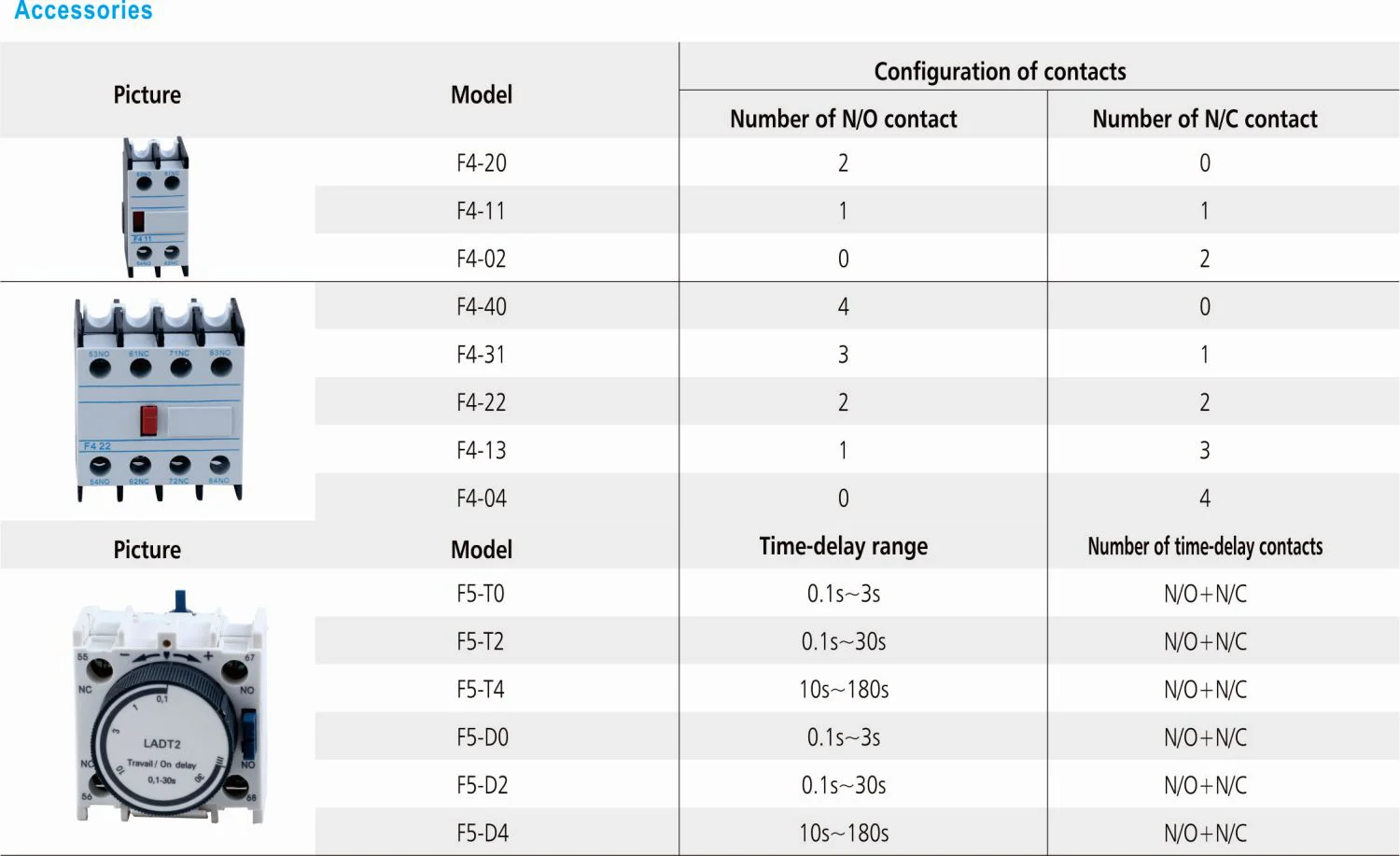

Which auxiliary contacts can be specified?
The series lists different NO / NC contact combinations. Provide the required control-circuit contact logic and confirm the exact auxiliary-contact code.
Can a motor contactor replace a capacitor-switching contactor?
Do not assume interchangeable duty. Confirm the load type, switching current and inrush requirements with the manufacturer before using a contactor for capacitor switching.
What is needed for a CJX2 quotation?
必要な構成、数量、配送先市場、および書類の要件を送信してください。W9 Groupに、選択した構成の価格、最小注文数量、サンプル、納期を確認していただくよう依頼してください。.
製品のお問い合わせ
Request a CJX2 AC Contactor Quotation
Tell W9 Group your motor voltage and power, switching duty, contact arrangement, coil voltage/type and overload relay, quantity and destination market so the selected configuration can be identified.
