آیوسلایتور اصلی JCH2-125
اطلاعات فنی
JCH2-125 125A Main Switch Isolator Specifications

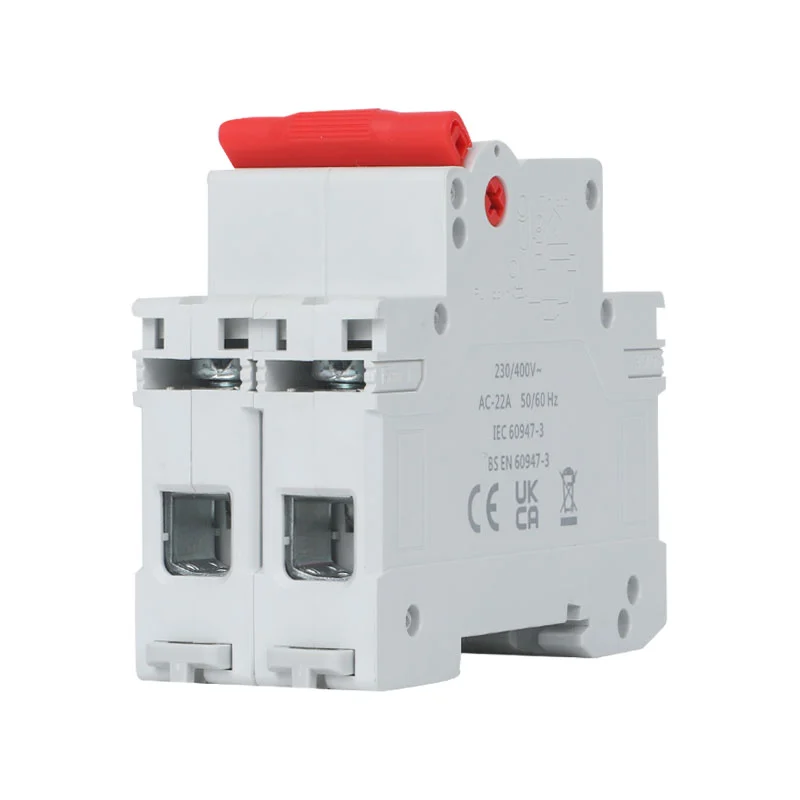

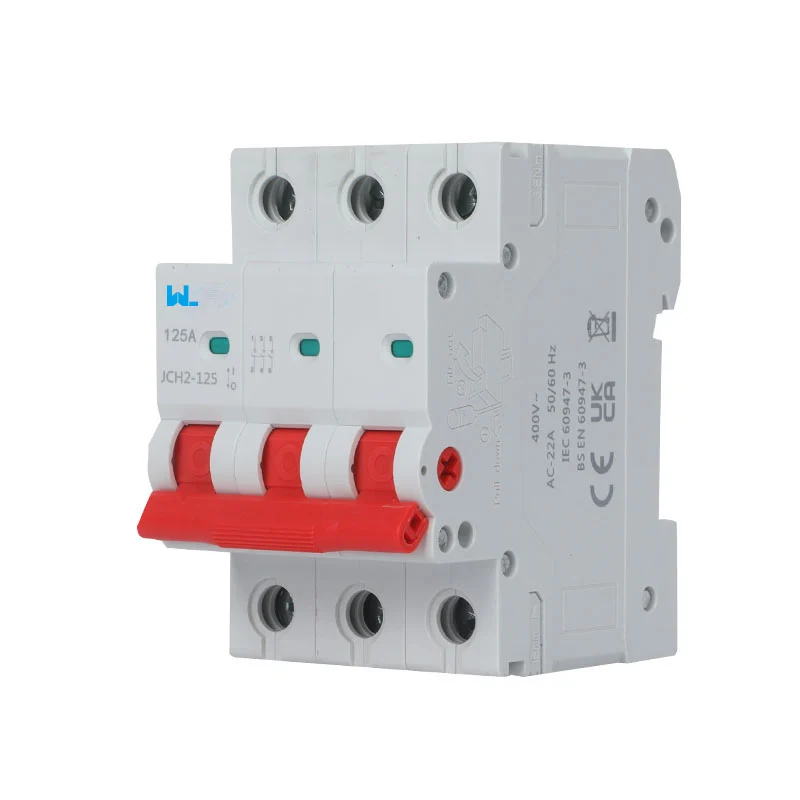

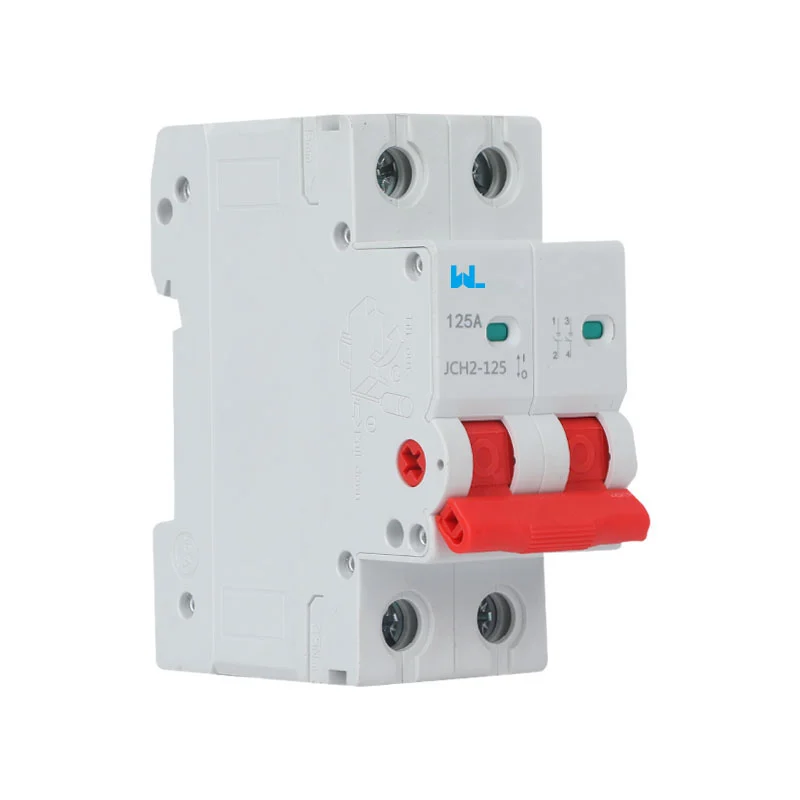

The JCH2-125 main switch isolator is a switch-disconnector for local isolation in residential and light-commercial distribution. W9 Group lists 1-pole through 4-pole versions, current choices up to 125 A and AC-22A duty. It is a switching and isolation device; provide separate circuit protection.
| کد محصول | JCH2- 125 | |||

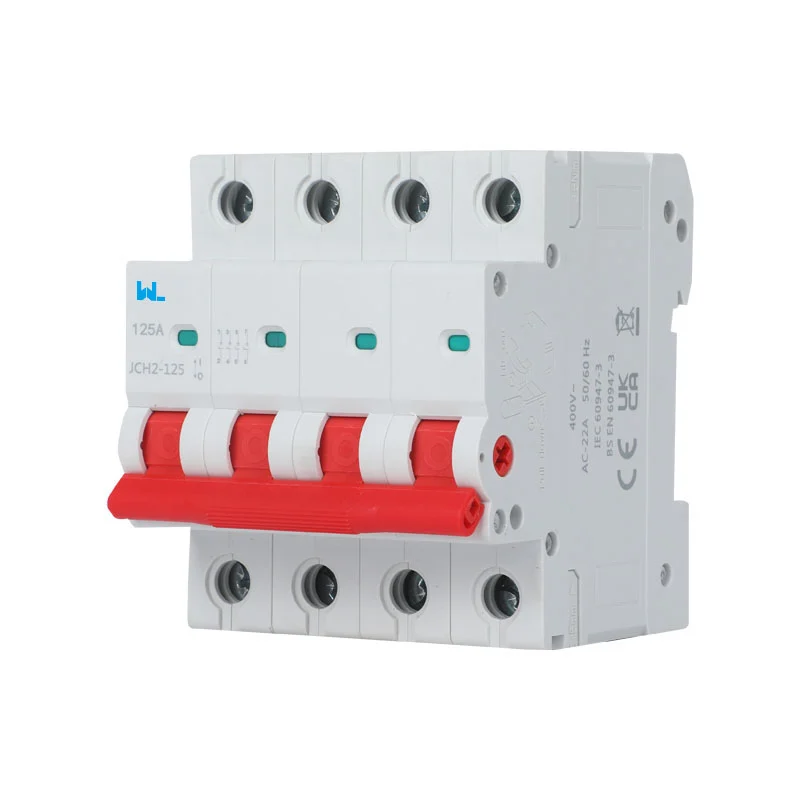

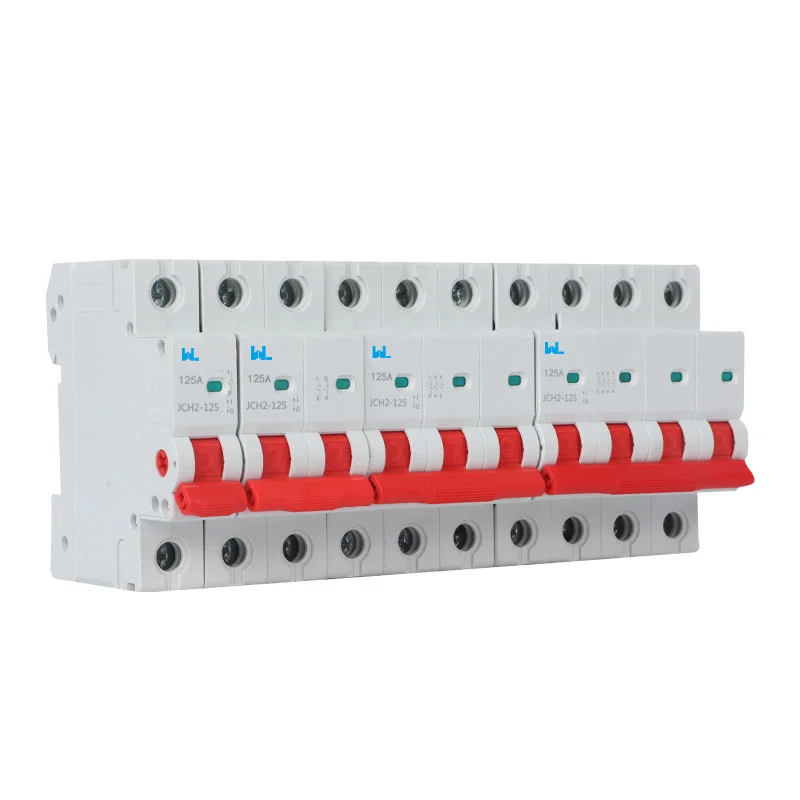

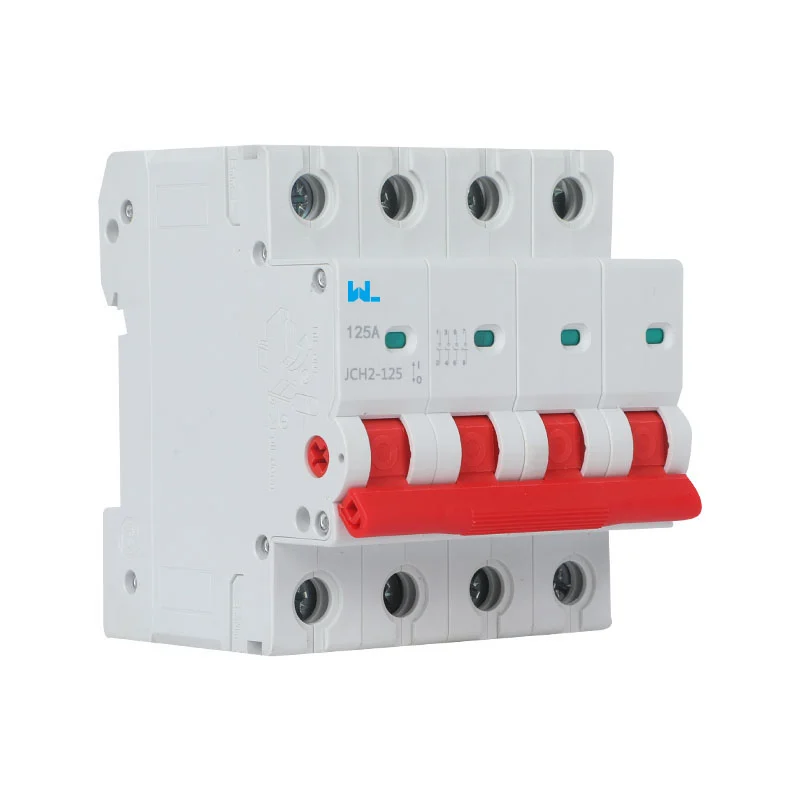

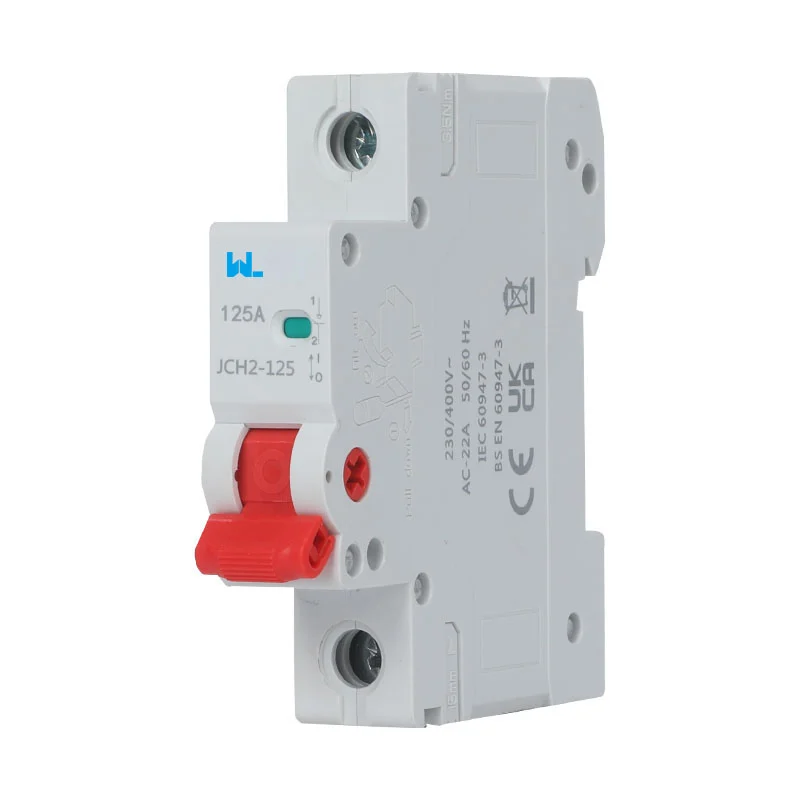

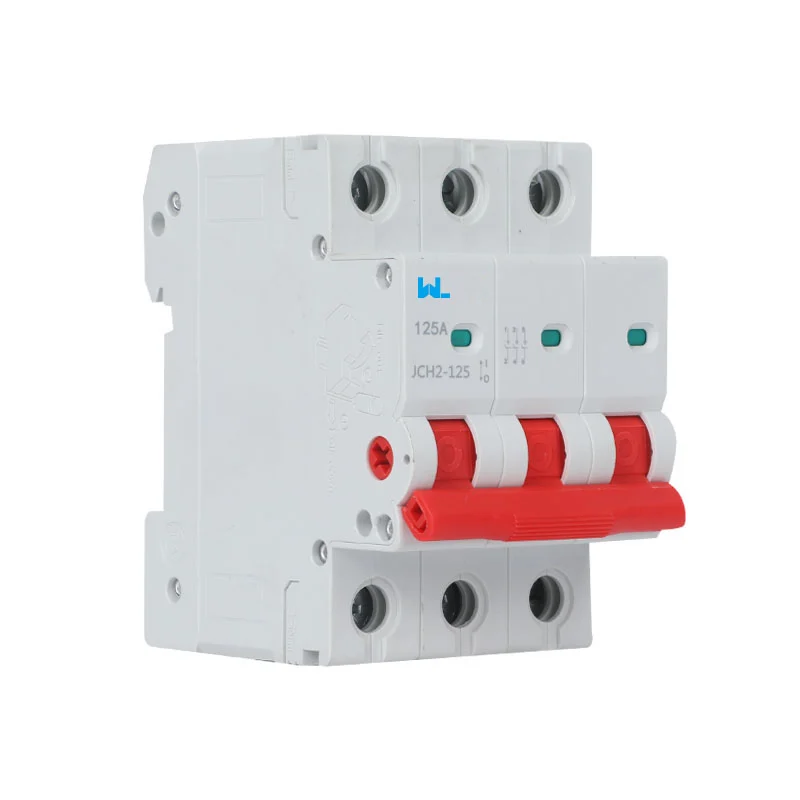

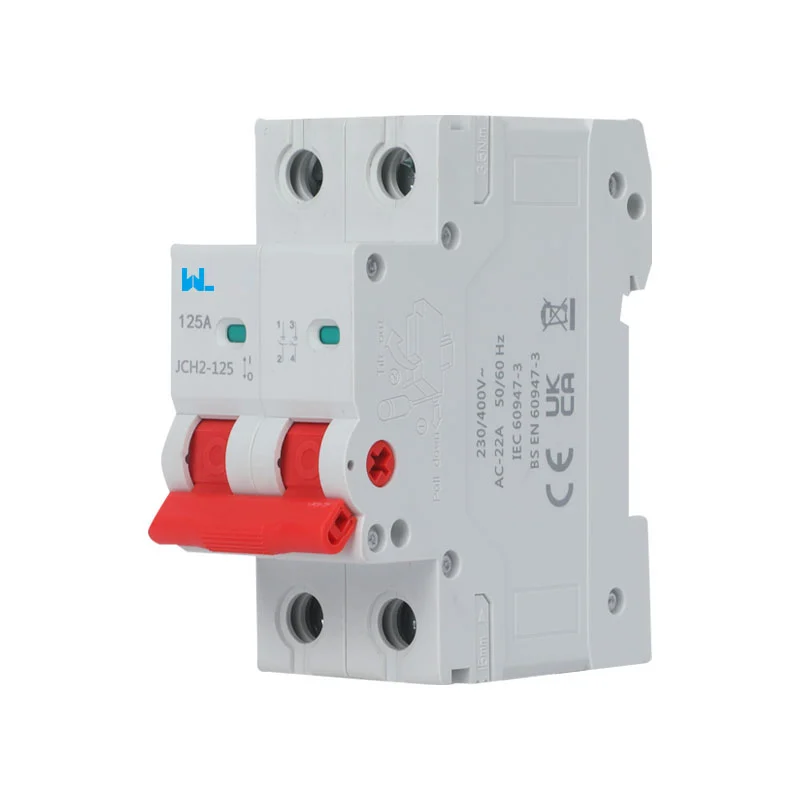

| پال | 1 Pole | 2 Pole | 3 Pole | 4 Pole |
| استاندارد | IEC 60947-3 , EN 60947-3 | |||
|
Electrical features |
Rated current In (A) | 32 ,40 ,50 ,63 ,80 , 100 , 125 | ||
| پوشندگان لهستانی | 1P , 2P , 3P , 4P | |||
| Rated voltage Ue (V) | 230/400~ 240/415 | |||
| Insulation voltage Ui (V) | 500 | |||
| Rated frequency | ۵۰/۶۰ هرتز | |||
| Rated impulse withstand voltage(1 .2/50) Uimp (V) | 4000 | |||
| Rated short-time withstand current lcw | 12le , 1s | |||
| Rated making and breaking capacity | ||||
| Rated short circuit making capacity | 20le , t=0. 1s | |||
| Dielectric test voltage at ind. Freq. for 5s | 2kV | |||
| سطح آلودگی | 2 | |||
| Uilization category | AC-22A | |||
| Mechanicalfeatures | Electrical life | 1500 | ||
| Mechanical life | 8500 | |||

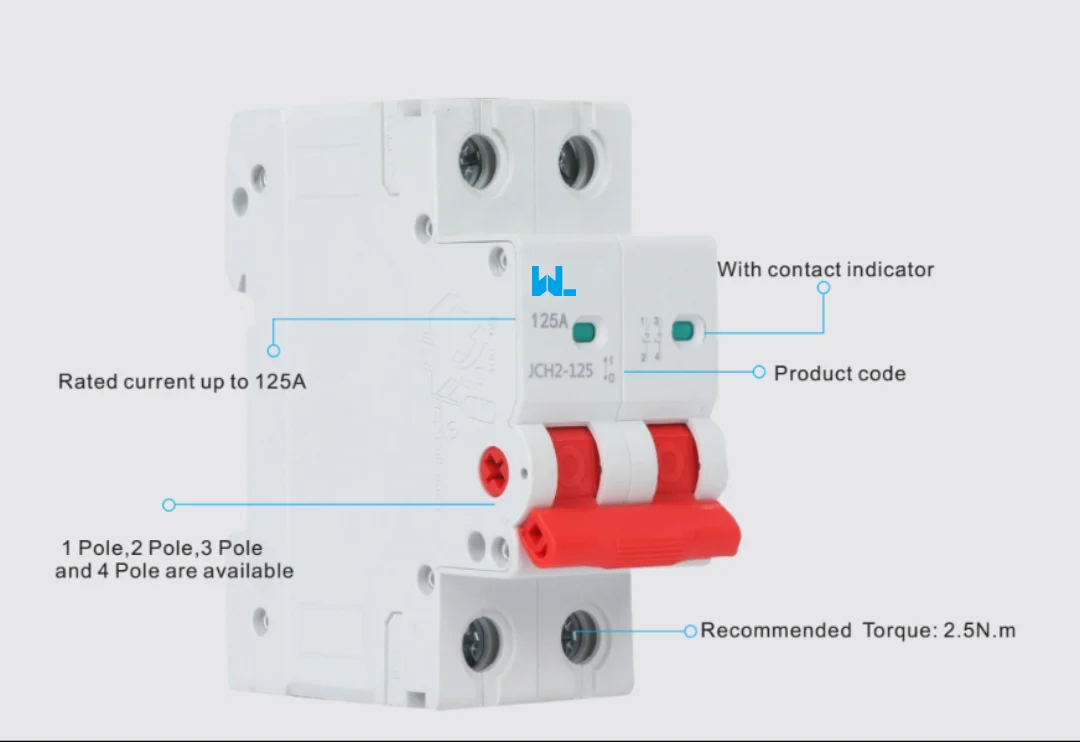

| Contact position indicator | بله | |||
| Protection degree | IP 20 | |||
| Reference temperature for setting of thermal element(℃) | 30 | |||
| Ambient temperature (with daily average ≤35℃) | -5. . .+40 ℃ | |||
| Storage temperation (℃) | -25…+70 ℃ | |||
| ارائه نصب | Terminal connection type | Cable/U-type busbar/Pin-type busbar | ||
| Terminal size top/bottom for cable | 50mm² / 18- 1/0 AWG | |||
| Terminal size top/bottom for busbar | 35mm² / 18-2 AWG | |||
| Tightening torque | 2.5 N*m / 22 In-Ibs. | |||
| قرارگیری | On DIN rail EN 60715 (35mm) | |||
| اتصال | From top and bottom | |||
| استاندارد | IEC/EN 60947-3 | |
|
ویژگی‌های الکتریکی |
مقاومت جریان ورودی (A) | 32,40,50,63,80,100,125 |
| پوشندگان لهستانی | 1P, 2P, 3P, 4P | |
| فشار ولتاژ Ue (V) | 230/400~240/415 | |
| ولتاژ عایق بندی Ui (V) | 500 | |
| فراوانی رتبهبندی شده | ۵۰/۶۰ هرتز | |
| Rated impulse withstand voltage(1.2/50) Uimp (V) | 4,000 | |
| Rated short-time withstand current lcw | 12le, 1s | |
| Rated making and breaking capacity | 3le, 1.05Ue, cosφ=0.65 | |
| Rated short circuit making capacity | 20le, t=0.1s | |
| Dielectric test voltage at ind. Freq. for 5s | 2kV | |
| سطح آلودگی | 2 | |
| Uilization category | AC-22A | |
|
ویژگی‌های مکانیکی |
زندگی الکتریکی | 1500 |
| زمان کارکرد مکانیکی | 8500 | |
| نمایشگر موقعیت تماس | بله | |
| سطح حفاظت | IP20 | |
| Ambient temperature (with daily average ≤35℃) | -5…+40 | |
| Storage temperation (℃) | -25…+70 | |
| ارائه نصب | نوع اتصال ترمینال | کابل/پیوستهای U-type/پیوستهای Pin-type |
| ابعاد بالایی/پایینی ترمینال برای کابل |
50mm2 / 18-1/0 AWG |
|
| ابعاد پایانه بالایی/پایینی برای Busbar |
35mm2 / 18-2 AWG |
|
| تنگ کردن گشتاور |
2.5 N*m / 22 In-Ibs. |
|
| قرارگیری | بر روی ریل DIN EN 60715 (35 میلی متر) با استفاده از دستگاه سریع اتصال | |
| اتصال | From top and bottom |
راهنمای انتخاب
Selecting a 2 Pole or 4 Pole Switch Disconnector
Specify the current, poles, supply voltage, load duty, enclosure and locking requirements when requesting a JCH2-125 quotation from W9 Group.
Choose the current rating
The table includes 32–125 A choices. Confirm the ordered current and its load-duty suitability.
Match poles and supply
Specify the required live and neutral isolation arrangement. Request the connection diagram for the selected pole version.
Check isolation and locking
Confirm contact indication, the locking accessory and the isolation procedure required by the installation.
Provide circuit protection
Coordinate a suitable breaker or fuse separately. Confirm load switching duty and short-circuit withstand data with W9 Group.
درباره W9 Group
W9 Group Main Switch Isolator Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a JCH2-125 enquiry, contact W9 Group about configuration and matching product documents.
منابع مرتبط
JCH2-125 Main Switch Isolator Wiring and Mounting Information
Use W9 Group technical support and the product directory to specify JCH2-125. Request a datasheet and wiring diagram matching the selected JCH2-125 configuration.
دسته بندی محصولاتمحصولات گروه W9 را بررسی کنیدمدل‌های W9 Group را مرور کنید و مشخصات محصول انتخابشده را درخواست کنید.
اسنادمرکز دانلود W9 GroupRequest the current document for your quoted JCH2-125 variant
سوالات متداول خریداران
Main Switch Isolator FAQs: Poles, Load Duty and Circuit Protection
Find answers about JCH2-125 selection, configuration and ordering.
Is JCH2-125 a circuit breaker?
It is listed as a main switch isolator / switch-disconnector. It does not provide overload or short-circuit trip protection.
What current ratings are listed?
The technical table lists 32, 40, 50, 63, 80, 100 and 125 A. Confirm the available order code and current marking.
Can I choose a 2-pole or 4-pole main switch?
Yes, the source lists 1P, 2P, 3P and 4P versions. Confirm the required supply and neutral isolation arrangement.
What utilization category is stated?
The supplier lists AC-22A. Confirm that the load duty and operating conditions are covered by the offered switch rating.
Does IP20 make the switch suitable for outdoor exposure?
Do not use IP20 as evidence of outdoor weather protection. Confirm the enclosure and environmental requirements for the installation.
چه مدارک نصب لازم است؟

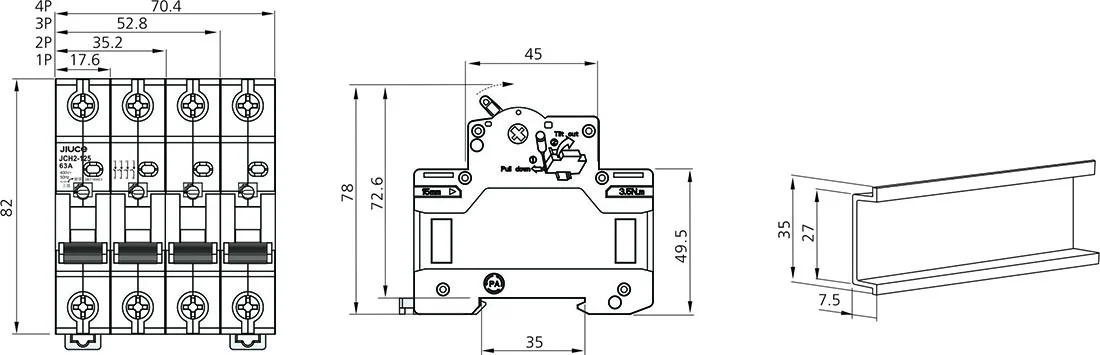

Request the dimensions, terminal and busbar details, locking instructions and connection diagram for the selected version. Confirm short-circuit withstand values because source sections differ.
What is needed for a JCH2-125 quotation?
اطلاعات مورد نیاز را، تعداد، بازار مقصد و الزامات اسناد را ارسال کنید. از W9 Group درخواست کنید تا قیمت، حداقل مقدار سفارش، نمونه‌ها و زمان تحویل برای پیکربندی انتخاب شده را تأیید کند.
