Disjuntor miniatura JCB3-80H
DATOS TÉCNICOS
JCB3-80H 10kA Miniature Circuit Breaker Specifications

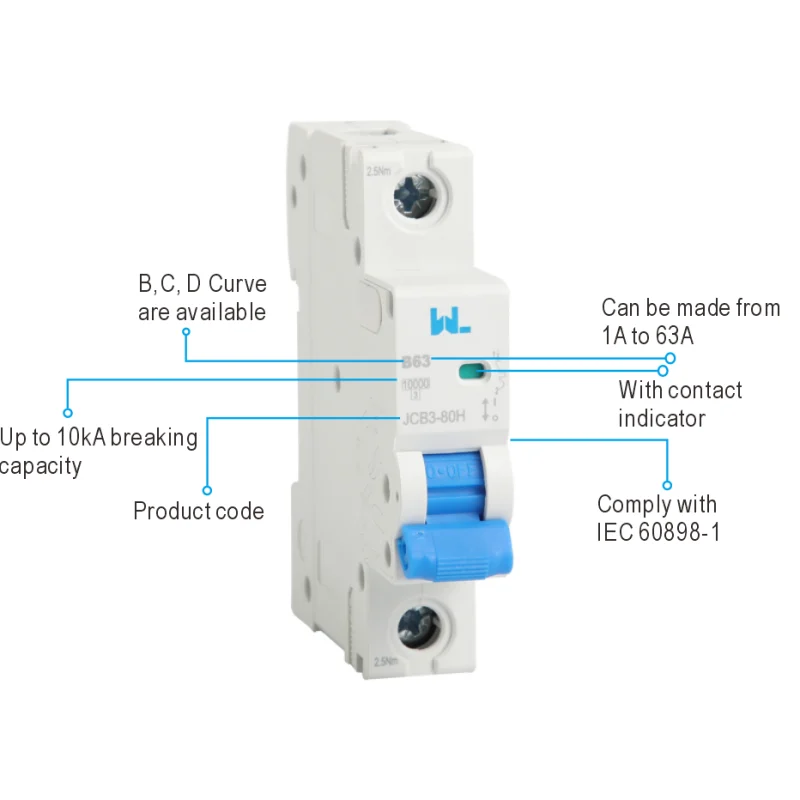

W9 Group lists the JCB3-80H miniature circuit breaker for overload and short-circuit protection. The catalog offers 1–80 A current options, single-pole through four-pole configurations and B, C or D trip curves for distribution circuits.
| Estándar | IEC/EN 60898-1 | IEC/EN 60947-2 | |
|
Características eléctricas |
Corriente nominal en A (A) |
1, 2, 3, 4, 6, 10, 16,20, 25, 32, 40, 50, 63,80 |
|

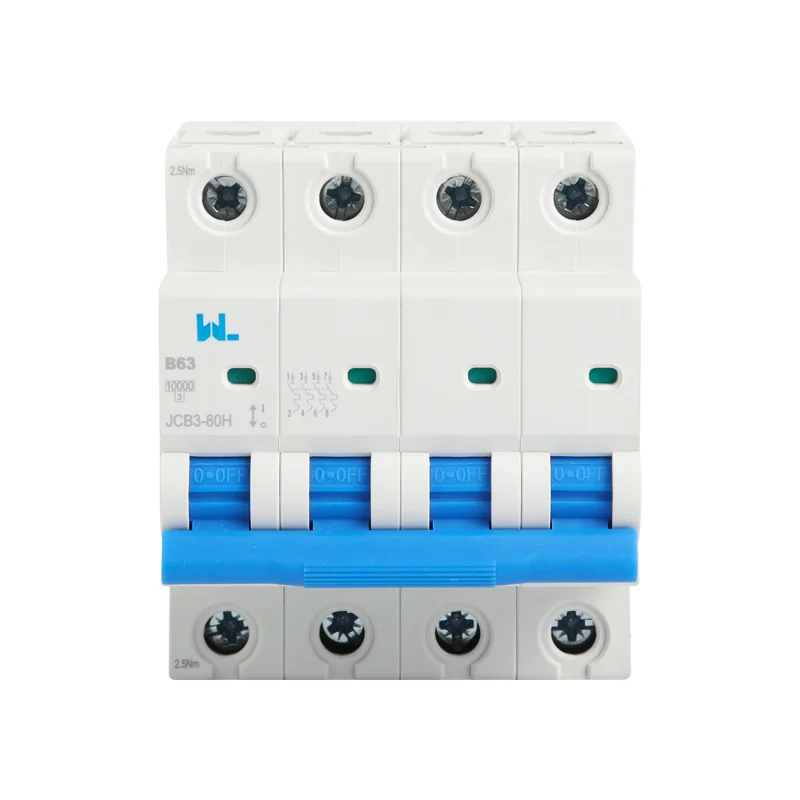

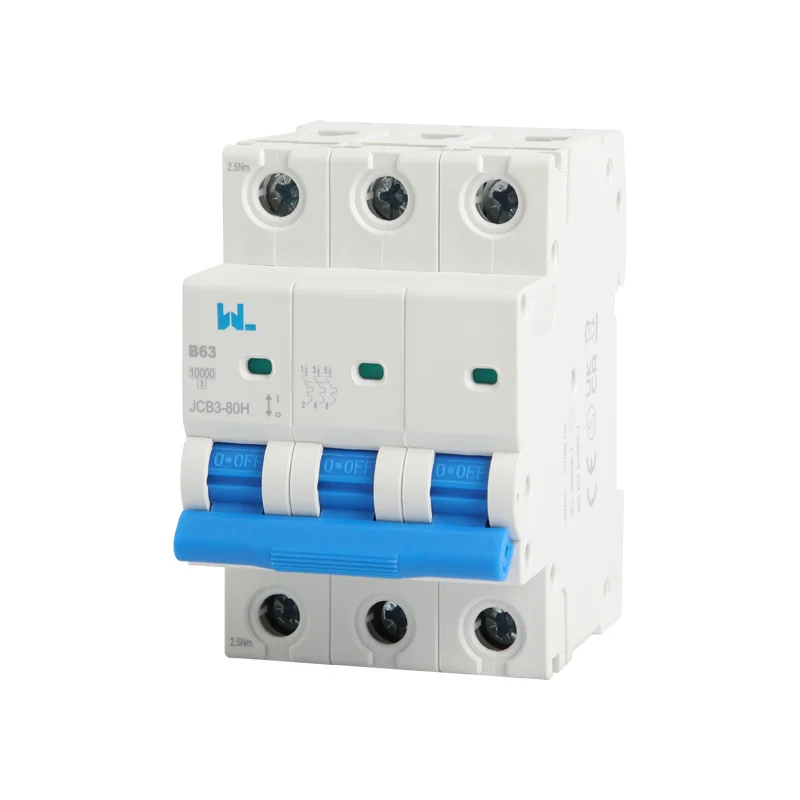

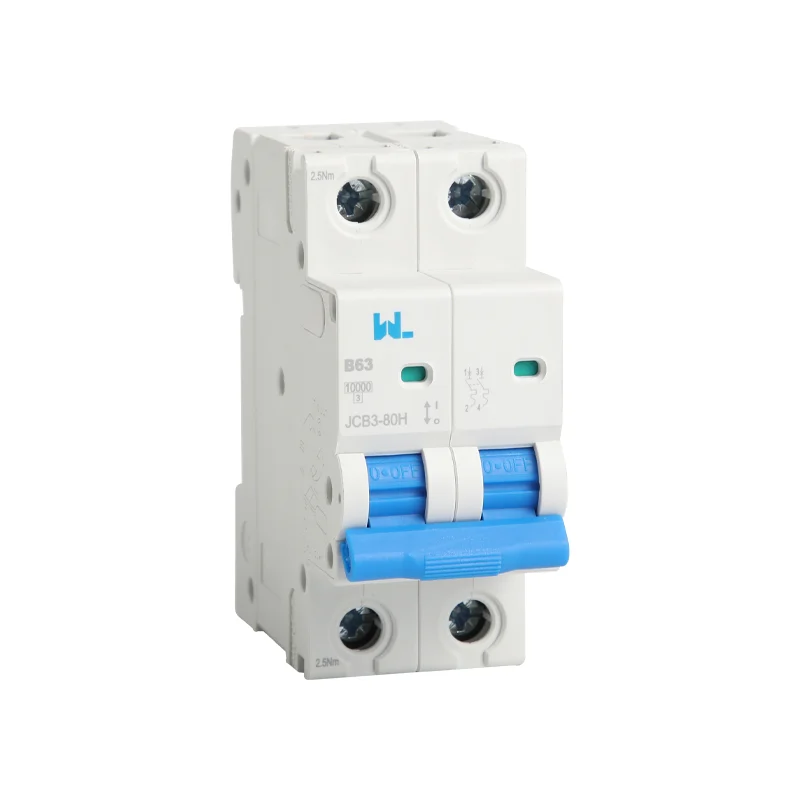

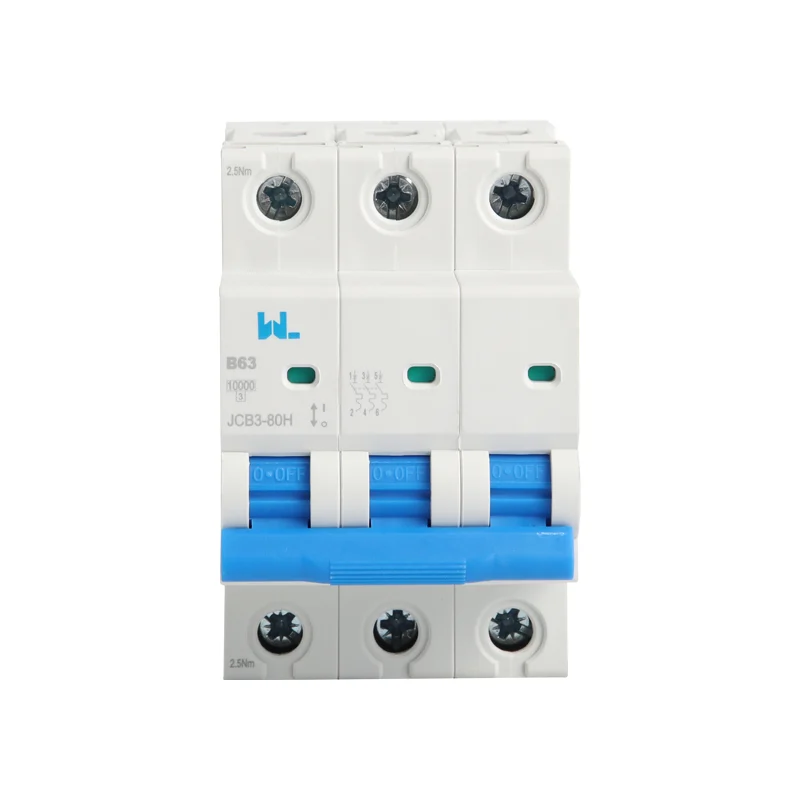

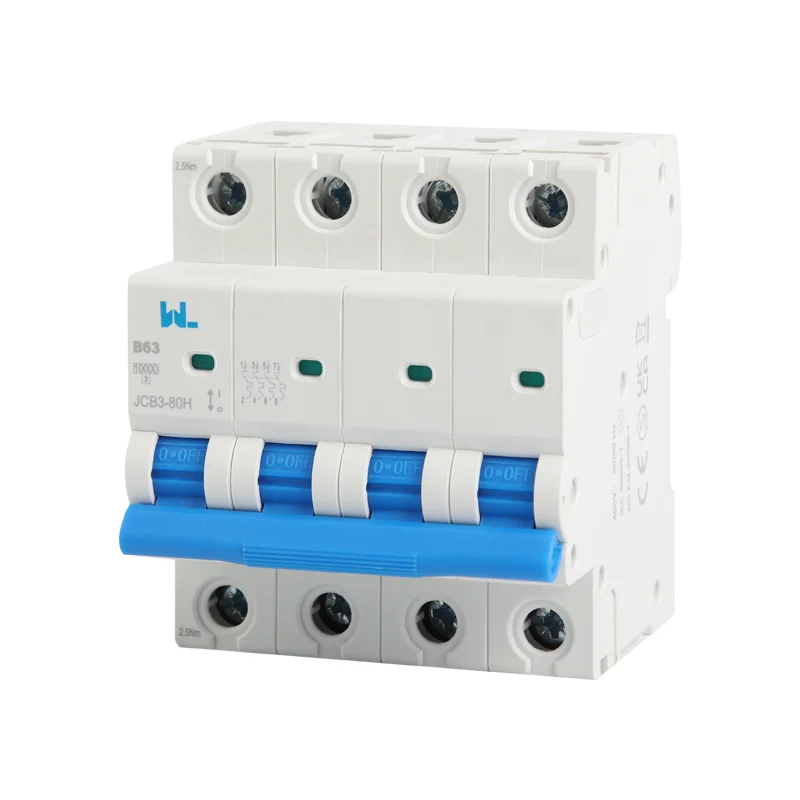

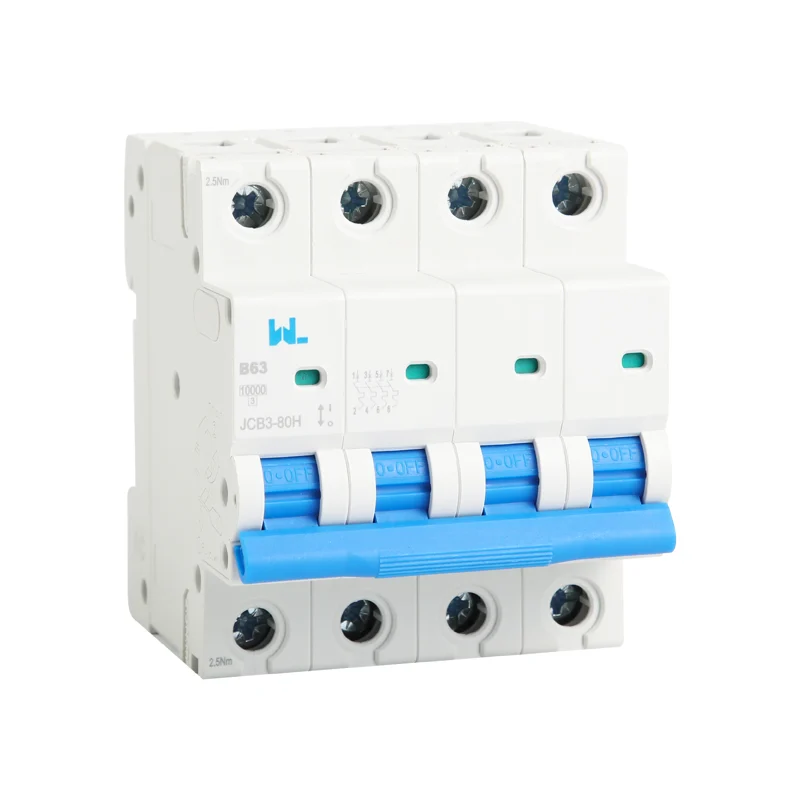

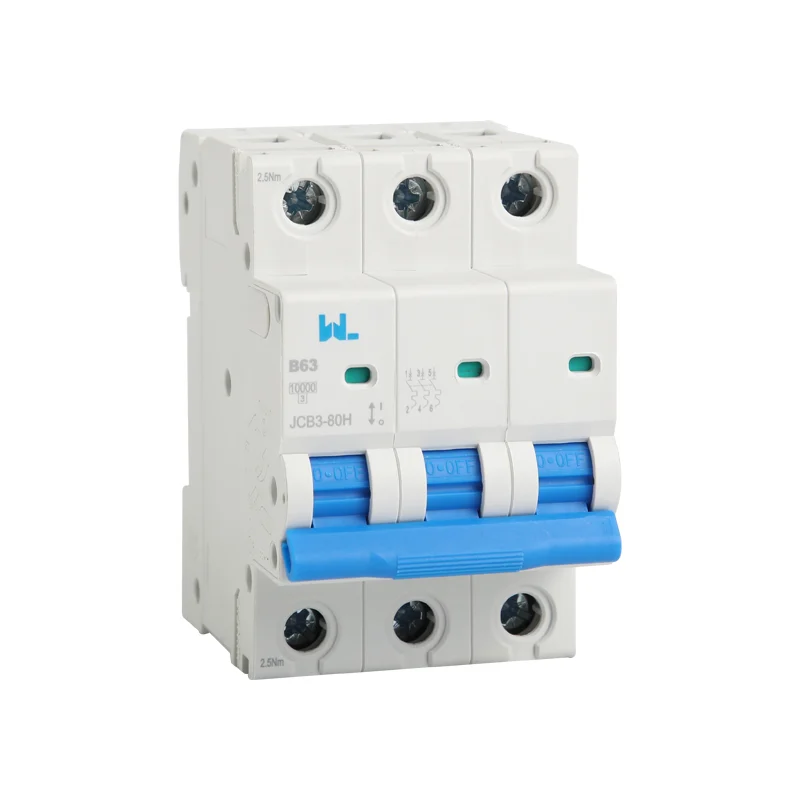

| Polacos | 1P, 1P+N, 2P, 3P, 3P+N, 4P | 1P, 2P, 3P, 4P | |
| Tensión nominal Ue (V) | 230/400~240/415 | ||
| Tensión de aislamiento Ui (V) | 500 | ||
| Frecuencia nominal | 50/60Hz | ||
| Capacidad de ruptura nominal | 10 kA | ||
| Energy limiting class | 3 | ||
| Rated impulse withstand voltage(1.2/50) Uimp (V) | 4000 | ||
| Dielectric test voltage at ind. Freq. for 1 min (kV) | 2 | ||
| Nivel de contaminación | 2 | ||
| Power loss per pole | Rated current (A) | ||
| 1, 2, 3, 4, 5, 6, 10,13, 16, 20, 25, 32,40, 50, 63, 80 | |||
| Característica de liberación termomagnética | B, C, D | 8-12In, 9.6-14.4In | |
|
Características mecánicas |
Vida eléctrica | 4, 000 | |
| Vida mecánica | 20, 000 | ||
| Indicador de posición de contacto | Sí | ||
| Nivel de protección | IP20 | ||
| Temperatura de referencia para el ajuste del elemento térmico (℃) | 30 | ||
| Ambient temperature (with daily average ≤35℃) | -5…+40 | ||
| Storage temperation (℃) | -35…+70 | ||
| Instalación | Tipo de conexión de terminal | Cable/tablero tipo U/tablero tipo pin | |
| Dimensiones del terminal superior/inferior para el cable | 25mm2 / 18-4 AWG | ||
| Dimensiones terminales superiores/inferiores para la barra de bus | 10mm2 / 18-8 AWG | ||
| Torque de ajuste | 2.5 N*m / 22 In-Ibs. | ||
| Instalación | En el soporte de pared DIN EN 60715 (35 mm) mediante dispositivo de sujeción rápido | ||
| Conexión | From top and bottom | ||
|
Combination |
Contacto auxiliar | Sí | |
| Soltado de shunt | Sí | ||
| Desconexión bajo tensión | Sí | ||
| Contacto de alarma | Sí | ||
Guía de selección
Selecting a 1–80A MCB by Pole Arrangement and B, C or D Curve
Specify the rated current, pole count, trip curve, supply voltage and required breaking capacity when you request a JCB3-80H quotation from W9 Group.
Choose the rated current
For JCB3-80H, match the ordered current to the circuit design and conductor protection requirements; the catalog range is 1–80 A.
Choose the trip curve

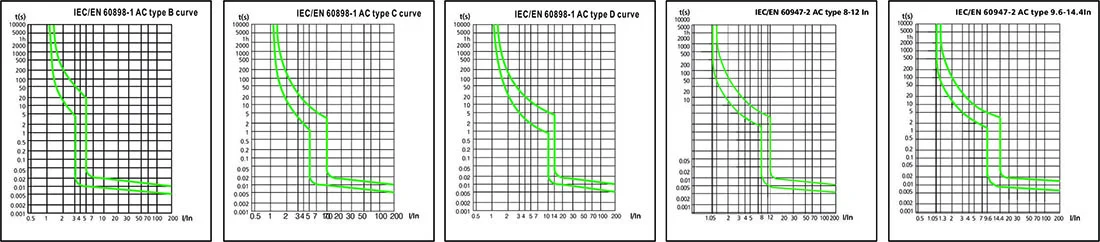

Specify B, C or D and request the corresponding time-current curve to assess starting current and coordination.
Match pole count and fault duty
State the number of poles and supply voltage. Confirm that the selected breaking rating meets the prospective short-circuit current.
Check mounting and connections

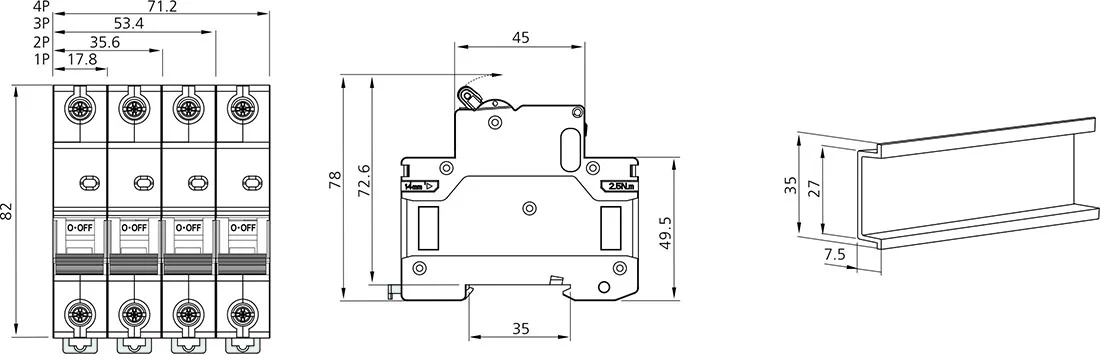

Request the terminal, busbar and mounting drawing for the ordered version before finalizing the distribution board.
QUÉ ES W9 GROUP
W9 Group 10kA MCB Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a JCB3-80H enquiry, contact W9 Group about configuration and matching product documents.
RECURSOS RELACIONADOS
JCB3-80H 10kA MCB Technical Document Requests
Use W9 Group technical support and the product directory to specify JCB3-80H. Request the matching datasheet before ordering.
LISTA DE PRODUCTOSExplora los productos de W9 GroupExplore los modelos de W9 Group y solicite las especificaciones del producto seleccionado
DOCUMENTOSCentro de descarga de W9 GroupRequest the current document for your quoted JCB3-80H variant
Preguntas frecuentes del comprador
10kA MCB FAQs: Voltage, Trip Curve and Board Fit
Find answers about JCB3-80H selection, configuration and ordering.
What does JCB3-80H protect against?
The supplier lists overload and short-circuit protection. Confirm any separate residual-current protection required by the installation.
Which current options are listed?
W9 Group lists 1–80 A for this model range. Ask for the exact order code and available current steps.
How do I choose the trip curve?
The catalog offers B, C and D. Request the selected curve and check it against the load starting behavior and upstream protection.
What is needed for a JCB3-80H quotation?
Envíe la configuración requerida, la cantidad, el mercado de destino y los requisitos documentales. Solicite a W9 Group que confirme el precio, la cantidad mínima de pedido, las muestras y el plazo de entrega para la configuración seleccionada.

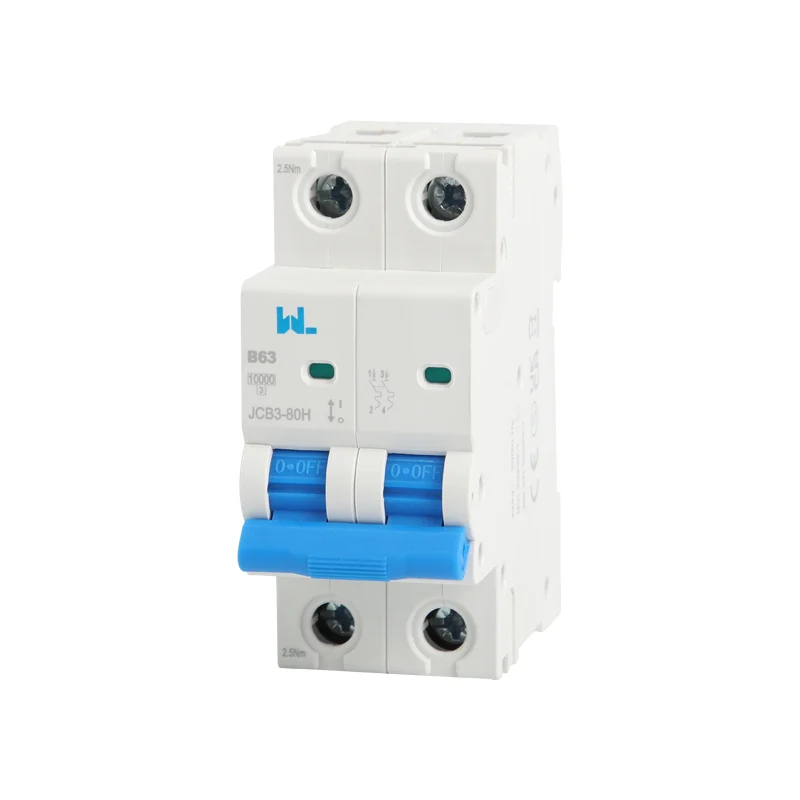

What pole options are available for JCB3-80H?

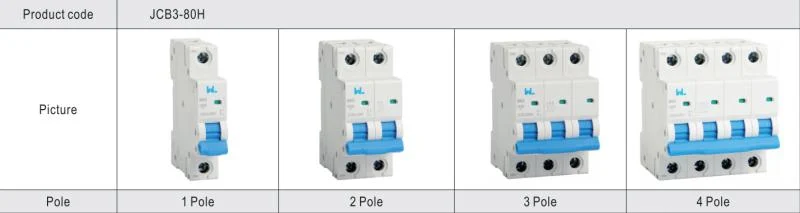

The catalog lists 1P, 2P, 3P and 4P configurations. Confirm the pole count, supply voltage and complete order code before ordering.
How should I specify the breaking capacity?
The source lists a 10 kA version for this model. Confirm the applicable voltage, prospective short-circuit current and matching datasheet before ordering.
