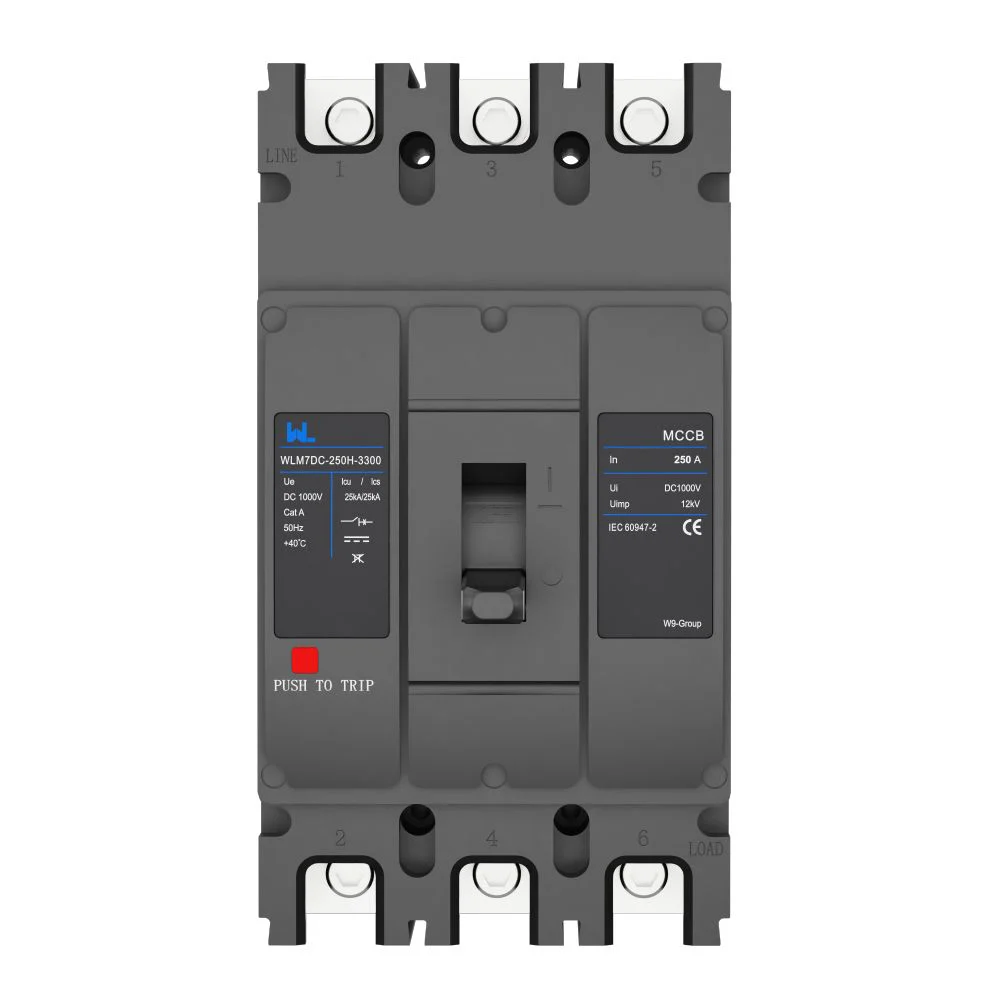

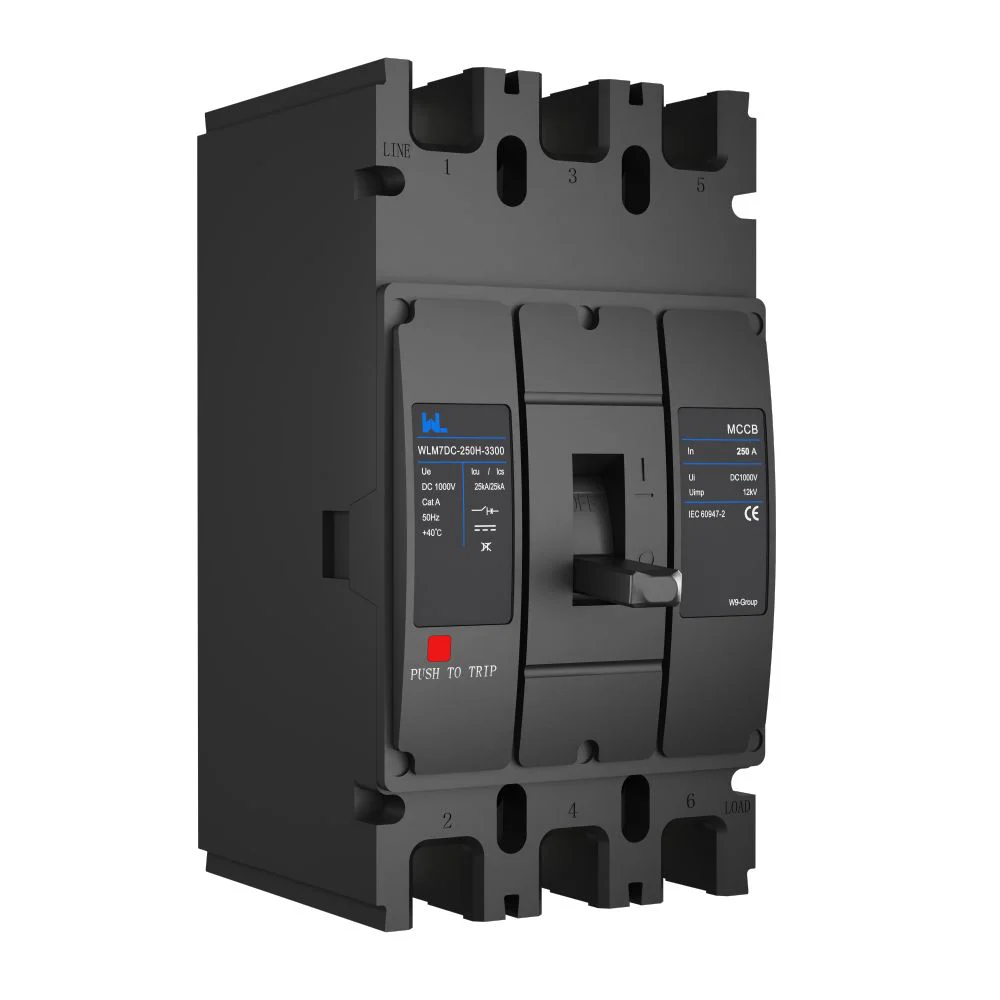

WLM7DC-250 Dc Molded Case Circuit Breaker
اطلاعات فنی
WLM7DC-250 PV DC Molded Case Circuit Breaker Specifications
W9 Group lists WLM7DC-250 as a photovoltaic DC molded case circuit breaker with a 250 A catalog designation and 2P / 3P pole options. Confirm the rated voltage, connection scheme and voltage-specific breaking capacity for the exact offered configuration.
| سری محصولات | WLM7DC |
|---|---|
| Catalog frame designation | 250 A |
| Supply type | DC photovoltaic circuits |
| Listed pole arrangements | 2P / 3P |
| Catalog current schedule at 40 °C | 63-80-100-125-140-160-180-200-225-250 A; confirm version |
| ولتاژ عایق بندی Ui (V) | 1500 |
| تخلف ولتاژ تحت تأثیر (کیول) | 12 |
| Operational voltage and breaking capacity | Confirm the voltage/pole/capacity-code combination on the matching datasheet |
راهنمای انتخاب
Selecting a PV DC MCCB by Voltage, Poles and Fault Duty
Specify the AC/DC circuit duty, supply voltage, current, pole arrangement, breaking-capacity code and trip-unit configuration when you request a WLM7DC-250 quotation from W9 Group.
Specify the circuit side
State PV DC maximum voltage and the proposed connection arrangement; confirm the permitted series-pole wiring.
Specify the current and trip unit
Reference WLM7DC-250 and ask for the exact operating current and trip-unit functions. Confirm whether the offered unit is a breaker or switch-disconnector.
Confirm fault duty
Provide prospective fault current and request Icu/Ics at the intended voltage, pole arrangement and capacity code.
Check panel fit

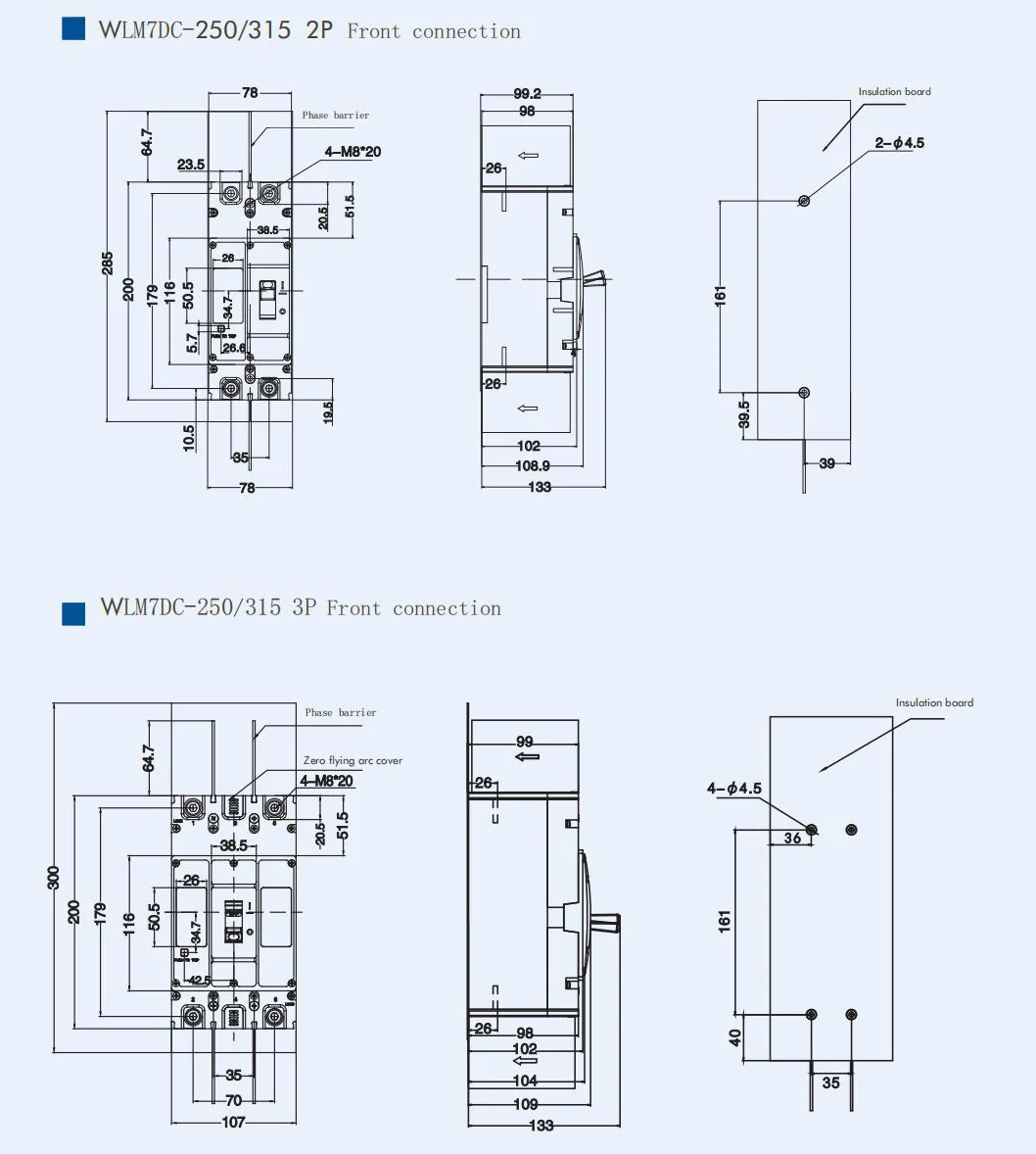

Use the catalog dimensions only for initial planning; request the installation drawing, terminals and clearances for the ordered device.
درباره W9 Group
W9 Group PV DC MCCB Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a WLM7DC-250 enquiry, contact W9 Group about configuration and matching product documents.
منابع مرتبط
WLM7DC-250 DC MCCB Datasheet and Connection Drawing Requests
Use W9 Group technical support and the product directory to specify WLM7DC-250. Request the matching datasheet before ordering.
دسته بندی محصولاتمحصولات گروه W9 را بررسی کنیدBrowse W9 Group models and request the specifications of the selected product
اسنادمرکز دانلود W9 GroupRequest the current document for your quoted WLM7DC-250 variant
سوالات متداول خریداران
WLM7DC-250 DC MCCB FAQs: Current, Trip Unit and Voltage Checks
Find answers about WLM7DC-250 selection, configuration and ordering.
What does WLM7DC-250 identify?
The catalog identifies the WLM7DC series with a 250 A designation. Confirm the fitted current rating, pole arrangement and complete order code.
Can I apply the highest series voltage to every pole arrangement?
Confirm the rated operational voltage and wiring drawing for the selected pole arrangement. A series voltage list does not establish every voltage/pole combination.
Which protection functions are included?
Request the actual trip-unit configuration and coordination curves. Confirm breaker versus switch-disconnector and any optional accessories in the quotation.
What is needed for a WLM7DC-250 quotation?
اطلاعات مورد نیاز را، تعداد، بازار مقصد و الزامات اسناد را ارسال کنید. از W9 Group درخواست کنید تا قیمت، حداقل مقدار سفارش، نمونه‌ها و زمان تحویل برای پیکربندی انتخاب شده را تأیید کند.
What is this WLM7DC molded case circuit breaker used for?
The source identifies the WLM7DC series for its stated photovoltaic circuit duty, but exact breaker versus switch-disconnector and protection functions depend on configuration. Request the matched datasheet and trip-unit details.
How should I confirm the breaking capacity?
Provide prospective fault current and request Icu/Ics for the intended voltage, pole arrangement and capacity code; do not apply the series voltage list to every configuration.
سؤال و جواب درباره محصول
Request a WLM7DC-250 PV DC MCCB Quotation
Tell W9 Group your AC/DC circuit duty, supply voltage, current, pole arrangement, breaking-capacity code and trip-unit configuration, quantity and destination market so the selected configuration can be identified.
