JCB3-63DC DC Miniature Circuit Breaker: Current, Poles and Trip Curves

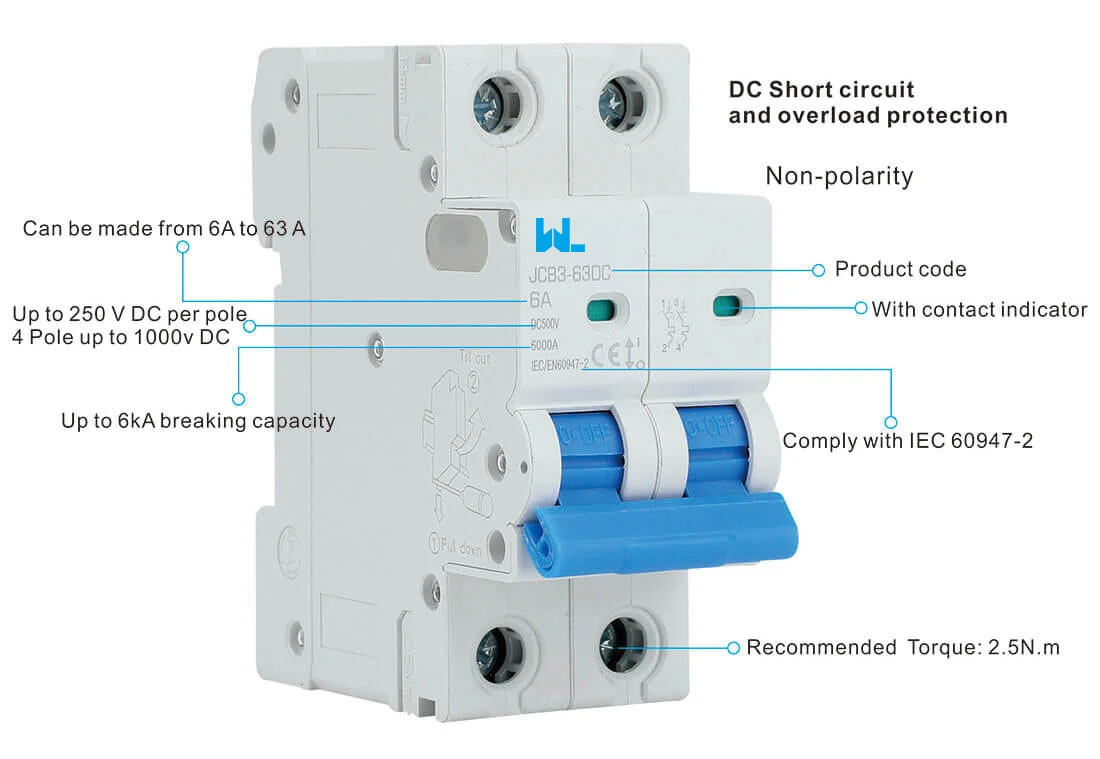

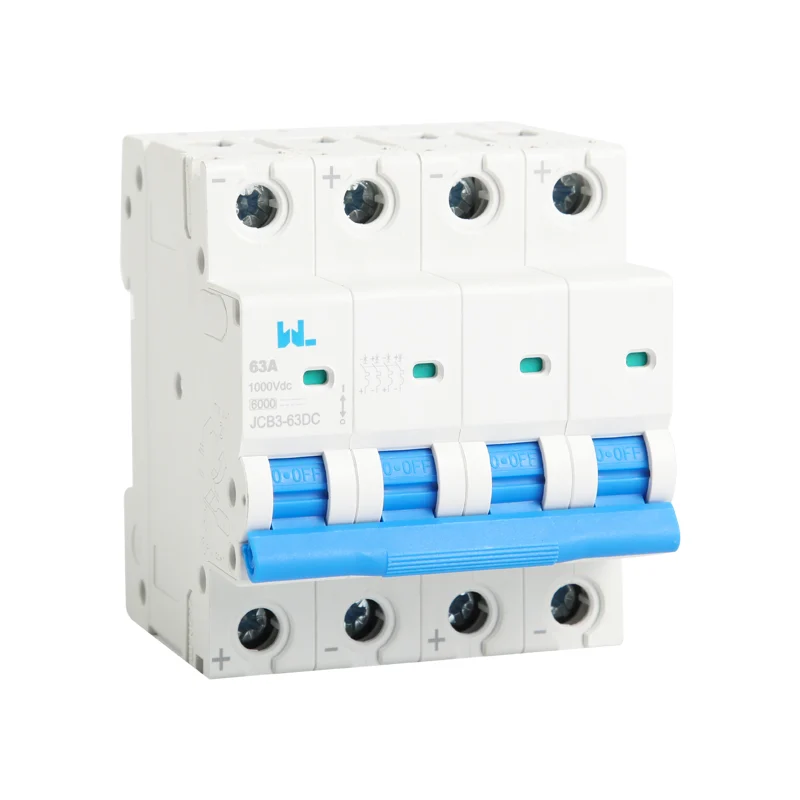

The JCB3-63DC DC miniature circuit breaker is listed by W9 Group for overload and short-circuit protection in direct-current circuits. The target table lists current choices from 6 A to 63 A, B / C trip curves and 1P / 2P / 3P / 4P versions. Confirm polarity, pole wiring and voltage-specific fault duty for the actual installation.

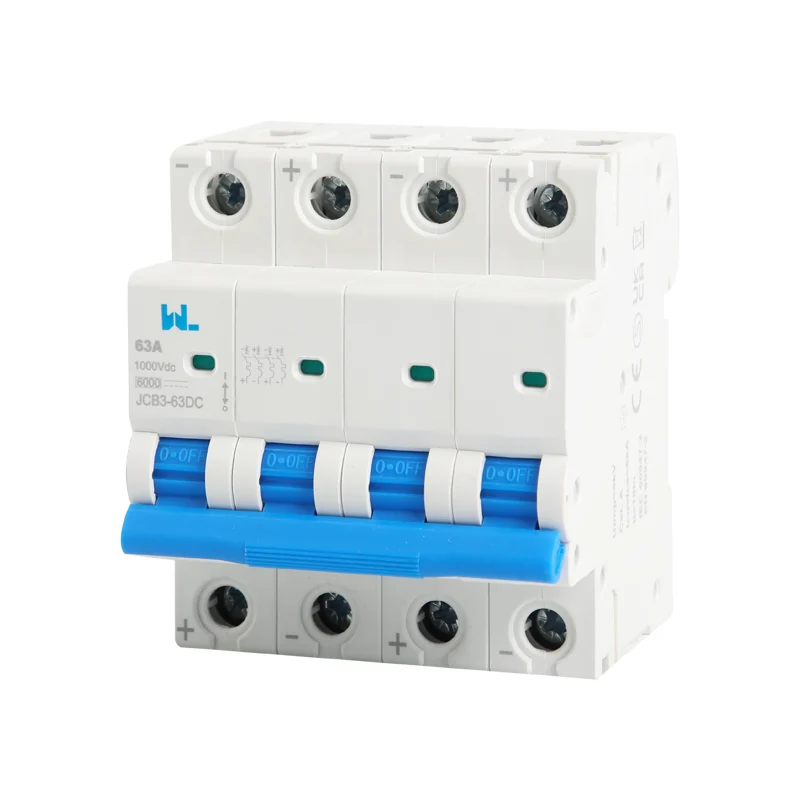

| مدل | JCB3-63DC |
|---|---|
| رشته محصولات | DC miniature circuit breaker |
| Table current choices | 6, 10, 16, 20, 25, 32, 40, 50, 63 A |
| پوشندگان لهستانی | 1P / 2P / 3P / 4P |
| Trip curves | B / C |

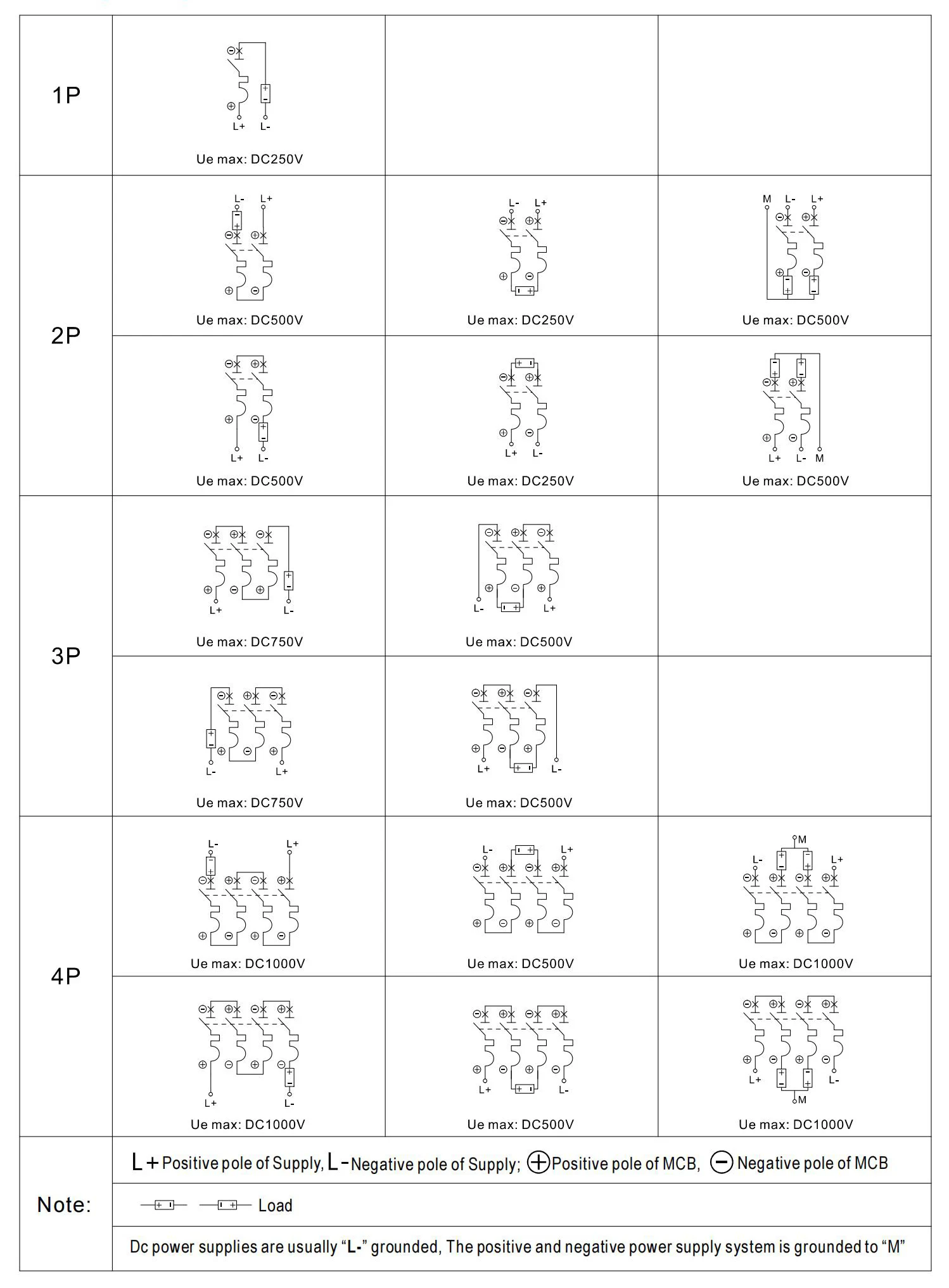

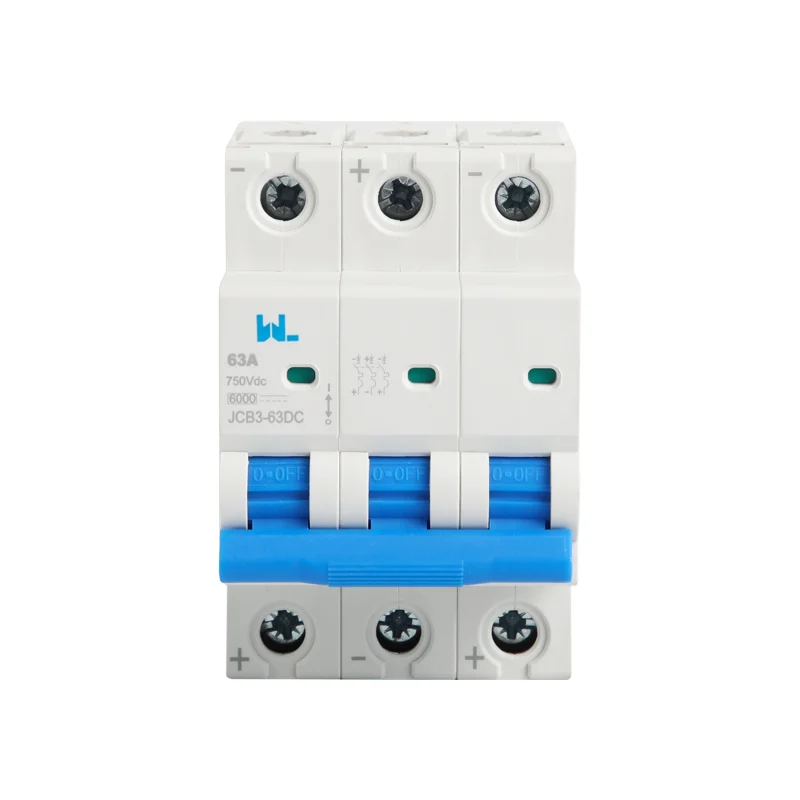

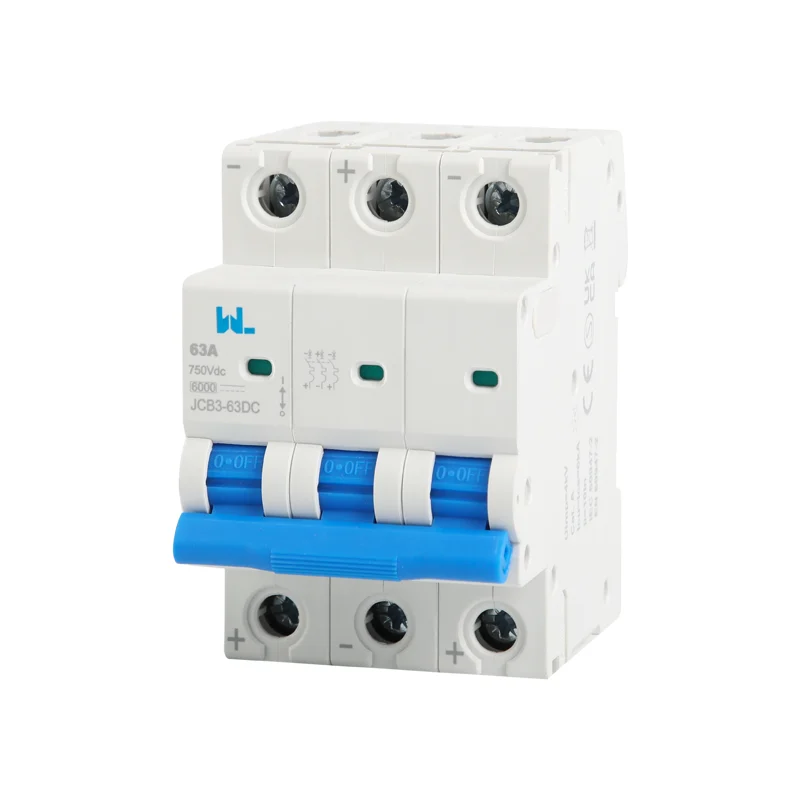

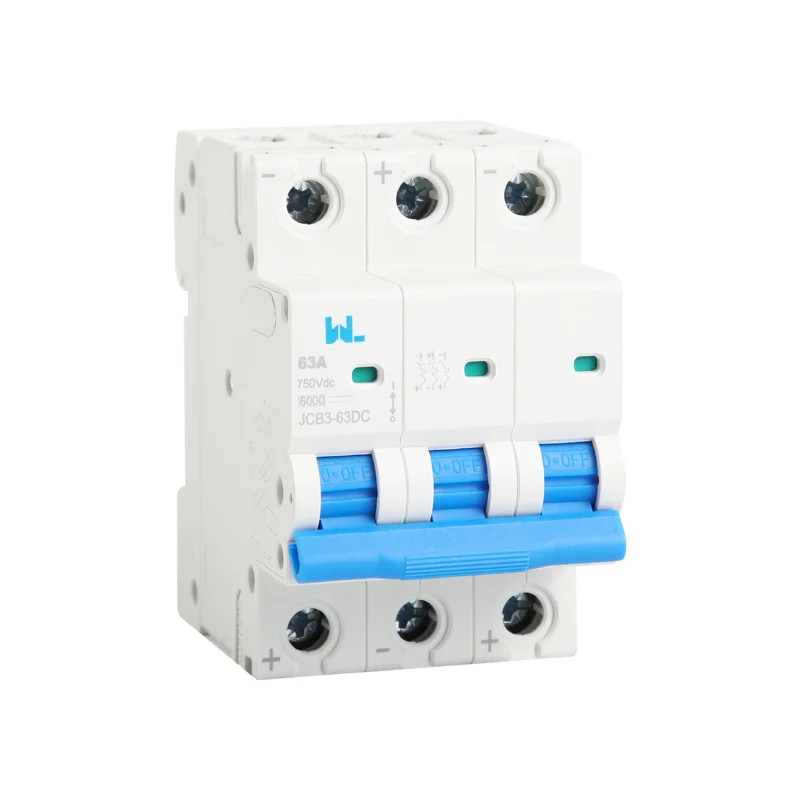

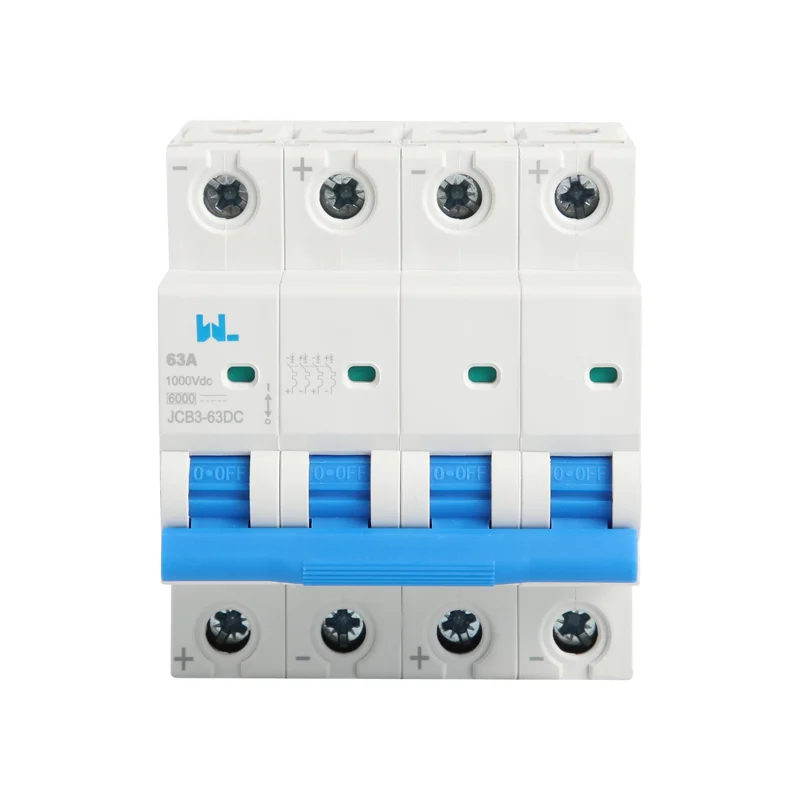

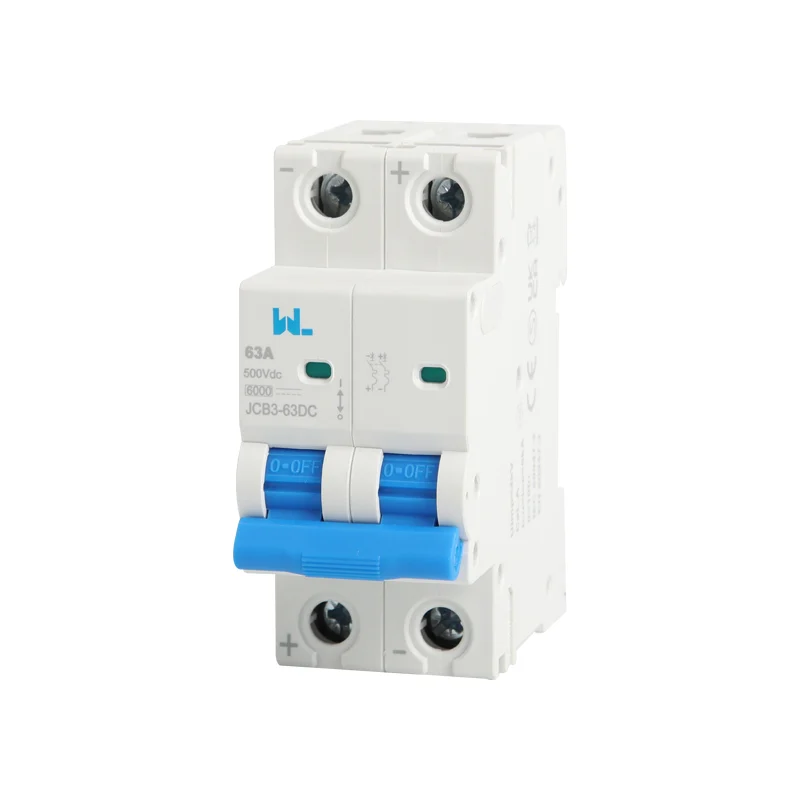

| Rated DC voltage by poles | 1P: 250 V; 2P: 500 V; 3P: 750 V; 4P: 1000 V; confirm prescribed wiring |
| Listed breaking capacity | 6 kA; confirm the exact test conditions and configuration |
| Contact indication | بله |
| سطح حفاظت | IP20 |

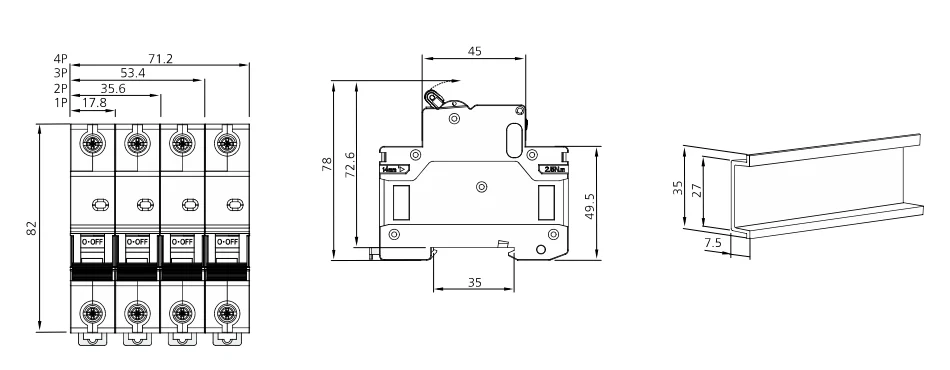

| قرارگیری | DIN rail; confirm the matched drawing |
راهنمای انتخاب
How to Select a JCB3-63DC DC MCB by Pole Voltage and Polarity
Specify the current, trip curve, DC voltage, pole wiring, polarity, fault level and accessory requirements when requesting a JCB3-63DC quotation from W9 Group.
Select the DC current and curve
Use the table current choices and confirm the selected B or C curve against load startup and protection coordination.
Match voltage and pole wiring
Select the pole arrangement for the system voltage and obtain the required series connection and earthing diagram.

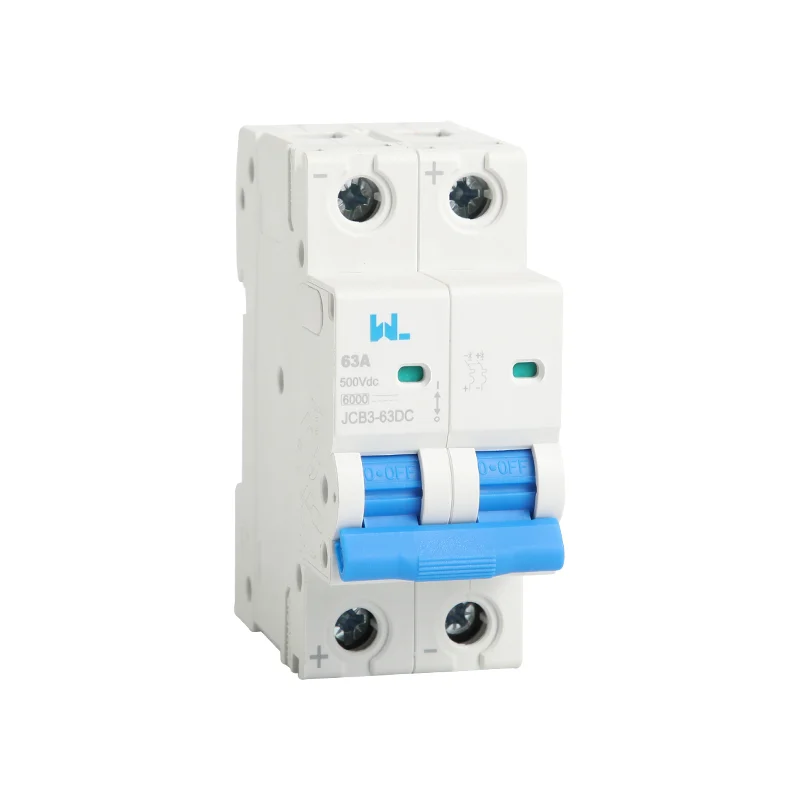

Confirm polarity and reverse current
The title and body give inconsistent polarity descriptions. Request the exact terminal marking and allowed current direction for the supplied version.
Check fault duty and accessories
Confirm DC fault capacity, circuit time constant where applicable, installation conditions and each ordered accessory code.
