MD-M2 MCCB motor operator
DATOS TÉCNICOS
MD-M2 MCCB motor operator specifications
The MD-M2 MCCB motor operator is listed for remote closing, opening and resetting of a compatible circuit breaker. Confirm the host frame and selected control-supply version, then use the matching operating and wiring documents to design the control circuit.
| Modelo | MD-M2 |
|---|---|
| Categoría de producto | MCCB motor operating mechanism |
| Listed operations | Closing, opening and resetting |
| Controlar el suministro | Confirm the selected AC or DC version |
| Compatibilidad con el host | Confirm the complete MCCB model and frame |
Guía de selección
MD-M2 remote breaker operation selection
Specify the complete order code, circuit duty, installation conditions and required documents when requesting a MD-M2 quotation from W9 Group.
Identifique el interruptor del host
Proporcione el modelo completo del MCCB, el marco y la configuración actual de los accesorios. Confirme la compatibilidad mecánica y eléctrica antes de realizar el pedido.
Especifique la función requerida
Describa la tarea de operación o de señalización y el sistema de control previsto. Confirme la función del accesorio y cualquier componente adicional.
Match the connection details
Request the exact wiring or installation drawing, mounting dimensions and terminal arrangement for the offered accessory.
Confirm the order contents
Confirm included parts, operating conditions and required documentation. Do not infer a complete control assembly from an accessory name.
QUÉ ES W9 GROUP
W9 Group support for MD-M2 MCCB motor drive
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a MD-M2 enquiry, contact W9 Group about configuration and matching product documents.
RECURSOS RELACIONADOS
MD-M2 motor operator wiring documents
Use technical support and related products to specify MD-M2. Request a datasheet and wiring diagram matching the selected MD-M2 configuration.
PRODUCTO RELACIONADODesconexión del interruptor de derivación de MCCBCompare función y configuración; solicite calificaciones separadas para cada modelo
DOCUMENTOSCentro de descarga de W9 GroupRequest the current document for your quoted MD-M2 variant
Preguntas frecuentes del comprador
MD-M2 MCCB motor mechanism FAQs
Find answers about MD-M2 selection, configuration and ordering.
What operations does MD-M2 provide?
The source lists remote closing, opening and resetting of a compatible breaker. Confirm the actual operating sequence and host compatibility for the selected mechanism.
Are all control voltages supplied in one mechanism?

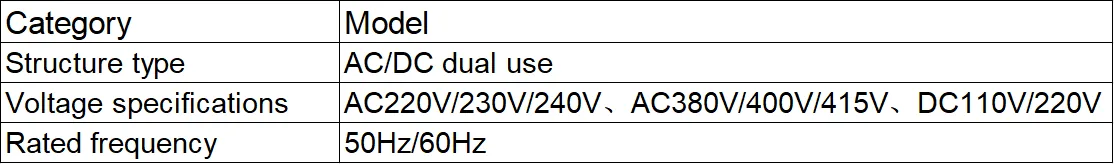

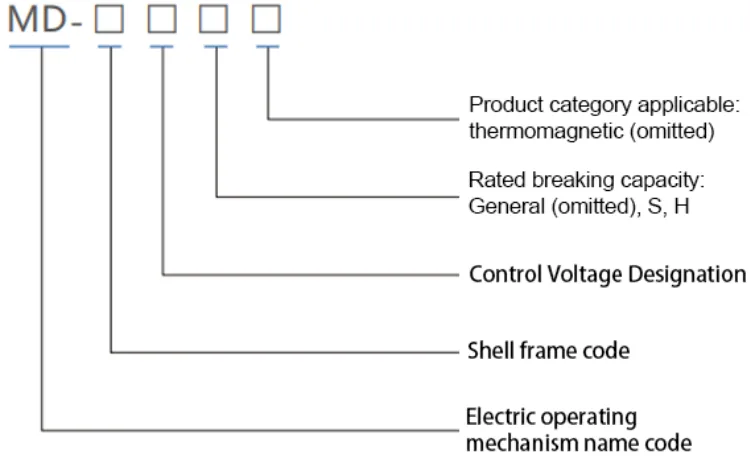

Do not assume a universal supply. The title lists several AC/DC supply designations; confirm the exact supply voltage, frequency where applicable and mechanism order code.
How is the DC supply connected?

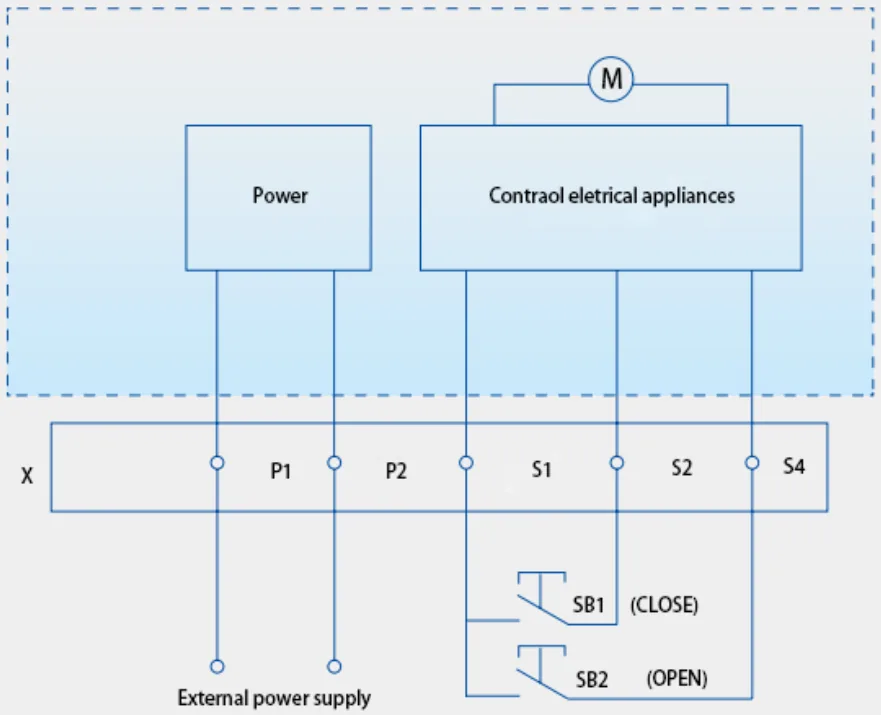

The target wiring description assigns P1 to positive and P2 to negative for a DC supply. Confirm this against the drawing for the exact supplied version before energizing.
Are external operating buttons included?
The description identifies SB1 and SB2 closing and opening buttons as user-supplied. Confirm the external circuit and other required control components.
Does a motor operator include automatic transfer logic?
A complete automatic-transfer controller, interlocking scheme or communications interface is not established by this mechanism description. Confirm these separately for the intended system.
Can the breaker reclose after every trip?
Confirm trip reset behavior, interlocks and the permitted operating sequence. Fault clearance and the system control design must determine whether remote reclosing is permitted.
What is needed for a MD-M2 quotation?
Envíe la configuración requerida, la cantidad, el mercado de destino y los requisitos documentales. Solicite a W9 Group que confirme el precio, la cantidad mínima de pedido, las muestras y el plazo de entrega para la configuración seleccionada.
