MCCB الکترونیکی WLM6EY-800
اطلاعات فنی

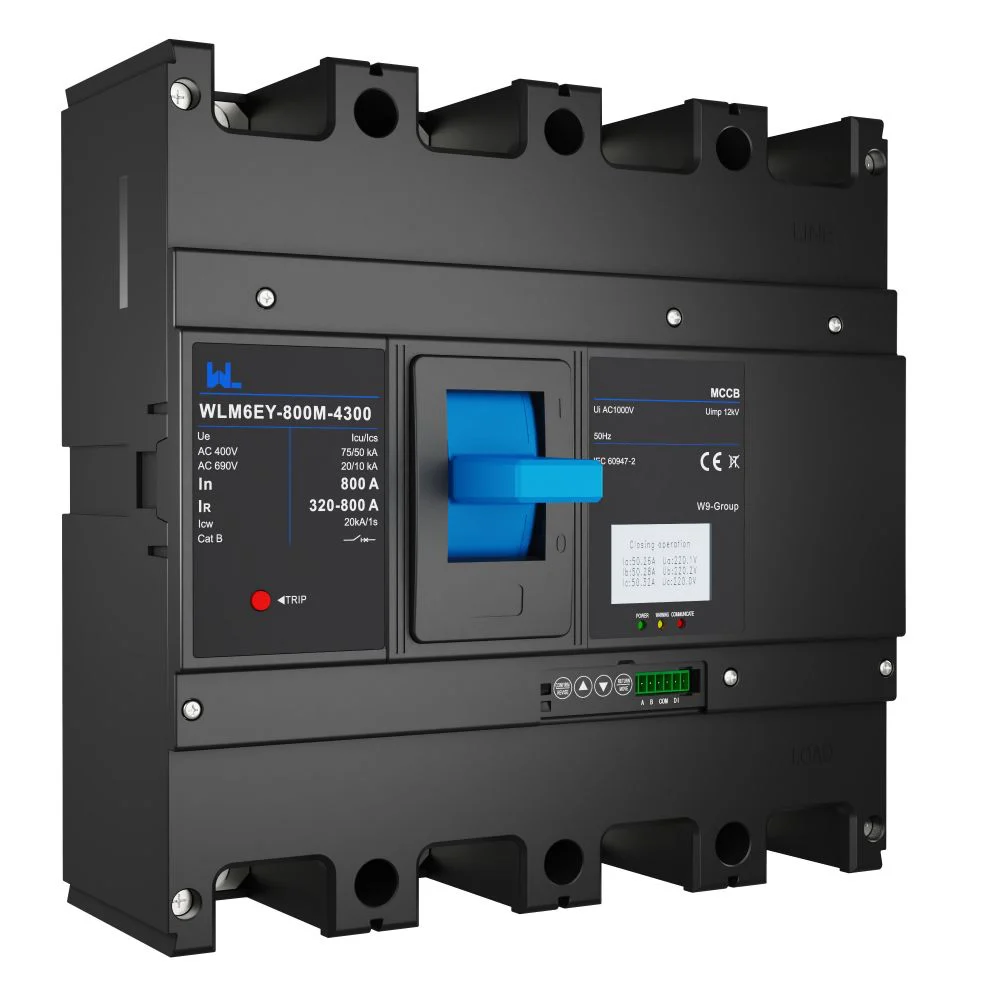

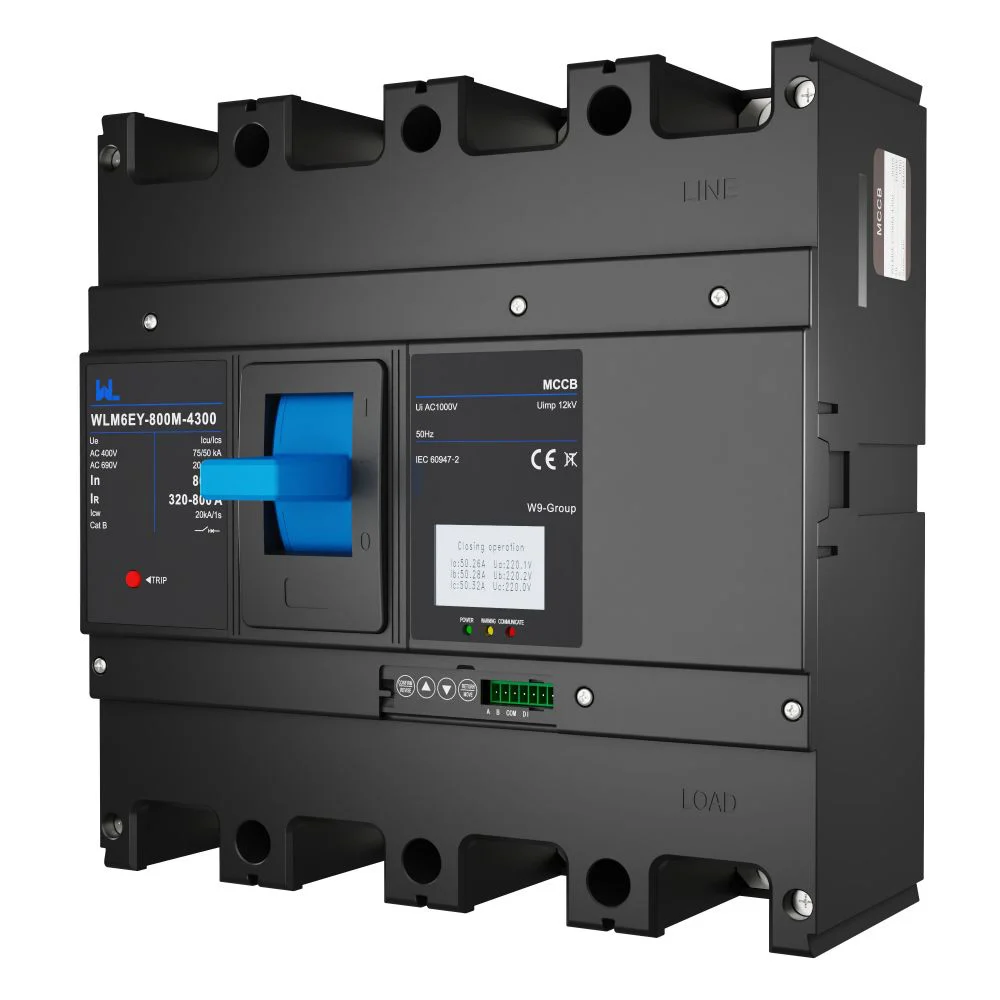

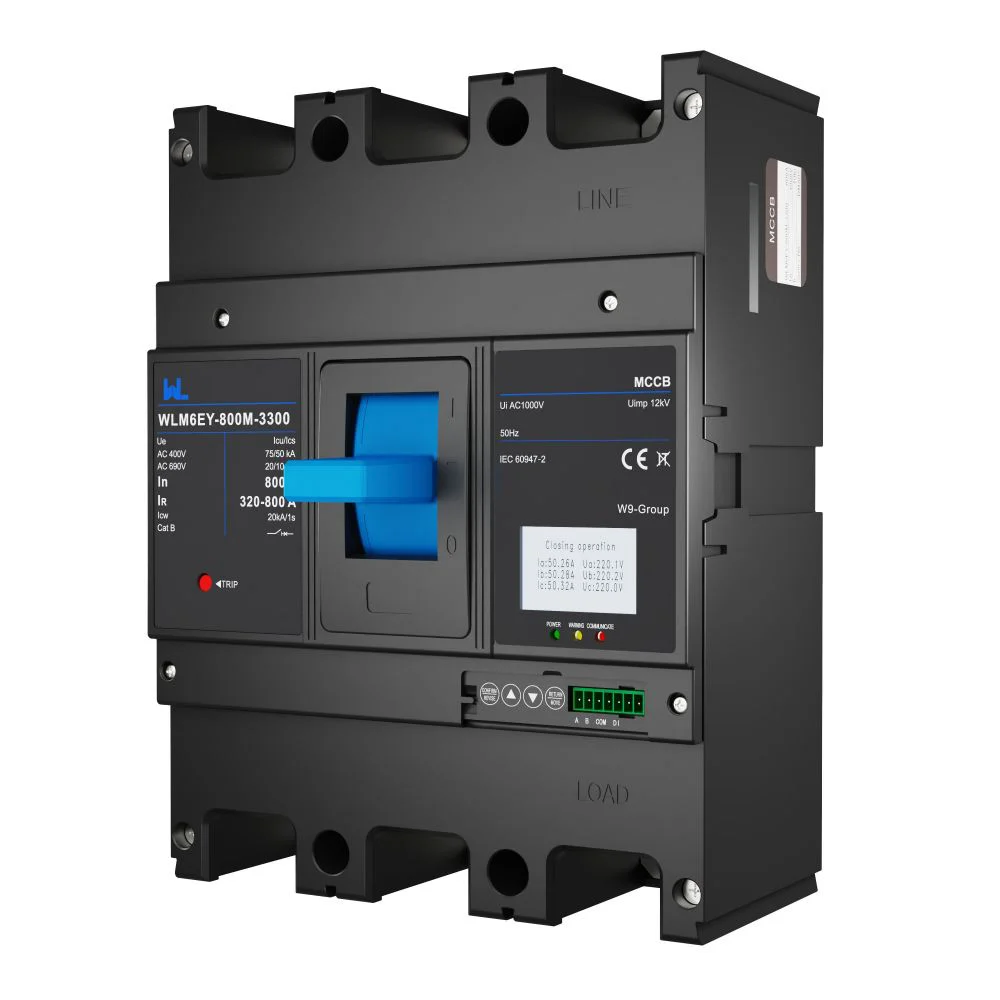

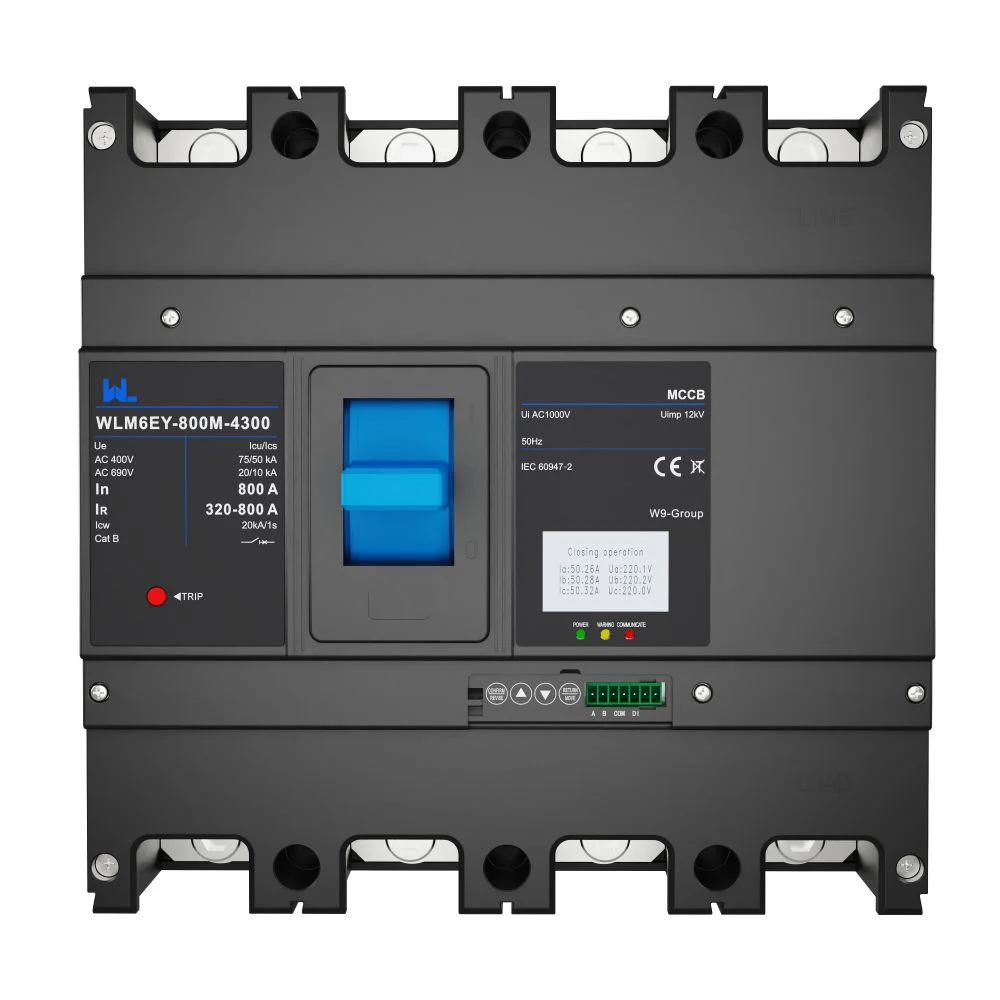

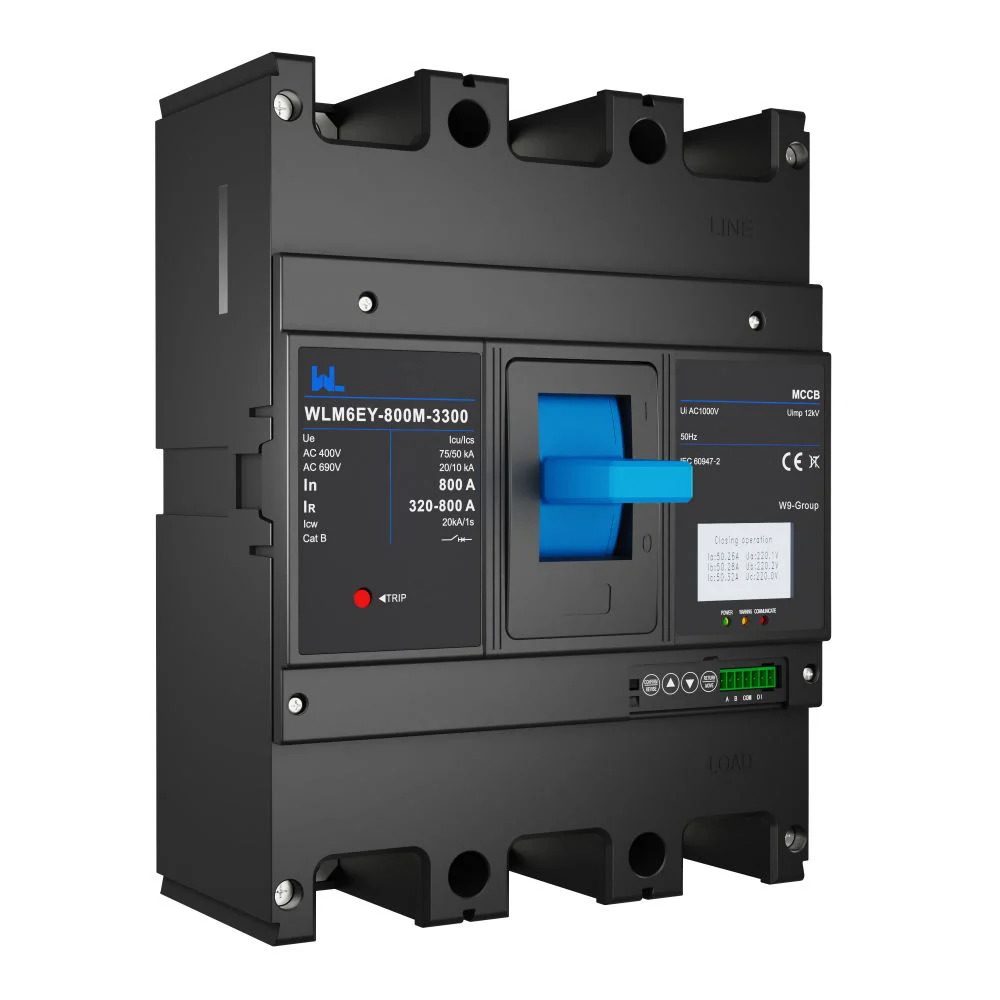

WLM6EY-800 3 Pole and 4 Pole Electronic MCCB Specifications
The WLM6EY-800 electronic MCCB is listed by W9 Group with electronic trip settings and Modbus RS485 communication. The 800 A frame is offered in 3-pole and 4-pole configurations for AC distribution. Specify the trip settings and interface requirements with the selected order code.
| Product model | WLM6EY-800 |
|---|---|
| رشته محصولات | Electronic molded case circuit breaker |
| Frame size | 800 A |
| Pole options | 3P / 4P |
| Published current schedule | 500, 550, 600, 630, 660, 700, 740, 780, 800 A |
| نوع واحد سفر | الکترونیک |
| Communication listed | Modbus RS485 |
| Summary voltage options | 400 / 690 V AC; confirm the offered voltage and breaking-capacity code |
| ولتاژ عایق بندی Ui (V) | 1000 |
| تخلف ولتاژ ناگهانی Uimp | 8 kV |
راهنمای انتخاب
Selecting a 800A Electronic MCCB with Modbus RS485
Specify the frame and ordered current, 3P or 4P, operating voltage, fault level, trip settings and Modbus requirements when requesting a WLM6EY-800 quotation from W9 Group.
Match the current and frame
The 800 A frame has a published current schedule of 500, 550, 600, 630, 660, 700, 740, 780, 800 A. Confirm the ordered rating and actual adjustment limits.
Choose poles and fault duty
Specify 3P or 4P, the operating voltage and prospective short-circuit current. Request the matching Icu / Ics table.
Define the trip settings
Request the exact trip-unit function list, setting ranges and time-current curves. Confirm ground-fault protection separately.
Plan the RS485 connection
Confirm the Modbus register map, communication settings, auxiliary-power requirements and controller compatibility before integration.
درباره W9 Group
W9 Group Electronic MCCB Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a WLM6EY-800 enquiry, contact W9 Group about configuration and matching product documents.
منابع مرتبط
WLM6EY-800 Modbus RS485 and Trip-Unit Documentation
Use W9 Group technical support and the product directory to specify WLM6EY-800. Request a datasheet and wiring diagram matching the selected WLM6EY-800 configuration.
دسته بندی محصولاتمحصولات گروه W9 را بررسی کنیدBrowse W9 Group models and request the specifications of the selected product
اسنادمرکز دانلود W9 GroupRequest the current document for your quoted WLM6EY-800 variant
سوالات متداول خریداران
WLM6EY-800 Electronic MCCB FAQs: Settings and Communication
Find answers about WLM6EY-800 selection, configuration and ordering.
What is the WLM6EY-800 used for?
W9 Group lists this 800 A-frame electronic molded case circuit breaker for AC circuit protection, with LCD indication and a Modbus RS485 interface.
Is every WLM6EY-800 supplied at 800 A?
No. 800 A identifies the frame described on this page; the published current schedule includes 500, 550, 600, 630, 660, 700, 740, 780, 800 A. Confirm the selected rating and trip-unit adjustment range.
Which pole and voltage options are listed?
The summary lists 3P / 4P and 400 / 690 V. Breaking capacity depends on the voltage and variant code; confirm the complete combination in the supplied datasheet.
Which electronic-trip settings are available?
The source describes adjustable electronic protection. Confirm the actual functions, setting ranges, trip curves and display arrangement for the offered trip unit.
Can the Modbus RS485 interface connect directly to my controller?
The interface is listed, but integration requires the matching register map, address and serial settings. Confirm auxiliary power and controller support with W9 Group.
Does communication provide remote closing or every protection function?
An RS485 interface alone does not establish remote closing or a complete protection-function set. Confirm the operating mechanism, accessories, trip functions and settings in the offered configuration.
What is needed for a WLM6EY-800 quotation?
اطلاعات مورد نیاز را، تعداد، بازار مقصد و الزامات اسناد را ارسال کنید. از W9 Group درخواست کنید تا قیمت، حداقل مقدار سفارش، نمونه‌ها و زمان تحویل برای پیکربندی انتخاب شده را تأیید کند.
سؤال و جواب درباره محصول
Request a WLM6EY-800 Electronic MCCB Quotation
Tell W9 Group your frame and ordered current, 3P or 4P, operating voltage, fault level, trip settings and Modbus requirements, quantity and destination market so the selected configuration can be identified.
