PV Combiner Box for Solar Strings
اطلاعات فنی
Solar PV Combiner Box Specifications

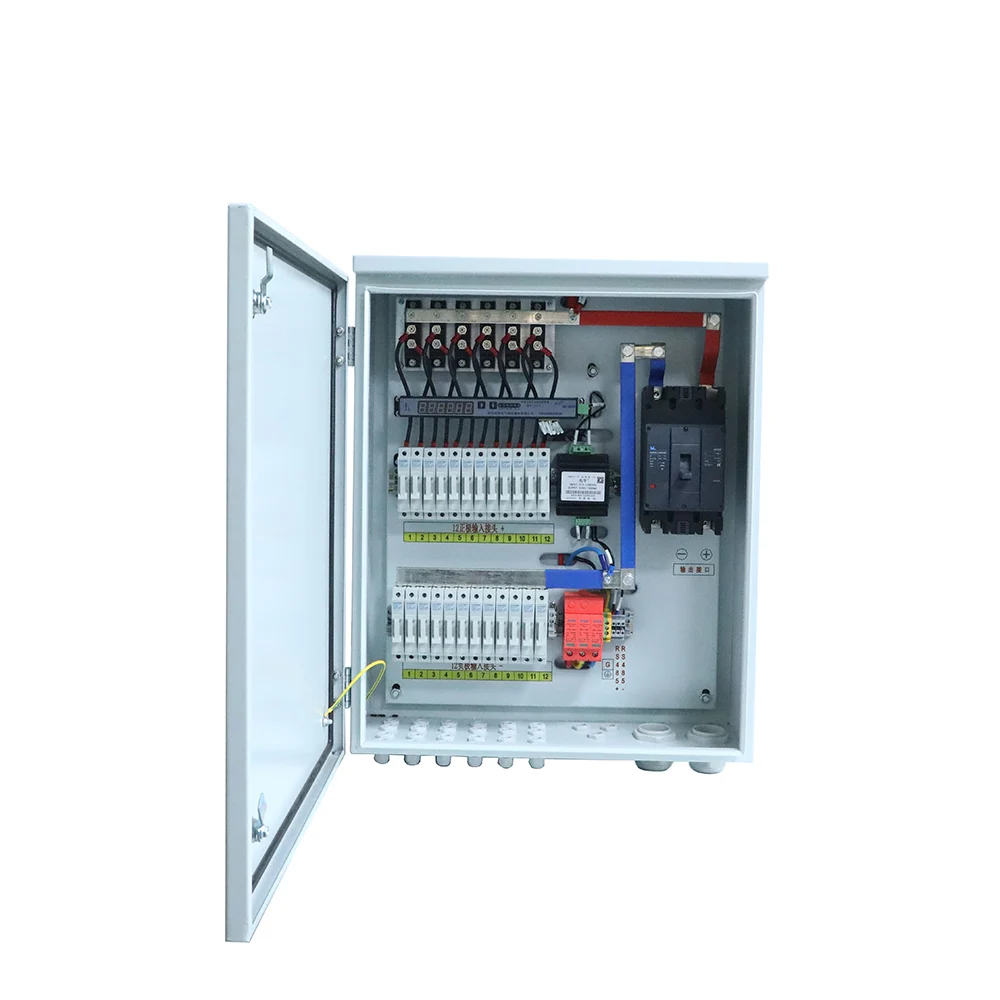

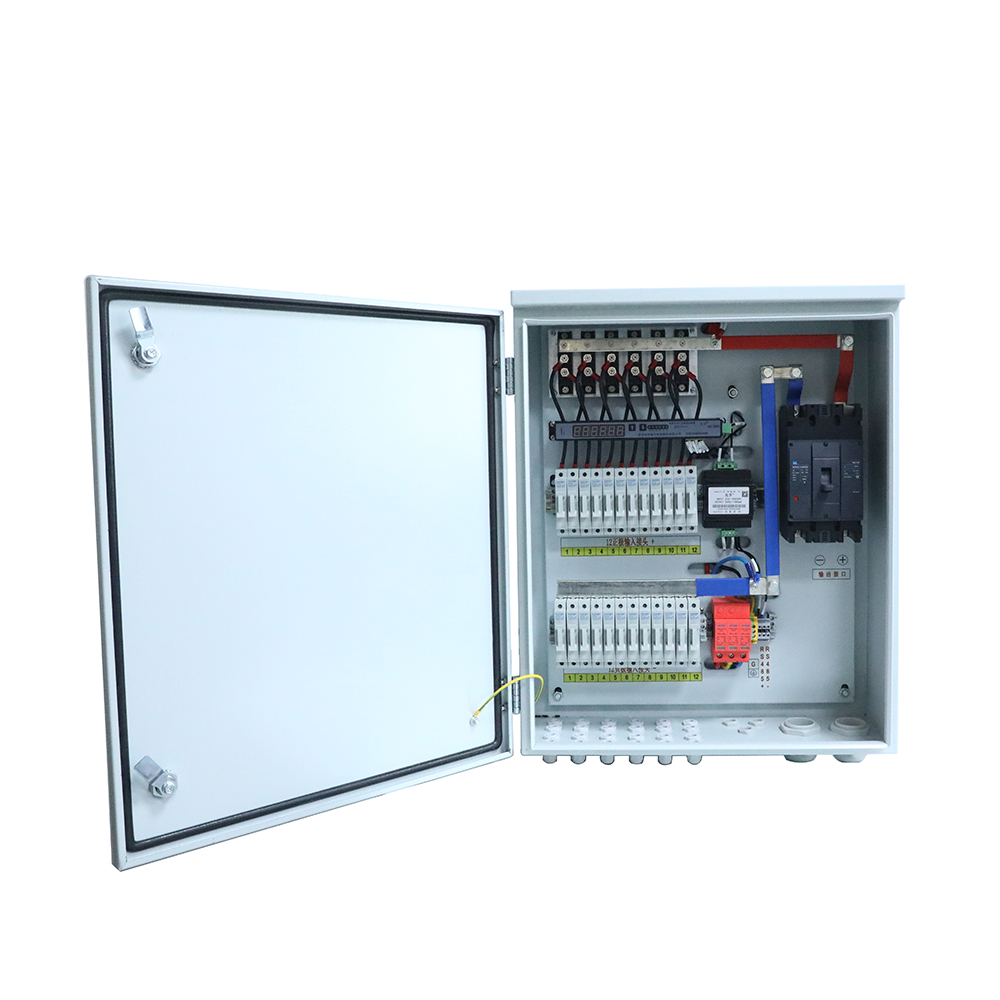

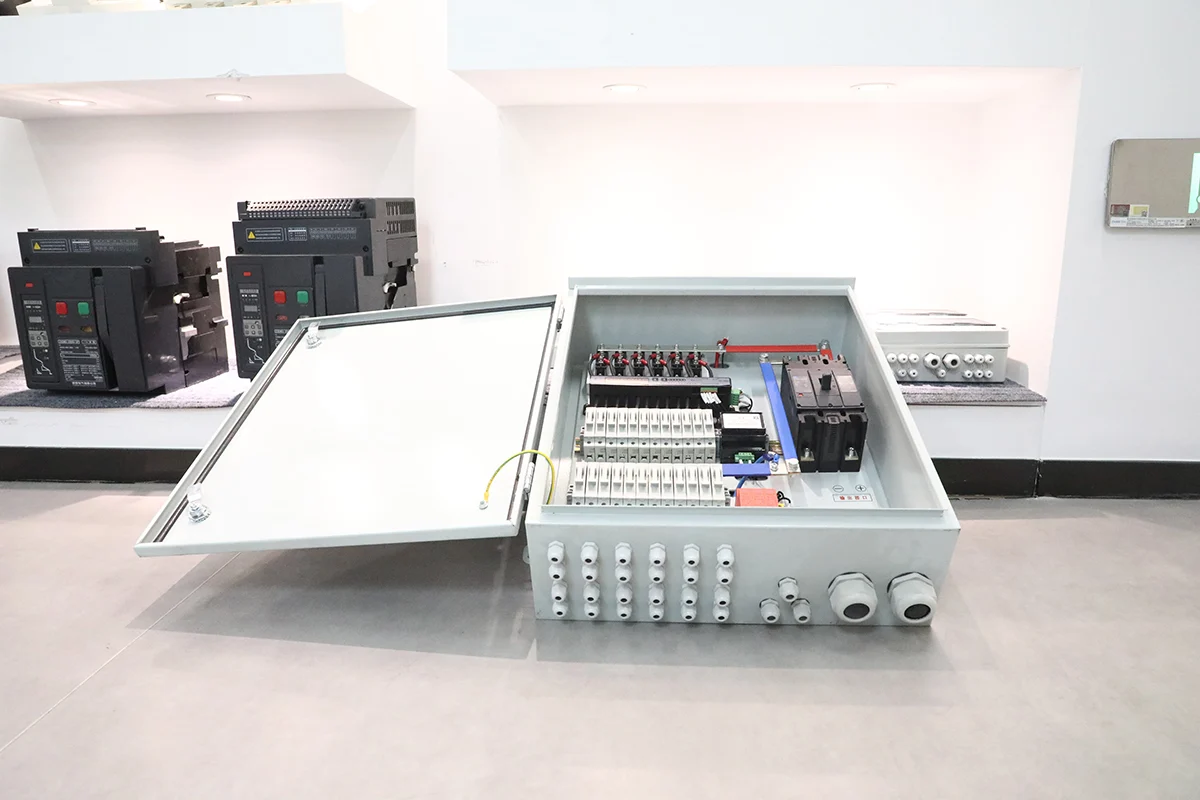

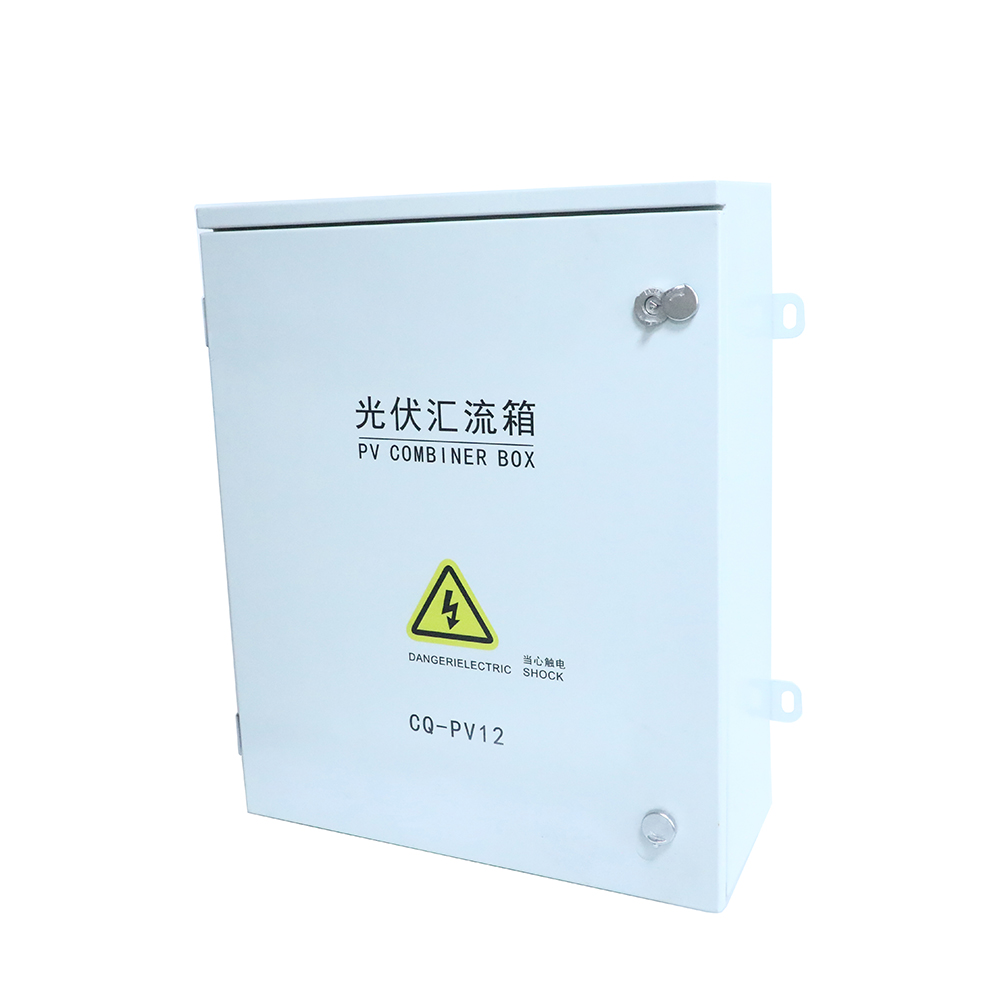

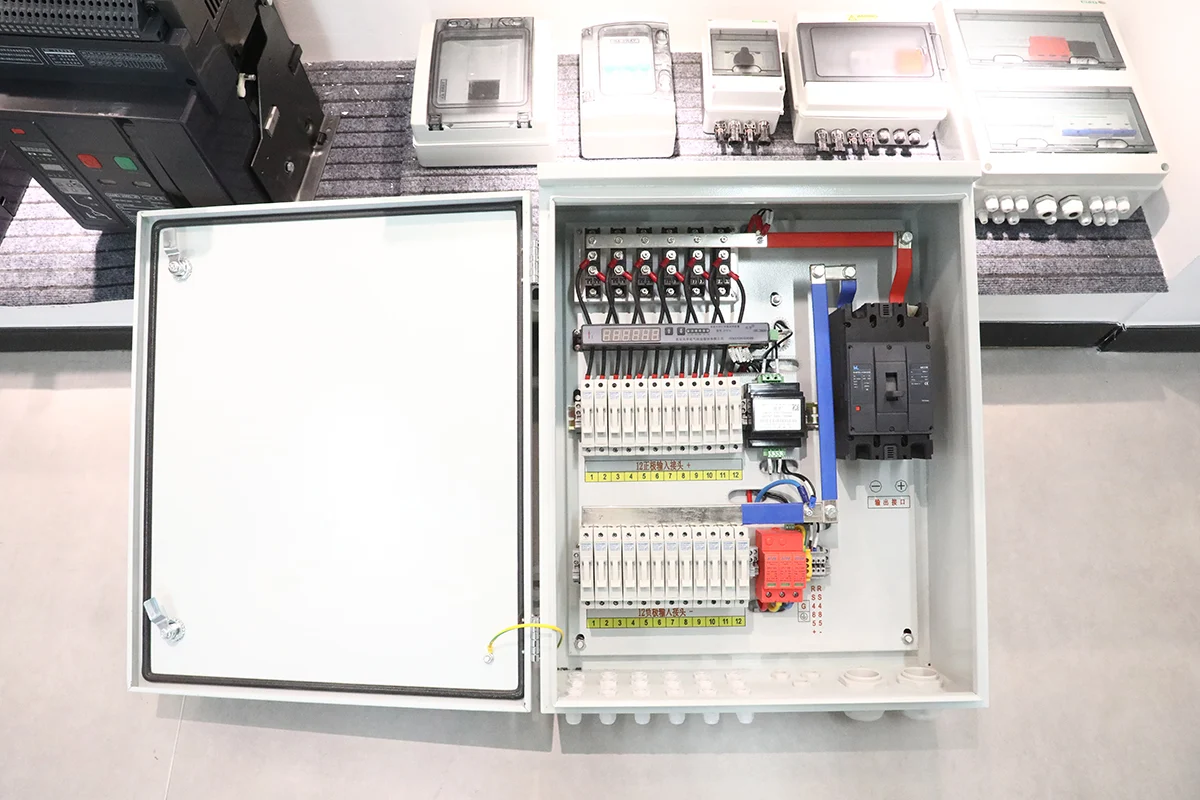

W9 Group describes its PV combiner box as a connection point that combines multiple photovoltaic strings into an output for an inverter or charge controller. The published page explains the component choices; request a project-specific circuit schedule and bill of materials for the supplied assembly.
| رشته محصولات | Photovoltaic string combiner box |
|---|---|
| System role | Combine multiple PV inputs into an output |
| Protection components discussed | PV fuses, DC circuit breakers and DC surge protection; confirm supplied components |
| Connection components discussed | Busbars and terminals; confirm sizes and configuration |
| String count and output rating | Confirm for the project |
| Enclosure rating and dimensions | Confirm the selected enclosure |
| گزارش‌گیری | Confirm whether included |
راهنمای انتخاب
Selecting a PV Combiner Box by String Count and DC Ratings
Specify the string count, PV voltage, input/output currents, protection schedule and enclosure requirements when you request a PV Combiner Box quotation from W9 Group.
Define PV inputs
Send the number of strings, maximum open-circuit voltage and design current per string so the input protection can be specified.
Specify the output
Provide the inverter or charge-controller connection requirements, output current and cable arrangement.
Confirm the component schedule
Ask for a bill of materials identifying fuses, disconnecting devices, surge protection and any monitoring equipment.
Specify the enclosure
State indoor or outdoor mounting, cable entry requirements and installation dimensions; confirm the enclosure rating for the assembly.
درباره W9 Group
W9 Group PV Combiner Box Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a PV Combiner Box enquiry, contact W9 Group about configuration and matching product documents.
منابع مرتبط
PV Combiner Box Technical Document Requests
Use W9 Group technical support and the product directory to specify PV Combiner Box. Request the matching datasheet before ordering.
دسته بندی محصولاتمحصولات گروه W9 را بررسی کنیدBrowse W9 Group models and request the specifications of the selected product
اسنادمرکز دانلود W9 GroupRequest the current document for your quoted PV Combiner Box variant
سوالات متداول خریداران
PV Combiner Box FAQs: Fuses, SPD and Enclosure Requirements
Find answers about PV Combiner Box selection, configuration and ordering.
What is the role of a PV combiner box?
It combines wiring from multiple photovoltaic strings into a common output toward the inverter or charge controller, according to the supplier page.
Are fuses, an SPD and monitoring always included?
Confirm the bill of materials. The page discusses possible components and monitoring functions without defining a complete supplied configuration.
Which ratings are needed for quotation?
Provide string count, maximum PV voltage, input and output design currents, cable sizes and enclosure requirements.
What is needed for a PV Combiner Box quotation?
اطلاعات مورد نیاز را، تعداد، بازار مقصد و الزامات اسناد را ارسال کنید. از W9 Group درخواست کنید تا قیمت، حداقل مقدار سفارش، نمونه‌ها و زمان تحویل برای پیکربندی انتخاب شده را تأیید کند.
How many PV strings can this combiner box accept?
String count is configuration-dependent. Provide the planned string count, maximum PV voltage, input and output currents and cable sizes so W9 Group can confirm the matching arrangement.
Does the PV combiner box include fuses, SPD and monitoring?
The supplier page discusses these as possible functions but does not define a universal bill of materials. Confirm fuses, DC SPD, monitoring and disconnect options in the quotation.
سؤال و جواب درباره محصول
Request a PV Combiner Box Quotation
Tell W9 Group your string count, PV voltage, input/output currents, protection schedule and enclosure requirements, quantity and destination market so the selected configuration can be identified.
