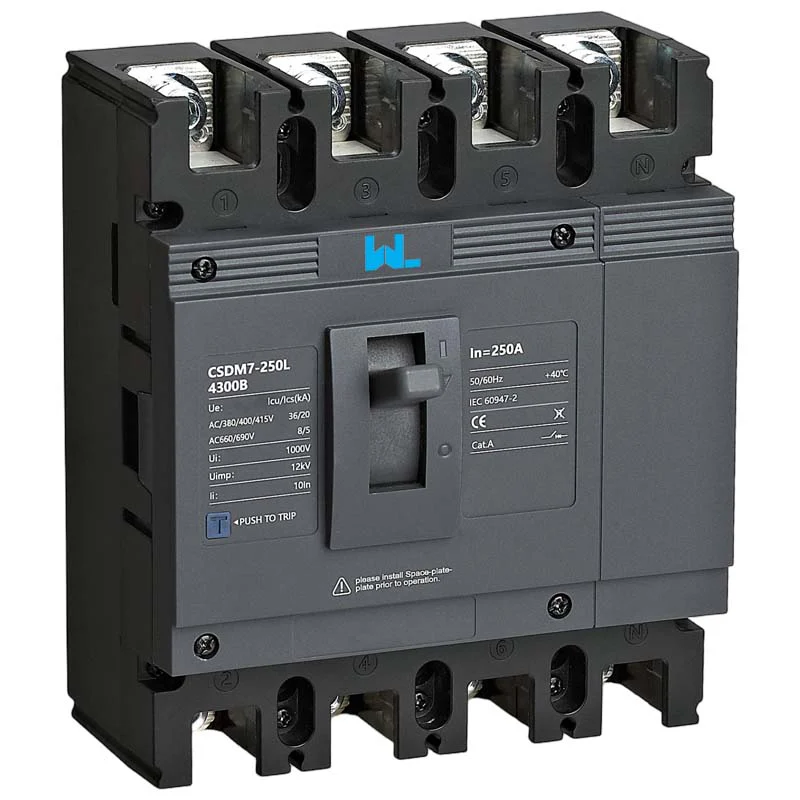

قطع کننده مدار MCCB CSDM7-250L-4300 CSDM7-250-4300 4P 250A قطع کننده مدار صنعتی mccb با قابلیت خنک‌کنندگی و مغناطیسی
اطلاعات فنی
CSDM7-250L-4300 250A 4P Thermal-Magnetic MCCB Information
The W9 Group title lists CSDM7-250L-4300 as a 250A four-pole thermal-magnetic molded case circuit breaker. State this complete designation when requesting the release curve, neutral-pole details and installation dimensions for your switchboard.
The product title identifies 250A, while an older summary states 800A. Confirm the supplied current and complete release code before approving the order.
| مدل | CSDM7-250L-4300 |
|---|---|
| رشته محصولات | قطع کننده مدار با قالب گرمایی-مغناطیسی |
| نامگذاری قطب | ۴P |
| Ordered current | Confirm the exact current and release schedule |
| Fault capacity | Request voltage-specific Icu and Ics |
راهنمای انتخاب
Selecting CSDM7-250L-4300 250A 4P thermal-magnetic MCCB for Your Installation
Use CSDM7-250L-4300 as the enquiry reference and confirm the selected configuration against your circuit, connection and installation requirements.
Match the ordered release
Request the complete current and release code, then compare its time-current curve with conductor and load requirements.
Specify the neutral pole
Confirm neutral switching, protection and connection sequence for the exact four-pole configuration.
Check fault duty
Provide the supply voltage and prospective short-circuit current. Request matching Icu and Ics data.
Confirm panel fit
Request dimensions, terminal limits and tightening instructions before preparing busbars or cables.
درباره W9 Group
W9 Group Support for CSDM7-250L-4300 Product Enquiries
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a CSDM7-250L-4300 enquiry, contact W9 Group about configuration and matching product documents.
منابع مرتبط
Request CSDM7-250L-4300 MCCB Trip Curves and Wiring Drawings
Use technical support and related products to specify CSDM7-250L-4300. Request a datasheet and wiring diagram matching the selected CSDM7-250L-4300 configuration.
محصول مرتبطWLM6RT adjustable MCCBعملکرد و پیکربندی را مقایسه کنید؛ درخواست امتیازات جداگانه برای مدل‌ها را ارائه دهید
اسنادمرکز دانلود W9 GroupRequest the current document for your quoted CSDM7-250L-4300 variant
سوالات متداول خریداران
CSDM7-250L-4300 MCCB Current, Pole and Trip-Unit FAQs
Find answers about CSDM7-250L-4300 selection, configuration and ordering.
Which configuration does the CSDM7-250L-4300 title identify?
Use the complete CSDM7-250L-4300 designation as the enquiry reference. Confirm the selected nameplate current, number of poles and trip-unit code together on the quotation and matching datasheet.
How do I confirm the CSDM7-250L-4300 current and pole configuration?
Request a nameplate photograph and a current-and-pole schedule identifying the exact CSDM7-250L-4300 order code. Confirm any difference between the catalogue title and legacy technical information before approving the breaker.
Which CSDM7-250L-4300 trip-curve information should I request?
Request the complete release code, time-current curve and setting instructions for CSDM7-250L-4300. Confirm the available adjustment functions and compare the selected release with the load and upstream protection.
How should I check the CSDM7-250L-4300 breaking capacity?
Provide the operating voltage and prospective short-circuit current. Request the applicable Icu and Ics schedule for the exact CSDM7-250L-4300 order code, including its test conditions.
Which CSDM7-250L-4300 dimensions are needed before panel manufacture?
Request the outline, fixing positions and terminal drawing for the selected CSDM7-250L-4300 pole arrangement. Confirm conductor access and busbar spacing before preparing the panel.
How do I confirm CSDM7-250L-4300 accessory compatibility?
Provide the full CSDM7-250L-4300 breaker and release codes, together with the required accessory function. Request written confirmation of the mounting and control-supply combination.
What should I send for a CSDM7-250L-4300 quotation?
Send the complete CSDM7-250L-4300 designation, required configuration, quantity, destination market and documents needed. Ask W9 Group to confirm the offered item, price, minimum order quantity and delivery terms.
Send W9 Group the complete CSDM7-250L-4300 designation, circuit or host-equipment requirements, quantity and destination market. Request the exact offered configuration and its matching technical documents.
Request CSDM7-250L-4300 Pricing and Technical Documents
به گروه W9 کد کامل سفارش، وظایف مدار، شرایط نصب و مدارک مورد نیاز، تعداد و بازار مقصد را اطلاع دهید تا بتوان پیکربندی انتخاب شده را شناسایی کرد.
