MCCB single auxiliary contact
اطلاعات فنی
Single Auxiliary Contact Specifications for MCCB Signal Circuits
The MCCB single auxiliary contact is listed by W9 Group for position feedback in a compatible breaker control circuit. Specify the host MCCB, required status signals and wiring or terminal version, then confirm the contact diagram and electrical load rating before ordering.
| Accessory | Single Auxiliary Contact |
|---|---|
| Native product family | MCCB accessory |
| Selection function | position feedback; confirm the exact state diagram |
| Connection options | Wiring / terminal; confirm supplied version |
| توافق تماس | Request NO / NC count, common terminals and reference states |

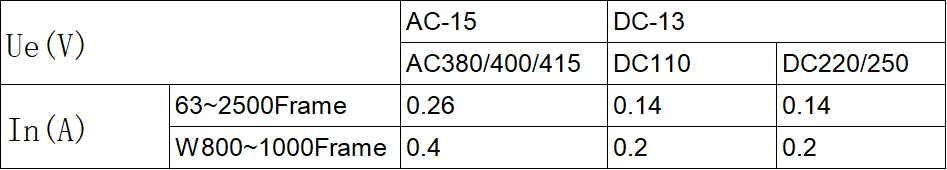

| Electrical load rating | Confirm voltage-specific current, load category and minimum switching load |
| Compatibility | Confirm complete breaker series, frame and accessory mounting position |
راهنمای انتخاب
Selecting an MCCB Single Auxiliary Contact for Status Feedback
Specify the host MCCB model, required signal states, connection version, control voltage and input load when requesting a Single Auxiliary Contact quotation from W9 Group.
Specify the required signal
Define position feedback, defined trip indication or separate circuits. Request the state truth table before assigning control-system inputs.
Identify the exact host
Provide the complete MCCB model, frame, release and accessory position. Confirm the matching accessory code.
تطابق بارگذاری کنترل
State control voltage, input current and load type. Confirm contact ratings and any minimum reliable switching load.
Choose the connection form
Select wiring leads or a terminal version. Confirm lead identification, terminal assignment and the reset procedure.
درباره W9 Group
W9 Group MCCB Single Auxiliary Contact Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a Single Auxiliary Contact enquiry, contact W9 Group about configuration and matching product documents.
منابع مرتبط
MCCB Single Auxiliary Contact Wiring Diagram and Contact Rating Requests
Use technical support and related products to specify Single Auxiliary Contact. Request a datasheet and wiring diagram matching the selected Single Auxiliary Contact configuration.
محصول مرتبطAuxiliary Alarm Contactعملکرد و پیکربندی را مقایسه کنید؛ درخواست امتیازات جداگانه برای مدل‌ها را ارائه دهید
اسنادمرکز دانلود W9 GroupRequest the current document for your quoted Single Auxiliary Contact variant
سوالات متداول خریداران
MCCB Single Auxiliary Contact FAQs: Signals, Ratings and Host Fit
Find answers about Single Auxiliary Contact selection, configuration and ordering.
What does this MCCB single auxiliary contact report?
The target description identifies remote indication of the breaker closed or open / free-off state. Confirm the state truth table and terminal diagram for the exact host.
Is auxiliary position feedback the same as a fault alarm?
Specify which signal the circuit needs. Confirm whether each terminal follows main-contact position or a defined trip event; do not assume those states are interchangeable.
Does the accessory open or close the breaker remotely?
A feedback contact does not establish an operating actuator. Request the separate shunt release or motor mechanism if commanded opening or closing is required.
What NO / NC arrangement and contact rating can I use?
The exact arrangement and voltage-dependent rating must come from the selected accessory diagram and datasheet. Confirm the reference state, load category and control-input requirements.
Will it fit all MCCB frames?

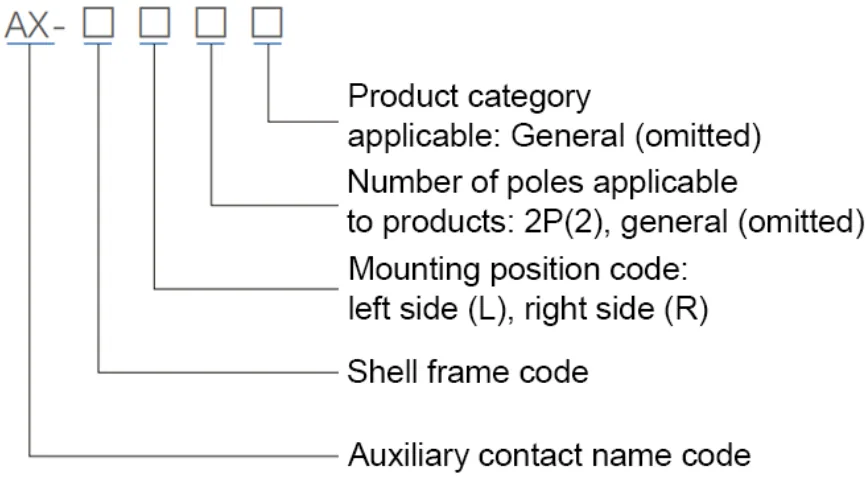

No universal compatibility is established. Confirm the breaker series, frame, release, accessory position and complete accessory code.
Should I select wiring leads or terminals?
Choose the connection form for the panel wiring and service requirements. Confirm terminal identification, lead length where applicable, mounting and the procedure for checking each signal state.
What is needed for a Single Auxiliary Contact quotation?
اطلاعات مورد نیاز را، تعداد، بازار مقصد و الزامات اسناد را ارسال کنید. از W9 Group درخواست کنید تا قیمت، حداقل مقدار سفارش، نمونه‌ها و زمان تحویل برای پیکربندی انتخاب شده را تأیید کند.
سؤال و جواب درباره محصول
Request an MCCB Single Auxiliary Contact Quotation
Tell W9 Group your host MCCB model, required signal states, connection version, control voltage and input load, quantity and destination market so the selected configuration can be identified.
