MCCB electrónico WLM6EY-630
DATOS TÉCNICOS
WLM6EY-630 3 Pole and 4 Pole Electronic MCCB Specifications

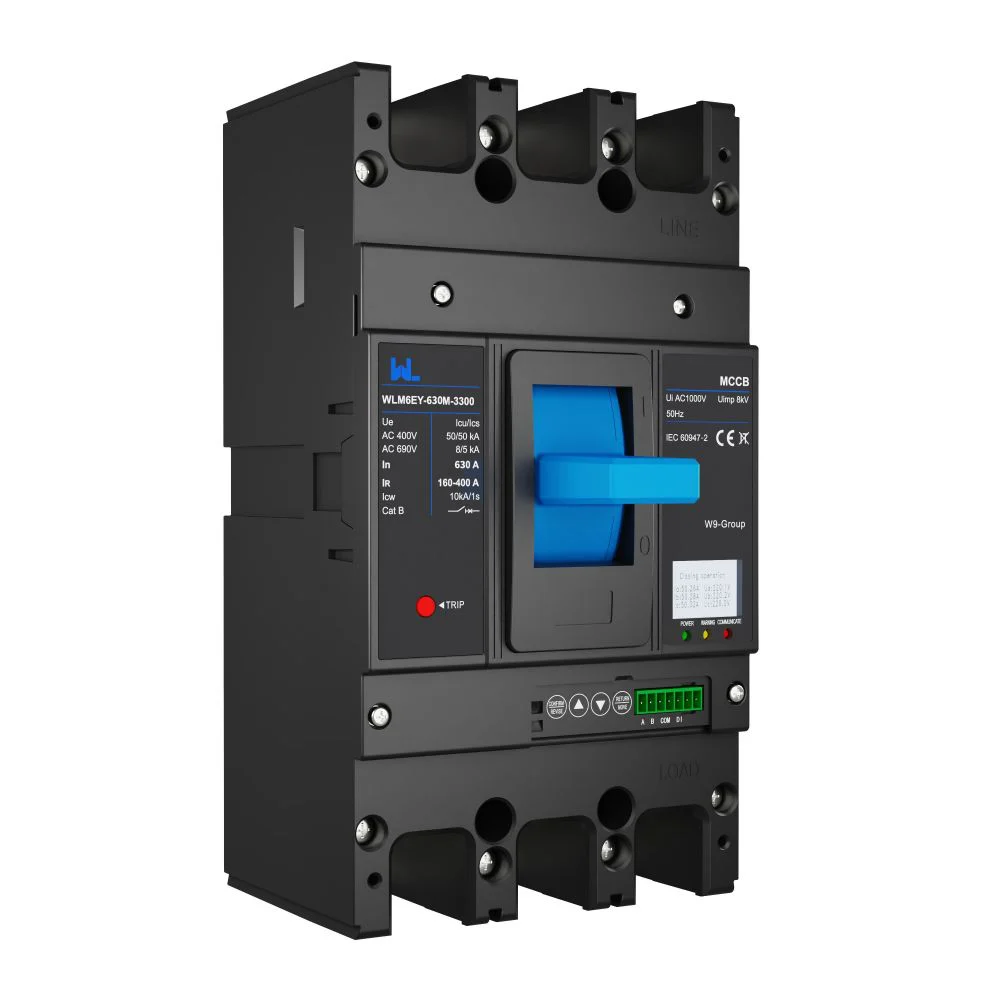

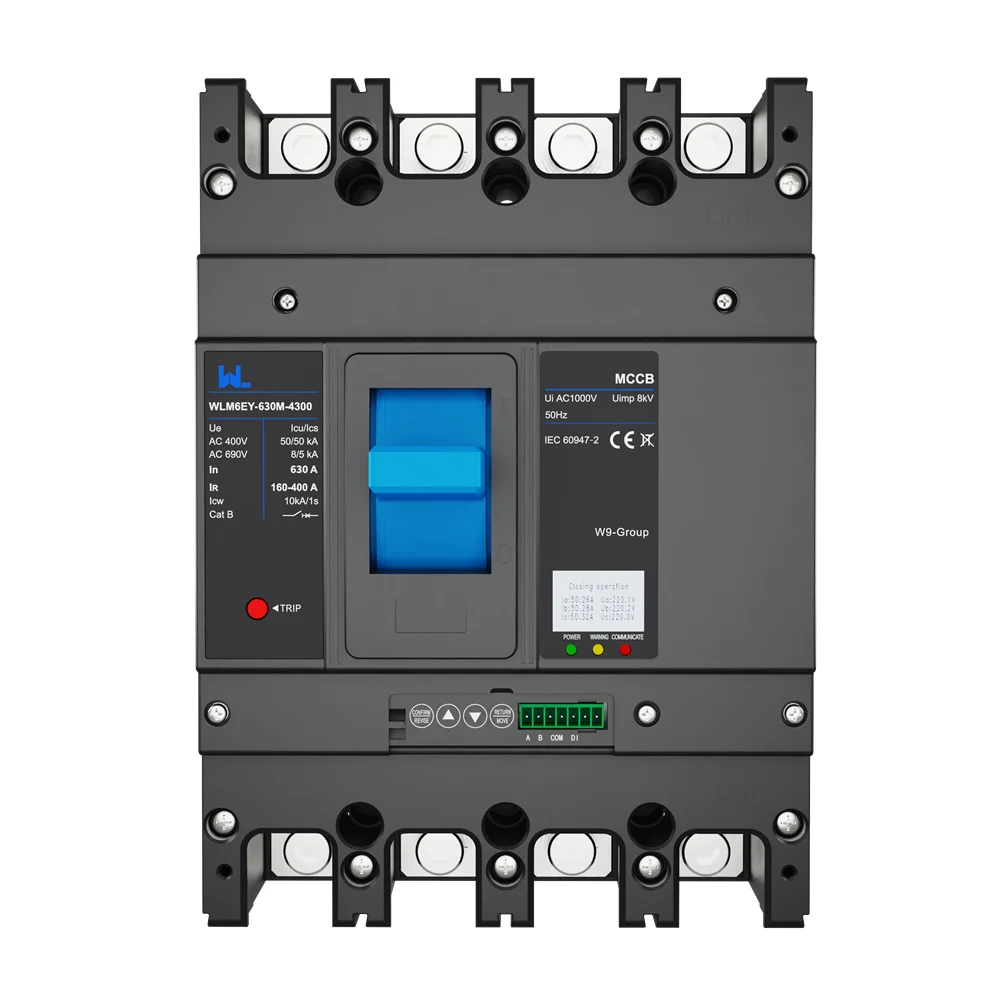

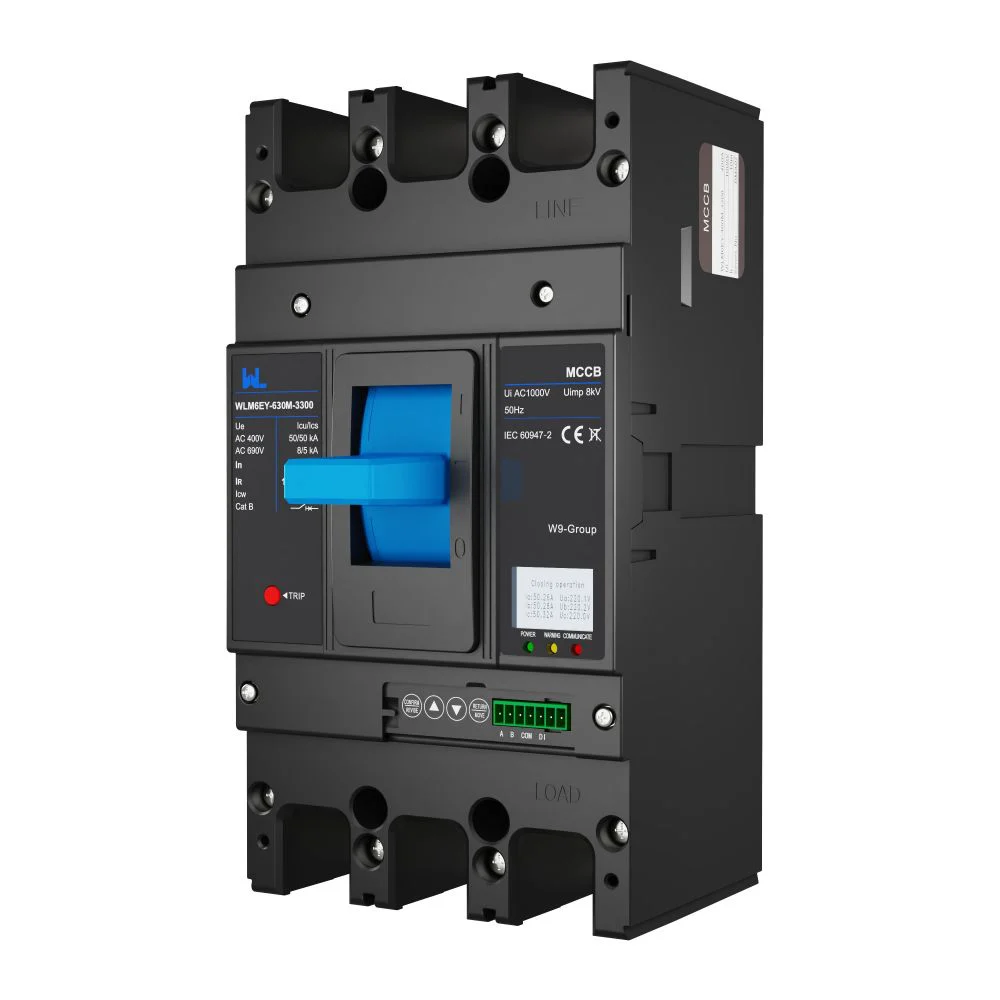

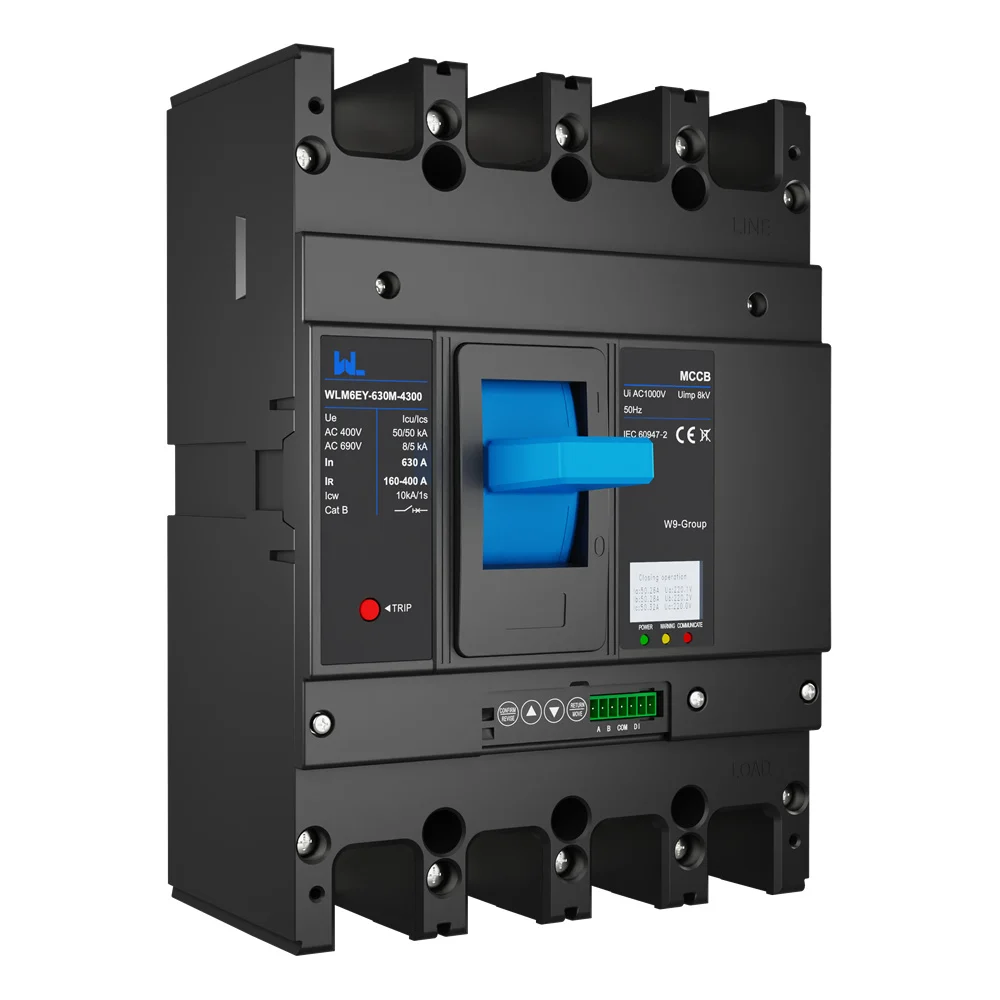

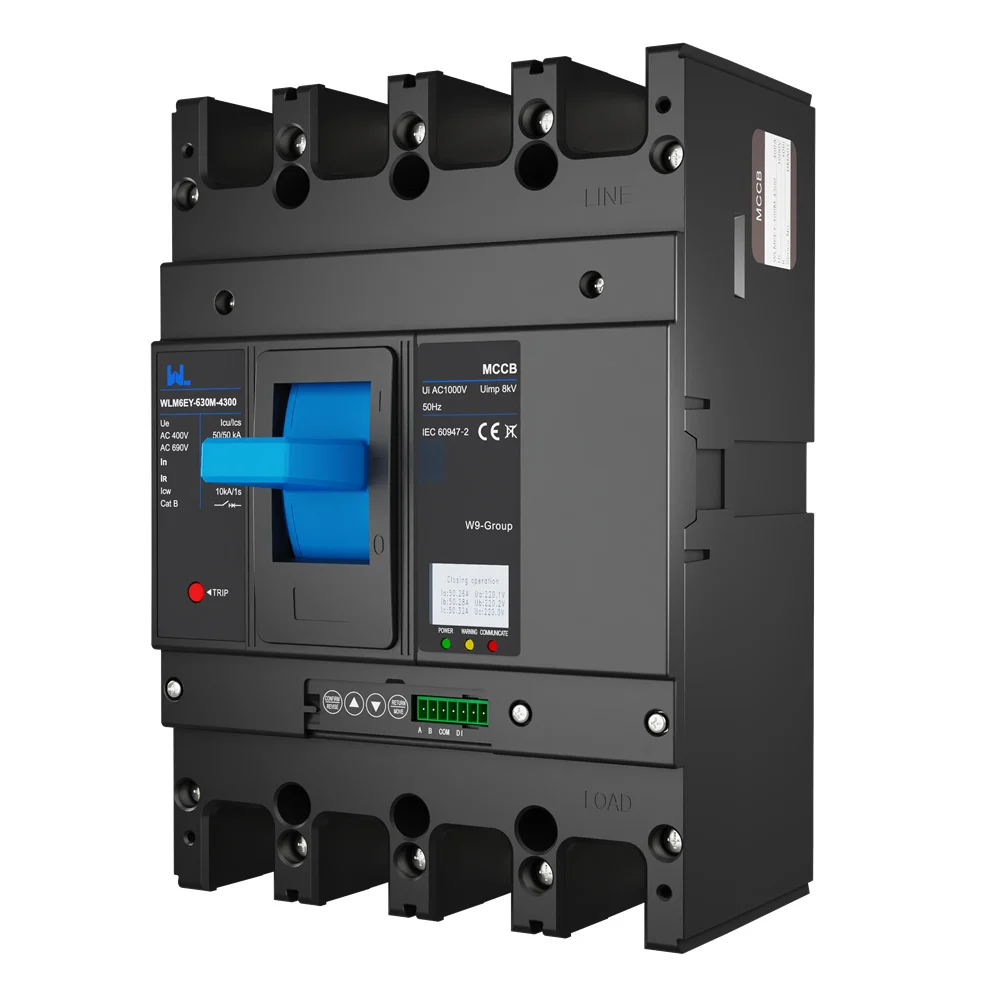

The WLM6EY-630 electronic MCCB is listed by W9 Group with an LCD display and Modbus RS485 communication. The 630 A frame is offered in 3-pole and 4-pole configurations for AC distribution. Specify the trip settings and communication requirements with the selected order code.
| Product model | WLM6EY-630 |
|---|---|
| Categoría de producto | Electronic molded case circuit breaker |
| Frame size | 630 A |
| Pole options | 3P / 4P |
| Published current schedule | 400, 440, 460, 480, 500, 530, 560, 600, 630 A |
| Tipo de unidad de viaje | Electrónico |
| Display | LCD |
| Communication listed | Modbus RS485 |
| Summary voltage options | 400 / 690 V AC; confirm the offered voltage and breaking-capacity code |
| Tensión de aislamiento Ui (V) | 1000 |
| Voltaje de resistencia a la impulsión Uimp | 8 kV |
Guía de selección
Selecting a 630A Electronic MCCB with Modbus RS485
Specify the frame and ordered current, 3P or 4P, operating voltage, fault level, trip settings and Modbus requirements when requesting a WLM6EY-630 quotation from W9 Group.
Match the current and frame
The 630 A frame has a published current schedule of 400, 440, 460, 480, 500, 530, 560, 600, 630 A. Confirm the ordered rating and actual adjustment limits.
Choose poles and fault duty
Specify 3P or 4P, the operating voltage and prospective short-circuit current. Request the matching Icu / Ics table.
Define the trip settings
Request the exact trip-unit function list, setting ranges and time-current curves. Confirm ground-fault protection separately.
Plan the RS485 connection
Confirm the Modbus register map, communication settings, auxiliary-power requirements and controller compatibility before integration.
QUÉ ES W9 GROUP
W9 Group Electronic MCCB Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a WLM6EY-630 enquiry, contact W9 Group about configuration and matching product documents.
RECURSOS RELACIONADOS
WLM6EY-630 LCD Display MCCB and Modbus RS485 Information
Use W9 Group technical support and the product directory to specify WLM6EY-630. Request a datasheet and wiring diagram matching the selected WLM6EY-630 configuration.
LISTA DE PRODUCTOSExplora los productos de W9 GroupBrowse W9 Group models and request the specifications of the selected product
DOCUMENTOSCentro de descarga de W9 GroupRequest the current document for your quoted WLM6EY-630 variant
Preguntas frecuentes del comprador
WLM6EY-630 Electronic MCCB FAQs: Settings and Communication
Find answers about WLM6EY-630 selection, configuration and ordering.
What is the WLM6EY-630 used for?
W9 Group lists this 630 A-frame electronic molded case circuit breaker for AC circuit protection, with LCD indication and a Modbus RS485 interface.
Is every WLM6EY-630 supplied at 630 A?
No. 630 A identifies the frame described on this page; the published current schedule includes 400, 440, 460, 480, 500, 530, 560, 600, 630 A. Confirm the selected rating and trip-unit adjustment range.
Which pole and voltage options are listed?
The summary lists 3P / 4P and 400 / 690 V. Breaking capacity depends on the voltage and variant code; confirm the complete combination in the supplied datasheet.
What does the LCD display show?
An LCD display is listed. Confirm the available measurements, fault indications and display menus for the exact trip-unit version instead of assuming every series feature is included.
Can the Modbus RS485 interface connect directly to my controller?
The interface is listed, but integration requires the matching register map, address and serial settings. Confirm auxiliary power and controller support with W9 Group.
Does communication provide remote closing or every protection function?
An RS485 interface alone does not establish remote closing or a complete protection-function set. Confirm the operating mechanism, accessories, trip functions and settings in the offered configuration.
What is needed for a WLM6EY-630 quotation?
Envíe la configuración requerida, la cantidad, el mercado de destino y los requisitos documentales. Solicite a W9 Group que confirme el precio, la cantidad mínima de pedido, las muestras y el plazo de entrega para la configuración seleccionada.
Solicitud de producto
Request a WLM6EY-630 Electronic MCCB Quotation
Tell W9 Group your frame and ordered current, 3P or 4P, operating voltage, fault level, trip settings and Modbus requirements, quantity and destination market so the selected configuration can be identified.
