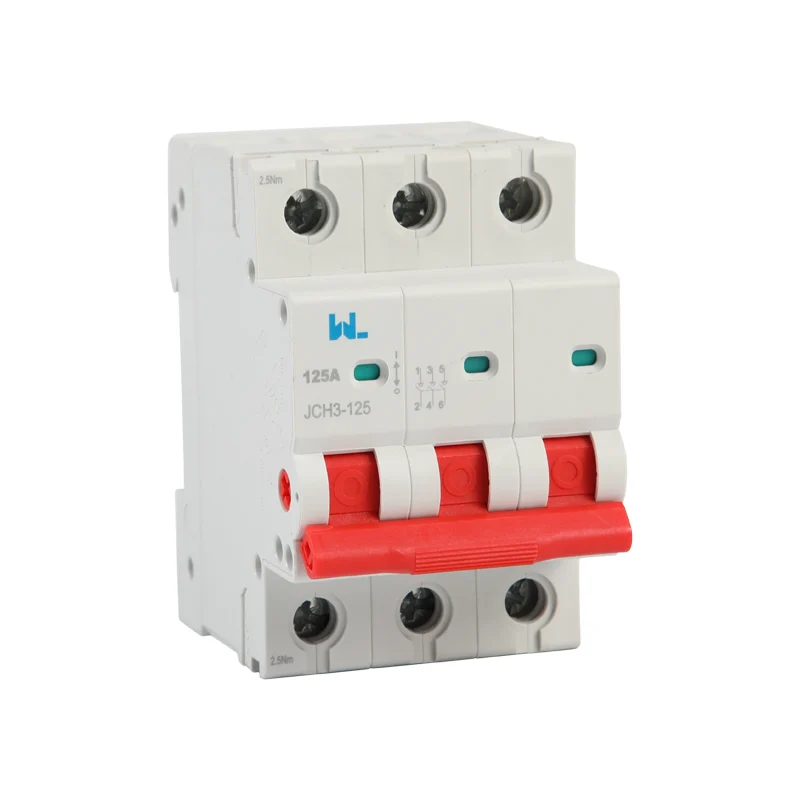

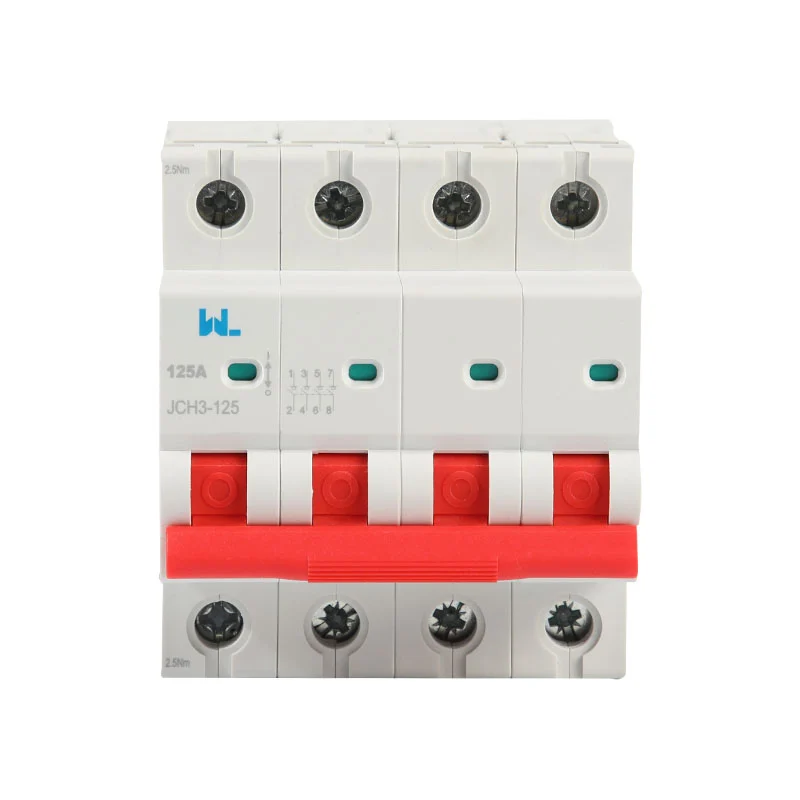

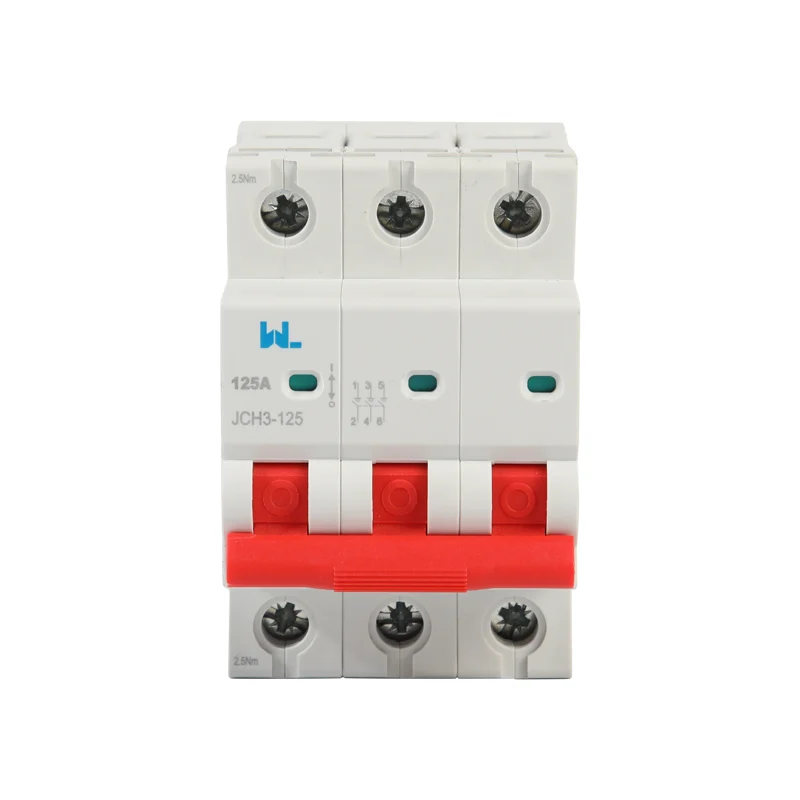

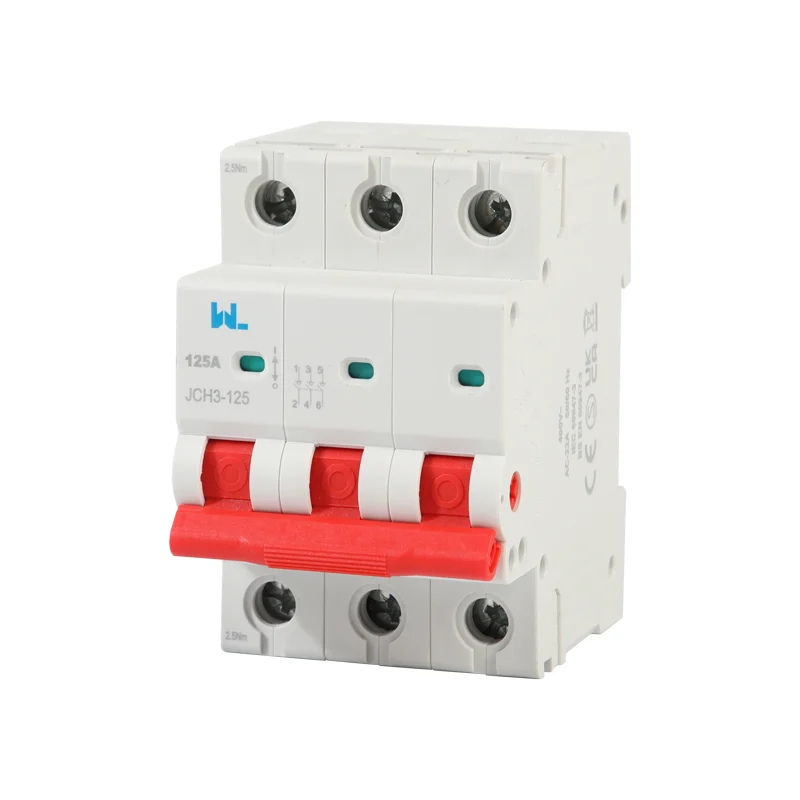

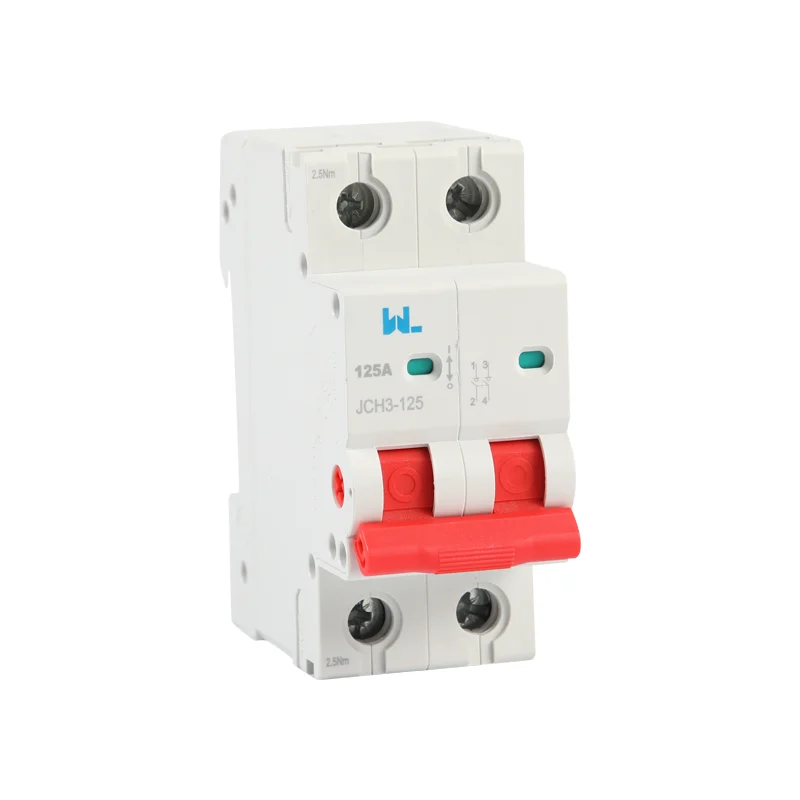

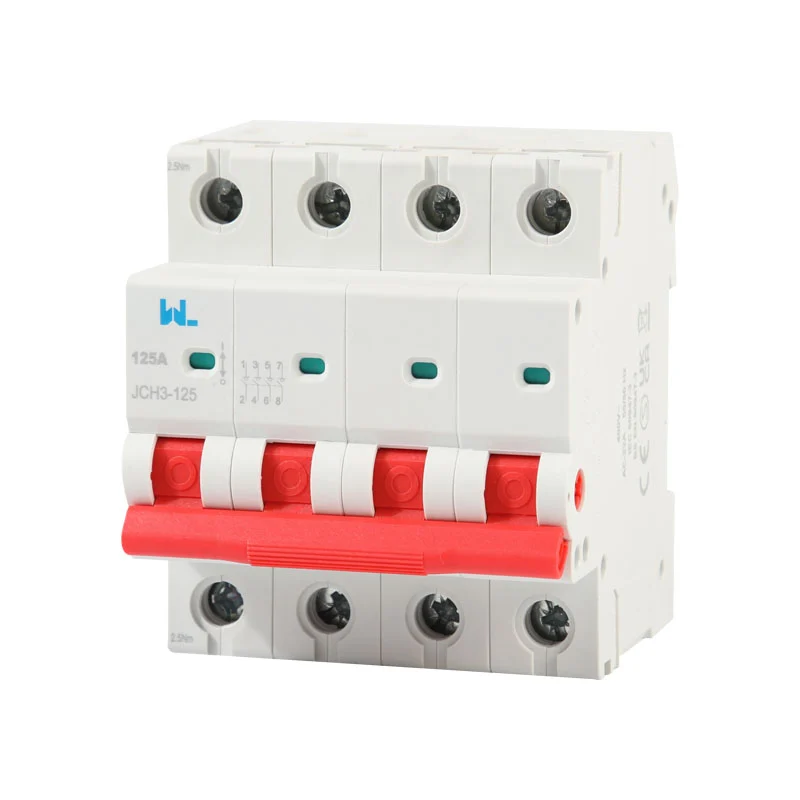

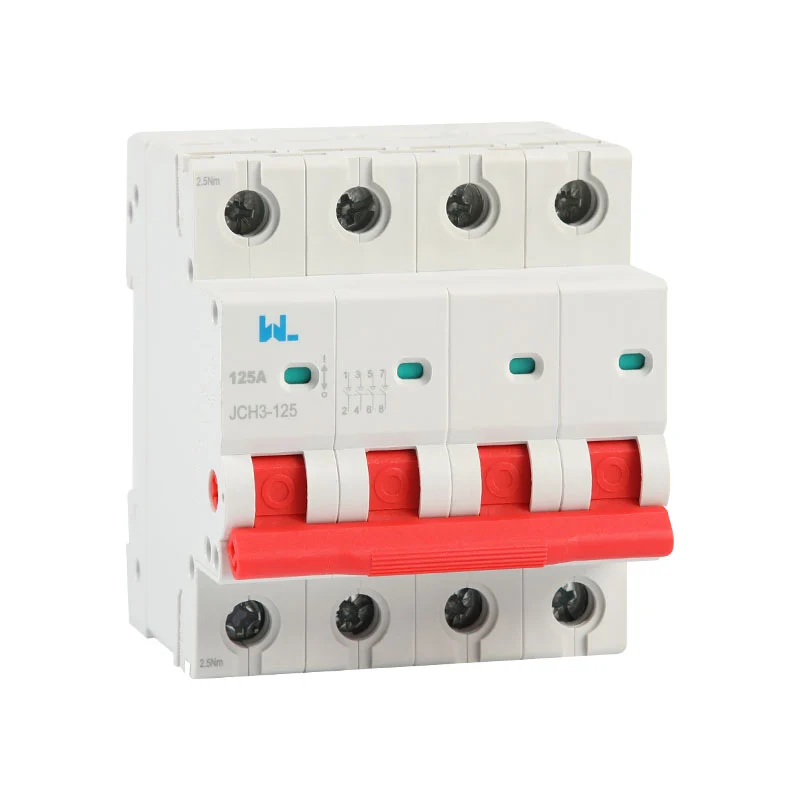

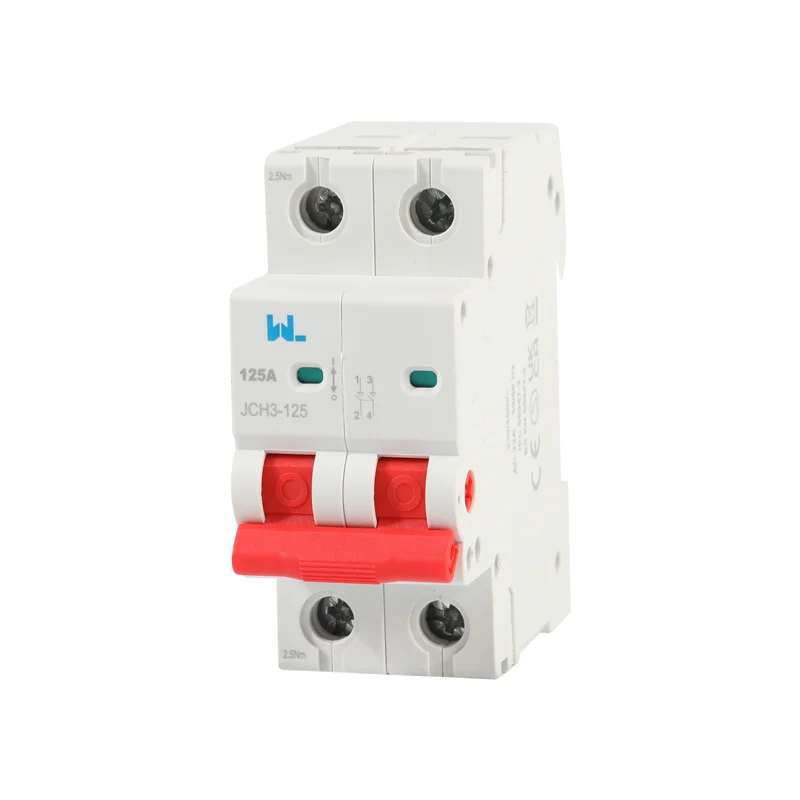

Interruptor de aislamiento JCH3-125 Interruptor principal de aislamiento 100A 125A
DATOS TÉCNICOS
JCH3-125 100A and 125A Main Switch Isolator Information
The W9 Group product title identifies JCH3-125 as a main switch isolator with 100A and 125A designations. Use JCH3-125 in the enquiry and confirm the offered current, poles, switching duty and installation drawing for that exact model.

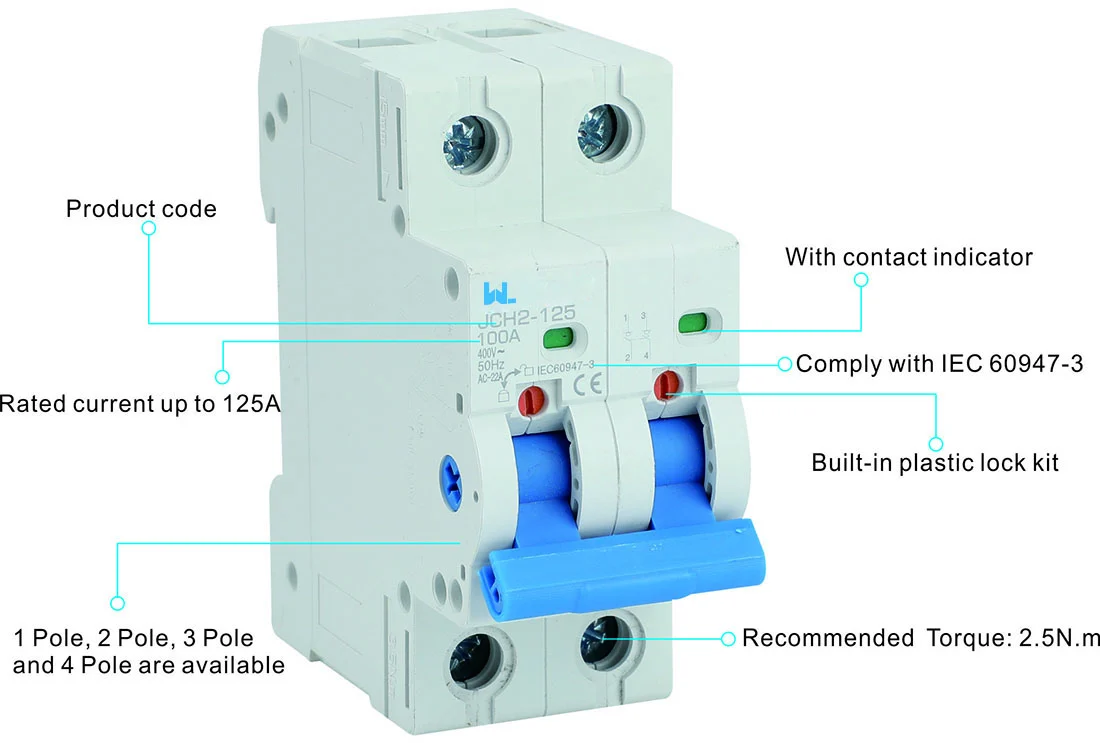

The title identifies JCH3-125, while older body text identifies JCH2-125 and contains a different rating schedule. Confirm a JCH3-125-specific datasheet and nameplate before selection.
| Estándar | IEC/EN 60947-3 | |
|
Características eléctricas |
Corriente nominal en A (A) | 32,40,50,63,80,100,125 |

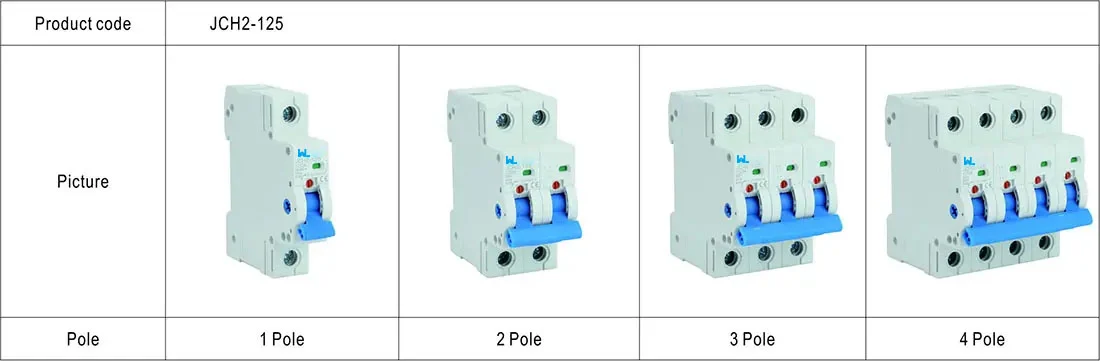

| Polacos | 1P, 2P, 3P, 4P | |
| Tensión nominal Ue (V) | 230/400~240/415 | |
| Tensión de aislamiento Ui (V) | 500 | |
| Frecuencia nominal | 50/60Hz | |
| Rated impulse withstand voltage(1.2/50) Uimp (V) | 4,000 | |
| Rated short-time withstand current lcw | 12le, 1s | |
| Rated making and breaking capacity | 3le, 1.05Ue, cosφ=0.65 | |
| Rated short circuit making capacity | 20le, t=0.1s | |
| Dielectric test voltage at ind. Freq. for 5s | 2kV | |
| Nivel de contaminación | 2 | |
| Uilization category | AC-22A | |
|
Características mecánicas |
Vida eléctrica | 1500 |
| Vida mecánica | 8500 | |
| Indicador de posición de contacto | Sí | |
| Nivel de protección | IP20 | |
| Ambient temperature (with daily average ≤35℃) | -5…+40 | |
| Storage temperation (℃) | -25…+70 | |
| Instalación | Tipo de conexión de terminal | Cable/tablero tipo U/tablero tipo pin |
| Dimensiones del terminal superior/inferior para el cable |
50mm2 / 18-1/0 AWG |
|
| Dimensiones terminales superiores/inferiores para la barra de bus |
35mm2 / 18-2 AWG |
|
| Torque de ajuste |
2.5 N*m / 22 In-Ibs. |
|
| Instalación | En el soporte de pared DIN EN 60715 (35 mm) mediante dispositivo de sujeción rápido | |
| Conexión | From top and bottom |
Guía de selección
Selecting JCH3-125 100A 125A main switch isolator for Your Installation
Use JCH3-125 as the enquiry reference and confirm the selected configuration against your circuit, connection and installation requirements.
Defina la tarea de conmutación
Indique el tipo de carga, la tensión de suministro y la carga operativa requerida. Confirme la categoría de utilización y las condiciones de conmutación permitidas.
Seleccione el voltaje y los polos
Combine la configuración de corriente y de polo ordenada con el circuito, incluyendo cualquier requisito de conmutación de neutro.
Coordinación de la protección contra fallas
Especificar el dispositivo protector upstream y la corriente de fallo potencial. Solicitar la información de coordinación de cortocircuito del fabricante.
Verificar el recinto y el acceso
Compruebe las dimensiones, los detalles del terminal, el montaje y el acceso para la operación y el mantenimiento. Solicite las instrucciones de bloqueo por separado.
QUÉ ES W9 GROUP
W9 Group Support for JCH3-125 Product Enquiries
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a JCH3-125 enquiry, contact W9 Group about configuration and matching product documents.
RECURSOS RELACIONADOS
Request JCH3-125 Main Switch Isolator Wiring and Dimensions
Use technical support and related products to specify JCH3-125. Request a datasheet and wiring diagram matching the selected JCH3-125 configuration.
PRODUCTO RELACIONADOIsolador de conmutador principal JCMS100Compare función y configuración; solicite calificaciones separadas para cada modelo
DOCUMENTOSCentro de descarga de W9 GroupRequest the current document for your quoted JCH3-125 variant
Preguntas frecuentes del comprador
JCH3-125 Main Switch Isolator Rating and Wiring FAQs
Find answers about JCH3-125 selection, configuration and ordering.
Is this isolator an automatic circuit breaker?
It is listed as a manual switch disconnector. Confirm separate overload and short-circuit protection; a manual switching function does not establish automatic fault tripping.
Which model should appear on the order?
Request the complete order code and nameplate confirmation from W9 Group. Use a matching model-specific datasheet and connection drawing throughout the specification.
How should I choose the current and pole arrangement?
Provide the circuit current, supply and neutral-switching requirement. Confirm the exact current option and conductor arrangement for the offered model.
Does a withstand rating establish load switching duty?
No. Confirm rated operating voltage and utilization category separately from insulation, impulse and short-time withstand data.
Can the JCH3-125 main switch isolator be locked for maintenance?
Confirm whether the selected JCH3-125 has a compatible locking arrangement, which operating positions can be secured and the required installation procedure.
Which installation documents should I request?
Request the terminal diagram, mounting dimensions, conductor limits, tightening instructions and applicable operating-duty schedule for the exact nameplate model.
What should I send for a JCH3-125 quotation?
Send the complete JCH3-125 designation, required configuration, quantity, destination market and documents needed. Ask W9 Group to confirm the offered item, price, minimum order quantity and delivery terms.
Send W9 Group the complete JCH3-125 designation, circuit or host-equipment requirements, quantity and destination market. Request the exact offered configuration and its matching technical documents.
Request JCH3-125 Pricing and Technical Documents
Tell W9 Group your complete order code, circuit duty, installation conditions and required technical documents, quantity and destination market so the selected configuration can be identified.
