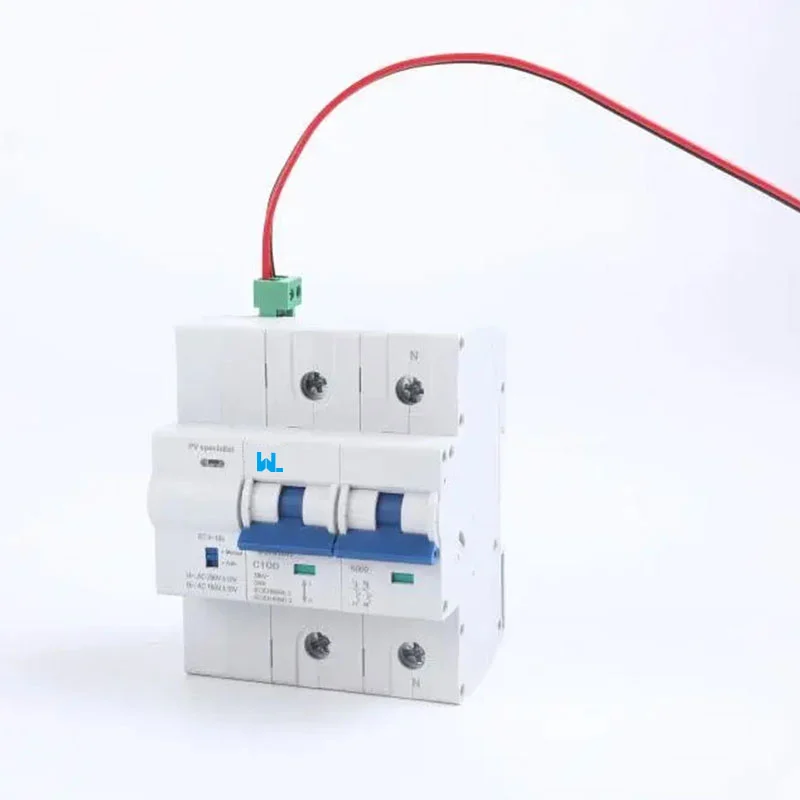

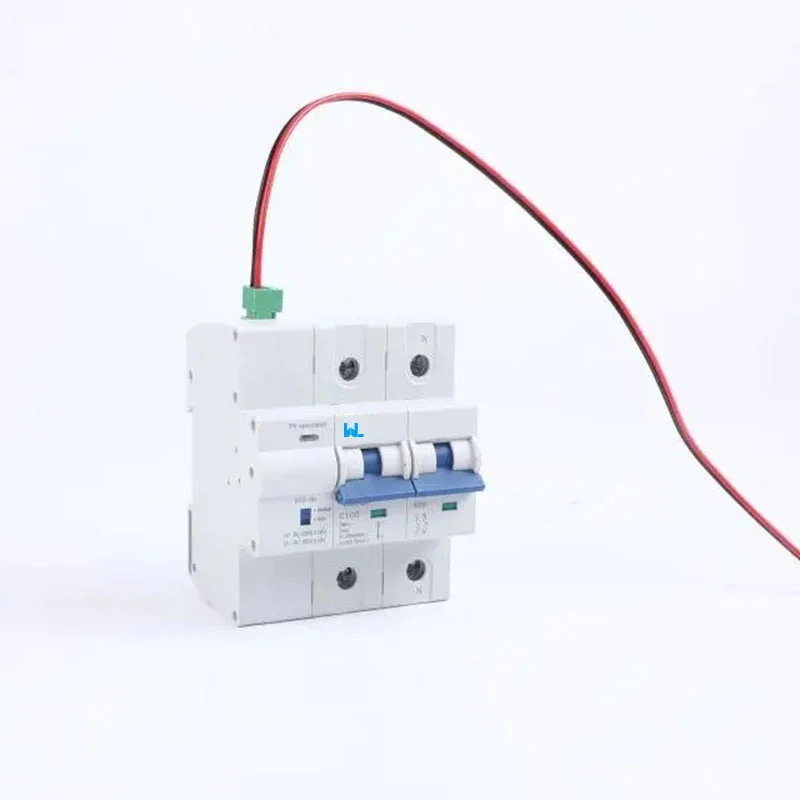

JC100-2P miniature circuit breaker
DATOS TÉCNICOS
JC100-2P Miniature Circuit Breaker Specifications and Control Modes
The JC100-2P miniature circuit breaker is listed by W9 Group with automatic and manual control modes. The product information describes voltage-related opening and mode-dependent reclosing. Select the exact pole configuration and obtain the voltage thresholds, delay settings and protection ratings for the supplied version.
| Native model | JC100-2P |
|---|---|
| Categoría de producto | Miniature circuit breaker with voltage-control modes |
| Native pole designation | 2P |
| Control modes | Automatic / manual; confirm operating sequence |
| Voltage-related operation | Confirm overvoltage, undervoltage and voltage-loss response |
| Reclosing behavior | Confirm automatic restoration and manual-mode reset conditions |
| Current and fault ratings | Request the exact-model current schedule, trip curve and breaking capacity |
Guía de selección
Selecting a JC100-2P Voltage-Control Circuit Breaker
Specify the native model, pole arrangement, current, circuit voltage, voltage-control settings and reclosing requirements when requesting a JC100-2P quotation from W9 Group.
Confirm the exact model
Specify JC100-2P and the pole arrangement. Request a matching datasheet rather than treating the model number as a confirmed current rating.
Choose the operating mode
Confirm whether automatic reclosing is permitted by the installation and how manual mode behaves after voltage restoration.
Specify voltage response
Request opening thresholds, delays, voltage-loss behavior and reset conditions for the actual device.
Verify protection and wiring
Confirm current rating, trip curve, fault duty, supply side and neutral terminals using the approved wiring diagram.
QUÉ ES W9 GROUP
W9 Group JC100-2P Miniature Circuit Breaker Supply and Support
Zhejiang W9 Group Technology Co., Ltd. supplies low-voltage electrical products. For a JC100-2P enquiry, contact W9 Group about configuration and matching product documents.
RECURSOS RELACIONADOS
JC100-2P Circuit Breaker Wiring and Control Documents
Use technical support and related products to specify JC100-2P. Request a datasheet and wiring diagram matching the selected JC100-2P configuration.

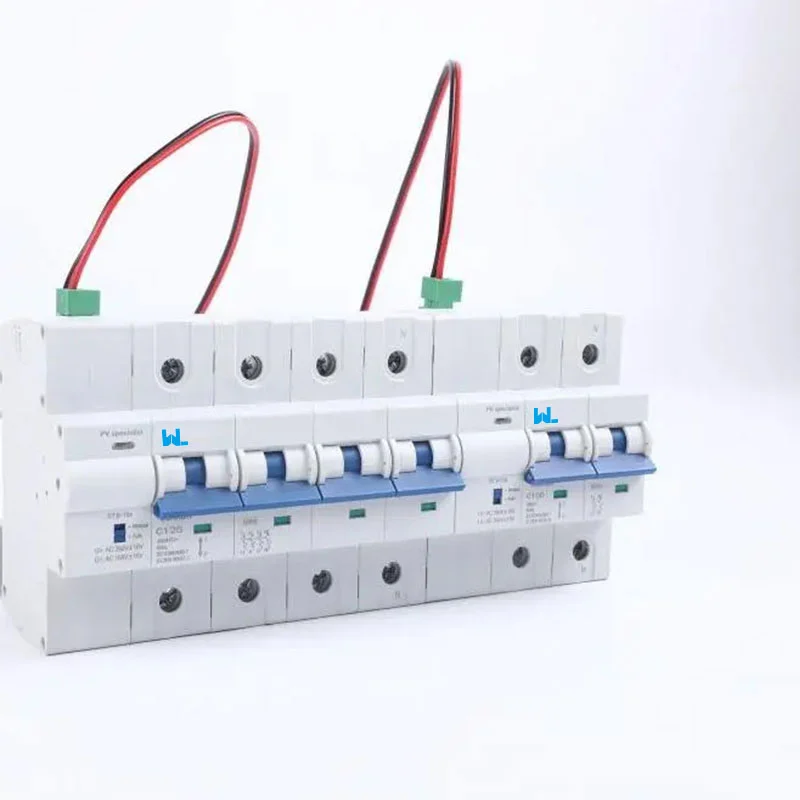

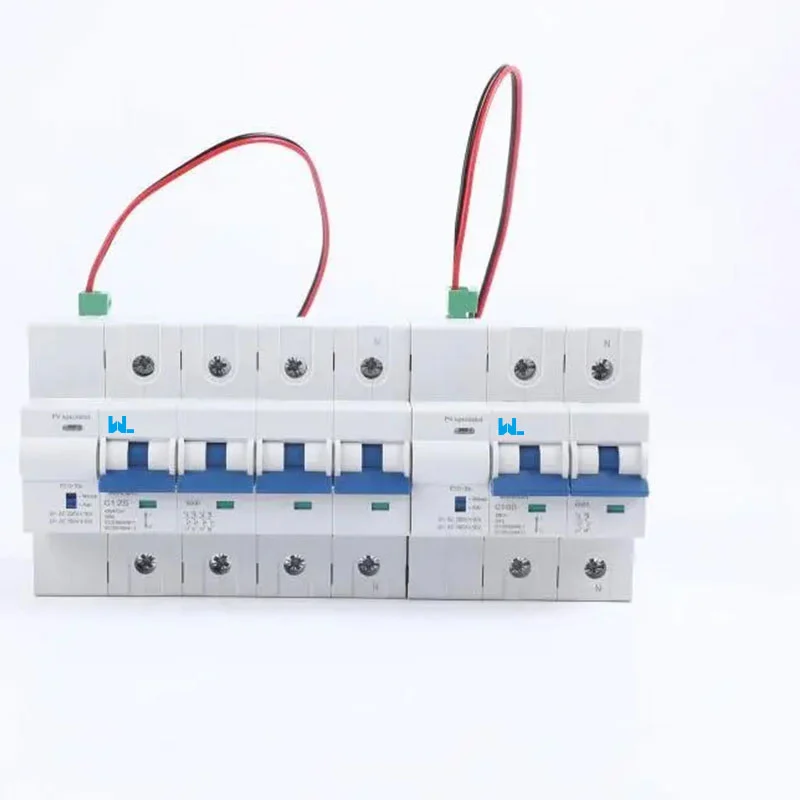

PRODUCTO RELACIONADOJC125-4PCompare función y configuración; solicite calificaciones separadas para cada modelo
DOCUMENTOSCentro de descarga de W9 GroupRequest the current document for your quoted JC100-2P variant
Preguntas frecuentes del comprador
JC100-2P Miniature Circuit Breaker FAQs: Voltage and Reclosing
Find answers about JC100-2P selection, configuration and ordering.
What does the JC100-2P designation identify?
It is the native product model and pole designation used for this listing. Confirm the ordered current and electrical ratings from a matching datasheet; the digits in the name alone are not a verified current schedule.
What is the difference between automatic and manual modes?
The source distinguishes automatic operation with voltage restoration from manual mode without automatic reclosing. Confirm the full opening and reset sequence for the supplied version.
Which voltage thresholds and time delays apply?
Exact thresholds and delays are not established in the available model data. Request the configured overvoltage, undervoltage and voltage-loss settings before integration.
Can I use it as a DC photovoltaic breaker?
The photovoltaic application wording does not establish a DC voltage rating or DC pole connection. Confirm the intended circuit side and exact AC or DC rating before specifying the product.
Does voltage-control operation establish earth-leakage protection?
Do not infer an earth-leakage function from the control modes. Confirm the complete protection list and any separate residual-current device required by the installation.
Which installation documents are needed?
Request the exact-model wiring diagram, terminal identification, mounting dimensions and commissioning instructions. Confirm neutral connections and the allowed automatic-reclosing arrangement.
What is needed for a JC100-2P quotation?
Envíe la configuración requerida, la cantidad, el mercado de destino y los requisitos documentales. Solicite a W9 Group que confirme el precio, la cantidad mínima de pedido, las muestras y el plazo de entrega para la configuración seleccionada.
Solicitud de producto
Request a JC100-2P Miniature Circuit Breaker Quotation
Tell W9 Group your native model, pole arrangement, current, circuit voltage, voltage-control settings and reclosing requirements, quantity and destination market so the selected configuration can be identified.
